Ok, so the tub posts (on my part) are going to take a vacation.
We have to fit up a few things before the tub comes back off.

Ordered a Kentrol Inc. Sport Cage. The kit came with L & R floor plates, the front sport bar 0.125, and a pair of pre-bent "kicker" tubes also 0.125. As well as some instructions.

So we put the bar in moved it around and decided on 3/4" off the windshield

Oh, we put the windshield frame in place and cleaned up the old brackets, I have new black stainless everything waiting for the after paint party. Also installed the stock "show" bar


Added some oak plank to keep the gap equal, checked the angle on both sides and marked the floor.

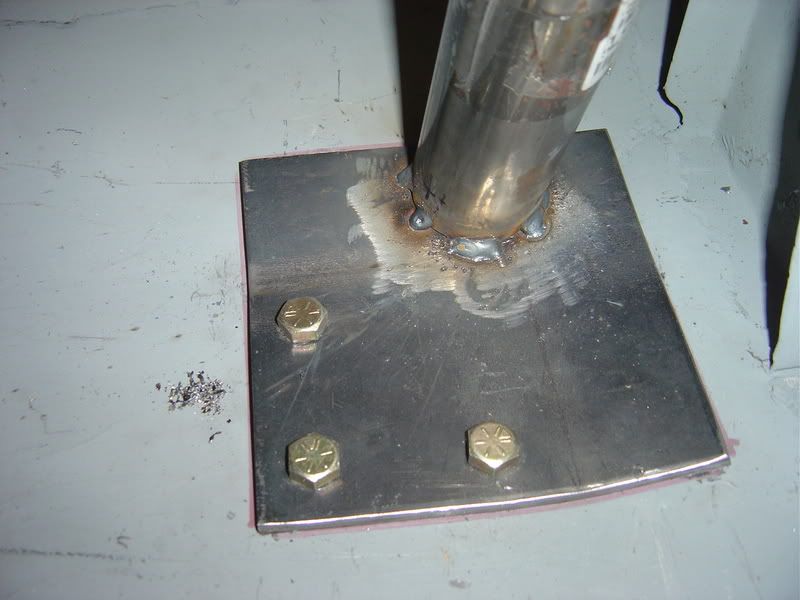

Placed the plates and found the pre formed plate angles needed about 7* more, so some massaging with the press and we have a nice fit

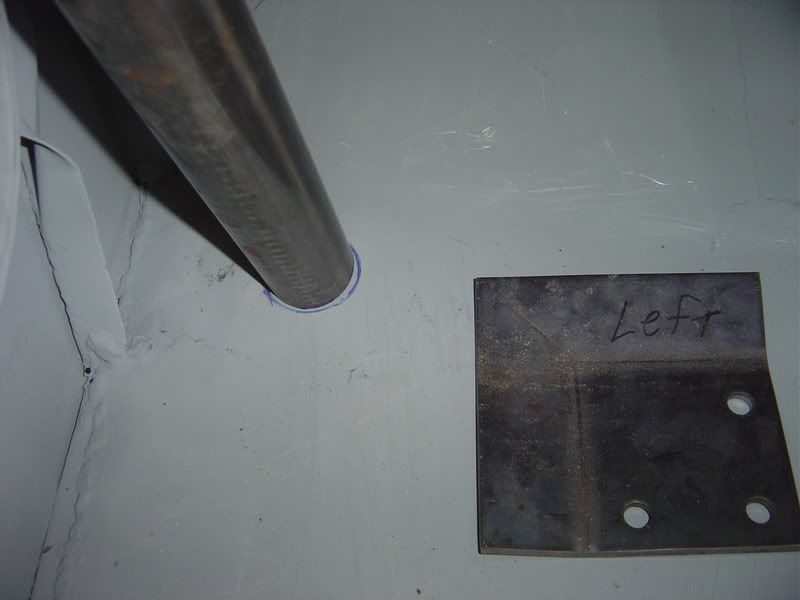

Cleaned up the plates, and measured up the bar for the needed cuts, leveled, measured, repeat, repeat, repeat, ..... cut!


BTW, I'll just show one side as the left and right work is almost the same thing. Just remember to line up the tube based on the body location, not the plate location.

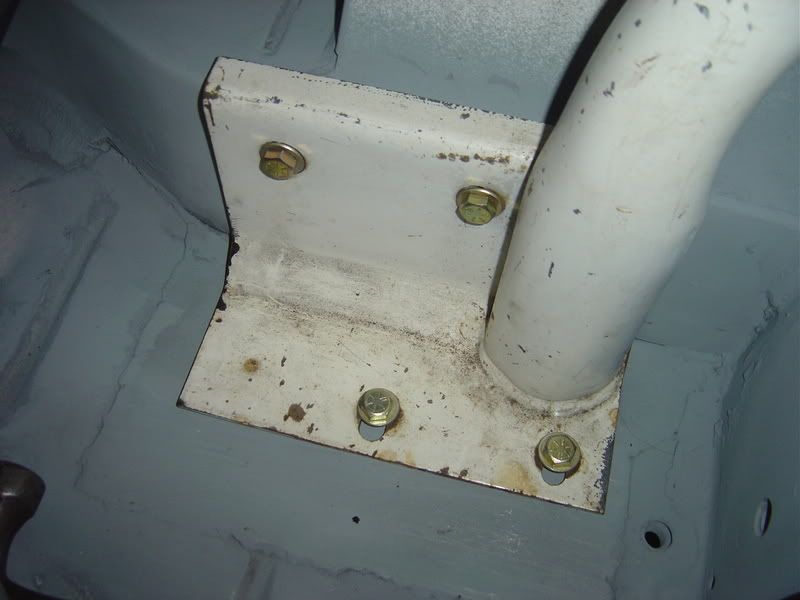

Left:


Right:

Fooled ya!

Next we measured out the tube for the dash bar. Super Friend let me borrow this awesome tool:



Dash bar held in by compression, need to put in old dash and cut the dash pad to check height



More pics and details to follow shortly


·
Registered
Joined
·
2,451 Posts
Discussion Starter · #3 ·
To bring this up to date,
After putting on the old dash panel, we cut the dash pad with a sawsall and used a belt sander to shape the sides of the pad:


put some JB Weld on the drivers end where it became a little frayed:


I'm looking for a product that I can paint on or dip the pad in to get a nice simi-hard finish over the foam again.

Pad installed and dash bar height adjusted



Put the seats in so we could check the fit of the diagonal lateral bar


Me and my son. First time we have sat in the Jeep since November


We bent two bars out of 2" 0.225 to match the ones that came with the kit. We'll install those shortly along with the lateral and a few grab bars.
Of course the lateral goes behind the seat but you get the idea.


Random shots:



Will stop this afternoon and pick up the 3/16" for the front and center frame tie in's. Need to order some isolators for the rear tie ins and cut out the rear quarter panel supports


·
