This is the build thread for my 2003 Jeep Wrangler. Here are the specs and my plans for it.

Stock Specs:

2003 TJ Sahara
4.0L
NV3550
NP231
Front: Dana 30
Rear: Dana 44 LSD
Gear Ratio: 3.73
70,000 miles on the Jeep.

The Lift:

Springs: 4" OME Coils 939/946
Shocks: OME LT N66L/N67L
F/R Adjustable Track Bars
Front LCAs
Rear UCAs
RC Front Sway Bar Disconnects
Rubicon Express Rear Sway Bar Links
Crown Extended Brake Lines
Currie Rear Shock Relocation Brackets
SYE/CV: TeraFlex Extreme Short SYE + Tom Woods XB Shaft
Wheels: 15x8 Canyons with Spidertrax Spacers
Tires: 33x12.5 BFG KM2

Status: Right now the Jeep is in the garage waiting on a SYE install.

I am going to put up a few mods I have previously done and will try to keep this thread as updated as possible.

Please feel free to leave comments and ask questions. Any input will be welcome.

See less See more

1 - 15 of 15 Posts

242TJ

Discussion Starter · #2 · Aug 13, 2010

4

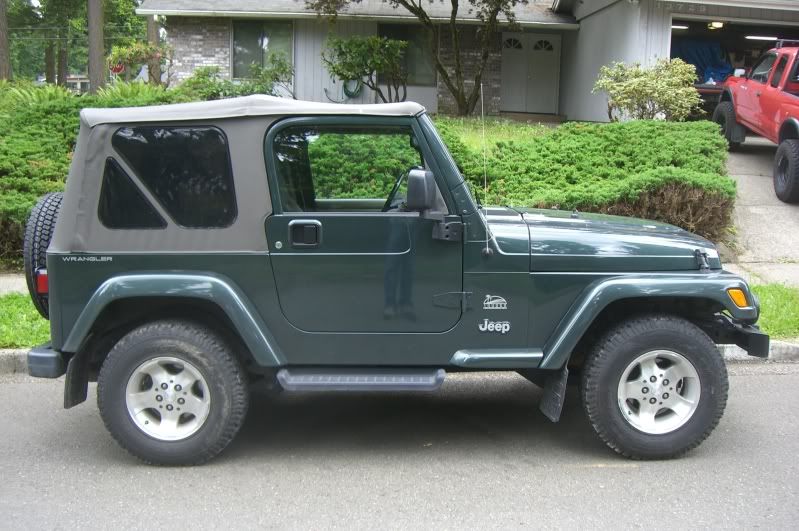

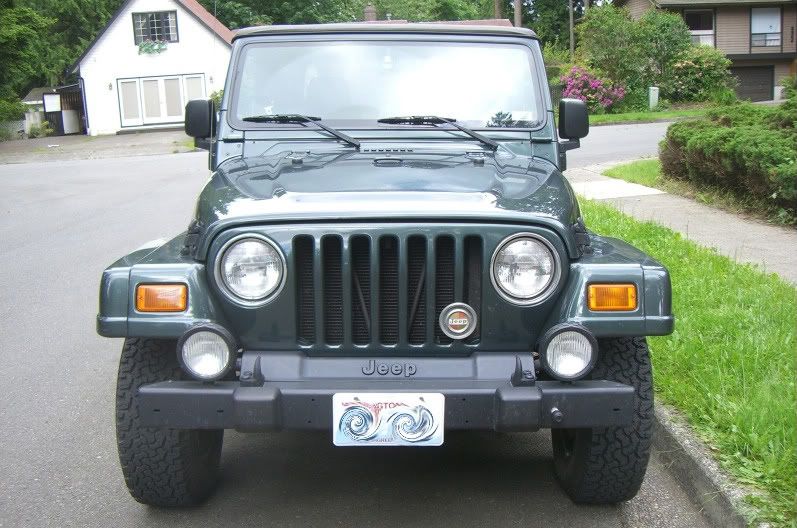

Before Pictures:

See less See more

242TJ

Discussion Starter · #3 · Aug 13, 2010

5

The Jeep has been in the garage for a few weekends now. Waiting on back-ordered parts is a bigger problem than I thought it would be. Probably should have waited until everything was here to get started.

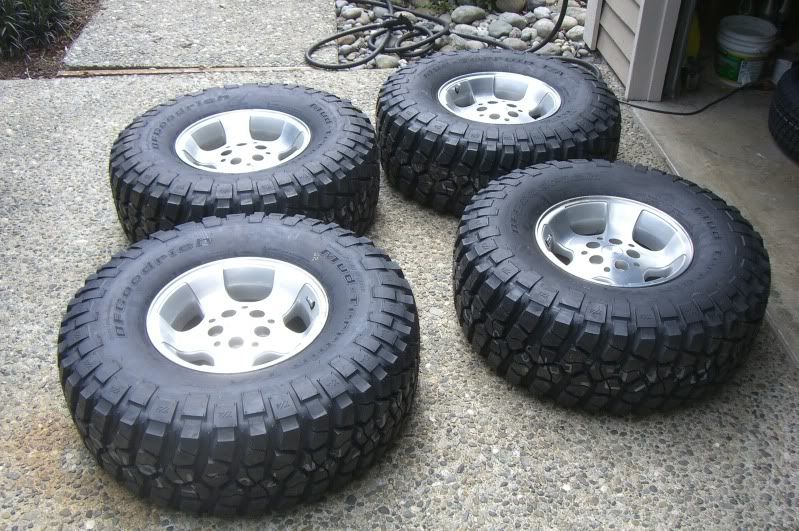

Tires came in and I was able to get them mounted and balanced for free at 4WheelPats. It was some sort of big sale weekend and they were offering free mounting.

As of last weekend:

Springs, control arms, track bars, and the sway bar links are installed

Front track bar bracket needs to be bolted through the frame. Four holes at almost 1", scary.

Used a spring compressor to get the front springs in. First time I had used a spring compressor and it made it much easier.

After some research I bought a RE CV rear track bar bracket to go with my adjustable track bar.

See less See more

242TJ

Discussion Starter · #4 · Aug 13, 2010

Anyone have any suggestions for getting a 33x12.5 to fit on the spare tire carrier? It hits the bumper and seems like it needs to be moved up, but will hit the center brake light.

APEDZ04LJ

· #5 · Aug 13, 2010

id recomend not running it on stock carrier, overtime it will warp and bend the tail gate

242TJ

Discussion Starter · #6 · Aug 13, 2010

GreenJeeper92 said:
id recomend not running it on stock carrier, overtime it will warp and bend the tail gate

I have heard that, and seen it as well. I have also heard that if the rubber bumpers for the tire are not touching it, it can be go wrong pretty quick. Anyone have a 33x12.5 on a stock carrier with the bumpers spaced out and no problems?

I would like a swing-out carrier. Just not in the budget right now.

242TJ

Discussion Starter · #7 · Aug 14, 2010

Thinking about this spacer. Anyone have any experiance with something like this?

See less See more

1jack5

· #8 · Aug 23, 2010

Hey I am interested in how you routed your air line to your bumper, I am looking at the MF-1050 and wondering if you have a write up or info on it?

242TJ

Discussion Starter · #9 · Sep 20, 2010

7

1jack5 said:
Hey I am interested in how you routed your air line to your bumper, I am looking at the MF-1050 and wondering if you have a write up or info on it?

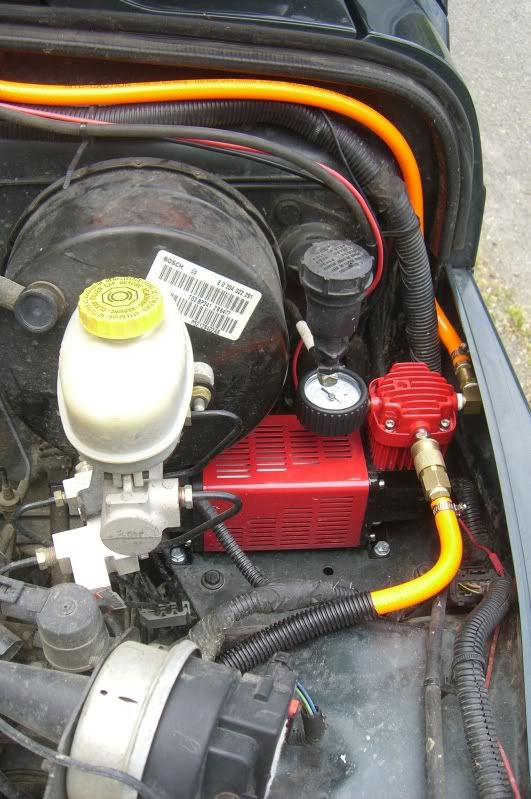

I mounted my MV50 to the empty ABS tray. I ran 1/4" air line to to the bumper and to the air box. The intake for the compressor get the same clean air the engine gets this way. I ran the line down to the bumper right above the shock tower down the frame and put a hole in the bumper. Wired a switch inside the Jeep and made a 4 tire setup to air up all 4 at the same time and equalize them. Here are some pictures. If you have any questions let me know. Sorry for the delayed reply.

See less See more

242TJ

Discussion Starter · #10 · Sep 20, 2010

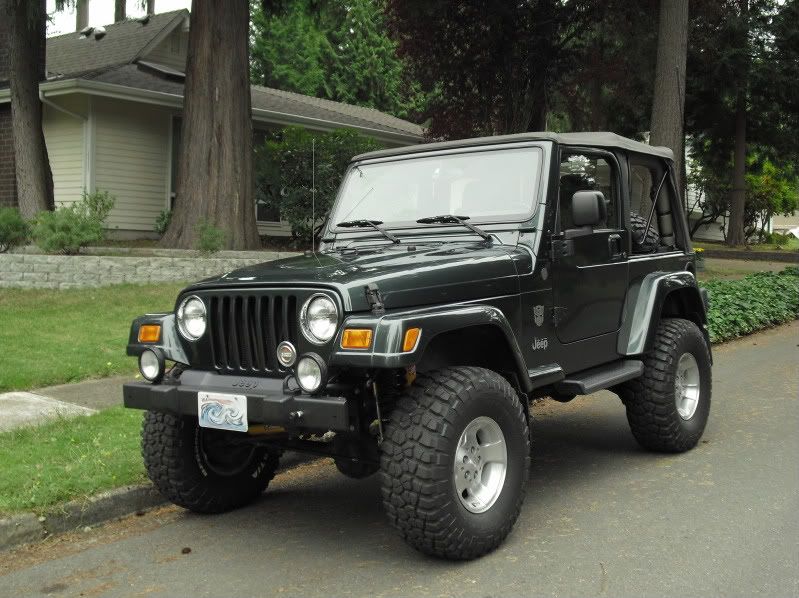

Finished the lift. Took a lot more hours than I thought it would and I am still adjusting a few things but its done.

See less See more

Jeiip

· #11 · Sep 28, 2010

Looks great!

bu3thab

· #12 · Sep 28, 2010

i like ur idea for the discharge comp. that is great

1jack5

· #13 · Sep 28, 2010

I really like that setup for the air compressor, ill probably do a version of that, Jeep looks great also, how does the lift ride? Also I like the old school Jeep symbol on the grill, really cool. keep it up.

242TJ

Discussion Starter · #14 · Sep 30, 2010

Thanks guys.

I got the old Jeep symbol of my father-in-law's 60s Jeep J300 he was giving to Olympic4x4 here in WA.

The four tire air up/down setup is awesome. Lets me do things like disconnect the sway bar and help out with other rigs while mine is taking care of itself. Only downside, the MV50 compressor cost me about $60, the air up/down setup was at least $85 on top of that. I didn't plan on spending that much but all the air fittings add up quick.

Takes me just under 12 minutes to go from 15psi to 30psi with all 4 33x12.5 KM2s linked together. My MV50 is ported so a stock one probably wont match that. I tested them individualy and it took me longer because of the movement between all four and trying to get the as close to each other as possible. If you've got an extra $75 its worth it.

242TJ

Discussion Starter · #15 · Sep 30, 2010

1jack5 said:
I really like that setup for the air compressor, ill probably do a version of that, Jeep looks great also, how does the lift ride? Also I like the old school Jeep symbol on the grill, really cool. keep it up.

The 4" OME springs are not the soft 180 or 190 spring rates found on the OME 2.5 kits. I think these are something like 235. I have the numbers for a lot of companies saved somewhere. The long travel OME shocks are matched pretty well to it but it is still a stiff ride. The stiffer but smoother feel that I was told I would have is really true. Takes the big bumps a lot better but lets you know about every single small bump due to the stiff ride.

Overall I am happy with the ride. The only other lifted coil spring Jeep I have driven is a 4" RC on a JK, so not much to compare it to.
