AEV Snorkel install.

I thought I'd write a thread on it since I deviated from AEV's instructions a bit to make things easier.

I forget which member on here mentioned it, but installing the snorkel first before cutting made checking the alignment of the template a lot easier.

I didn't bother with an angle grinder at all since it was too clumsy for this work. I primarily used a multi-speed dremel and electric body saw (from harbor freight).
I used 3 cutting wheels and 2 grinding wheels on the dremel, and 2 blades on the body saw (one it came with lost all its teeth half way through.)

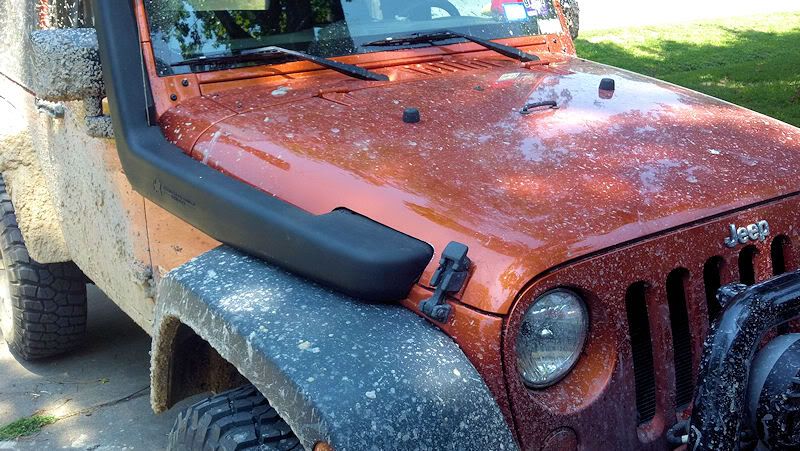

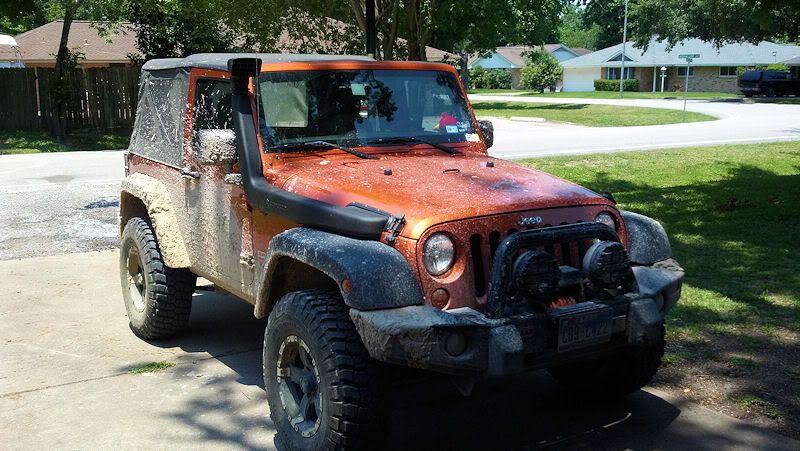

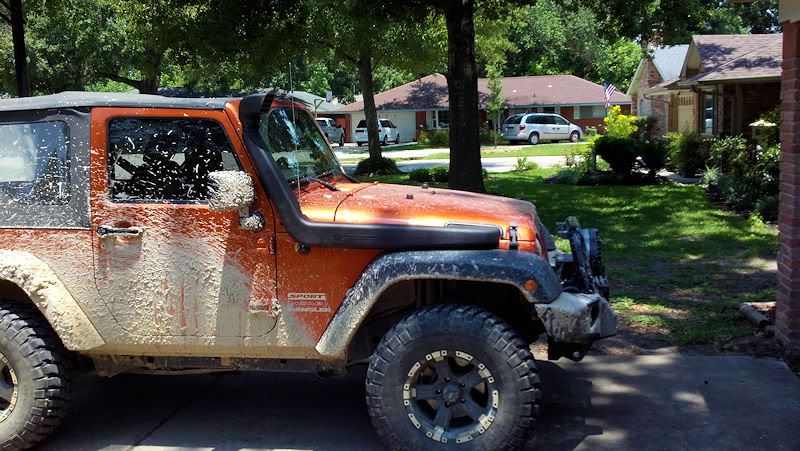

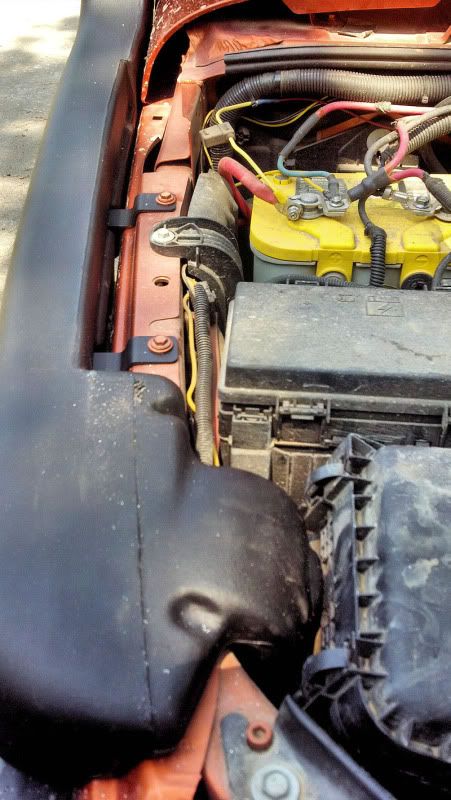

snorkel installed:

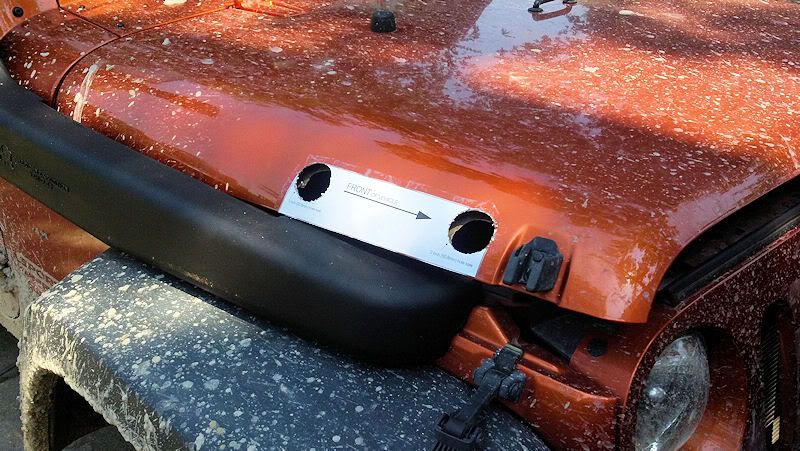

Template taped on and holes drilled with 2" holesaw and high powered electric drill (be VERY careful when doing this, if the saw jams and stops the drill can fly out of your hands possibly hurting your wrist). My saw caught once on the forward hole, you can see where the teeth went into the hood just above the cut line thank goodness that was covered by the trim ring AEV provided.

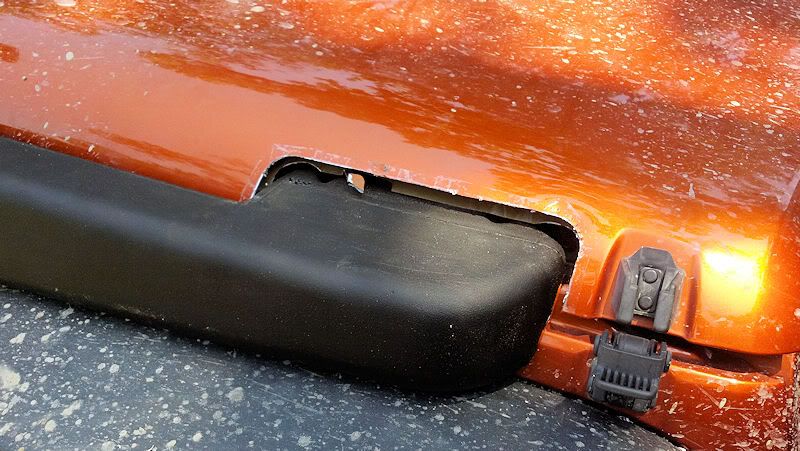

raw cut done, inside still left to do: (the body saw made this real quick and easy)


cutting the inside metal was a little more difficult. I tried using my angle grinder but found it very difficult, so I defaulted to my dremel cut off wheels and finished up with my body saw and cleaned up all the edges with my dremel with grinding heads. The cut wasn't as clean as I had liked it, but I needed my Jeep for work in a few hours so I was in a hurry.


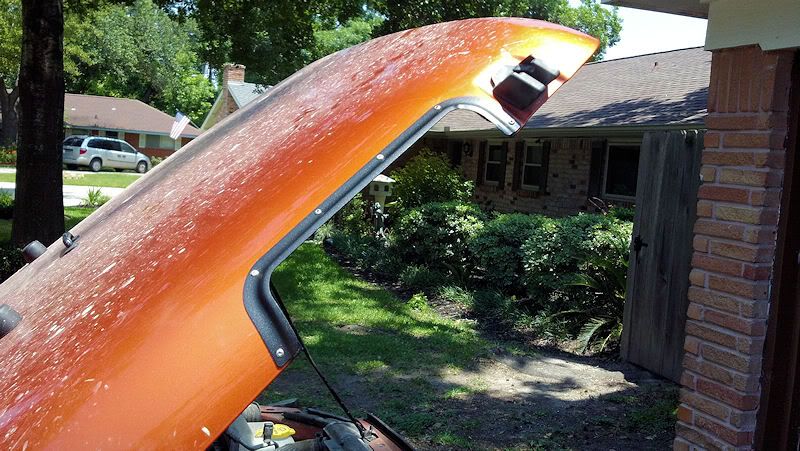

Trim ring was easy as pie to install, pop rivet gun and a drill, followed by black paint underneath to cover all the newly exposed metal, and done:




And all this followed up by silicone sealant on the air box where the inlet meets the box and the drain holes at the bottom also needed to be sealed.

Also, if you install the snorkel first, be careful when cutting and drilling that you don't fall through once the metal lets go and nick the snorkel as its right under where you're cutting. I propped my hood up with a toolbox during this part.

So far, first initial driving impressions are basically showing no changes performance wise. Power feels the same and mileage also returns the same, but now I won't have to worry about hydrolocking.

My only complaint was the ram air head. In that it felt extremely cheap. I had an ARB snorkel on my old YJ and the plastic work was far better quality and it cost less than this AEV one did; not that it really matters, but it was just an observation I made.

Total install time was about 2 hours

Tools required:
Pop rivet gun
Drill
body saw
dremel
metric allen wrenches
torx bits
sharpie
tape (no duct tape)
silicone sealant
angle grinder
2" holesaw with mandrel
center punch
drill bits


Jeep garage:
2011 Jeep Wrangler JK - 33" BFG KM2s, 2.5" RC BB, ARB bumper, IPF 900XS, Superwinch EPI 9.0, AEV Snorkel
1995 Jeep Wrangler - 4 cyl, 2.5" lift, BFG AT 30s, Ford 8.8, SYE+CV, AX15 swap, ARB snorkel, Aussie locker + loads more - sold
1978 Jeep CJ-7 - 304 V8, TH400 auto and quadratrac
2007 Jeep Liberty - Mother's Jeep, BFG ATs and....mud?
