What is this? (broken part)

I was driving home from work yesterday and I heard a terrible noise from my front and my front right wheel locked on me O.o

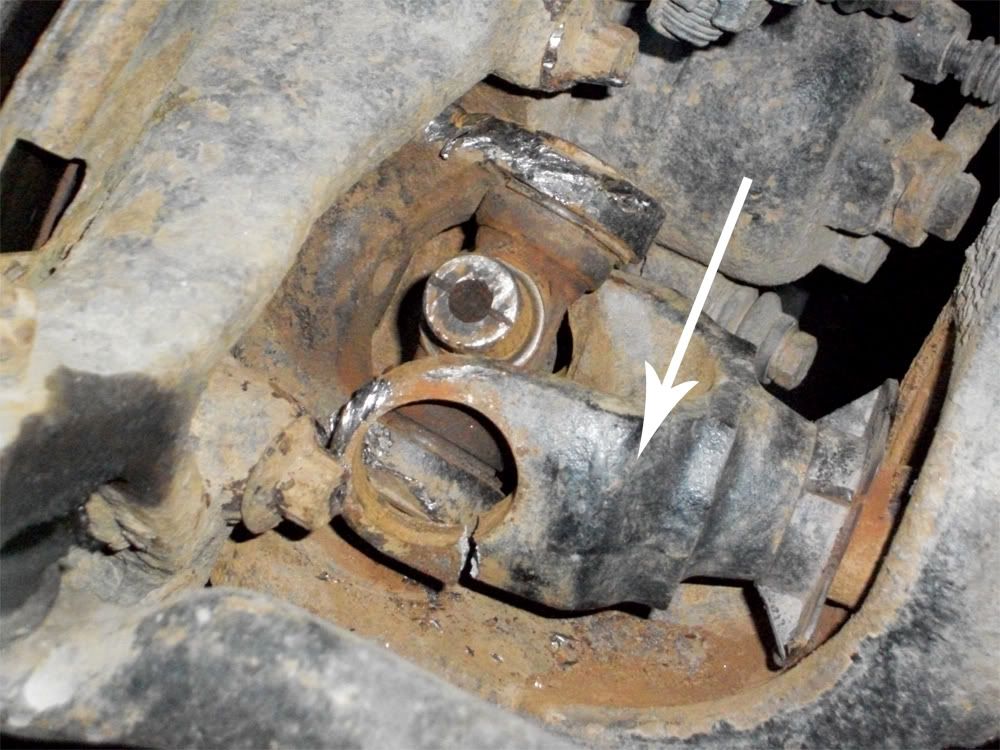

I am not too knowledgeable but like learning to fix my jeep, I need to know what part this is. I know I will need a universal joint but what is the part that is connected to the universal joint called? I have an arrow pointing to it in the picture below

I think it's a front right inner axle.. but when I was looking at them online they had a round disk on the end that should be connected to the universal joint.

Thnx




¡ɹǝʌo ǝɯ 11oɹ 'sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
TJ-Tim is offline
Sponsored Links
Advertisement

post #2 of 24 Old 03-11-2010, 07:56 PM
jeepwcrazy
Registered User

jeepwcrazy's Avatar
1997 TJ Wrangler

Join Date: Jul 2004
Location: Visalia, Ca
Posts: 719
inner axle.
jeepwcrazy is offline
post #3 of 24 Old 03-11-2010, 07:58 PM
cj847
Registered User
1997 TJ Wrangler

Join Date: Oct 2006
Location: AR
Posts: 1,219
In this case you need the inner axle, the stub axle, and the Ujoint. Refer to them as drivers side or passenger side instead of left or right.

btw......that thing has been making a clicking noise for at least several days to have gotten to that situation. If you had checked that, you may have caught it in time to save the axles.

Note that your bolts are nearly destoyed that hold the hub on to the knuckle. So, you are going to need those too.

I unfortunately have experience with this same issue recently.

Here's what it looked like when I caught mine. Note that the axle was contacting the hub bolt in my case as well. Also, the wobbling of the axle tore up my inner axle seal (the grease on the inner C).

http://good-times.webshots.com/photo...81202095JAoEKb

97 TJ Sport OPJ project (other peoples junk) I can't remember the last time I bought a new part.
cj847 is offline

post #4 of 24 Old 03-11-2010, 07:59 PM
Divinitous
Disgruntled Jeepforum'er

Divinitous's Avatar
2000 TJ Wrangler

Join Date: Oct 2005
Location: NY/NJ/PA Tri-State Middletown NY 10941
Posts: 3,199
Yup, looks like you need a new passenger side shaft.

Original Replacement Parts 4874302 - Passenger Side Axle Shaft Assembly for 87-06 Jeep® Wrangler YJ, TJ, Unlimited & 91-01 Cherokee XJ (With Model 30 Front Axle & without ABS) - Quadratec

-Ryan
Quote:
Originally Posted by Enzo Ferrari
"The Jeep is Americas only real sports car!"
Quote:
Originally Posted by MrBlaine
"Jeeps do not make jeepers, jeepers make Jeeps."
Divinitous is offline
post #5 of 24 Old 03-11-2010, 07:59 PM Thread Starter
TJ-Tim
Registered User

TJ-Tim's Avatar
2001 TJ Wrangler

Join Date: Dec 2009
Location: Dupont
Posts: 415
thnx for the quick response

¡ɹǝʌo ǝɯ 11oɹ 'sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
TJ-Tim is offline
post #6 of 24 Old 03-11-2010, 08:01 PM Thread Starter
TJ-Tim
Registered User

TJ-Tim's Avatar
2001 TJ Wrangler

Join Date: Dec 2009
Location: Dupont
Posts: 415
Quote:
Originally Posted by cj847 View Post
In this case you need the inner axle, the stub axle, and the Ujoint. Refer to them as drivers side or passenger side instead of left or right.

btw......that thing has been making a clicking noise for at least several days to have gotten to that situation. If you had checked that, you may have caught it in time to save the axles.

Note that your bolts are nearly destoyed that hold the hub on to the knuckle. So, you are going to need those too.

I unfortunately have experience with this same issue recently.
was not clicking in the slightest, but thnx for the heads up

¡ɹǝʌo ǝɯ 11oɹ 'sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
TJ-Tim is offline
post #7 of 24 Old 03-11-2010, 08:10 PM
BYuen
Registered User

BYuen's Avatar
2001 TJ Wrangler

Join Date: Jun 2007
Location: Dallas
Posts: 4,946
Garage
You can get a replacement shaft for pretty cheap at a U Pull It yard. There's plenty of HP30s from Cherokees out there. If you go this route, just make sure the shaft isn't from a vacuum disconnect housing. If you get a used shaft I would also replace the u-joint while your at it to Spicer 5-760x. Well regardless you need a new u-joint lol. Make sure you get the Spicer 5-760x which is upgraded newer and stronger joint than what came stock which was the 5-297x joint.

2001 White TJ Sport
2013 Black JKU Rubicon 10A
BYuen is offline
post #8 of 24 Old 03-11-2010, 08:59 PM
rondak46
Registered User

rondak46's Avatar
2000 TJ Wrangler

Join Date: Feb 2009
Location: Albany, NY
Posts: 1,767
Have a look in your diff. You might want to bolt in a new Junkyard axle.
rondak46 is offline
post #9 of 24 Old 03-11-2010, 09:02 PM
97casteeltj
Registered User

97casteeltj's Avatar
1997 TJ Wrangler

Join Date: Dec 2007
Location: Vancouver, WA
Posts: 3,223
yeah if you have been paying attention i guarantee there were some indications of the joint going out.....if you would've changed the joint the inner/outer shafts would still be good.

good luck, the entire job should only take about 30-45 min to fix.

needing a new rig....
97casteeltj is offline
post #10 of 24 Old 03-11-2010, 09:24 PM Thread Starter
TJ-Tim
Registered User

TJ-Tim's Avatar
2001 TJ Wrangler

Join Date: Dec 2009
Location: Dupont
Posts: 415
Quote:
Originally Posted by 97casteeltj View Post
yeah if you have been paying attention i guarantee there were some indications of the joint going out.....if you would've changed the joint the inner/outer shafts would still be good.

good luck, the entire job should only take about 30-45 min to fix.
nope, no indication of anything. made a crunch noise then it broke

I like to think i pay attention while i drive

¡ɹǝʌo ǝɯ 11oɹ 'sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
TJ-Tim is offline
post #11 of 24 Old 03-11-2010, 09:28 PM
97casteeltj
Registered User

97casteeltj's Avatar
1997 TJ Wrangler

Join Date: Dec 2007
Location: Vancouver, WA
Posts: 3,223
from the pics looks like when the joint when you kept on it for a little while to break the ears on the inner shaft and mess up the outer one pretty good so depending on how much movement the inner had you may want to change your inner oil seals too.

needing a new rig....
97casteeltj is offline
post #12 of 24 Old 03-11-2010, 09:45 PM
2003RubiBlue
Registered User
2003 TJ Wrangler

Join Date: Nov 2008
Location: Boston, MA
Posts: 680
Tim, the ones you were looking at online with the disc on it were for ABS equipped TJ's. I don't think you have ABS, but they will still work.
Brian

Will work for Jeep parts...
2003RubiBlue is offline
post #13 of 24 Old 03-11-2010, 09:55 PM
jeffb_79
Registered User
2005 TJ Wrangler

Join Date: Jul 2009
Location: Fairfax, VA
Posts: 427
Do yourself a huge favor.... change out the u joint on the opposite side as well.
jeffb_79 is offline
post #14 of 24 Old 03-11-2010, 10:17 PM
cj847
Registered User
1997 TJ Wrangler

Join Date: Oct 2006
Location: AR
Posts: 1,219
Quote:
Originally Posted by 97casteeltj View Post
good luck, the entire job should only take about 30-45 min to fix.

I've worked on a couple of rigs from the rust belt. I've never been able to do anything underneath them in 30 minutes unless you use a cutting torch instead of a wrench. Note that his bolts (that require a 13 mm 12 pt) are sheared off about 30%+. I think the only way to take it apart is going to be to cut the hub bolts off with a torch.

97 TJ Sport OPJ project (other peoples junk) I can't remember the last time I bought a new part.
cj847 is offline
post #15 of 24 Old 03-11-2010, 10:24 PM Thread Starter
TJ-Tim
Registered User

TJ-Tim's Avatar
2001 TJ Wrangler

Join Date: Dec 2009
Location: Dupont
Posts: 415
Quote:
Originally Posted by cj847 View Post
I've worked on a couple of rigs from the rust belt. I've never been able to do anything underneath them in 30 minutes unless you use a cutting torch instead of a wrench. Note that his bolts (that require a 13 mm 12 pt) are sheared off about 30%+. I think the only way to take it apart is going to be to cut the hub bolts off with a torch.
I actually had the axles out not that long ago to put my aussie locker in and made sure to use antiseize on every so i'm thinking it won't be too bad with a 12pt bolt.

we'll see though when I fix it sometime next week

thnx alot for the info guys

¡ɹǝʌo ǝɯ 11oɹ 'sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
