Originally Posted by Imped View Post
Don't forget about your other limits--steering TRE misalignment capability, drive shaft joints, and your rear brake line.

IMO, that's too much shock for short arms, especially when they aren't flat at ride height and you don't have at least 6" of up travel.
Good point Imped. Is this where I've seen some add a mount that comes off the front axle and appears to center the shock right beneath the upper tower mount?

like this:


Also, in the rear, binding on the SYE/drive shaft length are a couple items that would also need to be checked/reviewed if I want a longer shock.

EDIT: I think I need to sit back and think a little before doing anything next. Now that I'm lowered, I'd like to re-claim some clearance with a UCF TT. not so sure that I really "need" to have the ultra high skid or not, it's more of a want I think. But this will also change the drive shaft a little... thoughts?


'04 tj, Outboarded
kdukes4 is offline
Sponsored Links
Advertisement

post #17 of 26 Old 04-21-2014, 02:19 PM
LeeMasterGT
Registered User

LeeMasterGT's Avatar
2006 TJ Wrangler

Join Date: Jan 2011
Location: Provo
Posts: 1,351
Quote:
Originally Posted by kdukes4 View Post
Good point Imped. Is this where I've seen some add a mount that comes off the front axle and appears to center the shock right beneath the upper tower mount?


Also, in the rear, binding on the SYE/drive shaft length are a couple items that would also need to be checked/reviewed if I want a longer shock.

EDIT: I think I need to sit back and think a little before doing anything next. Now that I'm lowered, I'd like to re-claim some clearance with a UCF TT. not so sure that I really "need" to have the ultra high skid or not, it's more of a want I think. But this will also change the drive shaft a little... thoughts?
I've got the same rear springs as you on my rig... I never snag my TT. I've got the UCF original clearance with a lo-pro mount. Granted I do snag my control arms and frame side control arm mounts from time to time... So without those I might hit my TT occasionally. Bottom line, I would think you'd be ok with the original clearance unless you start really going crazy.

Build
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
LeeMasterGT is offline
post #18 of 26 Old 04-21-2014, 07:48 PM Thread Starter
kdukes4
Registered User
2004 TJ Wrangler

Join Date: Apr 2009
Posts: 321
Quote:
Originally Posted by LeeMasterGT View Post

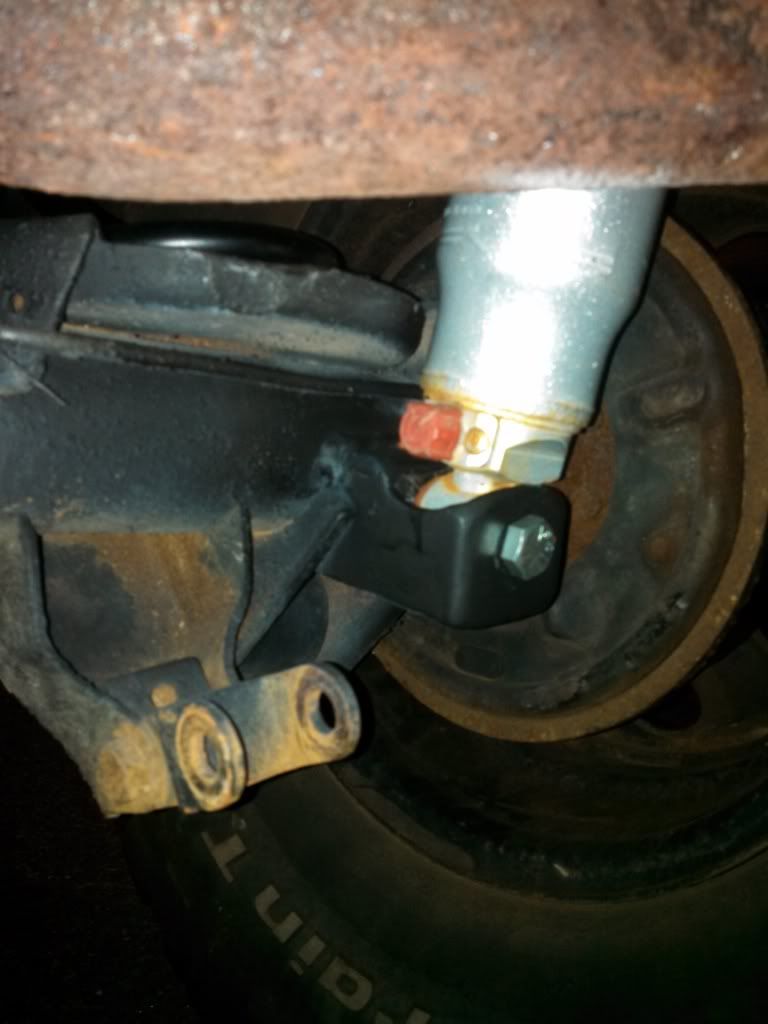

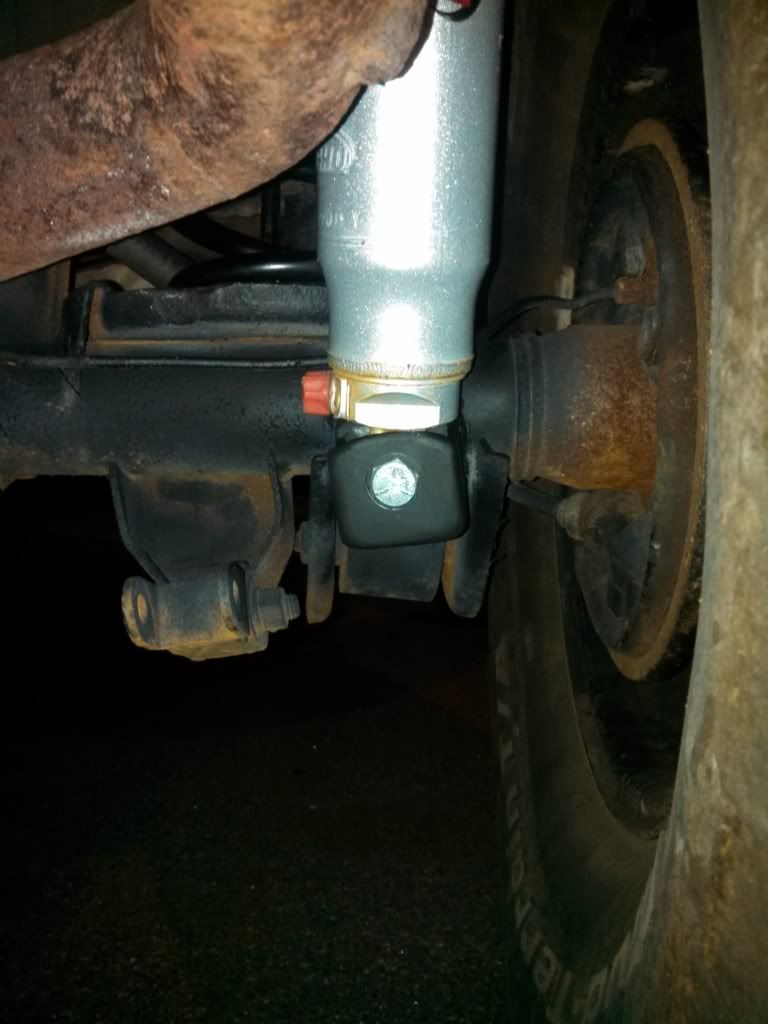

Is it possible to see a picture of the lower shock mounts and also how you welded the plate to the back side of the tower on top of the frame? I'm currently collecting parts for this swap. Just tryin to decide whether to go with 11 inch fox shocks or 12 inch... Decisions, decisions.
