How To Disconnect Hard Top Wire Harness?

Of course I searched, but got the beloved blank white screen again. Can anyone explain how in the heck to disconnect the wire harness to the rear of the hardtop, please?

Thanks!
Tommy


2001 Wrangler stretched 99" WB, ARBs, alloys, ORIs, 4.88s, 37" Nittos

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Tommy R is offline
Sponsored Links
Advertisement

post #2 of 16 Old 06-21-2007, 07:57 PM
Crashnburn80
Registered User

Crashnburn80's Avatar
2004 TJ Wrangler

Join Date: Jul 2006
Location: Kirkland, WA
Posts: 4,161
There is a red little 'switch'. It slides to the side to release the harness. Royal PITA. Now when I put my hardtop back on I do not click the switch to 'lock' it on.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
| 1.25" BL |
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
| Riddler diff covers |
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
| 33" MTRs | Warn M8000 |
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

and much more...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Crashnburn80 is offline
post #3 of 16 Old 06-21-2007, 08:04 PM Thread Starter
Tommy R
Registered User

Tommy R's Avatar
2001 TJ Wrangler

Join Date: Mar 2007
Location: Austin, TX, USA
Posts: 1,669
Thanks. I've looked and didn't see anything red. Some small grey tabs among the wires, but that's it. Where is this switch?

Tommy

2001 Wrangler stretched 99" WB, ARBs, alloys, ORIs, 4.88s, 37" Nittos

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Tommy R is offline

post #4 of 16 Old 06-21-2007, 08:06 PM
Crashnburn80
Registered User

Crashnburn80's Avatar
2004 TJ Wrangler

Join Date: Jul 2006
Location: Kirkland, WA
Posts: 4,161
Quote:
Originally Posted by Tommy R
Thanks. I've looked and didn't see anything red. Some small grey tabs among the wires, but that's it. Where is this switch?

Tommy
Yours might be grey. I have an 04 vs your 01, so they could of changed it because of frusterated people like yourself. Although when I took mine off for the first time it didn't help that it was red, I still didn't get it and it was still a PITA.

The switch is on the actual plug.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
| 1.25" BL |
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
| Riddler diff covers |
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
| 33" MTRs | Warn M8000 |
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

and much more...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Crashnburn80 is offline
post #5 of 16 Old 06-21-2007, 08:08 PM Thread Starter
Tommy R
Registered User

Tommy R's Avatar
2001 TJ Wrangler

Join Date: Mar 2007
Location: Austin, TX, USA
Posts: 1,669
So they need to be slid to the side before the plug can come out?

2001 Wrangler stretched 99" WB, ARBs, alloys, ORIs, 4.88s, 37" Nittos

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Tommy R is offline
post #6 of 16 Old 06-21-2007, 08:13 PM Thread Starter
Tommy R
Registered User

Tommy R's Avatar
2001 TJ Wrangler

Join Date: Mar 2007
Location: Austin, TX, USA
Posts: 1,669
I'm lost! I pulled out the three grey pins, but that's all they were.....pins. Obviously I still can't remove the plug. Is this red thing on the side, top, bottom, driver's side, rear, etc? In what direction does it slide?

Thanks,
Tommy

2001 Wrangler stretched 99" WB, ARBs, alloys, ORIs, 4.88s, 37" Nittos

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Tommy R is offline
post #7 of 16 Old 06-21-2007, 08:27 PM
bman9089
Registered User

bman9089's Avatar
2005 TJ Wrangler

Join Date: Sep 2006
Location: USA
Posts: 12,783
Quote:
Originally Posted by Tommy R
I'm lost! I pulled out the three grey pins, but that's all they were.....pins. Obviously I still can't remove the plug. Is this red thing on the side, top, bottom, driver's side, rear, etc? In what direction does it slide?

Thanks,
Tommy
take a pic of it.



"The American Republic will endure, until politicians realize they can bribe the people with their own money." -- Alexis de Tocqueville

“Sometimes I wonder whether the world is being run by smart people who are putting us on or by imbeciles who really mean it” -- Mark Twain


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Romans 12:5 | 1 Peter 3:15 | Matthew 9:37-38
bman9089 is offline
post #8 of 16 Old 06-21-2007, 08:35 PM Thread Starter
Tommy R
Registered User

Tommy R's Avatar
2001 TJ Wrangler

Join Date: Mar 2007
Location: Austin, TX, USA
Posts: 1,669
Waiting on the battery to charge.

2001 Wrangler stretched 99" WB, ARBs, alloys, ORIs, 4.88s, 37" Nittos

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Tommy R is offline
post #9 of 16 Old 06-21-2007, 08:52 PM Thread Starter
Tommy R
Registered User

Tommy R's Avatar
2001 TJ Wrangler

Join Date: Mar 2007
Location: Austin, TX, USA
Posts: 1,669

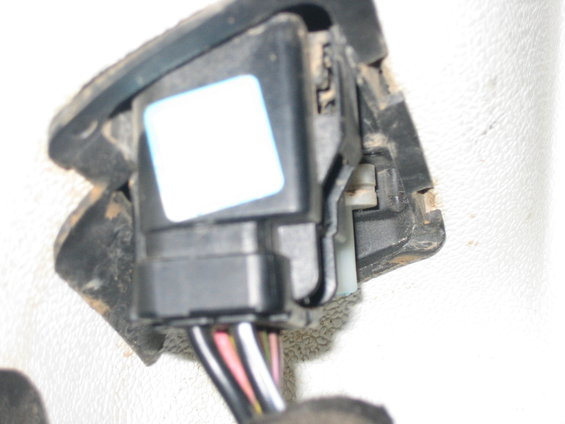

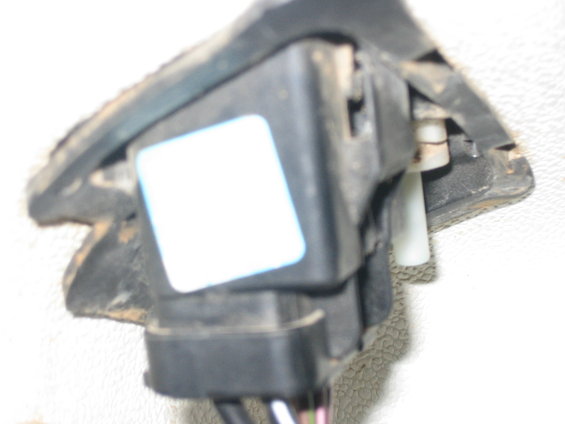

Okay, here's the best I could do....
