DIY Auxiliary PDC/Fuse Box

This isn't as much of a how-to as it is just drawing attention to an interesting project I did. My understanding of electrical work has always been a little foggy beyond just being able to follow instructions. I have a few plans to add OBA, lights, etc to the Jeep sometime in the future. One of my big hurdles is that I don't want to create a rat's nest of wires, splices and connectors. I also wanted a better understanding of what was happening inside the factory Power Distribution Center (PDC) and attempt to mimic that.

Earlier this year, Bleepin Jeep did a video on building your own relay and fuse box by re-wiring an XJ PDC. This is essentially the box that I built, following Matt's instructions. He explains it far better than I ever could.

https://www.youtube.com/watch?v=aG37G9dBXv8

The main thing I wanted to point out is that XJ, ZJ and TJ PDC's are all very similar. While the outer cases are different, they all utilize the same interchangeable modules to create many different combinations of mini fuses, maxi fuses and relays. Different sets of modules are available within a model or trim package depending on the factory options. There seemed to be 8-10 different modules and 3-4 different cases, so look at every vehicle to find what works best for you.

WKdeuce made the following thread where he reconfigured the stock box on his XJ by switching out these different modules.
https://www.jeepforum.com/forum/f11/b...y-box-1296952/

From WKdeuce's thread, here is one of the modules.


Combining these two ideas, here is what I came up with.

I began with a PDC from a salvage yard XJ.


There are several versions available depending on the year and the factory options. I chose this one because it would fit nicely next my my TJ's box. Understand that I have room here because I moved the stock air box a while back.

As mentioned in the video, cut the wiring harness as far back as you can so you can reuse as much of the stock wiring and connectors as possible. I also made sure to grab a second wiring harness with connectors. My box was made almost entirely of savaged wiring and connectors with the smallest wiring being 12 gauge.

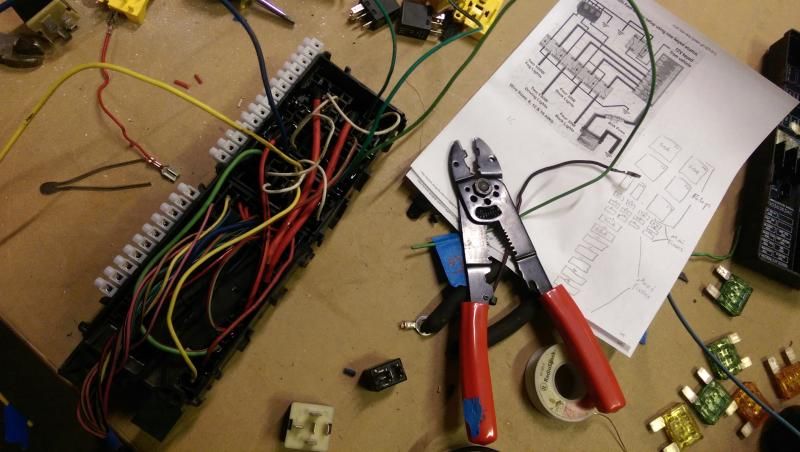

Some shots of the build process...

This is tedious work, but it is as easy as following the wiring diagram and being systematic with connecting one set of terminals at a time.

Using modules from various XJ's and ZJ's around the salvage yard, I configured my box to contain 7 relays w/ maxi fuses and 12 mini fuses. It could have had an additional 7 maxi fuses if I had known to scavenge the needed clips to connect the fuses to the power block inside the PDC case. However, I can't imagine why I would need even more power connections.

Just as in the video, I added a bank of terminals to the outside of my box. Except for two big 8 gauge leads, each relay and mini fuse is connected to a terminal. Adding an appliance is as easy as attaching it to the appropriate terminal and adding a switch to the signal wire.


The relay signal wires are made from an ethernet cable I stole from work. I found one that used stranded wire instead of solid. Notice that a piece of signal wire is fitted into one of the seven relay terminal. These are labels so I know which relay belongs to which signal wire.

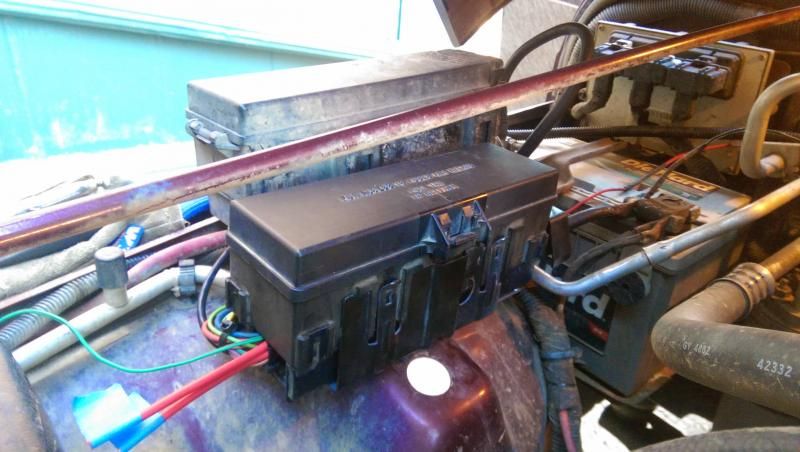

For my installation, I put the new PDC next to the stock box.

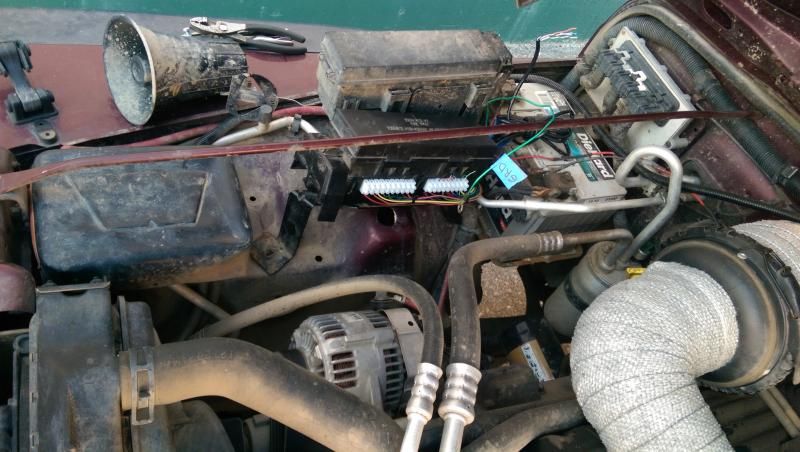

After cutting the legs off of the XJ bracket, I was able to bolt the new box to the inner fender using an existing hole.

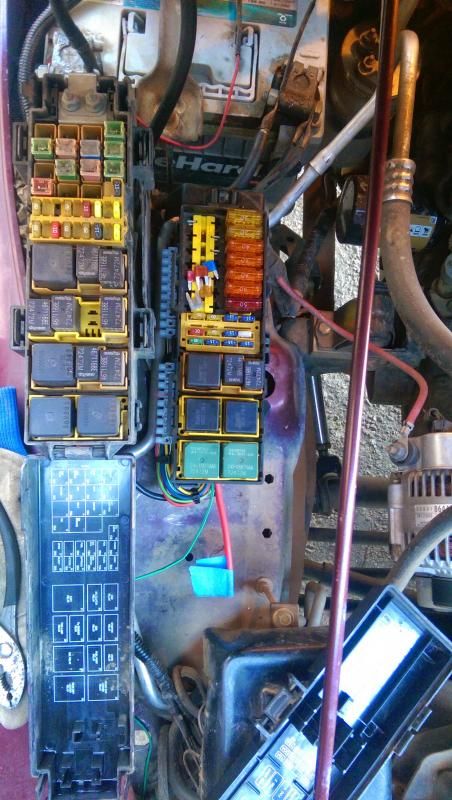

Here are the insides,


I have about $40 in this fuse and relay box totaling 19 connections, about the same cost as the smaller capacity 12 circuit Blue Sea fuse box that does not contain any relays.


2003 Rubicon

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jjvw is online now
Sponsored Links
Advertisement

post #2 of 12 Old 01-01-2015, 02:34 PM
sg93yj
Registered User
1999 TJ Wrangler

Join Date: Jan 2004
Posts: 78
Well done! Economical too.

Sent from my iPad using JeepForum

"People sleep peaceably in their beds at night only because rough men stand ready to do violence on their behalf."
sg93yj is offline
post #3 of 12 Old 01-01-2015, 03:19 PM
Dave02TJ
Registered User

Dave02TJ's Avatar
2002 TJ Wrangler

Join Date: Nov 2013
Location: Crystal Lake
Posts: 1,491
It is well done and economical, now he is going to spend the rest of his life thinking up electrical accessories to run on all these new circuits
Dave02TJ is offline

post #4 of 12 Old 01-01-2015, 03:52 PM Thread Starter
jjvw
Web Wheeler

jjvw's Avatar
2003 TJ Wrangler

Join Date: Jun 2013
Location: Denver
Posts: 6,124
Garage
Should I post a write up for my off road ceiling fan idea?

2003 Rubicon

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jjvw is online now
post #5 of 12 Old 01-01-2015, 09:25 PM
hndswthtshdws
Registered User
2003 TJ Wrangler

Join Date: Aug 2011
Location: London
Posts: 366
Cool project.

I see some 40a and 60a fuses in there, 12 gauge wire isn't enough for that.



I'm doing something similar but different. I don't want to jack your thread but I'm excited. Toggle switches are expensive and need a bunch of room to mount. I bought a fuse holder that holds 15 fuses. I'm going to mount it in a weatherproof box with 15 relays, some custom circuitry, and a micro controller. I'll have a single power input cable, room for 15 wires to come out (I don't have 15 accessories yet), and a cat5/internet cable coming out. Under my dash I'll have another micro controller connecting to whatever switches I add. The micro controllers will talk over the cat5 cable. Why? Cause it's gonna be cool as ****. I'll be able to use small push buttons to control stuff instead of big toggles. I'll be able to mount those switches to my steering wheel and read signals over the clock spring which to me sounds perfect for aux driving lights. I'm going to wire each light up individually. Because it's software I can program however I want. Press button once is lights on, press button again is lights off, hold button down for 2 seconds flashes each light individually like a strobe, press another button and it toggles between the lights one by one, press another button and the aux lights come on automatically with the high beams, etc. Microcontrollers were $5 each, the custom circuitry is about $8, fuses and relays I'd have to buy regardless. I'm a nerd.

If you filter out everything that has bad spelling and grammar, you can believe 95% of what you read on the Internet.
hndswthtshdws is offline
post #6 of 12 Old 01-01-2015, 10:37 PM Thread Starter
jjvw
Web Wheeler

jjvw's Avatar
2003 TJ Wrangler

Join Date: Jun 2013
Location: Denver
Posts: 6,124
Garage
Quote:
Originally Posted by hndswthtshdws View Post
Cool project.

I see some 40a and 60a fuses in there, 12 gauge wire isn't enough for that.


...
Correct. I have a range of wire gauges. As stated, 12ga is the smallest circuit in the box. Most are 10 gauge. The thickest, I believe, is 8ga or whatever was attached to that 60amp fuse from the factory. See those two red leads sticking out of the front?

2003 Rubicon

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jjvw is online now
post #7 of 12 Old 12-18-2015, 09:32 PM
BleepinJeep
Registered User

BleepinJeep's Avatar
1988 XJ Cherokee

Join Date: May 2012
Location: Kingston
Posts: 246
Thanks for the shoutout and link to my video!

Website -
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
- The Best Offroad Videos of Youtube with None of the Boring Stuff!
You Tube -
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
- Awesome Jeep Related How-To Videos in HD.

A wise man once told me, "I am going to give you some advice; you can take it or leave it, but keep in mind that it is worth exactly what you paid for it"
BleepinJeep is offline
post #8 of 12 Old 12-19-2015, 10:51 AM Thread Starter
jjvw
Web Wheeler

jjvw's Avatar
2003 TJ Wrangler

Join Date: Jun 2013
Location: Denver
Posts: 6,124
Garage
Hello Matt!

2003 Rubicon

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jjvw is online now
post #9 of 12 Old 12-19-2015, 08:38 PM
JackN77CJ7
Registered User
2005 LJ Wrangler

Join Date: Jan 2007
Location: Pocono's Pa
Posts: 314
Sub'd for future use....


Thanks

Only 2 things are preventing me from going pro.... Luck and Skill
JackN77CJ7 is offline
post #10 of 12 Old 12-20-2015, 09:33 AM
Ben
Registered User

Ben's Avatar
1998 TJ Wrangler

Join Date: Sep 2006
Location: Malvern PA
Posts: 3,399
Hey I remember having that much thumb! (had a mishap, still have most of the thumb in the first pic, funny to run into the old one online)

I like your terminal strip, and given the chance to do it again, I would do a double PDC like yours.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Ben is offline
post #11 of 12 Old 12-20-2015, 10:47 AM Thread Starter
jjvw
Web Wheeler

jjvw's Avatar
2003 TJ Wrangler

Join Date: Jun 2013
Location: Denver
Posts: 6,124
Garage
The terminal strip is convenient to have. If I were (also) to do it again, I would use one that allows for a larger gauge wire. I'm still guessing on the size, but the two 8ga leads are too fat for the strip I used. Though maybe one could argue that particular connection should be more secure than a clamping screw.

I'm still pleased with the final result. It is nice to have all the wiring contained in one location and still look relatively stock.

Sorry about the thumb.

2003 Rubicon

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jjvw is online now
post #12 of 12 Old 09-05-2016, 10:11 PM
raif281
Registered User
2003 TJ Wrangler

Join Date: Jan 2014
Posts: 117
Subb'd for later!
