Clutch replacement with NV3550 trans.

I'll be tackling my clutch replacement this weekend with the help of a buddy. I've read over eddie's write up on 4x4xplor and I'm fairly confident we can handle the work. However, his write up was for a TJ with the AX-15 transmission, not the NV3550.

I doubt there will be any earth shattering differences between the 2 but if anyone has any tips/tricks or advice it would be much appreciated.

Thanks!


2003 TJ Sahara
2010 WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Giviner is offline
Sponsored Links
Advertisement

post #2 of 23 Old 12-12-2007, 12:32 PM
fisher836
Registered User

fisher836's Avatar
2008 JK Wrangler

Join Date: Sep 2005
Location: Scranton, PA
Posts: 801
As far as replacement process and procedure there is no difference. Remember to get reverse torx bix sockets for the top bolts on the housing. Removing the shift lever is different too. It's one bolt and the shift liver slides up off the nub. DON'T try to twist it off. The clutch fork has a clip inside it on the pivot point (opposite the clutch cylinder side) Don't lose the clip! Otherwise it's a fairly easy job. Did mine in about 4 hours.

Definition of Rubicon:
A limit that when passed or exceeded permits of no return and typically results in irrevocable commitment.
fisher836 is offline
post #3 of 23 Old 12-12-2007, 12:32 PM
JeepRocks86
Some Call me RockDog

JeepRocks86's Avatar
2003 TJ Wrangler

Join Date: Feb 2006
Location: Columbus
Posts: 6,471
Garage
i'm interested as well.


What clutch are you going to run in it?

97 TJ 37s custom long arm
Gen right stretch tank
03 TJ buggy project. Stretched tub to LJ, Goat Built chassis, tons 42 pit bulls

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

04 QCLB 4wd Cummins tow rig
24 Gooseneck PJ trailer
JeepRocks86 is offline

post #4 of 23 Old 12-12-2007, 12:40 PM Thread Starter
Giviner
Registered User

Giviner's Avatar
2003 TJ Wrangler

Join Date: Feb 2005
Location: AB, Canada
Posts: 1,216
Thanks for the info fisher. I may be out of the loop but i've never heard of reverse torx bit sockets. Are you saying there are bolt heads that have the torx pattern on them, so rather than the standard 6 point socket they need a torx shaped socket?

JeepRocks, at the recommendation of a distinguished moderator here, I am using a Luk replacement clutch. I believe it's the same as the OEM clutch.

$120 + $45 shipping + $50 duty&taxes (barf)

2003 TJ Sahara
2010 WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Giviner is offline
post #5 of 23 Old 12-12-2007, 12:41 PM
fisher836
Registered User

fisher836's Avatar
2008 JK Wrangler

Join Date: Sep 2005
Location: Scranton, PA
Posts: 801

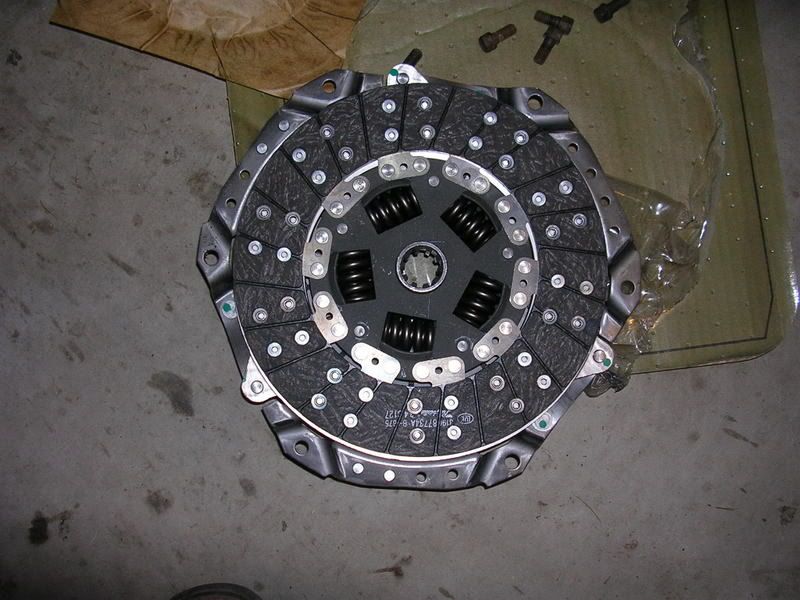

FYI... this is the clutch I used. It's just a regular LUK clutch replacement kit from autozone. I also just greased my pilot bearing, I didn't replace it.
