post #46 of 96 Old 04-21-2020, 03:41 PM Thread Starter
weapon
Registered User
1983 CJ7

Join Date: Jun 2012
Location: potland
Posts: 665
Here is what I am talking about. The photos above are the original wiring harness with an added dorman replacement part.

The New Crown Harness was delivered today. It is a completely different size. You can see in these photos the template used for the the dorman part will need to be trimmed/ground to fit better. There is not a one size fits all solution.

Attached Thumbnails
Attached Images

weapon is offline
Sponsored Links
Advertisement

post #47 of 96 Old 04-23-2020, 04:05 PM Thread Starter
weapon
Registered User
1983 CJ7

Join Date: Jun 2012
Location: potland
Posts: 665
Lock Plate. As you can see they both have surface rust. No rot as of yet.

Is there anything special about the metal? Could they be painted without an issue? or just clean up and ospho?
Attached Thumbnails
weapon is offline
post #48 of 96 Old 04-24-2020, 09:36 PM
ShopJock
Registered User
1980 CJ5

Join Date: Feb 2019
Location: Duluth
Posts: 34
nothing special. Clean up or lightly paint - your choice.
weapon likes this.

I only need the tools that I can't find.
ShopJock is offline

post #49 of 96 Old 04-24-2020, 10:40 PM Thread Starter
weapon
Registered User
1983 CJ7

Join Date: Jun 2012
Location: potland
Posts: 665
Here was today's tasks. Media blasted the lockplates. Paint them up next.

Since I have not been able to acquire a lower tilt shroud, I set upon fixing the missing piece from my original.

Shaped a bit of scrap metal, epoxied it to the curve and hit it with the bondo. Coming along pretty well.
Attached Images

weapon is offline
post #50 of 96 Old 04-26-2020, 12:40 PM Thread Starter
weapon
Registered User
1983 CJ7

Join Date: Jun 2012
Location: potland
Posts: 665
Sandable Primer. Onto painting them today.
Attached Images

weapon is offline
post #51 of 96 Old 04-26-2020, 01:02 PM
Boojo35
Registered User
1987 YJ Wrangler

Join Date: Jul 2007
Location: Beer City
Posts: 2,438
Garage
Quote:
Originally Posted by weapon View Post
Turn signal switch question:

I have 2 different types inside column #1 and #2. See attached photo.

What are the extra wires for? Does this photo help determine what year column # 2 came from?
Those are the horn switch contacts. Somebody else says that they are for the key buzzer but the key buzzer contact looks like this and is over by the lock cylinder.

https://www.google.com/url?sa=i&url=...AAAAAdAAAAABAI
weapon likes this.

If you cannot fix it with a hammer then it has to be an electrical problem.
Boojo35 is offline
post #52 of 96 Old 04-26-2020, 01:07 PM Thread Starter
weapon
Registered User
1983 CJ7

Join Date: Jun 2012
Location: potland
Posts: 665
Quote:
Originally Posted by Boojo35 View Post
Those are the horn switch contacts. Somebody else says that they are for the key buzzer but the key buzzer contact looks like this and is over by the lock cylinder.

https://www.google.com/url?sa=i&url=...AAAAAdAAAAABAI
they came to me in a bag and do not know how to install them as of yet. Will get to that when all the painting is done. Thanks for the link!
weapon is offline
post #53 of 96 Old 04-26-2020, 09:23 PM Thread Starter
weapon
Registered User
1983 CJ7

Join Date: Jun 2012
Location: potland
Posts: 665
And now they are complete and ready for install (once I get the metal parts painted).
Attached Images

74G8R2 likes this.
weapon is offline
post #54 of 96 Old 04-27-2020, 04:40 AM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 21,150
Quote:
Originally Posted by Boojo35 View Post
Those are the horn switch contacts. Somebody else says that they are for the key buzzer but the key buzzer contact looks like this and is over by the lock cylinder.

https://www.google.com/url?sa=i&url=...AAAAAdAAAAABAI
This picture?


Quote:
Originally Posted by weapon View Post
they came to me in a bag and do not know how to install them as of yet. Will get to that when all the painting is done. Thanks for the link!
I would have to disagree with that statement. The TS switch without the extra wires would need a horn contact. It's located here on the turn signal switch:


Name:  TSDetail1.jpg
Views: 55
Size:  85.4 KB

You can see a little metal cover. that is what keeps the spring for the contact button pushed against the canceling cam.

Here is the horn contact button:

Name:  HornContactButton.jpg
Views: 53
Size:  94.7 KB

And the ring on the contact cam:

Name:  HornContactRing2.jpg
Views: 56
Size:  66.9 KB

If in doubt, Just trace the wires back to the plug. If they are the Key buzzer, they would be in this position.:

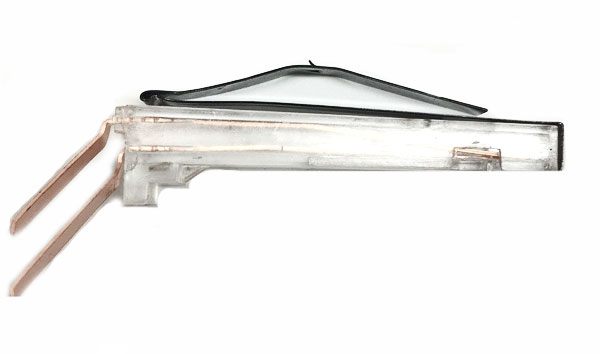

The Key buzzer switch makes contact like this:

Name:  KeyBuzzer.jpg
Views: 58
Size:  263.2 KB





The horn button only needs one wire. It grounds through the steering shaft.

Only other wire not mentioned is for the PRNDL light. That is just an orange wire going to the plug just above the Keybuzzer positions.

Name:  TSConnectorJumper01.JPG
Views: 53
Size:  137.3 KB
weapon, 74G8R2 and ShopJock like this.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


I drive a Prius to save money and buy more Jeep Parts....
John Strenk is offline
post #55 of 96 Old 04-27-2020, 04:30 PM
Boojo35
Registered User
1987 YJ Wrangler

Join Date: Jul 2007
Location: Beer City
Posts: 2,438
Garage
You are right. That is for the key buzzer.. My bad......

If you cannot fix it with a hammer then it has to be an electrical problem.
Boojo35 is offline
post #56 of 96 Old 04-27-2020, 07:29 PM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 21,150
Quote:
Originally Posted by Boojo35 View Post
You are right. That is for the key buzzer.. My bad......
I've posted many many mistakes myself.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


I drive a Prius to save money and buy more Jeep Parts....
John Strenk is offline
post #57 of 96 Old 04-28-2020, 03:10 PM Thread Starter
weapon
Registered User
1983 CJ7

Join Date: Jun 2012
Location: potland
Posts: 665
Quote:
Originally Posted by John Strenk View Post
This picture?

The Key buzzer switch makes contact like this:
You are the best, John!

Thanks for always clarifying with easy to use photos.
weapon is offline
post #58 of 96 Old 05-02-2020, 09:44 PM Thread Starter
weapon
Registered User
1983 CJ7

Join Date: Jun 2012
Location: potland
Posts: 665
Here are the 2 remaining columns stripped. One wire wheeled and the other media blasted.

Has anyone ever taken one completely apart before paint? Since it has a plastic shim between the 2 pieces, it would need to be separated before powder coating.

I just do not see how to do it and or even get it back together if I did.
Attached Images

weapon is offline
post #59 of 96 Old 05-03-2020, 12:08 PM Thread Starter
weapon
Registered User
1983 CJ7

Join Date: Jun 2012
Location: potland
Posts: 665
And the inner shafts cleaned of all the gunk, rust and old dried grease.
Attached Images

weapon is offline
post #60 of 96 Old 05-03-2020, 06:26 PM
ShopJock
Registered User
1980 CJ5

Join Date: Feb 2019
Location: Duluth
Posts: 34
I think powder coating these is a step too far. Use epoxy paint.

I only need the tools that I can't find.
ShopJock is offline
