Project HUMWEE

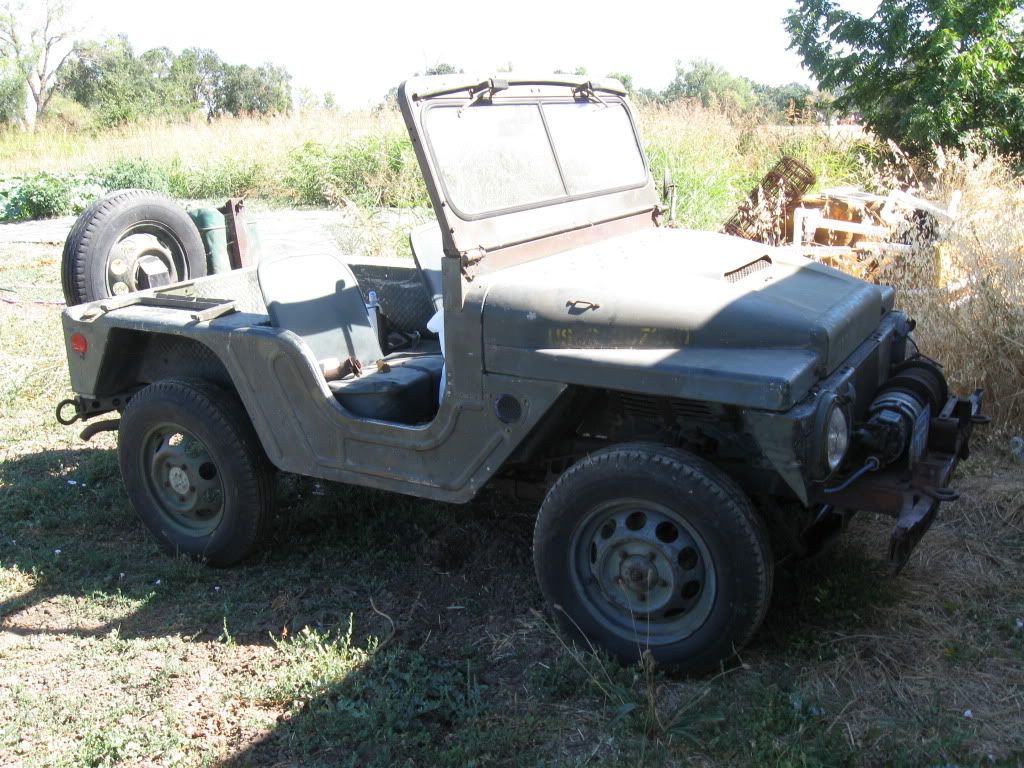

Hey guys, are we alowed to post anything here about these little guys? Not exactly a Jeep, but made by AMC to replace Jeeps in Viet Nam



ChicoXJ is offline
Sponsored Links
Advertisement

post #2 of 283 Old 11-03-2010, 10:04 PM
FamillyCJ7
Registered User

FamillyCJ7's Avatar
1983 CJ7

Join Date: Mar 2009
Location: Middleburg
Posts: 984
Now that thing is just cool. PTO winch? Specs on it? (Motor, axles, trans, xfer case?)

'83 CJ7 258I6 4-Speed Father Daughter Project - Using Monstaliner/Chassis Saver and Products from CrabTreeTool
NorthEastFL4x4.com - Local 4x4 Enthusiasts website, join up now!
FamillyCJ7 is offline
post #3 of 283 Old 11-03-2010, 10:06 PM
TJLover99
Registered User
1999 TJ Wrangler

Join Date: Feb 2010
Location: Virginia Beach, VA
Posts: 232
Interested to see where you take this one

If it were easy, everyone would do it
TJLover99 is offline

post #4 of 283 Old 11-03-2010, 11:20 PM Thread Starter
ChicoXJ
Registered User
1986 XJ Cherokee

Join Date: Oct 2010
Location: Chico, CA
Posts: 701
Quote:
Originally Posted by FamillyCJ7 View Post
Now that thing is just cool. PTO winch? Specs on it? (Motor, axles, trans, xfer case?)
It is an M422 Mighty Mite. Air cooled V4, NP4300 4 speed tranny, single speed transfer case, D27 with 5.38s and Dana Powerlocks front and rear with inboard brakes and fully independent suspension all around. The winch is a home grown (I didn't do it) 24V aircraft starter motor on a kit drum available in the 50s and early 60s. This one is my son's, mine is in the shop gutted and ready for a build.

ChicoXJ is offline
post #5 of 283 Old 11-03-2010, 11:30 PM
FamillyCJ7
Registered User

FamillyCJ7's Avatar
1983 CJ7

Join Date: Mar 2009
Location: Middleburg
Posts: 984
definitely unique! What are your plans for them? I bet it's not easy finding parts.

'83 CJ7 258I6 4-Speed Father Daughter Project - Using Monstaliner/Chassis Saver and Products from CrabTreeTool
NorthEastFL4x4.com - Local 4x4 Enthusiasts website, join up now!
FamillyCJ7 is offline
post #6 of 283 Old 11-03-2010, 11:48 PM Thread Starter
ChicoXJ
Registered User
1986 XJ Cherokee

Join Date: Oct 2010
Location: Chico, CA
Posts: 701
Quote:
Originally Posted by FamillyCJ7 View Post
Now that thing is just cool. PTO winch? Specs on it? (Motor, axles, trans, xfer case?)
Quote:
Originally Posted by FamillyCJ7 View Post
definitely unique! What are your plans for them? I bet it's not easy finding parts.
We have been finding parts. Surplus City is only 20 minutes from my place and can get all sorts of stuff for them. They have one in their museum too. We have named mine HUM WEE Sr. and his HUM WEE Jr.

I have had mine for a long time, wheeled it till it quit. Then yarded the motor, trans and tcase out and have been working on it a little at a time ever since. However, now at my son's insistence, I have stepped up the pace.

The motors in them were junk. They were only good for about 500 hours and then needed new jugs and pistons. Jr. has a Volvo engine conversion in it that is clean. We wish it had more ponies though
ChicoXJ is offline
post #7 of 283 Old 11-04-2010, 08:05 AM
ihavetheWILLto
Registered User

ihavetheWILLto's Avatar
1977 CJ7

Join Date: Oct 2009
Location: Ft Lauderdale
Posts: 146
Very cool, can't wait to see what you do with it!

1977 CJ7 (Original Equipment: Frame) Currie 9 inch axles front and rear with 4.56 gears and chromoly shafts, Rear ARB Locker, Front Detroit Locker, rear Ford Explorer disc brakes, Ballistic Fab high steer, Mile Marker SS hubs, SOA, YJ Springs, 5.3 Vortec, SM465, D300...and more to come such as Metalcloak fenders, fiberglass tub, and....

"When the people fear their government, there is tyranny; when the government fears the people, there is liberty." - Thomas Jefferson
"They who can give up essential liberty to obtain a little temporary safety, deserve neither liberty nor safety." - Ben Franklin


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
ihavetheWILLto is offline
post #8 of 283 Old 11-04-2010, 10:12 AM Thread Starter
ChicoXJ
Registered User
1986 XJ Cherokee

Join Date: Oct 2010
Location: Chico, CA
Posts: 701
Quote:
Originally Posted by an86cj7guy View Post
Very cool, can't wait to see what you do with it!

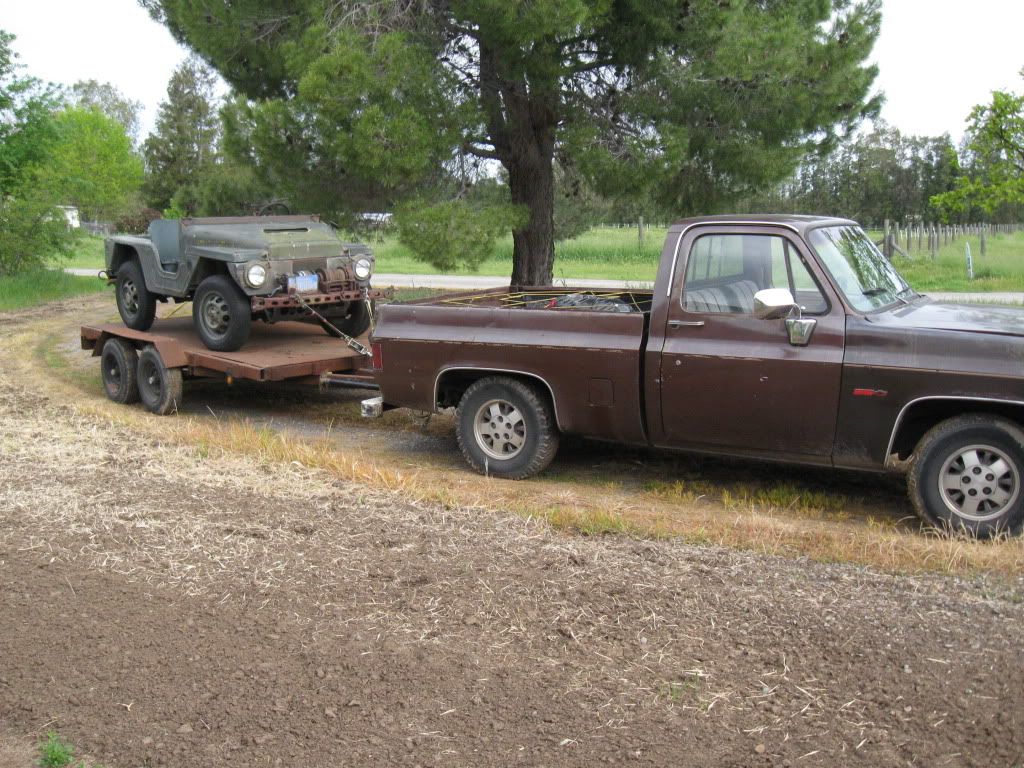

First of all, since Jr runs, it is the one getting the most work right now. We went to Long Beach, CA to get it. Had a little mishap with a center pin on the trailer spring and found that in the middle of one of the most populous cities in America, we could not buy a center pin on a Sunday. In fact, none of the parts stores open, including NAPA had even heard of them. We finally found a Mexican speaking limited English to make us one out of a regular bolt. The whole thing took about 5 hours. Something I could have done in my shop in 30 minutes. But we got back on the road and home with it.

]

We knew the engine ran, since it fired a few times on starting fluid. But the fuel line was disconnected. We wondered why. We found out quickly when we put gas in it. The tank leaked it out about as fast as you could fill it. We couldn't really see why, so we pulled the tank and started finding little holes in the aluminum tank. So I set up the wire feed for aluminum and started welding.

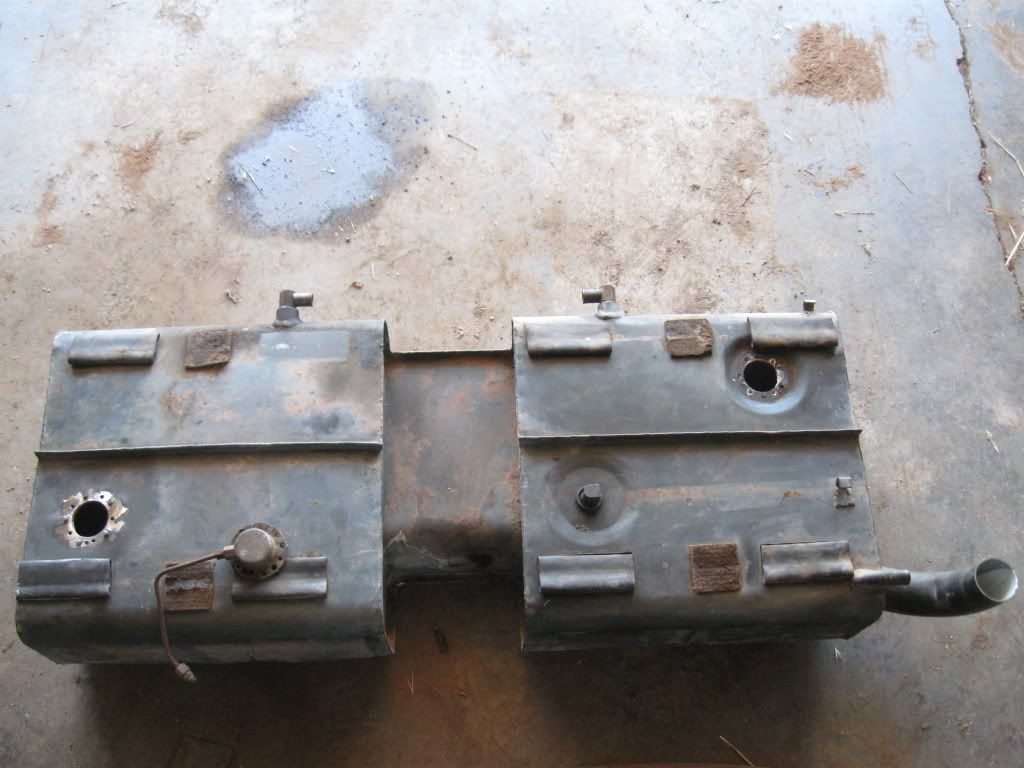

57 welds later, it still leaked. We still had not found all the holes and I was getting frustrated. We priced a new tank. $400 was more than Paul wanted to pay. As you can see, it is a unique shape so that it can wrap around part of the frame that extends down the center. So we got some tank sealer and sealed it. The sending unit turned out to be a pile of rust, so we got a new universal sending unit, which looks just like the old CJ units and installed that after sealing it.

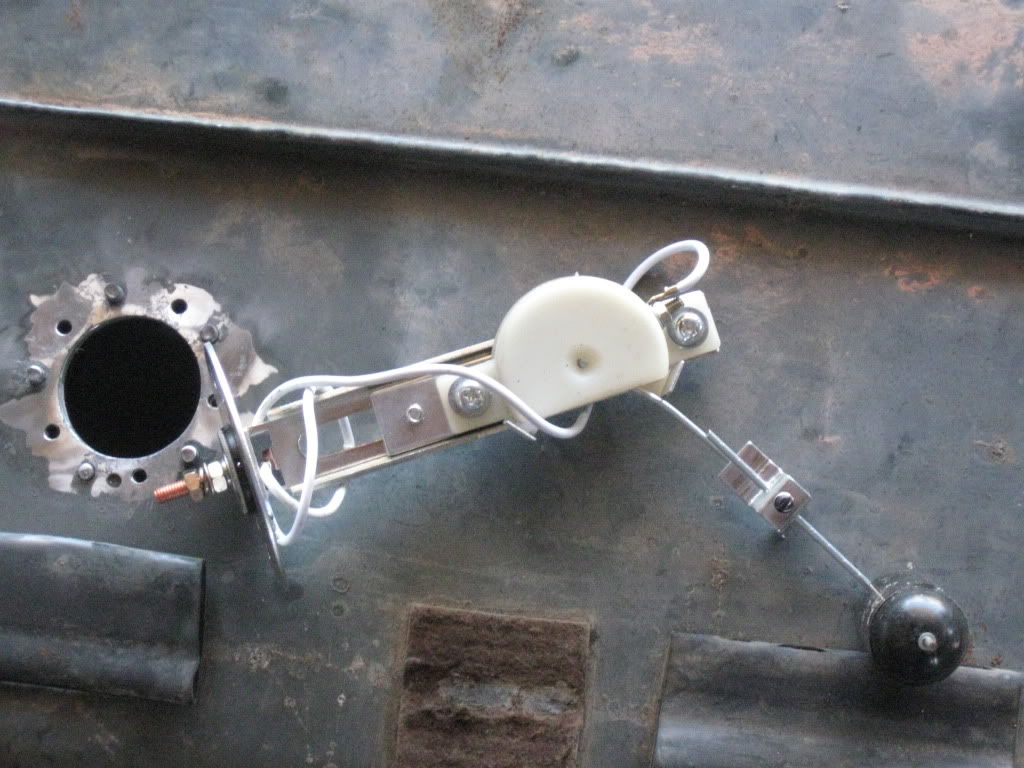

Reinstalled the tank and an electric fuel pump and started it up. It runs! But it won't stop.
ChicoXJ is offline
post #9 of 283 Old 11-04-2010, 10:25 AM
FamillyCJ7
Registered User

FamillyCJ7's Avatar
1983 CJ7

Join Date: Mar 2009
Location: Middleburg
Posts: 984
I think one of those would be cool with a small rover turbo diesel engine in it.

'83 CJ7 258I6 4-Speed Father Daughter Project - Using Monstaliner/Chassis Saver and Products from CrabTreeTool
NorthEastFL4x4.com - Local 4x4 Enthusiasts website, join up now!
FamillyCJ7 is offline
post #10 of 283 Old 11-04-2010, 10:36 AM
j_bydesign
Registered User

j_bydesign's Avatar
2004 TJ Wrangler

Join Date: Sep 2008
Location: Hallandale Beach
Posts: 1,015
Garage
neat! they look pretty small... would love to see one parked next to a TJ or other jeep for perspective on their size... sounds like a really cool project... and to do it with your son is even better! good luck


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


'04 TJ(wheeler) '65 CJ5(sold :( )...'05 LJ(Scrambler conversion, SOLD!) 89' Int. Harvester Toter (SOLD)! '80 CJ7 Resto Mod(sold) 1985 CJ7 Renegade (in process/million pieces) 2000Kenworth Hauler
j_bydesign is offline
post #11 of 283 Old 11-04-2010, 10:39 AM Thread Starter
ChicoXJ
Registered User
1986 XJ Cherokee

Join Date: Oct 2010
Location: Chico, CA
Posts: 701
Quote:
Originally Posted by j_bydesign View Post
neat! they look pretty small... would love to see one parked next to a TJ or other jeep for perspective on their size... sounds like a really cool project... and to do it with your son is even better! good luck
You got it. It has a 71" wheel base

ChicoXJ is offline
post #12 of 283 Old 11-04-2010, 10:42 AM Thread Starter
ChicoXJ
Registered User
1986 XJ Cherokee

Join Date: Oct 2010
Location: Chico, CA
Posts: 701
Quote:
Originally Posted by FamillyCJ7 View Post
I think one of those would be cool with a small rover turbo diesel engine in it.

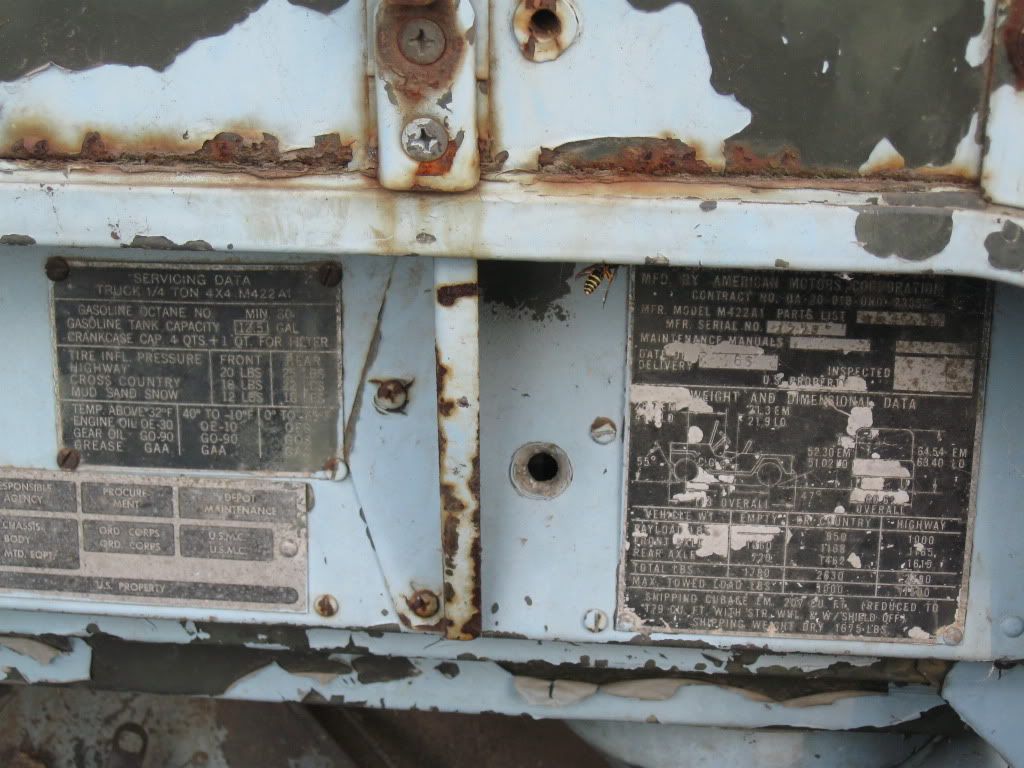

The concept behind these rigs was that they had to be light. GVW is 1720# with a full tank of gas. Diesels are heavy, and even this Volvo is heavier than I would like. We are going to keep it as light as possible. When I finish the other one, fully built I intend to come in at less than 2000#
ChicoXJ is offline
post #13 of 283 Old 11-04-2010, 10:51 AM
j_bydesign
Registered User

j_bydesign's Avatar
2004 TJ Wrangler

Join Date: Sep 2008
Location: Hallandale Beach
Posts: 1,015
Garage
wow.. they are really cool... I want one! sort of a pocket sized jeep


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


'04 TJ(wheeler) '65 CJ5(sold :( )...'05 LJ(Scrambler conversion, SOLD!) 89' Int. Harvester Toter (SOLD)! '80 CJ7 Resto Mod(sold) 1985 CJ7 Renegade (in process/million pieces) 2000Kenworth Hauler
j_bydesign is offline
post #14 of 283 Old 11-04-2010, 10:55 AM Thread Starter
ChicoXJ
Registered User
1986 XJ Cherokee

Join Date: Oct 2010
Location: Chico, CA
Posts: 701

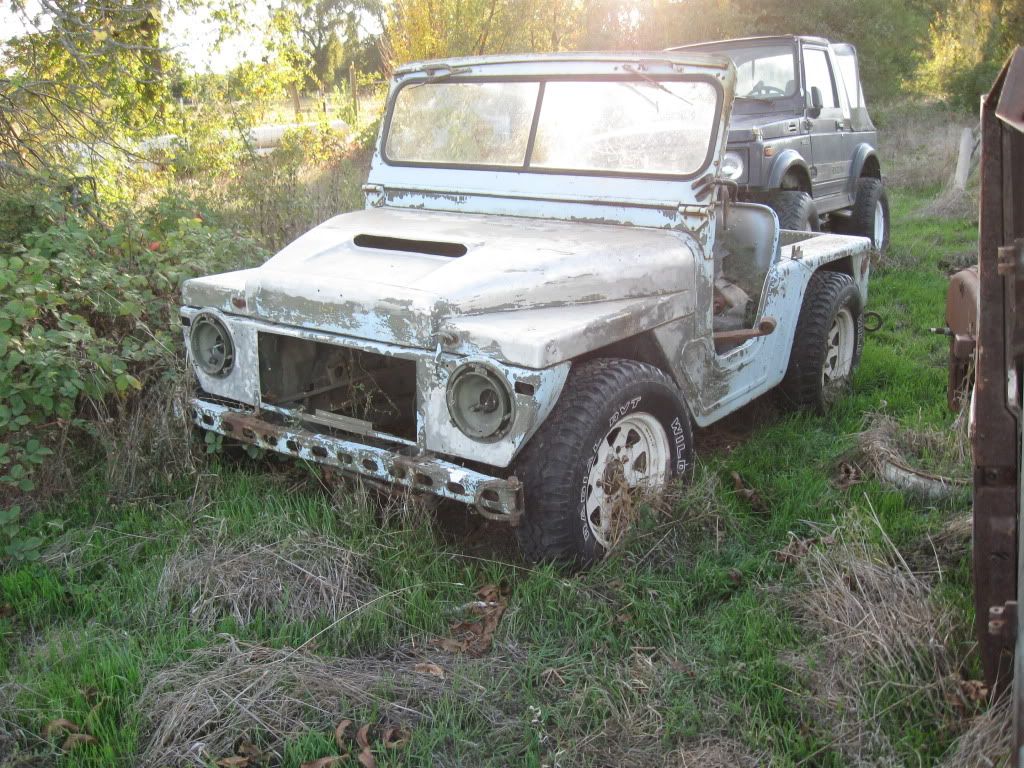

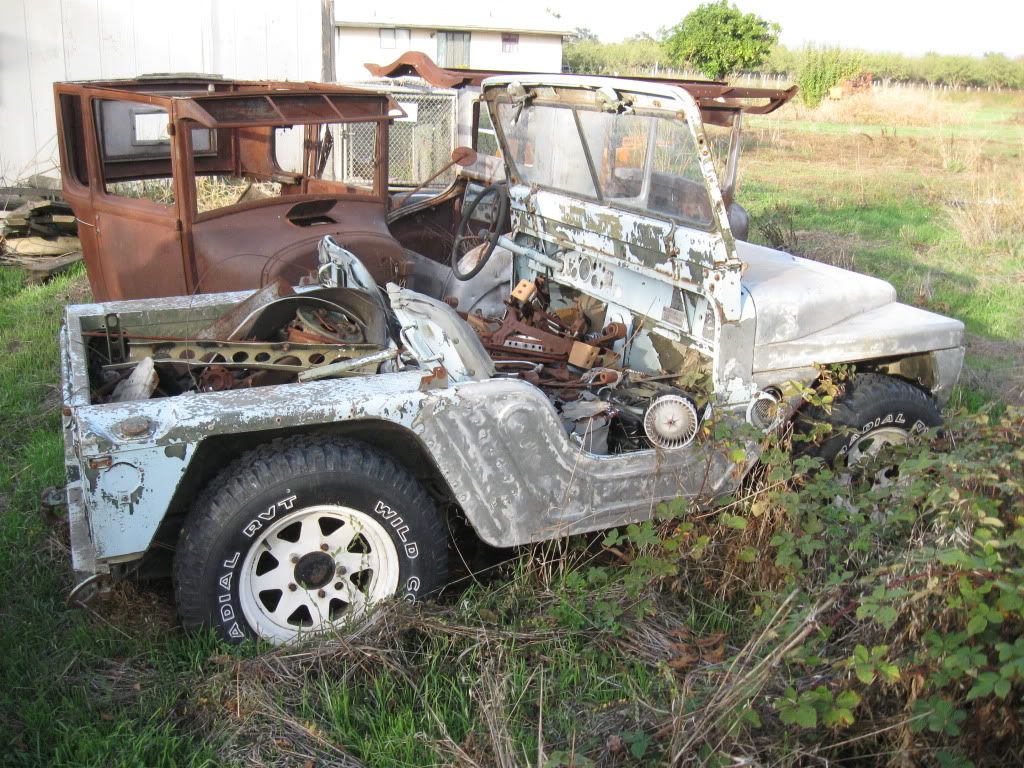

HUM WEE Sr. is a little different story. I originally bought it when I had a side business designing and building lift kits in the late 70s. I couldn't build a better suspension, so I bought it. The Mighty Mite has a totally unique suspension. It is fully independent, corners like a sports car on the asphalt, rids like a Cadillac in the rough stuff. When they first came on the market, guys were buying them and running then stock in obstacle course races and just completely annihilating flat fenders. They are rated to be fully safe on a 40į side hill. They can get away with this due to the fact that there is no bounce to the suspension. It just assumes a new height when you hit something. Driving on or off the edge of a curb is like driving into the driveway. Here are some links to some videos the Marines made.

Watch United States Marine Corps Drive M422 Mighty Mite A Light Weight Rugged Jeep On The Rough Terrain In Quantico,Virginia. Online - VideoSurf Video Search

Watch Demonstration Of The Features Of The M422 'Mighty Mite' Jeep In Virginia, United States. Online - VideoSurf Video Search

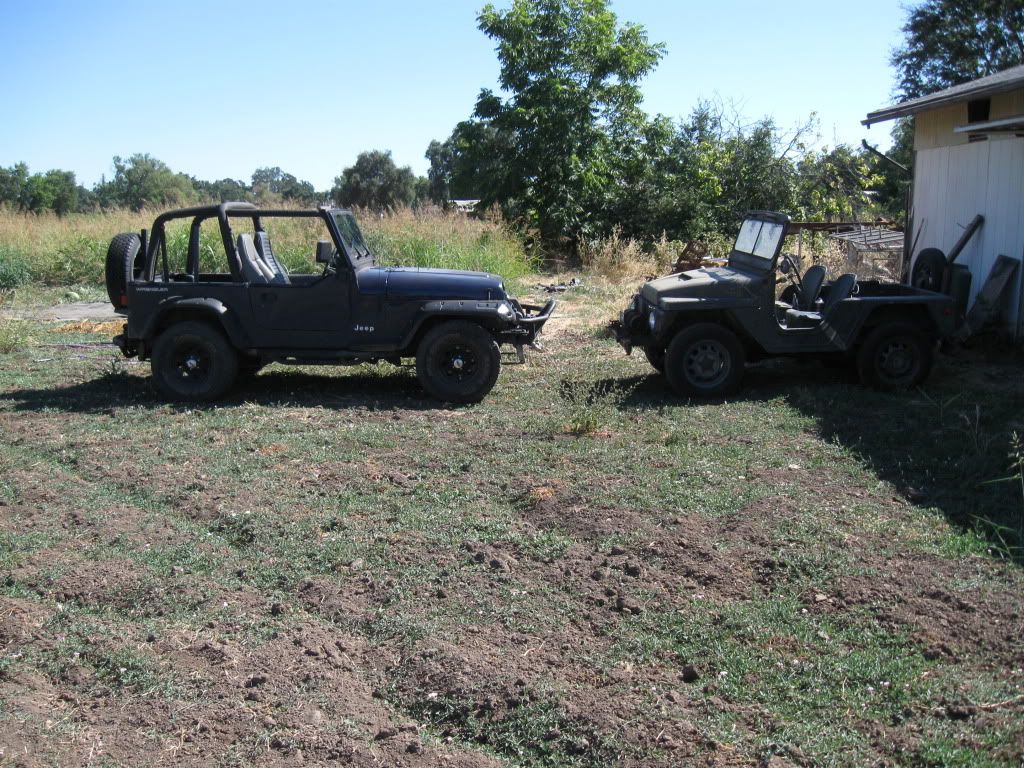

My son told me to get my act together and get the Mite running since he was on the search for one, so here it was in back of my shop.





Complete with a genuine bullet hole in the dash. I don't need one of those hokie decals

ChicoXJ is offline
post #15 of 283 Old 11-04-2010, 10:58 AM Thread Starter
ChicoXJ
Registered User
1986 XJ Cherokee

Join Date: Oct 2010
Location: Chico, CA
Posts: 701
Quote:
Originally Posted by j_bydesign View Post
wow.. they are really cool... I want one! sort of a pocket sized jeep
These are the "long" wheel based ones. The "short" ones are 6" shorter with a 65" wheel base. Here is an article about it.

Title - Off-Road Adventures Magazine
ChicoXJ is offline
