My 86 CJ7 junkyard TBI

I started a junkyard TBI upgrade this winter. I want to share my progress so far and also include some notes that I have gathered along the way.

I used these sites to help me along.
http://www.binderplanet.com/forums/s...ad.php?t=47254
http://www.viciouscustoms.com/TBI/junkyardtbi.asp.htm

-Started with Team Rush Upgrade

-Pulled parts from junkyard.

1.TBI from 91 Chevy S-10 w/ TPS and IAC still attached.
-any TBI from a 88-92 chevy 4.3FI van truck or suv will work. 8th letter in vin# is Z. Some TBI's have small plugs for the TPS so I would keep whatever connector was with the TB that you pull so you can splice it into whatever harness you get.


2.Harness from 1992 Chevy S-10 Blazer, w/ MAP, fuel pump relays, junction block, coolant temp sensor
-any harness from a 88-92 chevy 4.3FI van truck or suv will work. 8th letter in vin# is Z. The harness from a full sized pick up is easier to get to but you will have to do more prep work with it once you get it out.

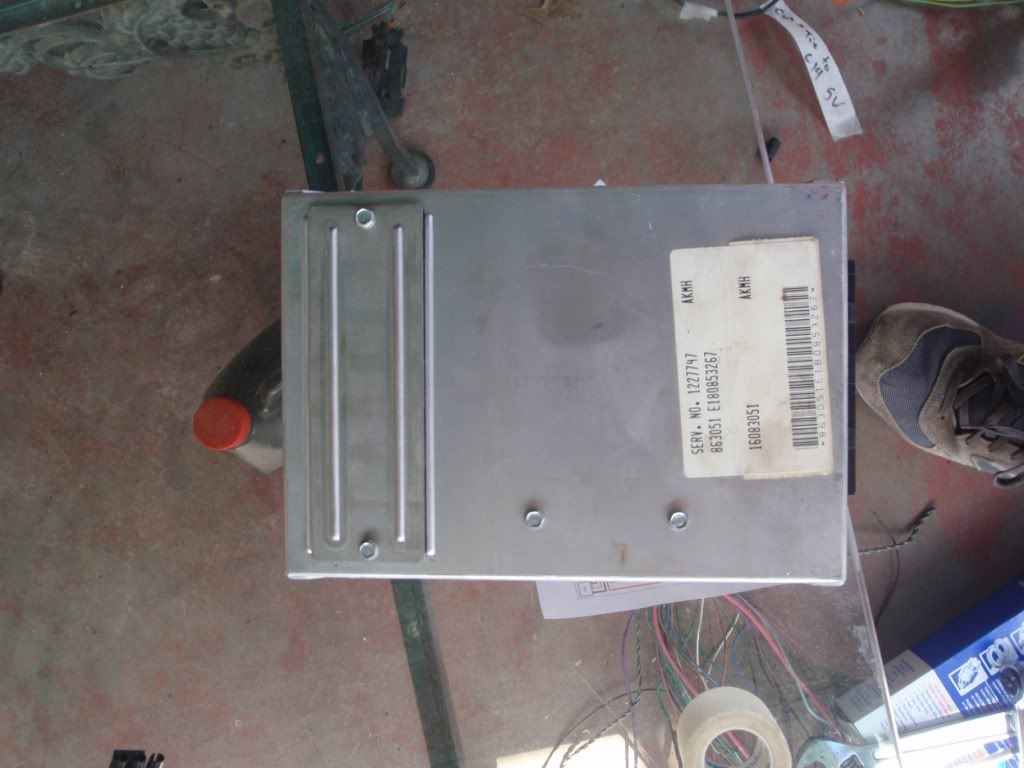

3.ECU (127747) from 1990 Chevy S-10 Blazer
-I know other ECU's will work but Howell suggests this one and its a proven good place to start. Once again you can find these from a 88-92 chevy 4.3FI van truck or suv. 8th letter in vin# is Z. Make sure your check the numbers after to pull it so you have the right one.


-Bought Parts from Auto Zone

1. TBI Rebuild Kit (auto zone #96-3013A)
-Follow directions here Step 3
*notes* this kit now comes with new filters that fit at the base of the injectors, as well as two different fuel meter body gaskets so you will not have to trim.

2. New O2 sensor (auto zone #11027)
-If you have an 02 sensor in the exhaust of your jeep already you can keep it or get a new one. If you dont have one you will have to weld an 02 bung into your exhaust. (auto zone ##534-49) For 02 sensors in the exhaust use a single wire one, or get a 3 wire heated one if you put the sensor in your header. The wiring harness will have a 3 wire connector but if you have a single wire sensor you just have to use the wire that goes to the ECM.

3. Fuel Pump (auto zone #E2182)
-or you can pull an E2000 from a 85-89 Ford F250

4. Fuel filter (auto zone #FF679)
-any fuel filter with a 3/8" in and out should work

5. GM ignition control module 8-pin (auto zone #DR140)
-this will replace your stock ignition control and will hook up between your coil, distributor and ECM so that the ECM can control the spark.

Started work

-Cleaned the TBI with carb cleaner and rebuilt with new gaskets, washers, filters and O-Rings.

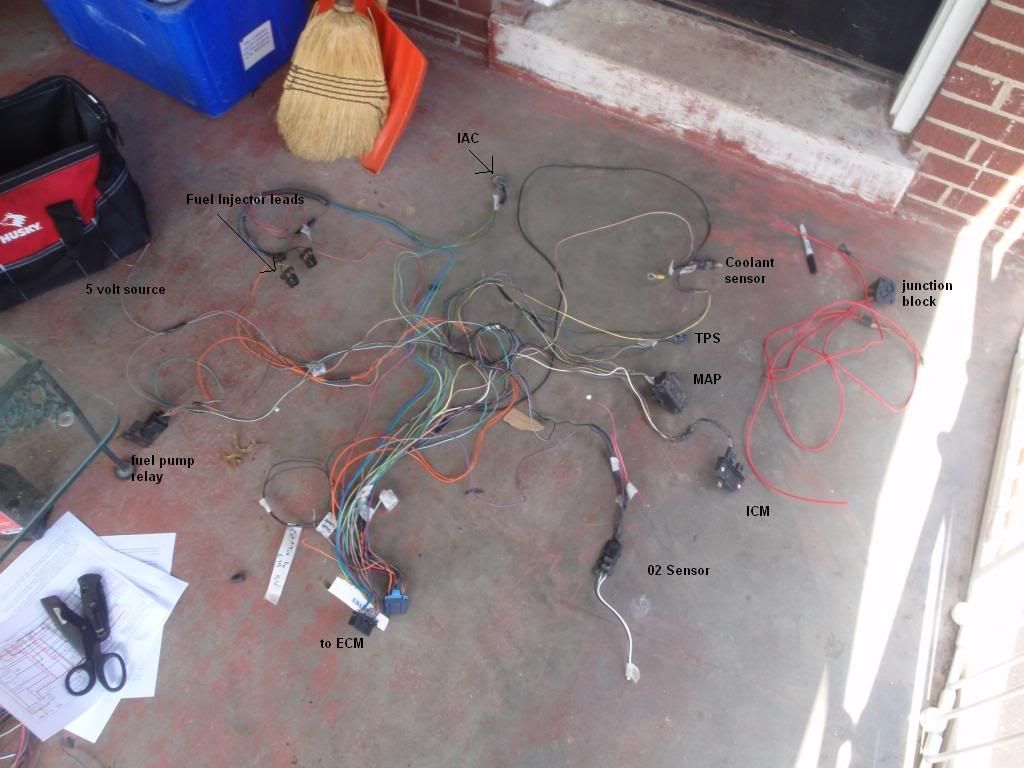

-Laid out all the wiring harness and connected all the sensors that I had. I then went wire by wire, starting at the ECU, and labeled everything that I was going to keep. I thought this would be really hard but once I got started it turned out to be pretty easy as long as you take your time. I then cut out everything in the harness that I wouldn't need. Pin layout and instructions here

I will not be using a knock sensor, vehicle speed sensor, or EGR system
