post #301 of 1454 Old 05-19-2009, 08:13 AM
Ziptie2k2
Registered User

Ziptie2k2's Avatar
1986 CJ7

Join Date: Mar 2006
Location: Greenville, Michigan
Posts: 187
Looking nice as usual. (I'm addicted to this thread). What is the front of the box going to mount to? I only see the rear mounts in the photo's.


1977 - CJ7.......1979 CJ7.......1981 - CJ8.......1986 CJ7 Cant get enough!

Quote:
Originally Posted by 442Wrangler View Post
where do you believe you go when you die?
Quote:
Originally Posted by sanchagrins View Post
you go in the ground, duh.....
Ziptie2k2 is offline
Sponsored Links
Advertisement

post #302 of 1454 Old 05-19-2009, 09:03 AM Thread Starter
jscherb
Registered User
2006 LJ Wrangler

Join Date: Mar 2007
Location: Elmira, NY
Posts: 12,009
Quote:
Originally Posted by Ziptie2k2 View Post
Looking nice as usual. (I'm addicted to this thread). What is the front of the box going to mount to? I only see the rear mounts in the photo's.

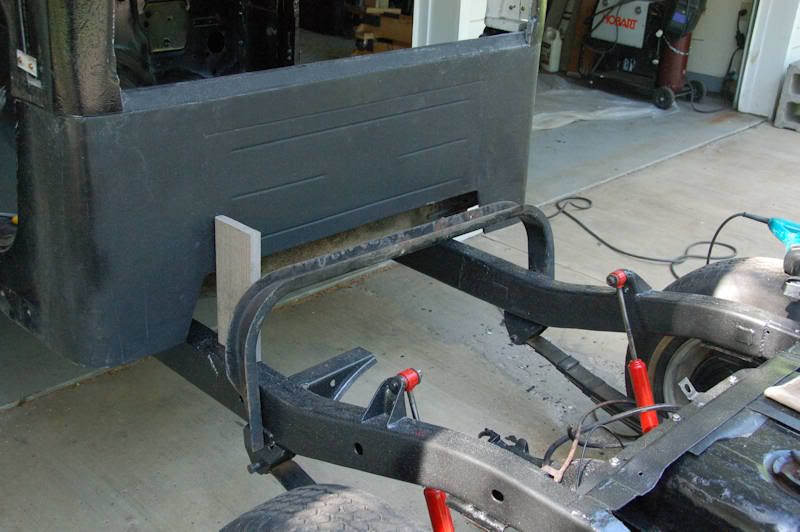

I took this photo to answer your question - you can see an upside-down "u"-shaped mount sitting on the frame just behind the cab. It came from a Dodge Durango pickup, and it's pretty much the perfect width to bolt to the outside of the CJ frame rails. I'll weld mounting pads to the top of it at the right location to support the bed rails.


"Whether you think you can do something or you think you can't, you are right" - Henry Ford
jscherb is offline
post #303 of 1454 Old 05-19-2009, 02:52 PM Thread Starter
jscherb
Registered User
2006 LJ Wrangler

Join Date: Mar 2007
Location: Elmira, NY
Posts: 12,009
One of the problems I ran into when trying to fit the two halves of the hardtop back together is that the upper corners of the cut front half were a little wider than the back half - this is because the top of the roof tapers slightly in width towards the back of the hardtop. You can see the mismatch in photo 1 below.

This problem is actually one of the reasons I searched for a "first style" CJ-7 hardtop for this project. The first style hardtops are molded in one piece from a thermoplastic-type polycarbonate instead of fiberglass like the later style tops, which are made from fiberglass, and assembled from 8 or so separate pieces. The thermoplastic polycarbonate can be heated and remolded, but fiberglass can not.

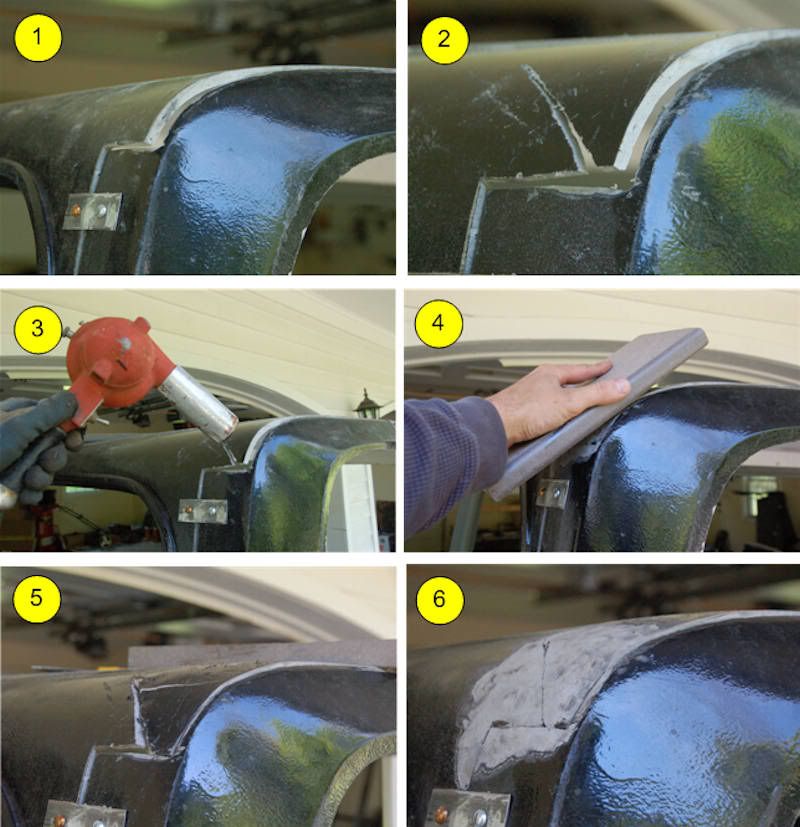

Here's the steps I took to bring the two contours in line:

1. The original mismatch, the front panel is about 1/2" wider than the rear piece and doesn't curve down as quickly.

2. I first made a diagonal relief cut, since I'm going to try to bring the side in and the top down a bit, there will be too much material in the corner when it's remolded.

3. I used a 750-degree heat gun to soften the plastic. I heated both the inside and outside surfaces, from the joints to about 5" back from the joints. It took 10-15 minutes to get it soft enough to where it could easily be shaped by hand.

4. When the plastic was soft, I used a board to smoothly remold the plastic down the the shape I needed.

5. Here the upper part has been reshaped; still have to do the lower piece.

6. After the plastic cools, it's set in the new shape. I've done a quick bit of sanding on the corner, now it's ready for final bonding with polyester resin and matting, and then a little bit of body filler will smooth it perfectly.

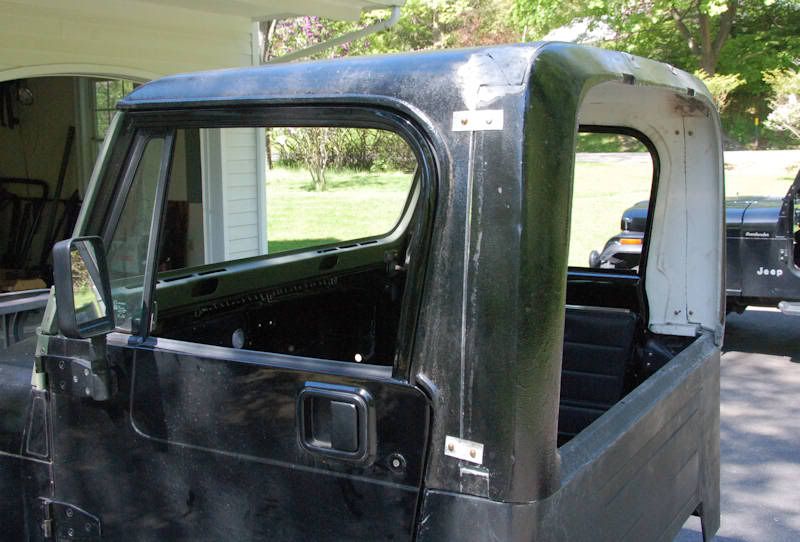

The two parts of the top are just about ready to be bonded together with polyester resin and fiberglass matting - I just have a few very minor tweaks to do to make the joint perfect. I've got the doors from my Scrambler on the Gaucho so I can make sure I've got everything lined up and I've got perfect door gaps.




"Whether you think you can do something or you think you can't, you are right" - Henry Ford
jscherb is offline

post #304 of 1454 Old 05-19-2009, 03:08 PM
Stan99
Registered User
1978 CJ7

Join Date: Aug 2007
Location: Antioch
Posts: 867
wow great work! I am really enjoying following this thread!

1978 Jeep Cj7 Soa, Shackle Reversle, 36x13.5x15 Irocks, 4.5 Stroker MPI, Dana 300 twin Sticked, 4.88's
Stan99 is offline
post #305 of 1454 Old 05-19-2009, 03:09 PM
JoonHoss
Registered User

JoonHoss's Avatar
2011 JK Wrangler

Join Date: Mar 2005
Location: Washington State
Posts: 9,308
Jeff

looks good (as always)...you never cease to amaze me.

are you going to fab a piece for the inside bottom edge out of the pieces you removed?

Hoss

Good judgement comes from experience; experience comes from bad judgement
JoonHoss is offline
post #306 of 1454 Old 05-19-2009, 03:22 PM Thread Starter
jscherb
Registered User
2006 LJ Wrangler

Join Date: Mar 2007
Location: Elmira, NY
Posts: 12,009
Quote:
Originally Posted by JoonHoss View Post
Jeff

looks good (as always)...you never cease to amaze me.

are you going to fab a piece for the inside bottom edge out of the pieces you removed?

Hoss
Thanks! Do you mean the flange inside where the hardtop bolts to the top of the tub? No, I'll make that out of 1/4" fiberglass sheet, probably two layers laminated up to 1/2".

"Whether you think you can do something or you think you can't, you are right" - Henry Ford
jscherb is offline
post #307 of 1454 Old 05-19-2009, 07:13 PM
nwiTJdave
Registered User

nwiTJdave's Avatar

Join Date: Dec 2008
Location: Indiana
Posts: 1,532
Somehow I missed your first build thread on your amazing Retro-Wrangler and I missed a crap ton out of this one too! Amazing work you do! Keep it up


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
This is for fighting, this is for fun.
nwiTJdave is offline
post #308 of 1454 Old 05-19-2009, 07:20 PM Thread Starter
jscherb
Registered User
2006 LJ Wrangler

Join Date: Mar 2007
Location: Elmira, NY
Posts: 12,009
Quote:
Originally Posted by nwiTJdave View Post
Somehow I missed your first build thread on your amazing Retro-Wrangler and I missed a crap ton out of this one too! Amazing work you do! Keep it up
Thanks! You may have missed the Retro Wrangler build thread because I did it on the CJ-8.com board: http://www.cj-8.com/forum/showthread.php?t=18796

"Whether you think you can do something or you think you can't, you are right" - Henry Ford
jscherb is offline
post #309 of 1454 Old 05-19-2009, 09:55 PM
Ford_Prefect
Registered User
1984 CJ7

Join Date: Apr 2008
Location: Out West
Posts: 515
You know, call me crazy, but I personally think that you should leave the hatch back window on the hard top. I just think that it would be nice to be able to open it up if you want to, for instance, if you have some large lumber you want to stick through the window, but the typical truck windows are a bit small. I dono, my personal thoughts, but I am sure it will look nice the way you designed it, just a thought.

Anyhow, really enjoying seeing this thing come along!


If you can read this thank a teacher; if you can read it in English, thank an Airman, Sailor, Soldier or Marine
Ford_Prefect is offline
post #310 of 1454 Old 05-20-2009, 08:23 AM
xjandyj
Registered User

Join Date: Nov 2006
Location: u.s.
Posts: 375
or removable back window like early c3 vettes
xjandyj is offline
post #311 of 1454 Old 05-20-2009, 08:43 AM Thread Starter
jscherb
Registered User
2006 LJ Wrangler

Join Date: Mar 2007
Location: Elmira, NY
Posts: 12,009
Quote:
Originally Posted by Ford_Prefect View Post
You know, call me crazy, but I personally think that you should leave the hatch back window on the hard top.
I have a photo of a YJ pickup done that way, it looks really goofy. So yes, you are crazy.

Quote:
Originally Posted by xjandyj View Post
or removable back window like early c3 vettes
Sorry guys, I'm sticking with a Scrambler slider window on the hardtop. Fiberglass work is already in progress, putting the back wall in this morning, window hole to be cut when I get my hands on the Scrambler window...


"Whether you think you can do something or you think you can't, you are right" - Henry Ford
jscherb is offline
post #312 of 1454 Old 05-20-2009, 06:22 PM Thread Starter
jscherb
Registered User
2006 LJ Wrangler

Join Date: Mar 2007
Location: Elmira, NY
Posts: 12,009

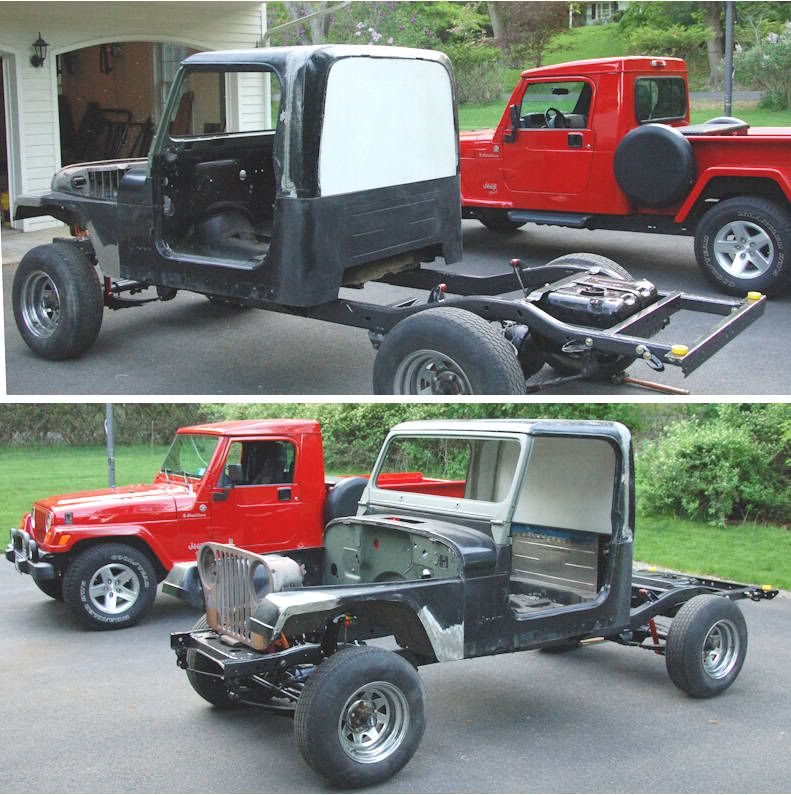

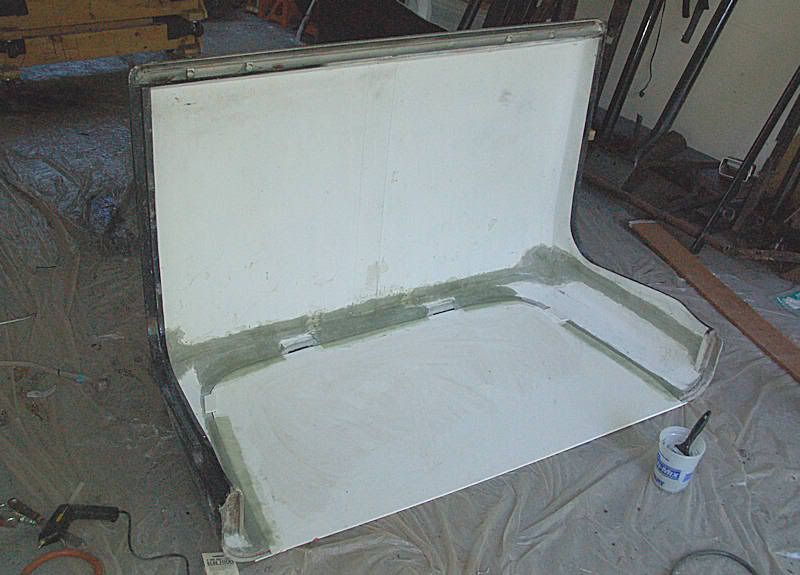

Here's a few shots of the hardtop with the rear wall in place. Next step is to put the mounting flange inside the rear wall, then all the structural work is done and it's down to finishing. Oh and cutting the hole for the back window


"Whether you think you can do something or you think you can't, you are right" - Henry Ford
jscherb is offline
post #313 of 1454 Old 05-20-2009, 08:13 PM
CopperCJ7
Registered User

CopperCJ7's Avatar
1984 CJ7

Join Date: May 2008
Location: Arlington
Posts: 2,420
Quote:
Originally Posted by Ford_Prefect View Post
You know, call me crazy, but I personally think that you should leave the hatch back window on the hard top.
Call me wacky, but I think the Scherbmeister has designed a few vehicles that have met with rave reviews. One would surmise that Dr. Jeep Transformer has a good eye for aesthetics when it comes to vehicle design. That huge door would be awkward to say the least. Imagine driving with that door open? I trust his design prowess - you should too.

Now if you'll excuse me, I need to go wipe this strange "brown stuff" off my nose.

Guns don't kill people... Bad trail spotters do.

Quote:
Originally Posted by John Strenk View Post
What CJ owner doesn't want to hack up his harness for the next owner to have fun with?
Quote:
Originally Posted by Broseph View Post
The thread will derail quicker than a walrus on a Crisco-soaked Slip 'n' Slide.
CopperCJ7 is offline
post #314 of 1454 Old 05-21-2009, 04:49 AM Thread Starter
jscherb
Registered User
2006 LJ Wrangler

Join Date: Mar 2007
Location: Elmira, NY
Posts: 12,009
Quote:
Originally Posted by CopperCJ7 View Post
Call me wacky, but I think the Scherbmeister has designed a few vehicles that have met with rave reviews. One would surmise that Dr. Jeep Transformer has a good eye for aesthetics when it comes to vehicle design. That huge door would be awkward to say the least. Imagine driving with that door open? I trust his design prowess - you should too.
Thanks

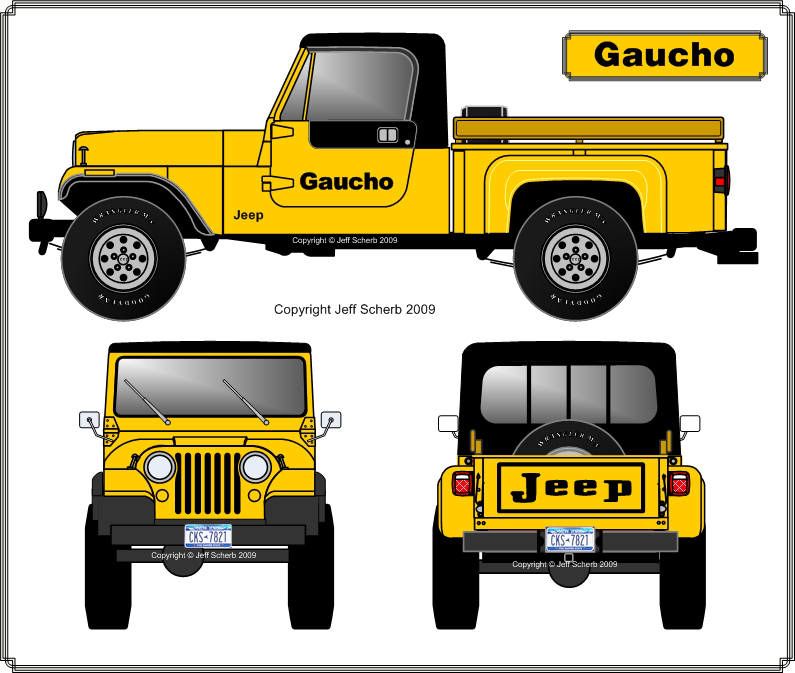

I don't think I've published this design drawing before - here you can see the rear view... I think this window will be just about right.

Also in this drawing I've got the spare in a well at the front of the bed but I still haven't decided where the spare is going. The Retro Wrangler has a bed box in the front of the bed, which is incredibly handy, so I'm not sure I want to take up that space with the spare. That's a design issue I'll tackle in a few weeks when I start working on the bed restoration/fabrication.



I would post the photo of the YJ pickup with the full rear window, but the design is so awkward in so many ways I can't bring myself to inflict it upon you

"Whether you think you can do something or you think you can't, you are right" - Henry Ford
jscherb is offline
post #315 of 1454 Old 05-21-2009, 06:37 AM
xjandyj
Registered User

Join Date: Nov 2006
Location: u.s.
Posts: 375
that looks sweet...what i wonder is,,your work is outstanding,,whoever buys this thing has a high standard to live up to........
xjandyj is offline
