CJ7 disconnected hoses

I was poking around in the engine bay (258) and noticed a hose that wasn't connected to anything (#3) that came from the canister under the windshield washer fluid container. I found another broken hose (#1) that goes up to top/rear of the valve cover. I figured the two disconnected hoses went together until I found a third broken hose (#2) which goes up to the carb. I added the last picture to show the canister #3 goes to better. I have no idea what any of these hoses do or what the canister is...were they all connected to a 3 way splitter? I looked all over for a 4th broken hose but couldn't find anything in that area.

I got the cj almost a year ago and have a feeling these hoses have been like this since I got it. Can anyone shed some light? Thank you!

Attached Thumbnails
IMG_3284.jpg   IMG_3282.jpg   IMG_3281.jpg   IMG_3283.jpg
bmh4142 is offline
Sponsored Links
Advertisement

post #2 of 21 Old 07-14-2019, 07:25 PM
jlkeener
Registered User
1980 CJ5

Join Date: Apr 2017
Location: Chillicothe
Posts: 42
Yes, that's your charcoal canister. One line is the purge line, one went to carb bowl vent, one came from your liquid check valve near your gas tank, and one from spark port vacuum (ported vacuum)
jlkeener is offline
post #3 of 21 Old 07-14-2019, 07:50 PM Thread Starter
bmh4142
Registered User

bmh4142's Avatar
1983 CJ7

Join Date: Sep 2018
Posts: 11
So there should be a three way splitter and the 1, 2, and 3 hoses connect together? I can't seem to find a diagram anywhere online.
bmh4142 is offline

post #4 of 21 Old 07-14-2019, 08:08 PM
jlkeener
Registered User
1980 CJ5

Join Date: Apr 2017
Location: Chillicothe
Posts: 42
No, each line goes to a separate place. Should be a diagram on this forum.
jlkeener is offline
post #5 of 21 Old 07-14-2019, 08:10 PM
jlkeener
Registered User
1980 CJ5

Join Date: Apr 2017
Location: Chillicothe
Posts: 42
Also, if you look closely at the top of your canister, it should tell you what each port on canister is.
jlkeener is offline
post #6 of 21 Old 07-15-2019, 01:58 AM
Matt1981CJ7
Web Wheeler

Matt1981CJ7's Avatar
1981 CJ7

Join Date: May 2011
Location: Elbert
Posts: 21,717

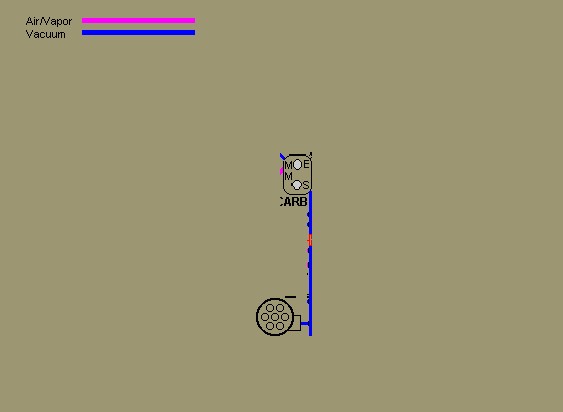

This would be a good site for you to bookmark and study:

https://gleebledorf.com/list.html

#1 is the fresh air intake to your PCV system. It normally connects to the air cleaner assembly. It is not part of the vapor canister system.

Matt
Attached Images



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Matt1981CJ7 is offline
post #7 of 21 Old 07-15-2019, 02:42 AM
whollsee
Registered User
1982 CJ7

Join Date: Jul 2014
Location: Sydney
Posts: 214
Quote:
Originally Posted by Matt1981CJ7 View Post
This would be a good site for you to bookmark and study:

https://gleebledorf.com/list.html

#1 is the fresh air intake to your PCV system. It normally connects to the air cleaner assembly. It is not part of the vapor canister system.

Matt
If that diagram is a bit confusing to follow try this one. Might be a tad easier...
Attached Thumbnails
bmh4142 likes this.

When ever I hear the word 'Jeep' I reach for my wallet.
whollsee is online now
post #8 of 21 Old 07-15-2019, 05:11 AM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 18,914
A lot of those would make sense if you had the right air cleaner housing also.

Now you are going to have to make some customization.

#2 should connect to #3

#1 needs an air filter of some sort to filter the air before it goes into your crankcase.

Not sure how many of those other hoses actually work anymore without the air cleaner attached.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
John Strenk is offline
post #9 of 21 Old 07-15-2019, 06:29 AM
Matt1981CJ7
Web Wheeler

Matt1981CJ7's Avatar
1981 CJ7

Join Date: May 2011
Location: Elbert
Posts: 21,717
Why would anyone remove the factory air cleaner assembly and replace it with that dinky little open breather? Just doesn't make sense.

OP, try to determine if your engine has been Nuttered. Google it, you will get more info than you need. If so, I have some simplified vacuum layouts that will help you.

Matt


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Matt1981CJ7 is offline
post #10 of 21 Old 07-15-2019, 07:04 AM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 18,914
If you can't find a CJ air cleaner housing look for an early YJ housing as they will be almost the same.

You would need the offset one that sits on the valve cover.

It's needed to clear the power brake booster.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
John Strenk is offline
post #11 of 21 Old 07-15-2019, 02:08 PM
Boojo35
Registered User
1994 YJ Wrangler

Join Date: Jul 2007
Location: Beer City
Posts: 1,394
Garage
Quote:
Originally Posted by John Strenk View Post
A lot of those would make sense if you had the right air cleaner housing also.

Now you are going to have to make some customization.

#2 should connect to #3

#1 needs an air filter of some sort to filter the air before it goes into your crankcase.

Not sure how many of those other hoses actually work anymore without the air cleaner attached.
This is correct. #1 originally went into the air cleaner housing to a filter. It is the crankcase breather, it does need to have a filter on the end or the PCV operation can cause it to suck dirt directly into the engne.. #2 and #3 are the bowl vent to the charcoal canister.

If you cannot fix it with a hammer then it has to be an electrical problem.
Boojo35 is online now
post #12 of 21 Old 07-15-2019, 07:02 PM
hp_lovecraft
Registered User
1981 CJ5

Join Date: Sep 2009
Location: Maine
Posts: 1,336
Mine looks like this
hp_lovecraft is offline
post #13 of 21 Old 07-15-2019, 07:08 PM
Matt1981CJ7
Web Wheeler

Matt1981CJ7's Avatar
1981 CJ7

Join Date: May 2011
Location: Elbert
Posts: 21,717
Quote:
Originally Posted by hp_lovecraft View Post
Mine looks like this
So, you have no PCV system?

Matt


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Matt1981CJ7 is offline
post #14 of 21 Old 07-15-2019, 07:56 PM
seth13_1984
Registered User
1977 CJ5

Join Date: Sep 2016
Location: Shawnee
Posts: 12
Garage
Quote:
Originally Posted by Matt1981CJ7 View Post
Why would anyone remove the factory air cleaner assembly and replace it with that dinky little open breather? Just doesn't make sense.



Matt


Curious, why is there an issue with that air cleaner? I believe Itís what mine has had on it since I got it.




Sent from my iPhone using Tapatalk

'77 CJ5 in SE Ohio
258 Straight 6
Carter YF Carb
Montani Semper Liberi
seth13_1984 is offline
post #15 of 21 Old 07-15-2019, 08:16 PM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 18,914
Quote:
Originally Posted by seth13_1984 View Post
Curious, why is there an issue with that air cleaner? I believe It’s what mine has had on it since I got it.




Sent from my iPhone using Tapatalk
First things that come to mind,

1. Too small of filter area, plugs up faster.
2. No protection from water spray or mud. Will quickly destroy the filter material. Distort it so it leaks.
3. Really poor air flow path. No air filter housing should be flat going into the carb opening. A good housing will have a curved path going into the carb.
4. Design easily distorts housing leading to leak for dirt to pass.
5. No room for PCV fresh air intake.
6. Draws hot air from under the hood instead of fresh air from the grill.
7. Allows gas fumes to escape when engine is not running.
8. I doubt if that filter really keeps the dirt out as good as the stock air filter material.
9. No provision for drawing hot air in from manifold stove in the winter to prevent carb icing.
10. Noisier than the stock air cleaner housing.
Boojo35 and Matt1981CJ7 like this.
