CJ Sport Cage Dash Tie-in's CNC PLASMA CUT

A few months back I bought the OR Fab CJ sport cage kit. It came with special brackets that bolt to your dash, and then the forward bars from the main hoop tie in to these on the top platform of the bracket. Pretty clever design. Unfortunately, the kit is somewhere around $350 and the tubes are not mandrel bent.

So, I decided to have at it with my Torchmate CNC plasma table. I took some measurements and made my own sport cage tie-ins. These brackets utilize all the factory holes. The passenger side is cut allow clearance for the glove box and the gusset is slotted so the passenger grab handle can still go on as it should.

I designed these to be basically "dummy proof". I programmed the "T" cut out on the back piece so there is no fooling around with alignment once they get welded up. Simply place the gusset and the top platform in the grooves and weld them up (of course you have to make sure they are perpendicular to the back piece). Basically, a no-brainer install.

I'm getting ready to mass produce these and I will throw them on my EBay site tonight. Let me know what you all think. Keep in mind this set-up is not considered a "roll cage". They may provide a little bit of protection, but they are not designed for a vehicle roll like a real roll bar is.

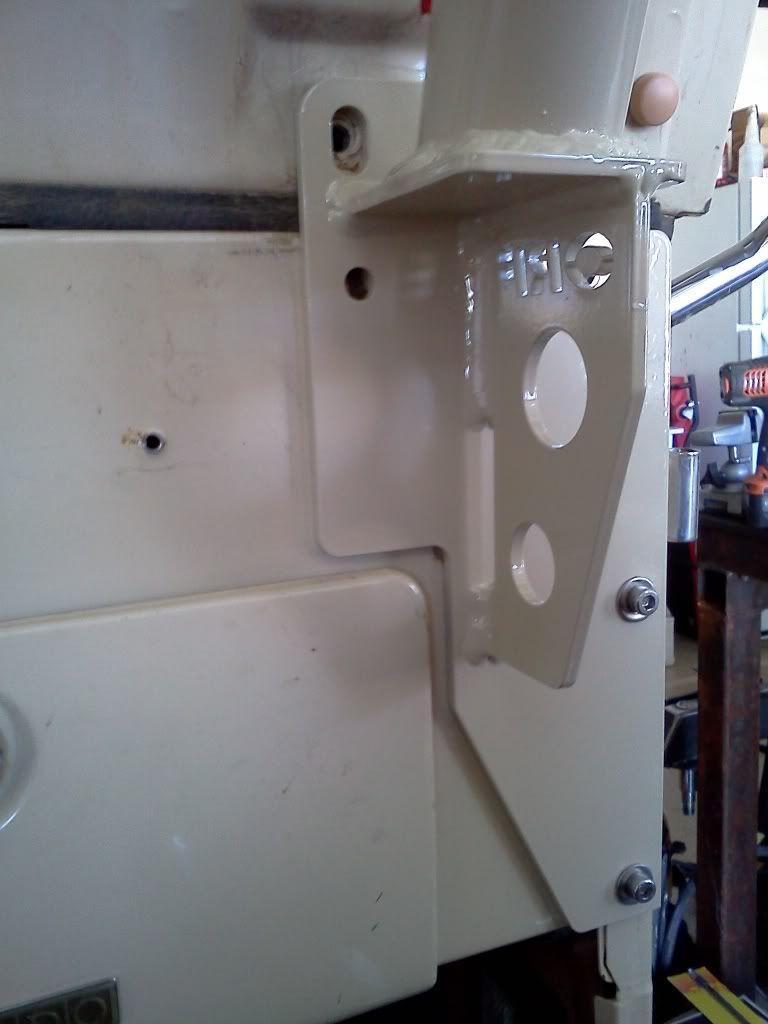

Here are pics of my pricey OR Fab roll cage brackets. Dimensionally, these are very similar, but not the same. I slotted the bolt holes to allow a tolerence when installing and my gussets are a little longer for a bit more support.

THESE ARE THE ORF BRACKETS SO YOU CAN GET AN IDEA OF HOW THESE INSTALL. I DID NOT FABRICATE THESE....








AND HERE ARE THE ONES I MADE TODAY.....












Too many Jeeps to count....
jatepper is offline
Sponsored Links
Advertisement

post #2 of 60 Old 08-13-2011, 10:34 PM
Pacfanweb
Go Wolfpack

Pacfanweb's Avatar
1981 CJ7

Join Date: Jan 2005
Location: Wake Forest, NC
Posts: 2,588
I suspect that type of cage would hold up pretty well in a flop or even upside-down. Maybe not if you went end-over-end, but lots of cages wouldn't handle that.
How much do you think you'll ask for them?

I asked a ref if he could give me a technical foul for thinking bad things about him. He said, of course not. I said, well, I think you stink. And he gave me a technical. You can't trust em. -
Jimmy V
Pacfanweb is offline
post #3 of 60 Old 08-13-2011, 11:00 PM
jcalhoon84
Registered User
1980 CJ5

Join Date: Mar 2011
Location: Newport News
Posts: 273
Looks good!
jcalhoon84 is offline

post #4 of 60 Old 08-13-2011, 11:00 PM Thread Starter
jatepper
Registered User

jatepper's Avatar
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,360
Quote:
Originally Posted by Pacfanweb View Post
I suspect that type of cage would hold up pretty well in a flop or even upside-down. Maybe not if you went end-over-end, but lots of cages wouldn't handle that.
How much do you think you'll ask for them?
PM if interested. Can't really discuss prices on the forum.... I'm not a vendor.

Too many Jeeps to count....
jatepper is offline
post #5 of 60 Old 08-14-2011, 08:00 AM Thread Starter
jatepper
Registered User

jatepper's Avatar
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,360
What would you guys change to make this a little better? What about changing the gusset from a design with circles to something a little more custom.....like this oIIIIIo ?

Too many Jeeps to count....
jatepper is offline
post #6 of 60 Old 08-14-2011, 08:18 AM
jeepwhore
Registered User

jeepwhore's Avatar
1984 CJ7

Join Date: Jun 2006
Location: Kamloops
Posts: 4,232
Quote:
Originally Posted by jatepper View Post
What would you guys change to make this a little better? What about changing the gusset from a design with circles to something a little more custom.....like this oIIIIIo ?
Thats a good idea....something to differentiate them from ORF. The above suggestion, would it have to be vertical to fit?....that would look kind of goofy. Maybe put it where the "ORF" is on their brackets. I've got a good idea for you on what to replace the holes with....I'll draw it up in CAD and post it up shortly. Whats the rough dimensions of that plate?

'84 CJ-17: 17" stretch, locked Toy axles, 5.5" lift, FI, AX15, D300 w/twin sticks, boatsides & junk.
jeepwhore is offline
post #7 of 60 Old 08-14-2011, 09:07 AM
brownbagg
Registered User
1930 MK Compass

Join Date: Feb 2010
Location: pearl
Posts: 2,471
I saw some on another truck, same idea but instead of using flat plate 45 into the vertical, they used square tubing 45 into the vertical
brownbagg is offline
post #8 of 60 Old 08-14-2011, 09:20 AM
boomvader
Registered User

boomvader's Avatar
1984 CJ7

Join Date: Nov 2009
Location: Phoenix
Posts: 954
Are you going to fab the forward bars to make it a kit?

-boom

Boom's CJ-7 Project (Completed in 2011)
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
boomvader is offline
post #9 of 60 Old 08-14-2011, 09:26 AM
jeepwhore
Registered User

jeepwhore's Avatar
1984 CJ7

Join Date: Jun 2006
Location: Kamloops
Posts: 4,232
I originally thought it would be neat to have the thumbs up smiley, , right side up and the thumbs down smiley, , upside down......but I don't think there is enough room. So how about something like these? The gray areas are removed metal, the rest stays in tact. Definitely would set them apart from others, maybe a bit lame though?


'84 CJ-17: 17" stretch, locked Toy axles, 5.5" lift, FI, AX15, D300 w/twin sticks, boatsides & junk.
jeepwhore is offline
post #10 of 60 Old 08-14-2011, 09:32 AM
Superjay5
Registered User
1983 CJ7

Join Date: Apr 2011
Location: Buckley
Posts: 197
Good job! Looks real good.

Seems like it wouldn't be to hard to run a piece of 2" square tube behind the dash vertically at the A pilliar. Nice and tight to the dash and tub with a plate at the floor. Could bolt it together to tie it to the frame, plus it would keep the leg room.
Superjay5 is offline
post #11 of 60 Old 08-14-2011, 10:21 AM Thread Starter
jatepper
Registered User

jatepper's Avatar
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,360
Quote:
Originally Posted by boomvader View Post
Are you going to fab the forward bars to make it a kit?
I'm not going to do the bars. That is why this is for the DIY'er. Plus, I would have to charge a lot more then $41 for the pair. It would also be too costly to ship these with the bars.

Quote:
Originally Posted by jeepwhore View Post
I originally thought it would be neat to have the thumbs up smiley, , right side up and the thumbs down smiley, , upside down......but I don't think there is enough room. So how about something like these? The gray areas are removed metal, the rest stays in tact. Definitely would set them apart from others, maybe a bit lame though?

DUDE!!!!! THOSE ARE AWESOME!!! I'm gonna shoot you a PM with my email address. Would you mind sharing those with me? I'm still a beginner and I would have no clue how to make those on my own just yet.

IIRC, the gussets are 3"x5.25". So, picture a 3x5.25 rectangle cut in half diagonally.

Too many Jeeps to count....
jatepper is offline
post #12 of 60 Old 08-14-2011, 10:23 AM
boomvader
Registered User

boomvader's Avatar
1984 CJ7

Join Date: Nov 2009
Location: Phoenix
Posts: 954
Quote:
Originally Posted by jatepper View Post
i'm not going to do the bars. That is why this is for the diy'er. Plus, i would have to charge a lot more then $41 for the pair. It would also be too costly to ship these with the bars.
ok

-boom

Boom's CJ-7 Project (Completed in 2011)
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
boomvader is offline
post #13 of 60 Old 08-14-2011, 10:58 AM
jeepwhore
Registered User

jeepwhore's Avatar
1984 CJ7

Join Date: Jun 2006
Location: Kamloops
Posts: 4,232
Quote:
Originally Posted by jatepper View Post
I'm not going to do the bars. That is why this is for the DIY'er. Plus, I would have to charge a lot more then $41 for the pair. It would also be too costly to ship these with the bars.



DUDE!!!!! THOSE ARE AWESOME!!! I'm gonna shoot you a PM with my email address. Would you mind sharing those with me? I'm still a beginner and I would have no clue how to make those on my own just yet.

IIRC, the gussets are 3"x5.25". So, picture a 3x5.25 rectangle cut in half diagonally.
For sure man, no problem! If you have the exact dimensions with the notch for the grab bar and everything I can recreate it and make sure it fits the piece properly. Or if you trust me, a .dxf or .dwg of what you used would be best. How wide of a cut does the plasma make? In the above image I assumed it would be about 1/8", is that about right?

'84 CJ-17: 17" stretch, locked Toy axles, 5.5" lift, FI, AX15, D300 w/twin sticks, boatsides & junk.
jeepwhore is offline
post #14 of 60 Old 08-14-2011, 11:56 AM
Patter
Registered User

Patter's Avatar
1981 CJ5

Join Date: Jul 2008
Location: Nashville
Posts: 263
Is there any way to add a hole, or make to glove box notch bigger so you can attach the grab bar? Of course, with a hole, you would have to add a spacer on left side to match the bracket thickness. Just a thought.
Maybe "CJ" cut in the vertical pieces.

"I have a very strict gun control policy: if there's a gun around, I want to be in control of it."
Patter is offline
post #15 of 60 Old 08-14-2011, 12:10 PM
jeepwhore
Registered User

jeepwhore's Avatar
1984 CJ7

Join Date: Jun 2006
Location: Kamloops
Posts: 4,232
Quote:
Originally Posted by Patter View Post
Is there any way to add a hole, or make to glove box notch bigger so you can attach the grab bar? Of course, with a hole, you would have to add a spacer on left side to match the bracket thickness. Just a thought.
Maybe "CJ" cut in the vertical pieces.
Look at picture # 5 in the first post. The gap between the welds and the hole shown are so the grab bar can slip under the gusset and be bolted down.....correct jatepper?

Putting CJ on them probably isn't the best for mass production as they could work for YJ guys as well. But then again, I'm not the one making them!
