post #182 of 343 Old 04-21-2011, 10:08 AM
jorns
Registered User
1986 CJ7

Join Date: Dec 2009
Location: Norway
Posts: 25
Quote:
Originally Posted by keith460 View Post
Can you post a higher resolution picture using Macro feature without using the camera flash of the printcard? Your radio just has a newer circuit board then mine did but the layout will be the same.
Of course. I disabled the flash, but macro future i dont have i think. Used two cameas.
All of them are located at my picasaspace. Note, some of the pictures are also from your HowTo.

https://picasaweb.google.com/skaarer/AMFMRadio#

1986 Jeep Cj7, 258CID, Dana300/30/44, Automatic, frame off 2010/11.
jorns is offline
post #183 of 343 Old 04-21-2011, 02:42 PM
justjeeps
Registered User

Join Date: Apr 2005
Location: Orlean, VA
Posts: 201
Quote:
Originally Posted by keith460 View Post

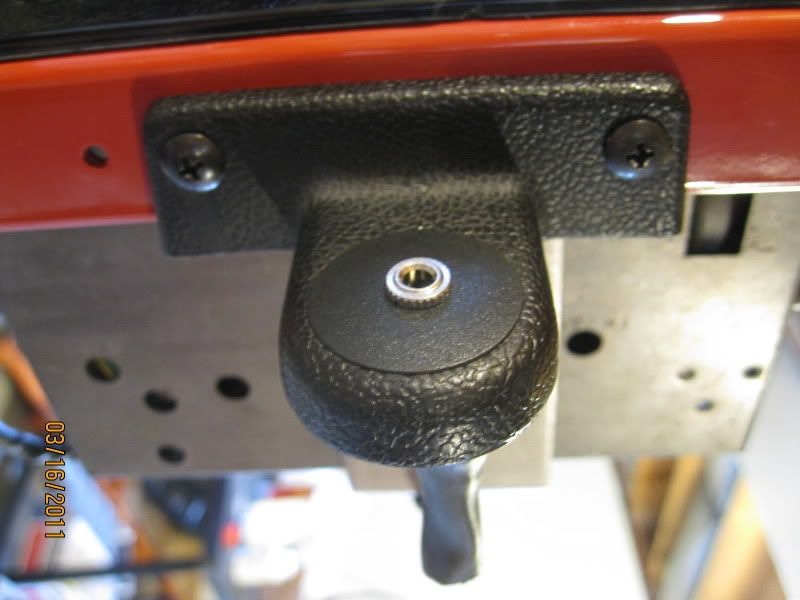

Mounted the aux jack for the radio as I found a spare Jeep CJ cigarette lighter I had laying around and used the plastic bracket to hold the jack in place. All I needed to buy was a simple 18 1" plastic snap in plug and drill a 1/4" hole in the center for the jack.

Came out way better then I thought as it looks OEM and modernizes the original Jeep radio into the 21st century.





Great idea!
justjeeps is offline

post #184 of 343 Old 04-22-2011, 08:11 PM Thread Starter
keith460
Web Wheeler

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 8,495
Quote:
Originally Posted by jorns View Post
Of course. I disabled the flash, but macro future i dont have i think. Used two cameas.
All of them are located at my picasaspace. Note, some of the pictures are also from your HowTo.

https://picasaweb.google.com/skaarer/AMFMRadio#
I downloaded some of your pictures and will try to determine what solder traces need to be cut and where the wires get soldered to. I use to know of a website that had Motorola wiring diagrams for the radios but for the life of me, I can't find it now. It will be the same for you radio as it was for mine. Motorola just modernized the board manufacturing process or used another source that's all.

.
1984 CJ-7 Renegade
__________________
keith460 is offline
post #185 of 343 Old 04-24-2011, 11:44 AM
jorns
Registered User
1986 CJ7

Join Date: Dec 2009
Location: Norway
Posts: 25
Quote:
Originally Posted by keith460 View Post
I downloaded some of your pictures and will try to determine what solder traces need to be cut and where the wires get soldered to. I use to know of a website that had Motorola wiring diagrams for the radios but for the life of me, I can't find it now. It will be the same for you radio as it was for mine. Motorola just modernized the board manufacturing process or used another source that's all.
Great.
I also found this one from the amcforum.
Is this helpfull?

http://theamcforum.com/forum/mp3-pla...opic16338.html

Is the signal that comes from the source volumeregulated before the amplifier? I thought the signal where amplified and then volumeregulated.

1986 Jeep Cj7, 258CID, Dana300/30/44, Automatic, frame off 2010/11.
jorns is offline
post #186 of 343 Old 04-28-2011, 04:06 PM
jorns
Registered User
1986 CJ7

Join Date: Dec 2009
Location: Norway
Posts: 25
I managed to add an AUX jack to my Jeep radio. It was quite diffrent than your Keith. But easier after i figured it out.
I just had to cut to wires and solder each of the ends on to the AUX jack.
Works great.
Thans for tips about this hack:



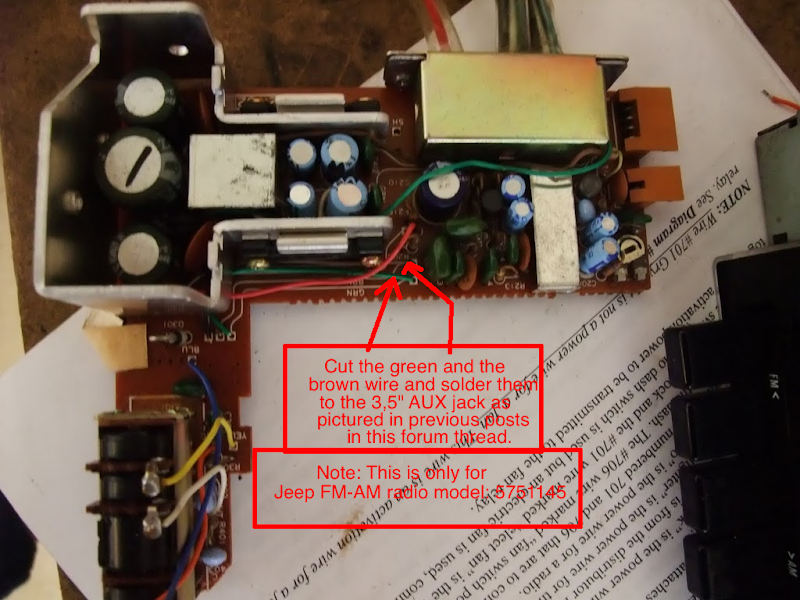

Note, as stated in the picture, this goes for only Jeep FM/AM Radio model: 5751145. I have no idea if this will work with simular radios.

1986 Jeep Cj7, 258CID, Dana300/30/44, Automatic, frame off 2010/11.
jorns is offline
post #187 of 343 Old 04-28-2011, 04:20 PM Thread Starter
keith460
Web Wheeler

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 8,495
I'm glad you found it as it was to hard to determine what wires needed to be cut without the actual circuit board in my hand to examine closely. It is definitely a great hack for the simple am/fm factory radio and you should post what wires and closeup shots of your finished work as other Jeeps are sure to have your radio with a more updated circuit board layout then mine was.

Enjoy your new found sounds in otherwise just another plain old radio that only received whatever was being broadcast on the airways. It is great to do that and cost next to nothing also.

.
1984 CJ-7 Renegade
__________________
keith460 is offline
post #188 of 343 Old 05-01-2011, 05:43 AM
jorns
Registered User
1986 CJ7

Join Date: Dec 2009
Location: Norway
Posts: 25
Adding AUX to Jeep FM radio model: 5751145

Hi, here i s a guide to add AUX input for Jeep FM/AM radio model 5751145.
It will work like Keith has explained. When connection the iPod/mp3 it will bypass the radiosignal and send your iPod music to the speaker.


1) This is the factory layout. It has a brown and a green wire solder on the top of the printcard. Both of them needs to be either cutted or removed (as i did) and route to the radioshack 3,5" input jack.

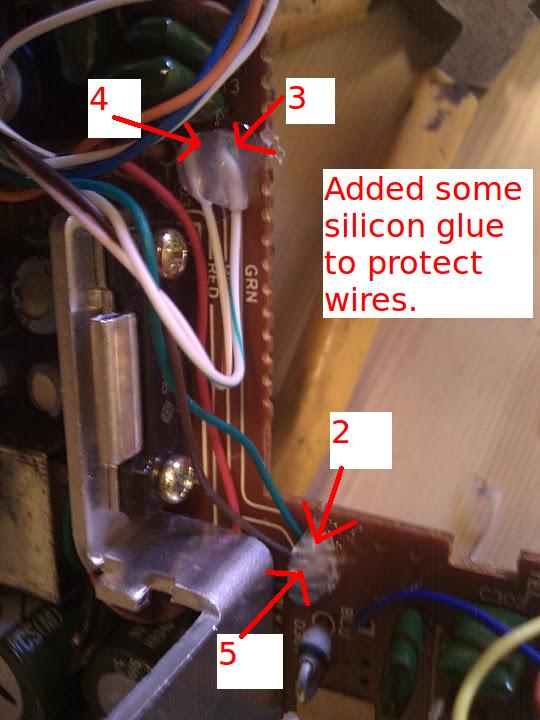

2) In this picture i have unslodered the green and the brown wire and replaced it with 4 single wires. I used CAT 5e UTP cable (multicore, not single core) for the installation.
As pics shows the white/green and white/brown wire is soldered to the radio source signal side (point 3 and 4 on the radioshack input jack). And brown and green wire to the output side on the radioshack input jack.

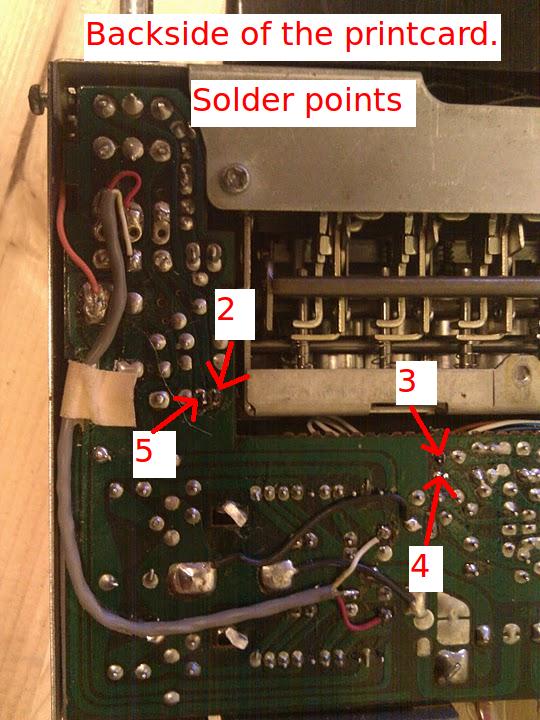

3) This pictures shows the solder points of the backside of the printcard. You have to solder the 4 wires on the backside.

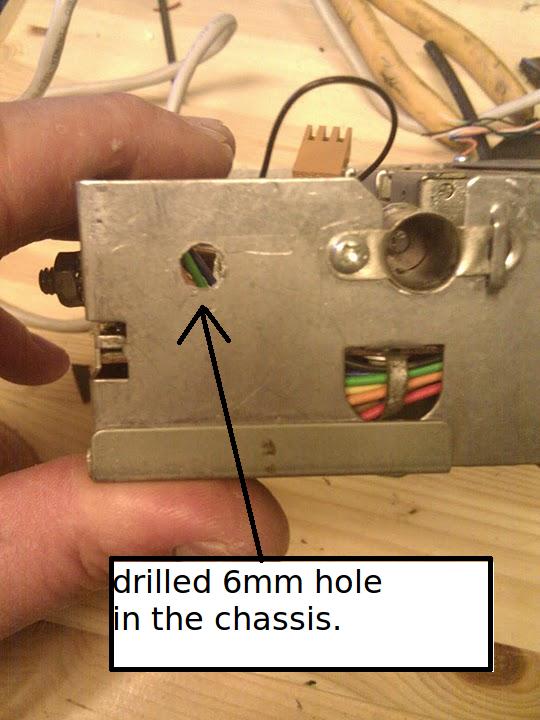

4) AFter soldering i i drilled a 6mm hole in the chassis to have the input jack installed at the chassis. I might be a little hazzle to connect it when driving but, i think i am going to add a input jack also in the center console so for me this the way to do it.


5) This is how I soldered the brown and green pair of wires to the radioshack input jack. Also notice that pin 1 must be grounded. Either solder it to the chassis or as i did to a ground point on the printcard.
  • 1. Black for ground.
    2. Green wire
    3. Green/White wire
    4. Brown/white wire
    5. Brown wire


6) Installation done.


7) Video of how it works.

1986 Jeep Cj7, 258CID, Dana300/30/44, Automatic, frame off 2010/11.
jorns is offline
post #189 of 343 Old 05-01-2011, 05:20 PM Thread Starter
keith460
Web Wheeler

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 8,495
Here's a video of the auxiliary jack being used through the radio using Pandora on my iPhone. Works every time!

Click on the picture to view the video:

.
1984 CJ-7 Renegade
__________________
keith460 is offline
post #190 of 343 Old 05-23-2011, 09:34 AM Thread Starter
keith460
Web Wheeler

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 8,495
Found a good way to hold the iPhone while driving and listening to Pandora plus there is also a microphone for calls. Went to Best Buys and bought a cigarette lighter charger that holds the phone in place while charging. Cost about $50.00 and does not sag while driving around in a bouncy Jeep CJ.


.
1984 CJ-7 Renegade
__________________
keith460 is offline
post #191 of 343 Old 05-23-2011, 11:34 AM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 19,615
Is that an Otter cover for the iPhone?

I hope so, I'm looking for a holder that will fit over my case so I can put it in any jeep I'm currently driving.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


I drive a Prius to save money and buy more Jeep Parts....
John Strenk is offline
post #192 of 343 Old 05-23-2011, 11:56 AM Thread Starter
keith460
Web Wheeler

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 8,495
Dumb a** me forgot to name the manufacture of the device in the post.
It's made by Griffin Technology and is new according to their website and it fits all 3G, 4G iPhone even with a cover on.

Website URL: https://store.griffintechnology.com/...-aux-handsfree

.
1984 CJ-7 Renegade
__________________
keith460 is offline
post #193 of 343 Old 05-23-2011, 12:05 PM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 19,615
Thanks, found it, but I wonder why your link takes me to http:\\www,fyurl,com???

I had to copy your link and paste it in my browser.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


I drive a Prius to save money and buy more Jeep Parts....
John Strenk is offline
post #194 of 343 Old 05-24-2011, 02:21 AM
L78THUMPER
Registered User
2007 MK Compass

Join Date: Jan 2009
Posts: 346
here's mine
Attached Thumbnails
L78THUMPER is offline
post #195 of 343 Old 05-24-2011, 12:22 PM
red mistress
Registered User
1983 CJ8

Join Date: May 2007
Location: TX
Posts: 177
OEM Jeep radio's

Great write-up on dash restore. All 3 of my low mile CJ's have veins in paint from sheet metal screws.

I just found a 82 Oriental Scrambler all origional execpt radio was swapped out...fortunately dash was not cut.

Going to install this AM/FM model 5751145 and wish.....

there was a way to stream music from iPod like bluetooth.

(no wires)

Something like this work? http://www.1800mobiles.com/parrotbluetooth.html




I also have these NOS AM radio's for the Gladiator & Jeepster Convertible to modify.


67 Gladiator 15K AMC327 PTO Ramsey D44, D60 69 Jeepster deluxe Convertible Power 82 CJ-8 75K Renegade all original 83 CJ-8 50K 401 MPFI ARB60's front & rear winch 38" 84 CJ-7 38K Garnet interior, Jeep SE 8274, 8" x 33" 87 J20 36K Jeep SE Hidden winch, boat rack, 35" 2006 LJ Rubicon 3K
