Any one know what transmission this is?

I got this jeep engine and transmission from someone I knew who passed away. I'm not sure exactly what it is or what it's from. It's a carbureted 4cyl with a 4 speed manual transmission. I'll post pictures

Ctjeep200 is offline
Sponsored Links
Advertisement

post #2 of 9 Old 04-30-2015, 07:25 PM Thread Starter
Ctjeep200
Registered User
1991 YJ Wrangler

Join Date: Mar 2014
Location: Molalla
Posts: 41
It says borg warner on the tranny
Attached Images

Ctjeep200 is offline
post #3 of 9 Old 04-30-2015, 07:32 PM
jason280
Registered User

jason280's Avatar
1994 YJ Wrangler

Join Date: Nov 2010
Location: Middle
Posts: 1,319
Garage
jason280 is offline

post #4 of 9 Old 04-30-2015, 07:33 PM
TIPPEDITOVER
No signal

TIPPEDITOVER's Avatar
1978 CJ5

Join Date: Jun 2011
Location: Renton
Posts: 3,809
That's a T4 and the engine is an AMC 150. They came in 82'-86' CJ's.

This guy https://www.jeepforum.com/forum/f8/is...y-sr4-3169697/ is asking for a T4. If you want to sell the trans, you two should hook up.
TIPPEDITOVER is offline
post #5 of 9 Old 04-30-2015, 07:34 PM
walkerhoundvm
Registered User

walkerhoundvm's Avatar
1981 CJ8

Join Date: Apr 2010
Location: The Big Cholla
Posts: 3,758
What you've got there is a T4 transmission. The lack of a bulge on the driver side front tells me it's not a T5.

https://www.novak-adapt.com/knowledge/t4_t5.htm
walkerhoundvm is offline
post #6 of 9 Old 04-30-2015, 10:07 PM
Always2L8
Registered User
1982 CJ8

Join Date: Nov 2011
Location: Clearwater
Posts: 377
AMC 4's were after 1982. I thought they came out in 83, but Wiki ( http://en.wikipedia.org/wiki/AMC_straight-4_engine ) says 84. Not trying to be a jerk, just thought it may avoid the "I got an 82 with an Iron Duke" comments.

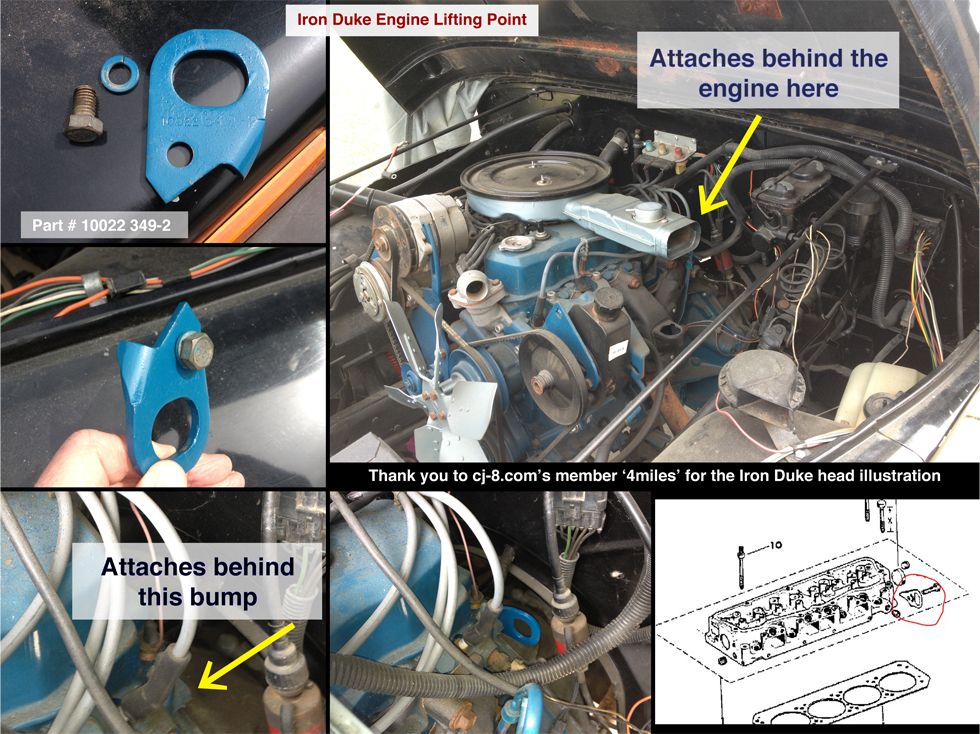

By the way, my 82 came with an Iron Duke.

Good Luck
Always2L8 is offline
post #7 of 9 Old 04-30-2015, 10:26 PM
TIPPEDITOVER
No signal

TIPPEDITOVER's Avatar
1978 CJ5

Join Date: Jun 2011
Location: Renton
Posts: 3,809
Quote:
Originally Posted by Always2L8 View Post
AMC 4's were after 1982. I thought they came out in 83, but Wiki ( http://en.wikipedia.org/wiki/AMC_straight-4_engine ) says 84. Not trying to be a jerk, just thought it may avoid the "I got an 82 with an Iron Duke" comments.

By the way, my 82 came with an Iron Duke.

Good Luck
I'll admit I'm no CJ history buff, nor do I profess to be. You got me there and I don't want to regurgitate bad information, so thank you for correcting me on the AMC 150. The AMC 150 did, in fact, 1st show up in CJ's in 1984, not 82'.

Novak Adapters, which is where I got my info, needs to correct their error.

OP, your 4 cyl could be either the GM 151, or AMC 150 since we have no idea what year it came out of. GM version carb was on passenger side. AMC version carb was on driver side. That's the quickest/easiest way to tell them apart.





TIPPEDITOVER is offline
post #8 of 9 Old 04-30-2015, 11:10 PM
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 17,159
That's an AMC four cylinder. The little bit of angular bellhousing bolt pattern with two top bolts that can be seen gives it away. It's the same pattern as the GM 60 degree V6.



The GM four cylinder has the same pattern as the small block chevy with one bolt at the top of it.
CSP is offline
post #9 of 9 Old 05-01-2015, 02:04 PM Thread Starter
Ctjeep200
Registered User
1991 YJ Wrangler

Join Date: Mar 2014
Location: Molalla
Posts: 41
Thanks everyone I appreciate the information.
