1977 CJ7 Green Chile Build

Well for the few who followed my other post where it was started more of a question thread, then I turned it into a build thread. So I decided to start a build thread. So sorry if the first few posts are repetitive what already has been posted. https://www.jeepforum.com/forum/f8/1...-swap-4333337/

So back in July 2018 I bought a 1977 Jeep CJ7 4.2 6 cly. My plan is to keep her stock looking, maybe modernize things but keep the vintage look to it. The first thing I did was rebuild the entire brake system, as I was only able to test drive it for a few mins due to extremely bad brakes. Next, I did a tune up spark plugs, wires, oil, air, and fuel filters etc, even motor and transmission mounts. I quickly realized how much manual brakes and manual steering sucks. I just finished doing a power brake upgrade I'll write up a post on it. And I am still getting parts together for the power steering upgrade. I recently rebuilt the Carter YF carb. I am contemplating swapping to a Motorcraft 2150 which is what I see most people recommend swapping to.

















Green Chile is offline
Sponsored Links
Advertisement

post #2 of 17 Old 03-24-2019, 06:42 PM Thread Starter
Green Chile
Registered User

Green Chile's Avatar
1977 CJ7

Join Date: Sep 2018
Location: Albuquerque
Posts: 50
Garage

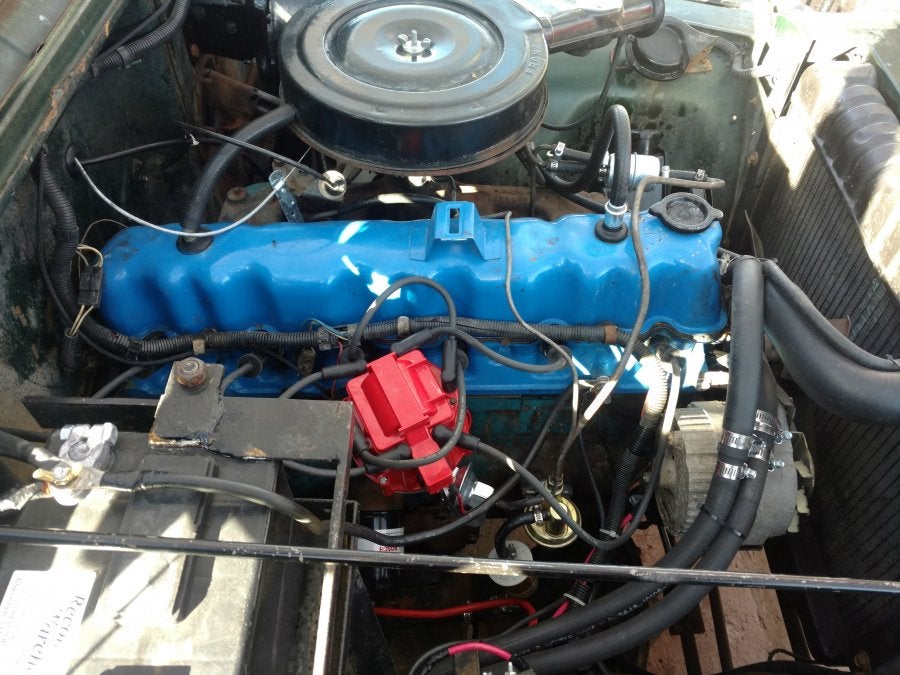

I just did an HEI conversation on my Jeep. I had the Prestolite (I believe that is what it is was) I got my HEI from Ebay and the plug wires from a 1980 Ford Fairmont I6 (8mm) from Napa. The install was easy, just hook up the power/ignition wire. Since my coil positive wire was 12v, all I needed was an extension wire to reach the cap stud; since I didn't have a resistor in-line I was able to reuse that same wire. I installed Champion spark plugs and gapped them to .040. I set the timing to 8 deg, it felt better at 8 vs 6 deg (I'm at 1-mile elevation) It does run smoother, it was worth it.
