post #1 of 22 Old 07-27-2010, 01:33 PM Thread Starter
JCDubya
Registered User
2009 WK

Join Date: Nov 2004
Location: The Garage
Posts: 802
How to "activate" a switch blank--radar detector mute button

Whenever I make/add something, I always try to make it look as professional and OEM as possible. Sticking the SmartCord control box for my radar detector somewhere on the dash definitely didn't look OEM and isn't my M.O. Just so you know what i'm talking about, this is the SmartCord for the Passport Escort 8500 X50 radar detector. It allows you to hardwire the detector and gives you a remote mute button and LEDs.

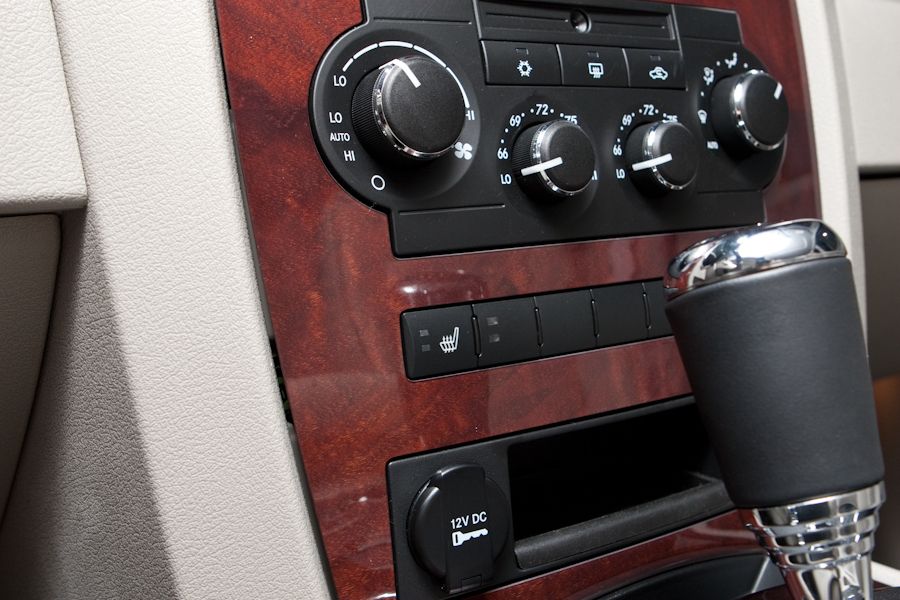

My DubK has so many switch blanks, I had to use one. I had never seen this done before so R&D took a while (I spaced the project out and worked on it a little at a time).

To start, you have to remove the chrome trim ring around the shifter assembly, the trim beneath that, then the center stack trim. If you need help with that, check WK Jeeps. With the center stack trim removed, you can now remove the switch bank. It's held on with 4 screws and 3 clips. To disassemble the switch bank you need to remove the back piece. You'll see that it's held in with many little clips around the edges. You'll need something like a small flat tip screw driver to free them.

Once you get that piece off you'll see a grey rubber piece over the circuit board. I had to remove some of the rubber to make room for my components but you'll see that later.

There is a way to "activate" a stock switch but the actual "switch" is part of the PCB--not a component soldered on, it's part of the traces. If any of you electrical engineers want to figure out how to program your own switch, go right ahead. I have my doubts about it even being possible as a DIY thing so instead, I added a separate new switch, a push button momentary switch.

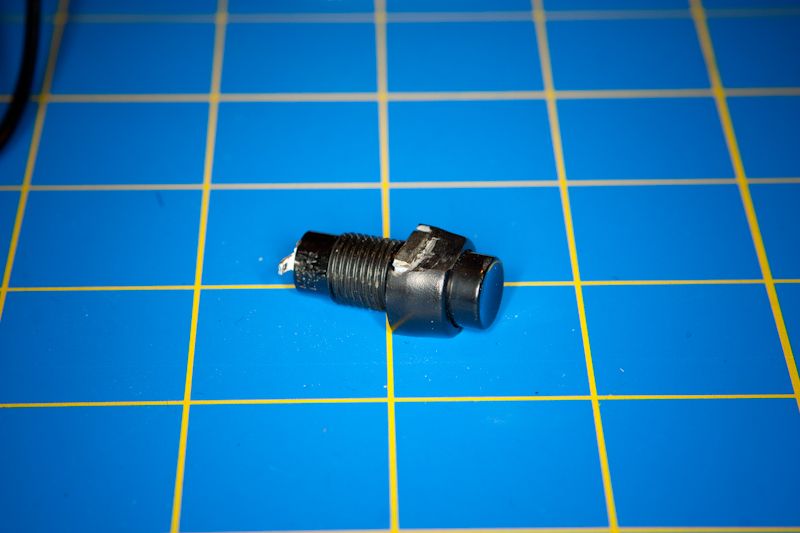

The switch I used was made by GC Electronics, part#: 35-411 "Normally Open Off - (On) Miniature Pushbutton"

To fit the switch down in the space on the switch bank, you'll have to trim two opposing sides. I used a chisel to slice off the material, it worked great. Just be careful you don't trim off TOO much as you could damage the actual switch mechanism.

To remove the switch blank/cover, use a small flathead to gently pry on each side. You'll see where it catches. Once you remove it, there are four "posts" that need to be removed for the switch cover to move in and out like the OEM switches. I forgot to take a picture but once you get the switch cover off you'll know what I'm talking about. In the following pictures, if the "posts" were still attached, the switch cover on the right would be slightly elevated compared to the heated seat switch cover:

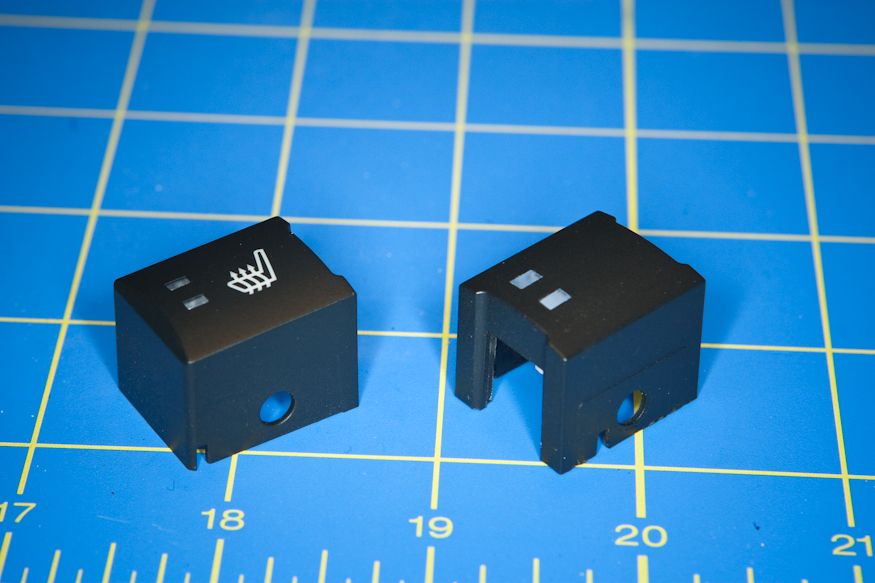

Unfortunately, these switch blanks/covers are a tighter fit than the actual switch covers. For it to move in and out freely you'll have to file down the interior of it. I couldn't pinpoint exactly what was causing it to stick so I filed everywhere. Remove enough material so that it doesn't stick but not so much that it gets sloppy.

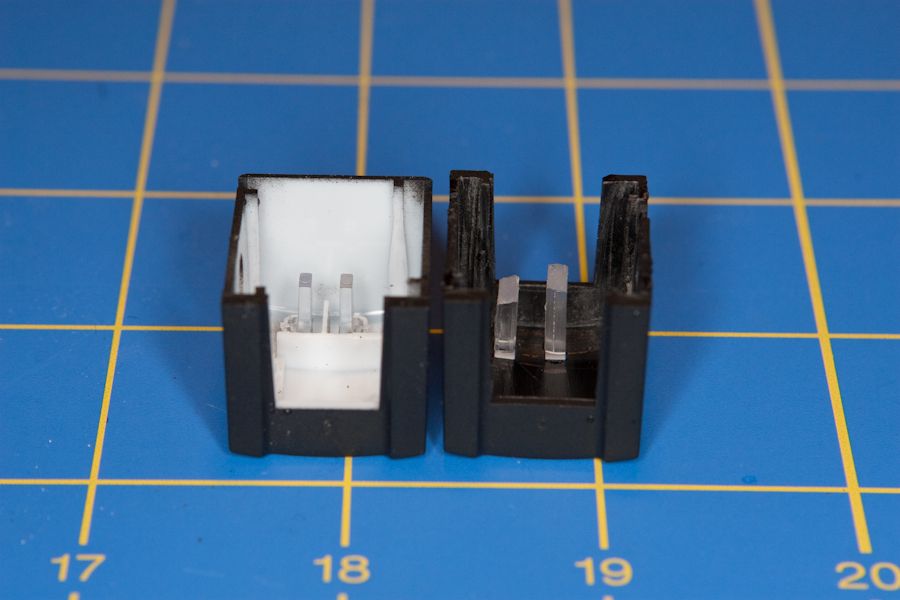

The most time consuming part of this project was making the LED "windows." First, I went to a pick-n-pull to see if I could find a WK (or anything with what i needed) so I could use premade "windows." That was a bust so I had to make my own. I used lexan/plexiglass and sanded them to the proper shape/size with a small file. (My $3 12 piece needle file set from Harbor Freight was indispensable for this project) The following picture was taken before I shaped them. Placement of the windows and how wide/fat they are is crucial. The opening on the switch bank is pretty small so just take measurements and test-fit frequently.



**While test fitting, I got lazy and just set the switch cover on the switch bank to test clearance. Don't do this! Push the cover all the way on so that it "clips" in. When the switch was pushed in all the way, my windows created too much friction so while they were glued in I had to sand, cut them narrower. For this, my $3 13 piece precision knife set from Harbor Freight was a HUGE help.**

The backs of the windows should be relatively smooth but the front (the part you see) should be slightly cloudy/textured so that you can see the light from the LEDs better. After I had them shaped with the file, I used some sand paper (up to 600 grit) to smooth the fronts out a little while still keeping some cloudyness. Once I was sure the switch cover with the windows installed would fit back into the switch bank without binding, I super-glued them in from the rear.

You can reuse the LEDs from the SmartCord unit but I wanted to use brighter ones. I replaced the red one with a much brighter red and replaced the green one with a bright blue. If you use 3mm LEDs you wont have to do anything besides glue them in. I used 5mm LEDs so I had to do some shaving--to the switch bank opening and a little to the LEDs, just on two sides. Once all the openings are ready to accommodate the switch and two LEDs, drill the holes for the wiring. I used the smallest bit I had, which was pefect for the 24 AWG wire (stranded) I used. I glued in the switch before I wired it up but I wired the LEDs before I glued them in. I used JB Weld Kwik to secure the switch and super glue to secure the LEDs. Make sure you don't get any glue down into the switch mechanism, either from the top or from the sides where you had to shave them down. Make everything as flush as possible as there is little clearance back there. The way I set the depth of the switch was by inserting it but leaving it out more than normal, then putting the switch blank cover on and pushing it down completely. Where it stopped is where I glued the switch. Different switches have different tolerances as far as where the switch engages and whatnot so you'll have to do some testing. I lucked out with mine and it was perfect for what i needed.

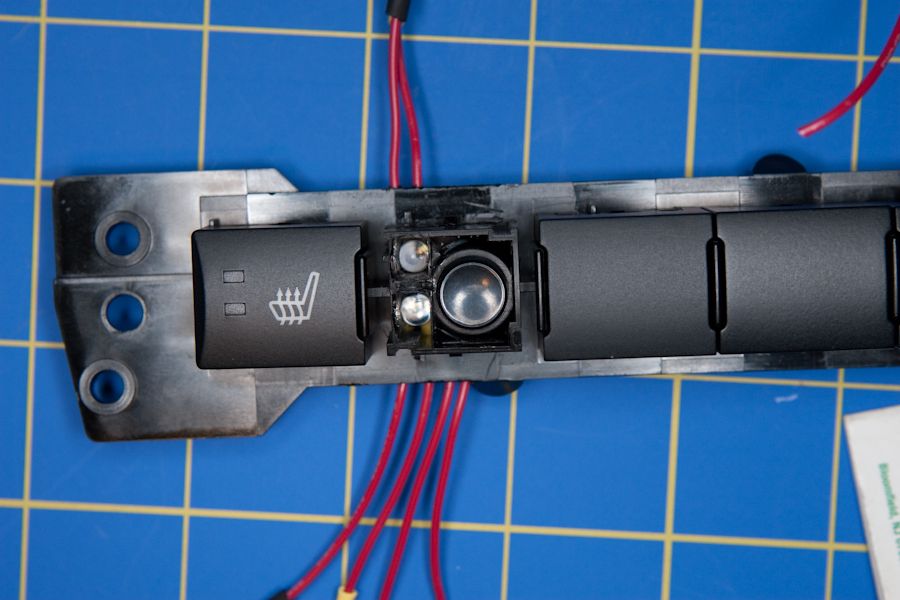

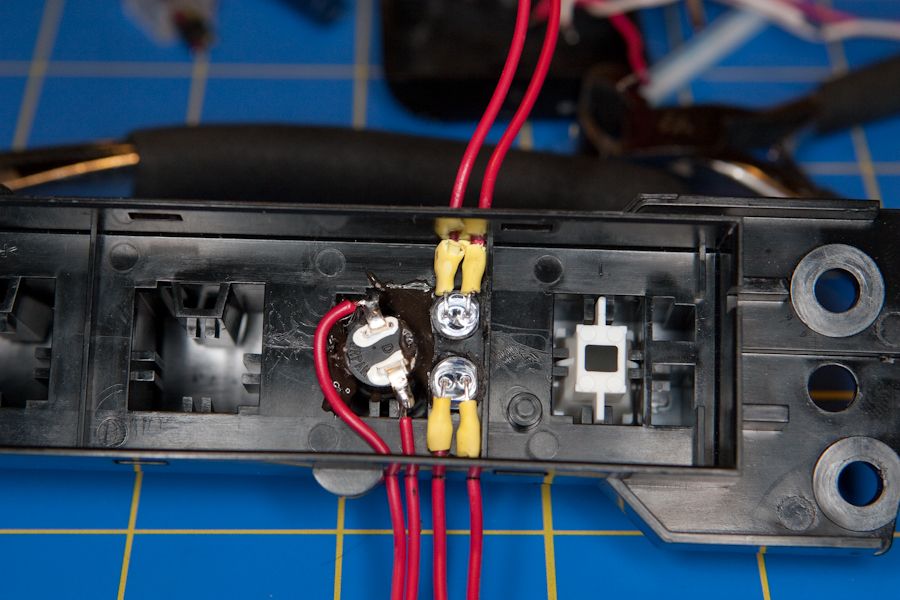

With everything installed it should look something like this:

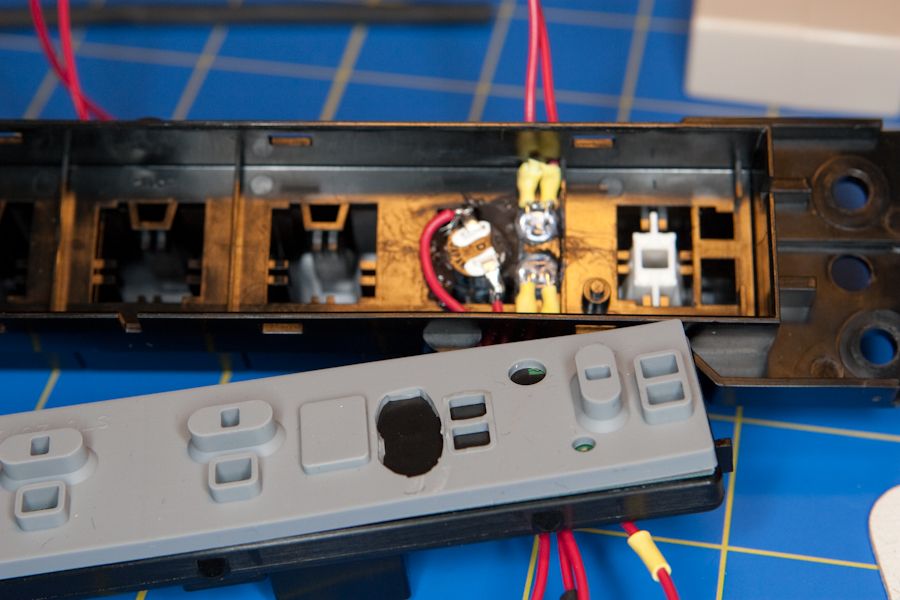

Here you can see the rubber overlay and how I removed some of the material that got in the way:

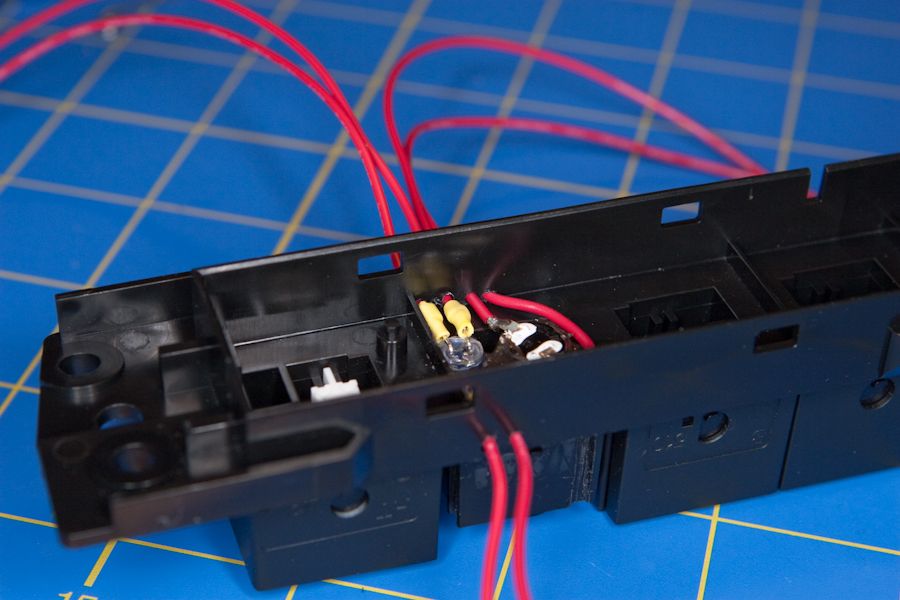

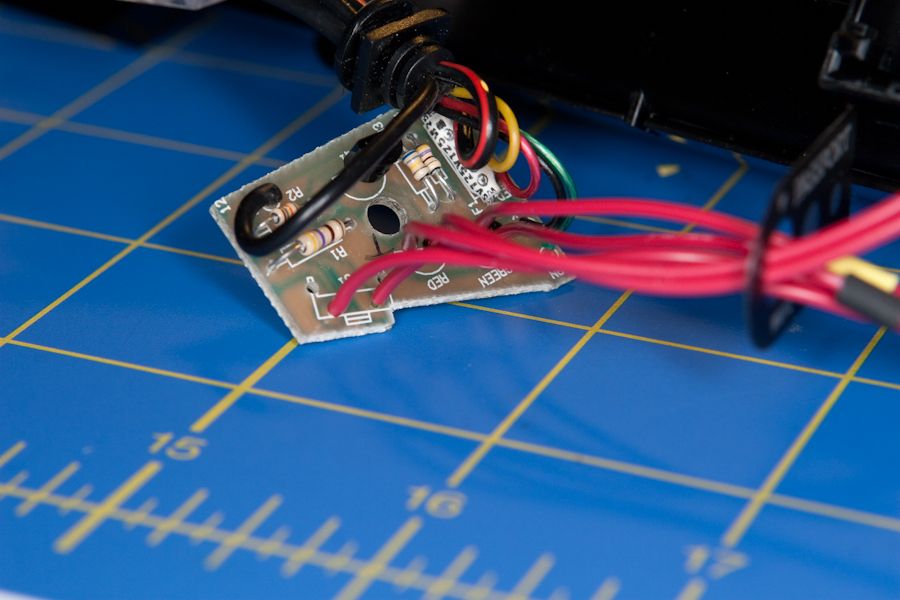

Wiring the components is simple. Basically, all you're doing is extending them from the SmartCord circuit box with wires. But before you solder them, make sure you feed the wires through the Passport "sticker" opening (where the original push button was).

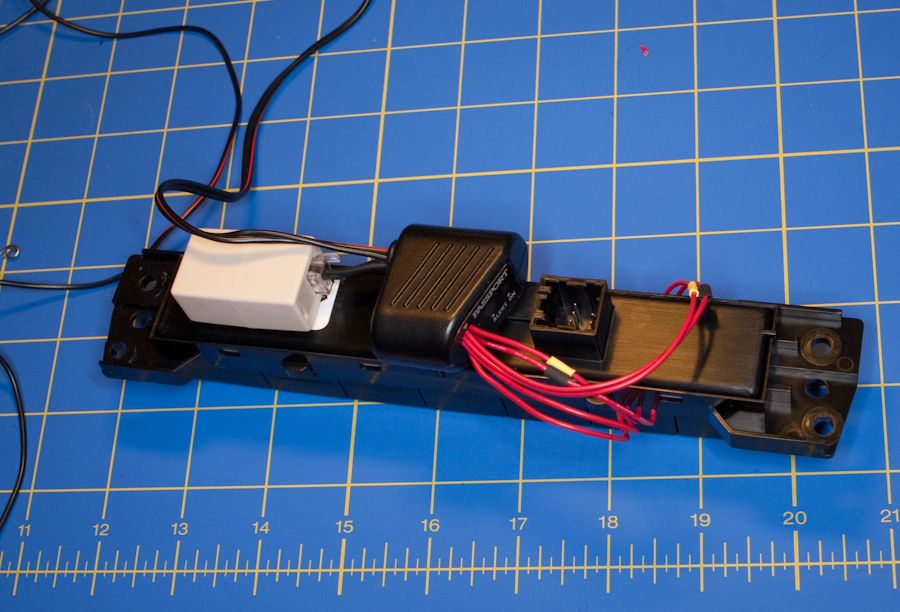

Once everything is glued, soldered and reassembled, you can adhere the SmartCord box to the back of the switch bank. I used double sided foam tape (the grey kind used for emblems).


The whitish thing is just a telephone cord coupler. I added it as a quick-disconnect in case the center stack needs to be removed in the future (more DIY switches perhaps?). To do this you'll have to cut the SmartCord cord near the SmartCord control box and add a new telephone style connector on each fresh end that was just cut.

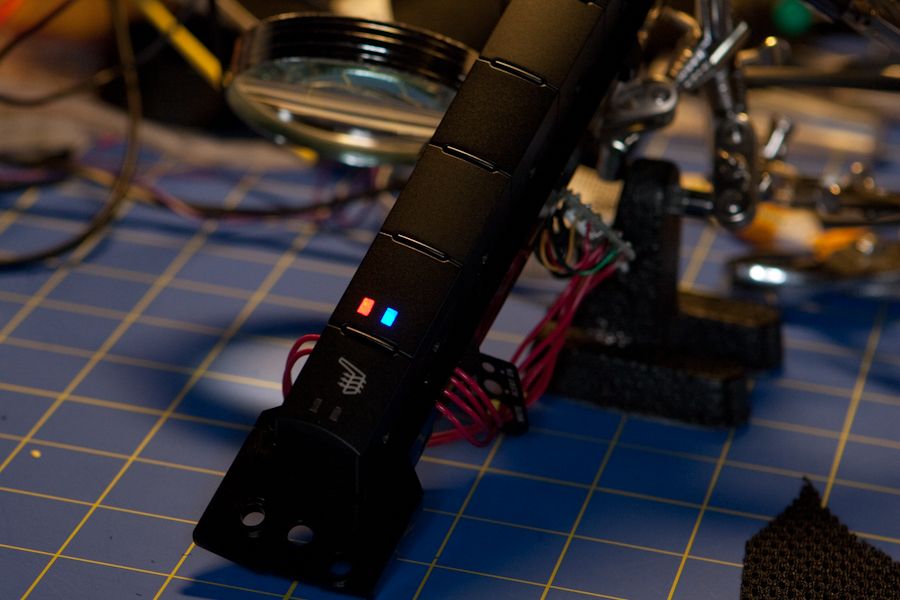

It works!


After that you can put the switch bank back in the center stack. I forgot about one of the clips and put a couple wires too close to it. Instead of pinching wires I decided to notch the clip. This doesn't matter as the switch bank is held in with screws:

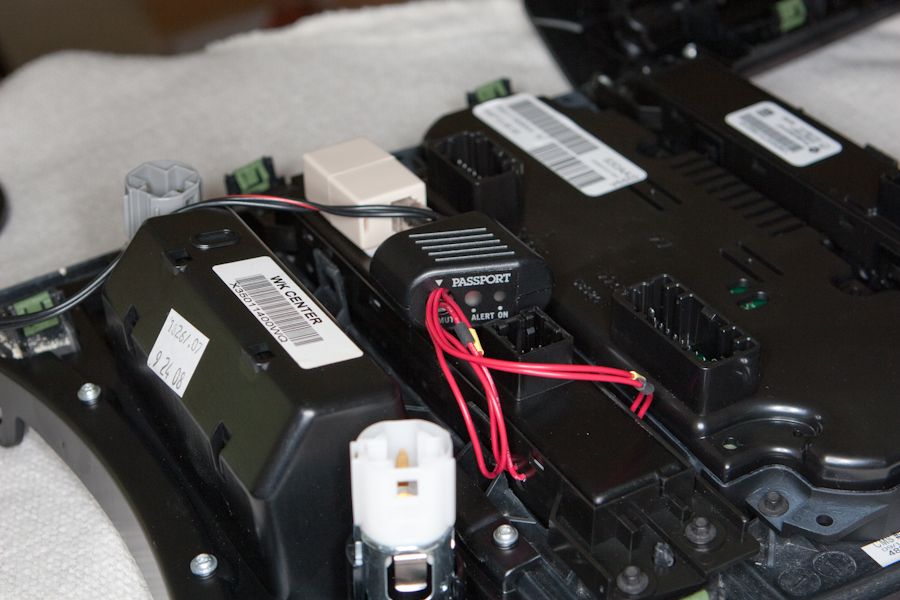

For the power wire I tapped into the switched 12 volt outlet at the bottom of the center stack. For ground, I used a bolt directly behind the center stack toward the bottom. You can't miss it as it's the only bolt going into metal. Routing the cord that goes to the radar detector is pretty straightforward. There's a black cover piece below the dash on the passenger side that needs to be removed (2 screws). Route the wire from the center stack area to the right, under the dash, up the right side going up to the A-pillar (I used a coat hanger), up the A-pillar, then tucked it under the headliner going along the roofline.

Finished product:


I'm very happy with how it turned out. I thought about designing some kind of graphic to put on the switch so that it looks like the OEM switches.

Sorry if some of the explanations seem brief, I thought the pictures did a better job of showing what needs to be done.

wookiee and acabtp like this.
JCDubya is offline
Sponsored Links
Advertisement

post #2 of 22 Old 07-27-2010, 01:51 PM
wookiee
Bought, not built.

wookiee's Avatar
2007 WK

Join Date: Feb 2006
Location: South Dakota
Posts: 747
Nicely done.
Thanks for the write-up.

07 Steel Blue Overland CRD QDII | Bilsteins | 4xguard Matrix | Rear SRT8 SwayBar | DashHawk w/egt | MBRP XP Exhaust | New Intake Tube & Seal | Alternator Splash Guard | Crank Sensor | GPS AL InMotion Hack | Swirl motor bypass | Blue WK Club Member #13 | 200,000 Mile Club | Dogpiled Club | pre-N23 FDCM |

89 GW w/plow
wookiee is offline
post #3 of 22 Old 07-27-2010, 05:09 PM
smcginnis87
4X4WK

smcginnis87's Avatar
2007 WK

Join Date: Apr 2008
Location: Phoenix/Scottsdale
Posts: 1,398
wow VERY VERY nice i love it when people make it look stock!! does not attract at much attention

2015 WK2
--4x4WK--
smcginnis87 is offline

post #4 of 22 Old 08-03-2010, 09:38 PM
corby417
Registered User
2013 JK Wrangler

Join Date: Jun 2010
Location: Ohio
Posts: 142
Quote:
Originally Posted by JCDubya View Post
I posted this on other forums but for those of you who don't venture beyond JF, I thought I'd post it here as well. Plus, maybe some XK guys will get some use out of it.
Seeing this thread gave me an idea. I am eventually going to add trail lights to my WK and I think a blank switch would be a great place to put the switch for the lights. I know very little about electrical stuff and wiring things so do you have any tips? Although this isn't quite what you did, I think this "how-to" will help greatly with what I am doing.

By the way, I love what you did and it looks very professional.
corby417 is offline
post #5 of 22 Old 08-03-2010, 11:39 PM Thread Starter
JCDubya
Registered User
2009 WK

Join Date: Nov 2004
Location: The Garage
Posts: 802
Thanks guys.

Corby: I didn't mean for this to come off as only a mod for radar mute switches, that's just what I use it for. You can use it for whatever. I don't have any additional tips, everything I thought of is already up there. If you have any specific questions though, ask and I'll try to answer.
JCDubya is offline
post #6 of 22 Old 08-06-2010, 10:39 PM
sabre364
Registered User
2007 WK

Join Date: Feb 2008
Location: upstate ny
Posts: 500
That work is great! And all those pics too!
sabre364 is offline
post #7 of 22 Old 09-26-2010, 06:41 PM Thread Starter
JCDubya
Registered User
2009 WK

Join Date: Nov 2004
Location: The Garage
Posts: 802

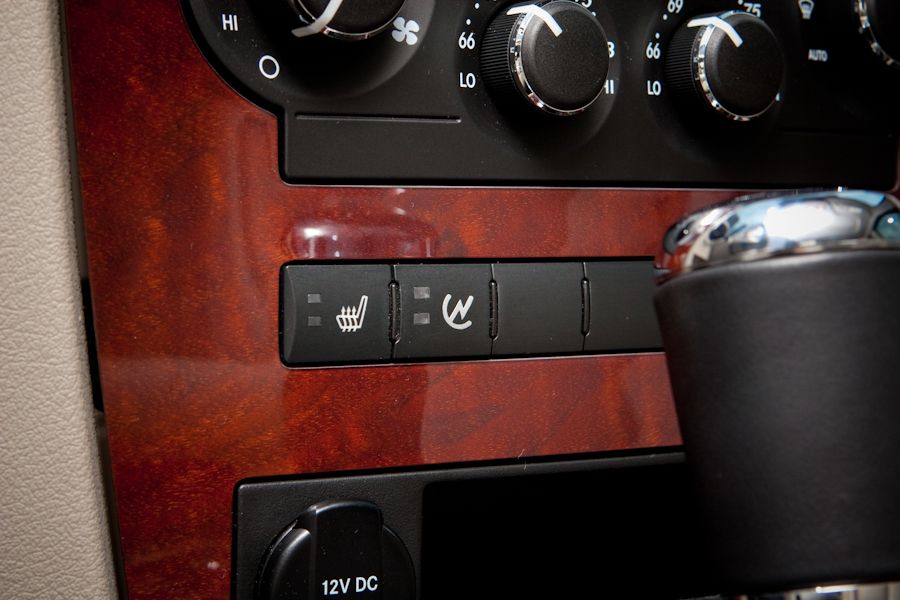

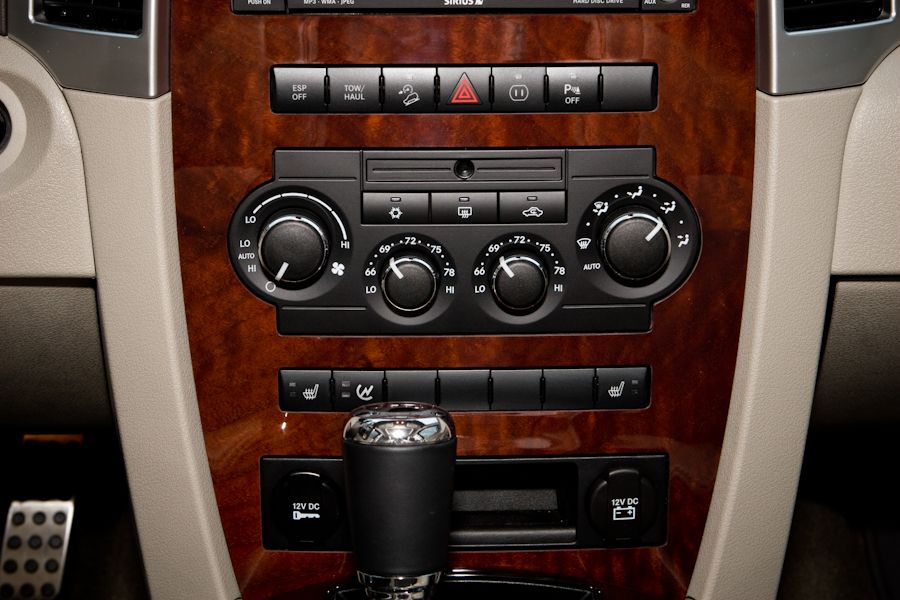

And the finishing touch (it's the NATO map symbol for radar):



JCDubya is offline
post #8 of 22 Old 09-26-2010, 10:30 PM
YB Normyl
Registered User

YB Normyl's Avatar
2016 JK Wrangler

Join Date: Nov 2006
Location: Canada
Posts: 479
Looks really good, very nice work.
YB Normyl is offline
post #9 of 22 Old 09-27-2010, 01:26 AM
hoaxci5
Registered User
1995 XJ Cherokee

Join Date: Sep 2010
Location: Wilmington
Posts: 860
Awesome. Prior to modding did the switch button move at all? I just went down to my XK to check out how many blank spots I had to start thinking about projects, but none of them move. It's fair to assume that modding plastic allows them to move, I just want to be clear before I start anything.
hoaxci5 is offline
post #10 of 22 Old 09-27-2010, 02:05 AM Thread Starter
JCDubya
Registered User
2009 WK

Join Date: Nov 2004
Location: The Garage
Posts: 802
Quote:
Originally Posted by hoaxci5 View Post
Awesome. Prior to modding did the switch button move at all? I just went down to my XK to check out how many blank spots I had to start thinking about projects, but none of them move. It's fair to assume that modding plastic allows them to move, I just want to be clear before I start anything.
Prior to modding, it didn't move at all. It was just like all of the other blanks.
JCDubya is offline
post #11 of 22 Old 09-27-2010, 05:48 AM
theSovereign
Registered User
2007 WK

Join Date: Jun 2010
Location: Empire State
Posts: 87
Awesome writeup! Wish this writeup had been around in June.

Anyway, I was wondering: how did you add the symbol to the button?
theSovereign is offline
post #12 of 22 Old 10-21-2010, 01:40 PM Thread Starter
JCDubya
Registered User
2009 WK

Join Date: Nov 2004
Location: The Garage
Posts: 802
Quote:
Originally Posted by theSovereign View Post
Anyway, I was wondering: how did you add the symbol to the button?
It's just vinyl (a sticker) that I had cut.
JCDubya is offline
post #13 of 22 Old 05-25-2012, 10:37 PM
clbailey
Registered User
2005 WK

Join Date: Jan 2011
Location: Buckeye
Posts: 204
Thats too much work for a daggum switch!
clbailey is offline
post #14 of 22 Old 05-25-2012, 10:55 PM
DRCracker
Registered User

DRCracker's Avatar
2006 WK

Join Date: Apr 2012
Location: Somerset
Posts: 380
Would it have been easier to just install another factory seat heat, etc. switch for your application, and change its label?

I see that you switched the passport doohicky, as you could switch anything.

Maybe you needed a momentary switch, unlike the seat heat switch.

Clearly I'm not an electritian hickeymajig.

TC

MOLON LABE: 2006 WK Limited, Dark Khaki Pearl, 5.7 HEMI, QDII,
Console XDs-45acp, Billet Catch Can, Airaid CAI Tube,
1" Spacers, Steel Armadillo Sliders, Dark Khaki 4xGuard Front Skid,
Dark Khaki 2011 #9104 Wheels, Firestone Destination A/T 265/70/17's.
OME HD lift. Dark Khaki Matrix Brush Guard, Dark Khaki Painted Headlight Bezels.
Hemi Club #65 // Khaki WK Club #40
DRCracker is offline
post #15 of 22 Old 09-20-2012, 09:29 AM Thread Starter
JCDubya
Registered User
2009 WK

Join Date: Nov 2004
Location: The Garage
Posts: 802
Quote:
Originally Posted by DRCracker View Post
Would it have been easier to just install another factory seat heat, etc. switch for your application, and change its label?

I see that you switched the passport doohicky, as you could switch anything.

Maybe you needed a momentary switch, unlike the seat heat switch.

Clearly I'm not an electritian hickeymajig.

TC
I wish it would've been that easy! haha unfortunately, the switches are membrane switches and they're all part of the same switch bank
JCDubya is offline
