ZJ Rear Bumper Build

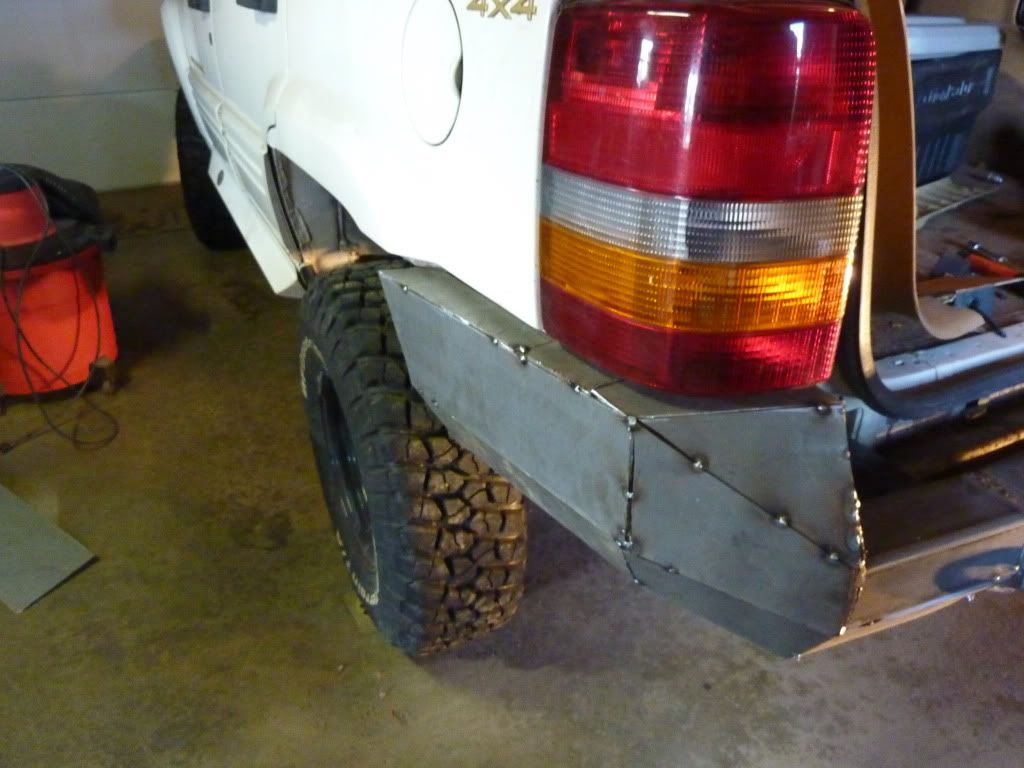

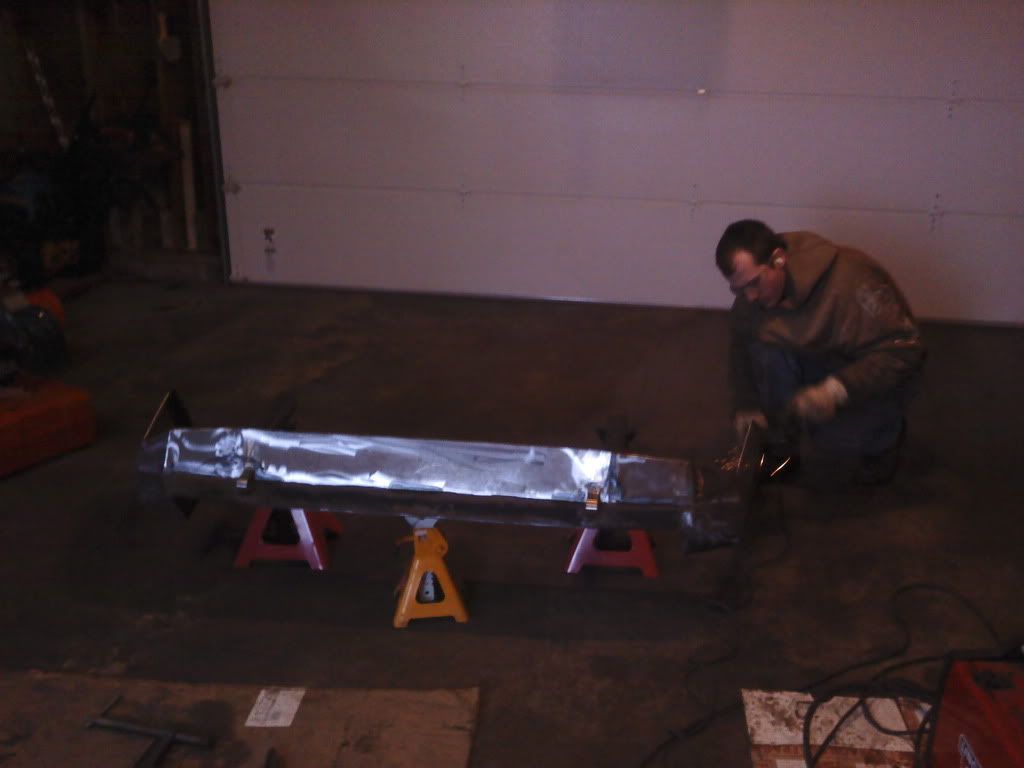

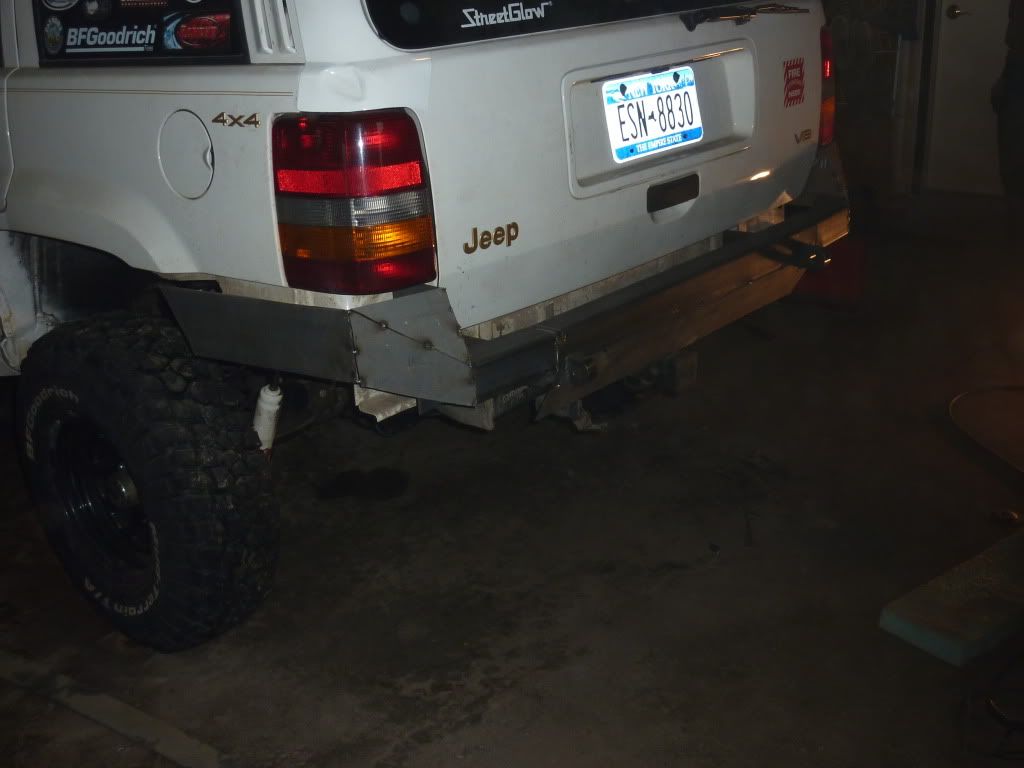

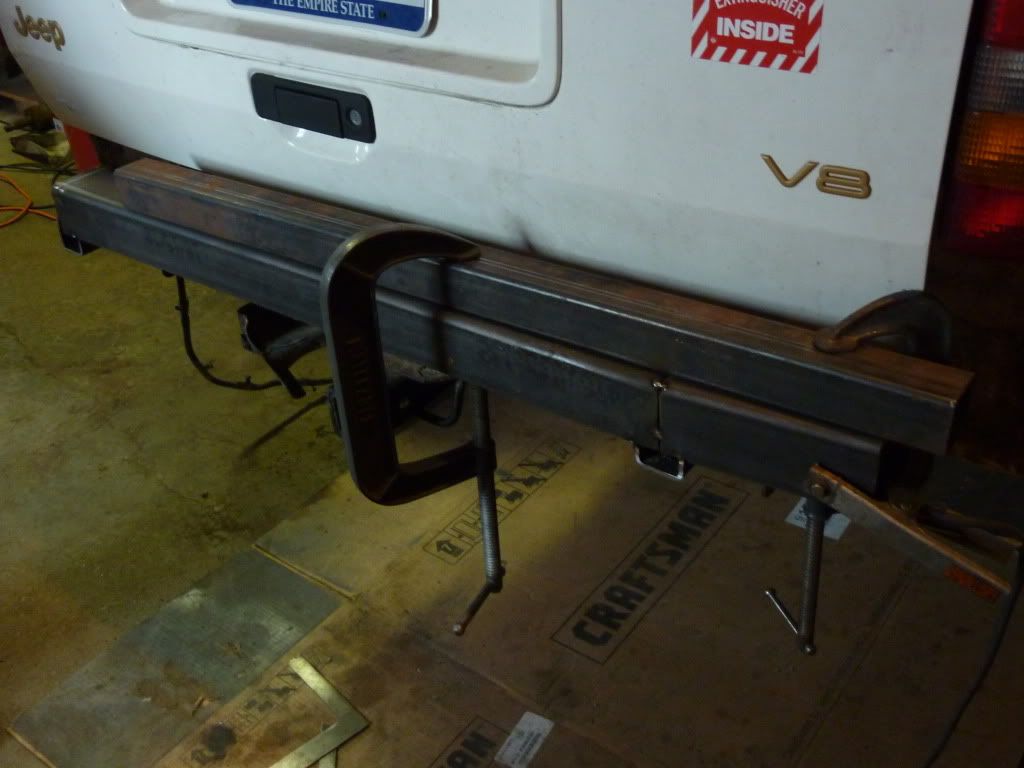

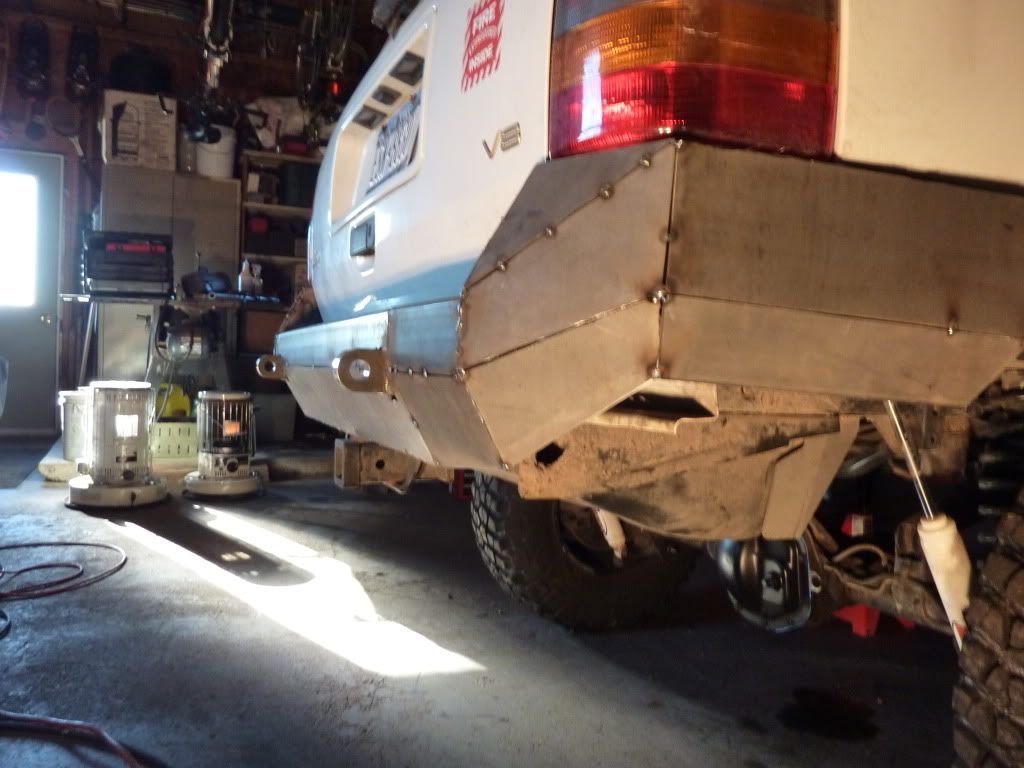

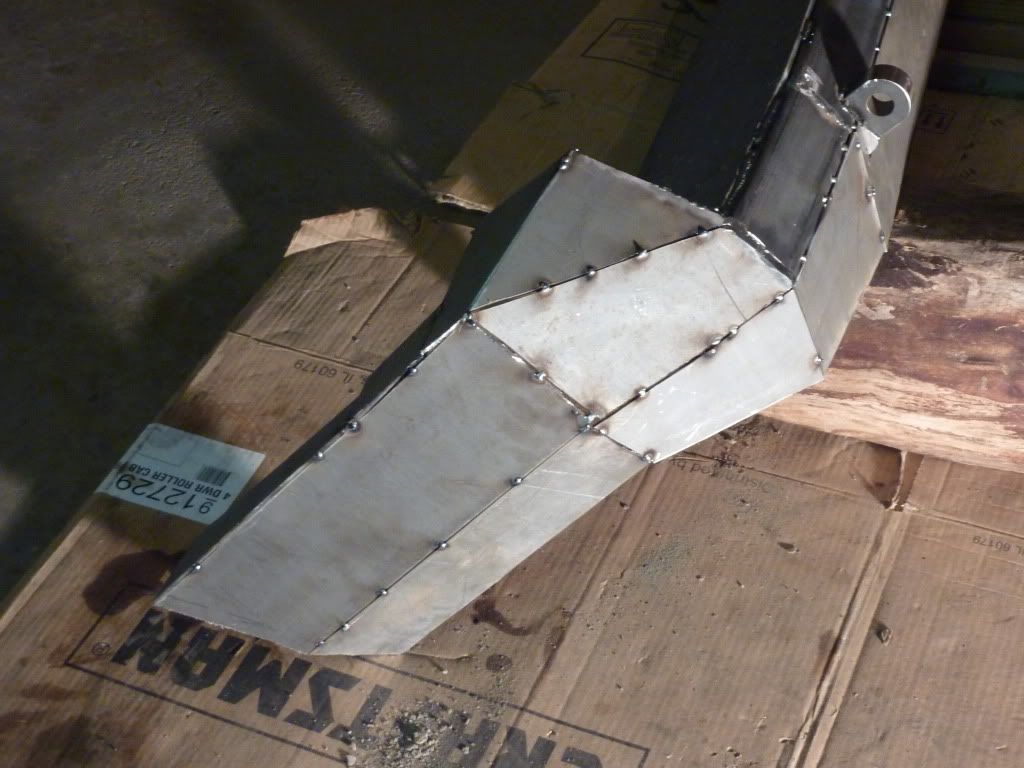

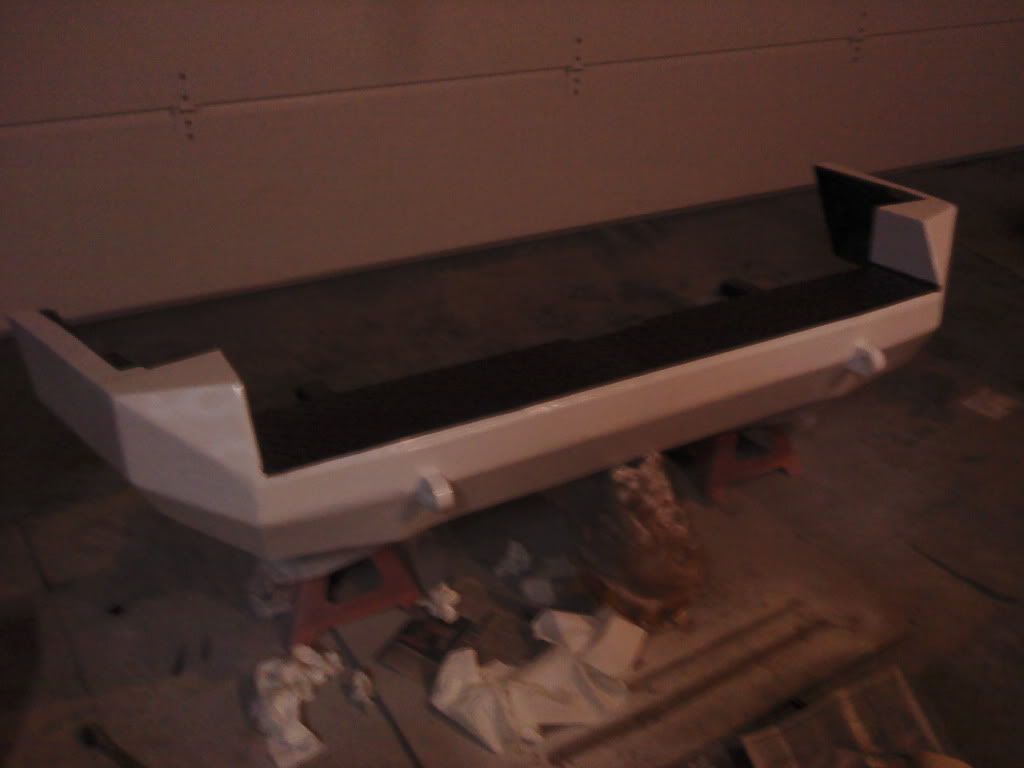

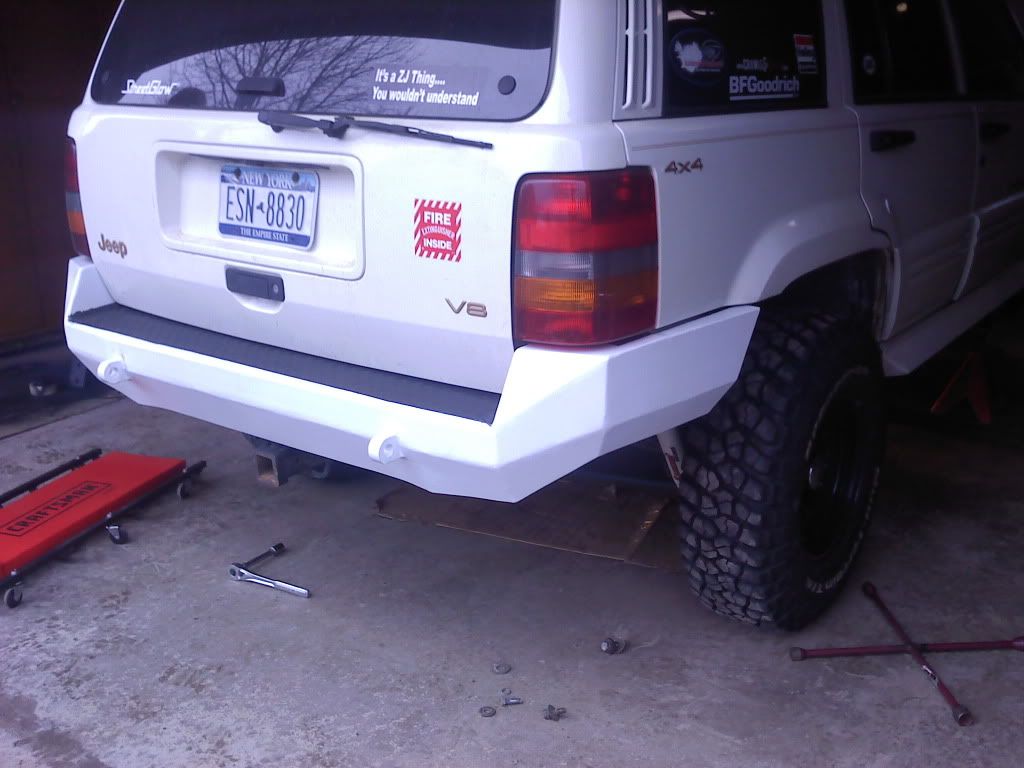

Thought you guys would like to see the bumper I built for my ZJ. The center section is 3x3 3/16 tube and everything else is 1/8 plate. The deck is 1/4 diamond plate. I'm pretty happy with it. It was my first big fab project, and first time really getting friendly with a MIG welder on my own.

















'88 XJ
'98 ZJ on 37s and tons
'02 Chevy 2500HD 8.1
KingtheZJ is offline
Sponsored Links
Advertisement

post #2 of 52 Old 05-03-2011, 07:41 PM
jorhay
Registered User
1997 ZJ

Join Date: May 2009
Location: Chattanooga
Posts: 117
Garage
That's pretty nice looking!
jorhay is offline
post #3 of 52 Old 05-03-2011, 07:46 PM
jeep0312
Registered User

jeep0312's Avatar
1996 ZJ

Join Date: Jun 2008
Location: palm coast, fl
Posts: 992
Looks nice! I'll take one

-Travis-
2004 Chevy Malibu, red, 2.2 ecotec, shiny wheels, loud stereo
2000 Suzuki SV650N, V-twin, Yoshimura Exhaust, Custom Rashed Paint Job...
jeep0312 is offline

post #4 of 52 Old 05-04-2011, 10:09 AM
Diamond-x
Registered User
1991 XJ Cherokee

Join Date: Aug 2008
Location: Socal
Posts: 1,224
Excellent!
Diamond-x is offline
post #5 of 52 Old 05-05-2011, 06:51 AM
BPJOOP93
Registered User
1993 YJ Wrangler

Join Date: Jul 2008
Location: APPLETON WI
Posts: 276
looks great! how long did it take you?
BPJOOP93 is offline
post #6 of 52 Old 05-07-2011, 05:31 PM Thread Starter
KingtheZJ
Registered User

KingtheZJ's Avatar
1998 ZJ

Join Date: Nov 2009
Location: Rochester NY
Posts: 2,659
thanks guys. i'd say it took me a good 25 hours total. everything was cut with a angle grinder or portaband which was fairly time consuming. i was also designing it as i went which took a little time.

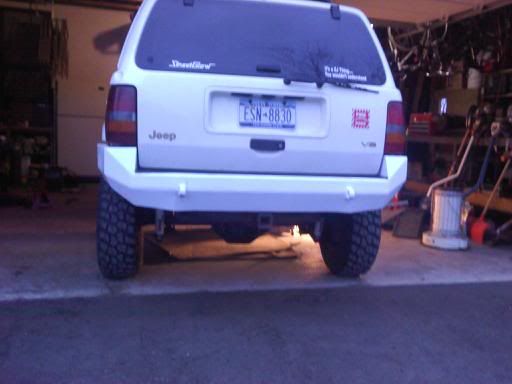

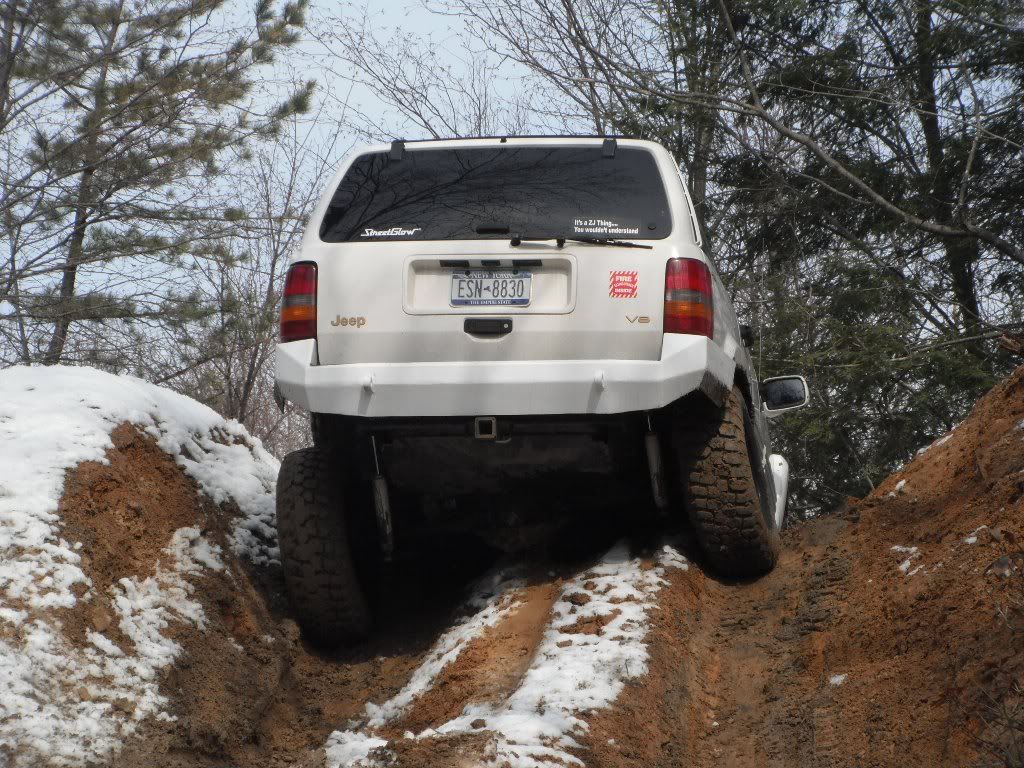

here's a pic of it from my most recent trip to rausch

'88 XJ
'98 ZJ on 37s and tons
'02 Chevy 2500HD 8.1
KingtheZJ is offline
post #7 of 52 Old 05-07-2011, 06:49 PM
NashvilleTJ
I miss the snow...

NashvilleTJ's Avatar
2004 LJ Wrangler

Join Date: Jul 2010
Location: Nashville
Posts: 4,321
Beautiful work!
NashvilleTJ is online now
post #8 of 52 Old 05-11-2011, 01:32 PM
LordHobbit
Registered User

LordHobbit's Avatar
1993 ZJ

Join Date: Aug 2009
Location: Utah
Posts: 2,644
Way prettier than the one I've got in my head. I'm working up a swing out tire carrier.

I don't have plans to plate like yours, but it's super nice. Good work.

One question, what did you use for the D-ring brackets?

93 red ZJ 196k 4.0. Spent more money than I should have ...

Last edited by LordHobbit; 05-12-2011 at 04:04 PM. Reason: question
LordHobbit is offline
post #9 of 52 Old 05-17-2011, 10:33 AM Thread Starter
KingtheZJ
Registered User

KingtheZJ's Avatar
1998 ZJ

Join Date: Nov 2009
Location: Rochester NY
Posts: 2,659
Quote:
Originally Posted by LordHobbit View Post
Way prettier than the one I've got in my head. I'm working up a swing out tire carrier.

I don't have plans to plate like yours, but it's super nice. Good work.

One question, what did you use for the D-ring brackets?
yeah i plan to do a tire carrier too someday. maybe this summer if i get to it.

i bought the d-ring brackets off ebay. easier than getting thick steel and trying to drill them out.

'88 XJ
'98 ZJ on 37s and tons
'02 Chevy 2500HD 8.1
KingtheZJ is offline
post #10 of 52 Old 05-18-2011, 04:48 AM
Griffn
Registered User
1987 YJ Wrangler

Join Date: Jan 2010
Location: WA
Posts: 14
Very nice work!! Looks good
Griffn is offline
post #11 of 52 Old 05-29-2011, 05:05 PM
jborsushko
Registered User

Join Date: Jun 2007
Posts: 66
what did you use for mounting? did you build off of the rear hitch?
jborsushko is offline
post #12 of 52 Old 05-29-2011, 09:48 PM
'92 vegas YJ
Registered User

'92 vegas YJ's Avatar
1992 YJ Wrangler

Join Date: Jan 2008
Location: Atoka
Posts: 2,933
im still amazed at how good that bumper looks.

kudos to you
'92 vegas YJ is offline
post #13 of 52 Old 06-02-2011, 05:37 AM Thread Starter
KingtheZJ
Registered User

KingtheZJ's Avatar
1998 ZJ

Join Date: Nov 2009
Location: Rochester NY
Posts: 2,659
Quote:
Originally Posted by jborsushko View Post
what did you use for mounting? did you build off of the rear hitch?

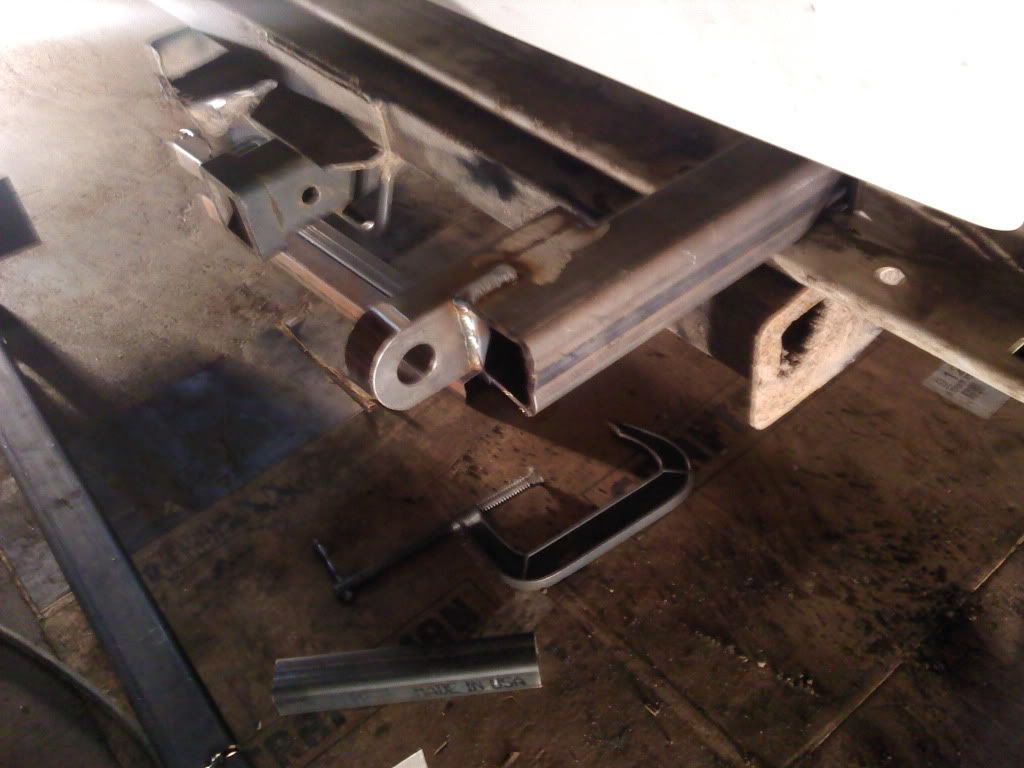

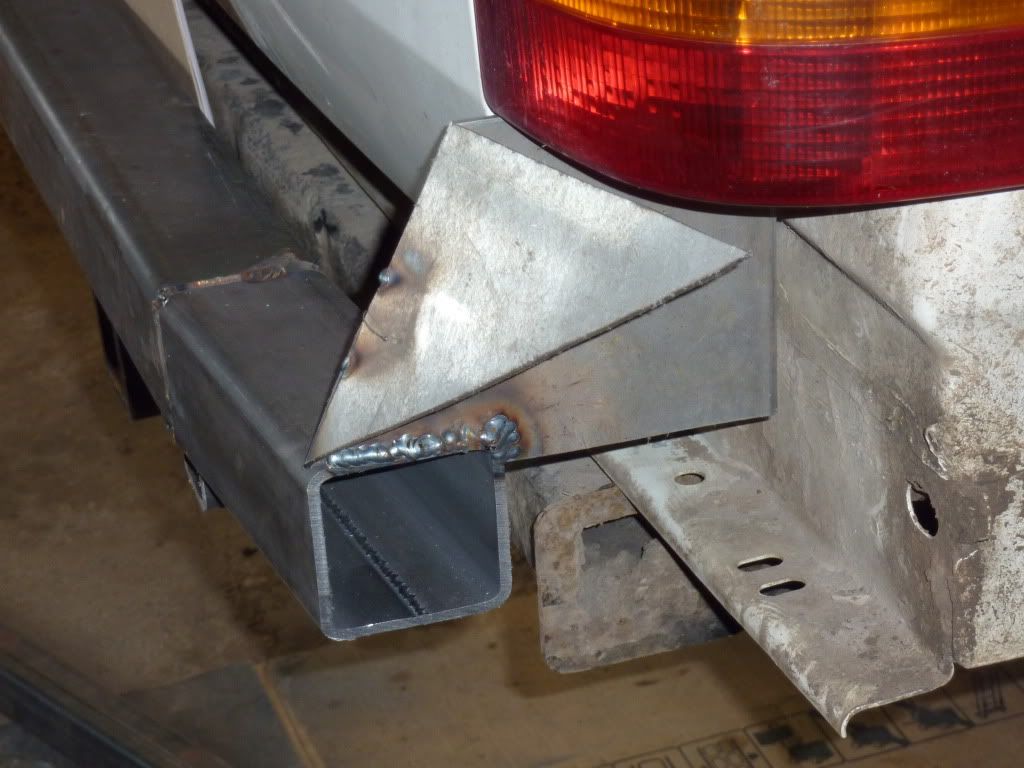

i used 2x2 1/4 tube for the mounting. they bit inside the frame rail so i cut off the top for the first 6" to weld in nuts so i cen run bolts up from the bottom through the hitch and body into the tube. i welded the tops back on for strength and capped the ends to prevent mud/water from getting in. first pic in the first post shows where the mounting tube runs.

'88 XJ
'98 ZJ on 37s and tons
'02 Chevy 2500HD 8.1
KingtheZJ is offline
post #14 of 52 Old 06-02-2011, 10:54 AM
framanda
Registered User
1997 ZJ

Join Date: Nov 2008
Location: nor cal
Posts: 244

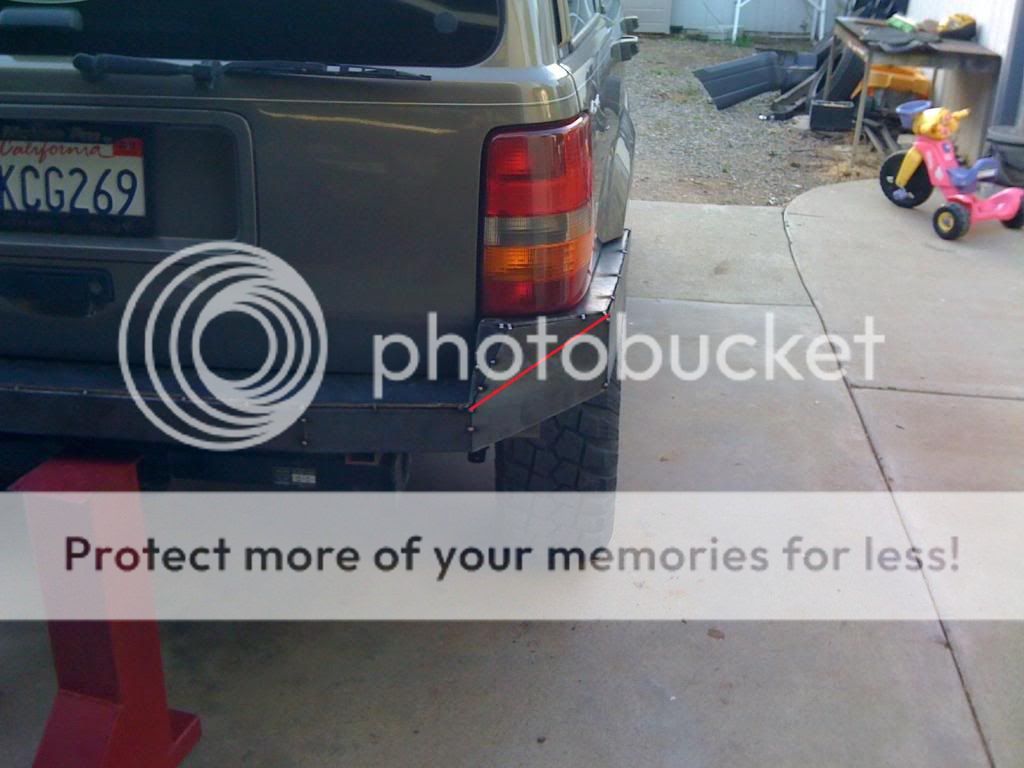

Im not trying to thread jack but My bumper is very similar in fact the only big difference (see pic below) yours follows the red line. Great minds think alike. Any plans for a swing out like mine.

framanda is offline
post #15 of 52 Old 06-02-2011, 10:58 AM Thread Starter
KingtheZJ
Registered User

KingtheZJ's Avatar
1998 ZJ

Join Date: Nov 2009
Location: Rochester NY
Posts: 2,659
i really like yours, it looks awesome! ever since i finished, i wished i would have followed the line you did. i think it looks way better. I have everything for the tire carrier, still trying to figure out a good design. can you post more pics of the hinge and latch?

'88 XJ
'98 ZJ on 37s and tons
'02 Chevy 2500HD 8.1
KingtheZJ is offline
