post #1 of 21 Old 03-16-2014, 01:48 PM Thread Starter
illuzioun
Registered User
2003 WJ

Join Date: Feb 2014
Location: Iron Range
Posts: 22
WJ Spring Perch repair Walkthrough.

Perhaps this could be a sticky, as this repair is relatively common.


As seen in my build thread, I had a very rusty spring perch on the front passenger side. I figured I'd make a write up on how to fix it so it's easier to find.

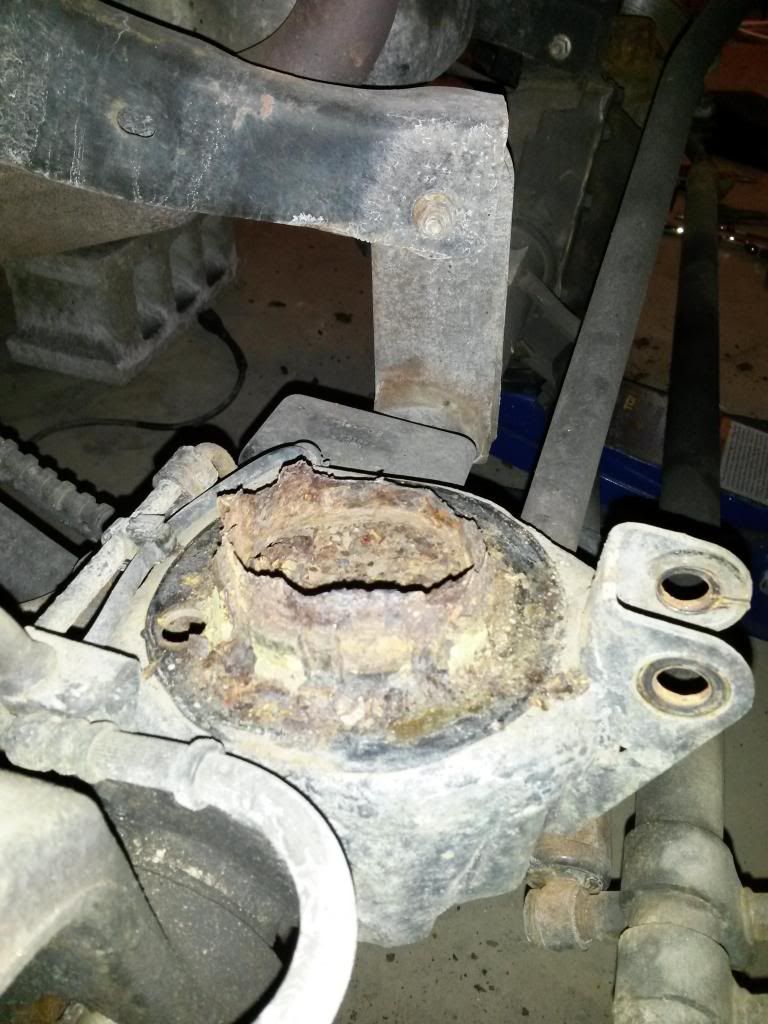

This is what my passenger side spring perch had looked like after I pulled off the spring.





I thought of a bunch of different ideas on how to fix the perch, but basically decided to replicate the factory perch to the best of my abilities. There's a couple different ways to achieve the same result, but I decided it was best to just go with the same measurements of the factory perch.

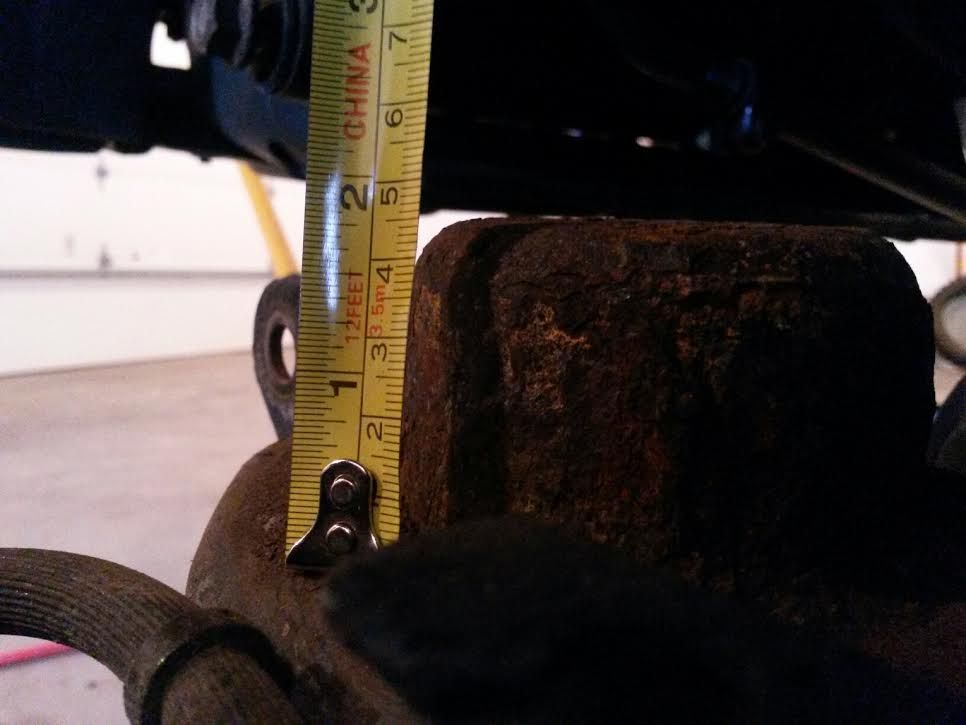

The factory perch is roughly 1/8'' thick. It's hard to measure the thickness after it's been rusted. 1 3/4'' tall with a 3 1/4" Diameter.

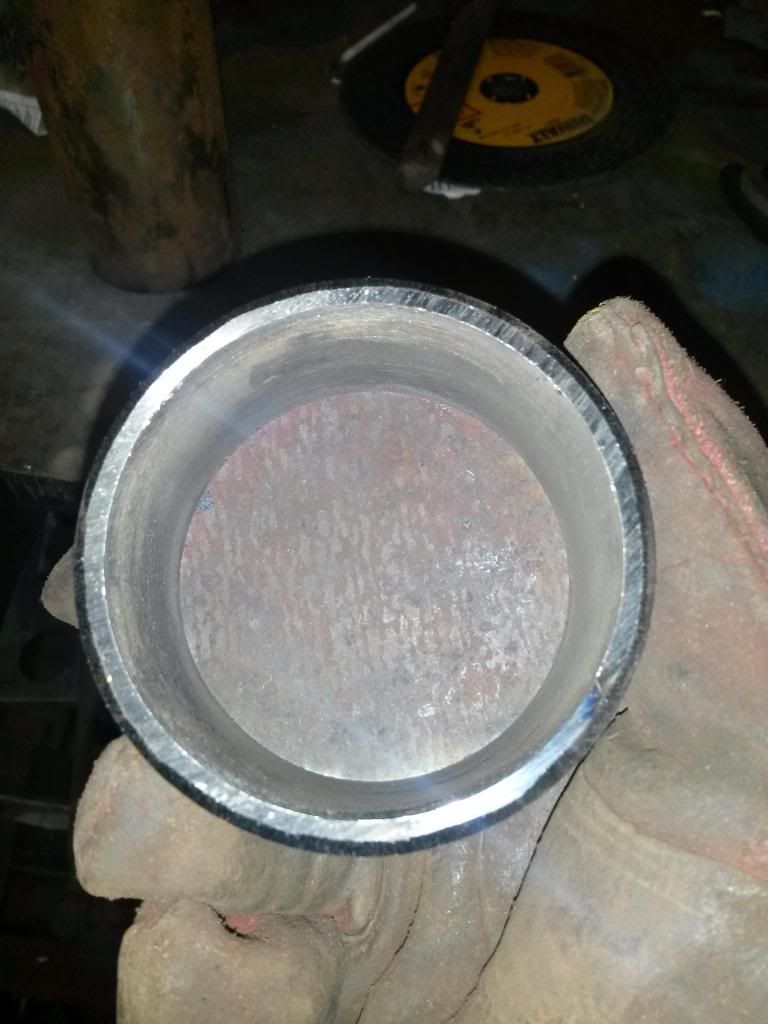

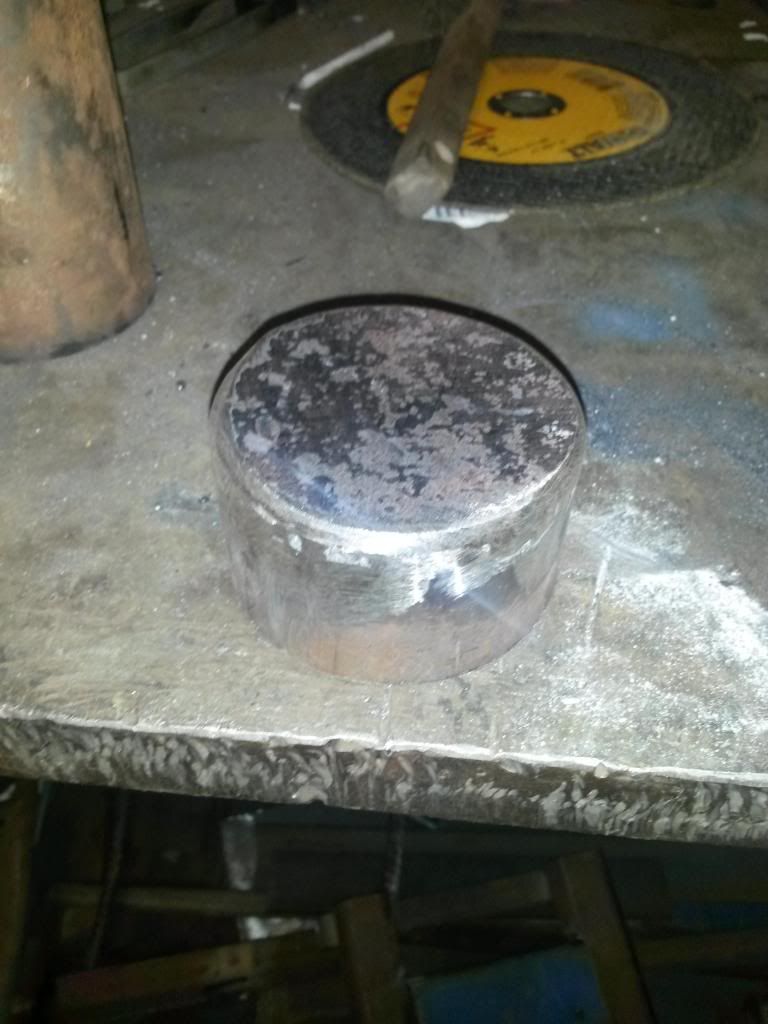

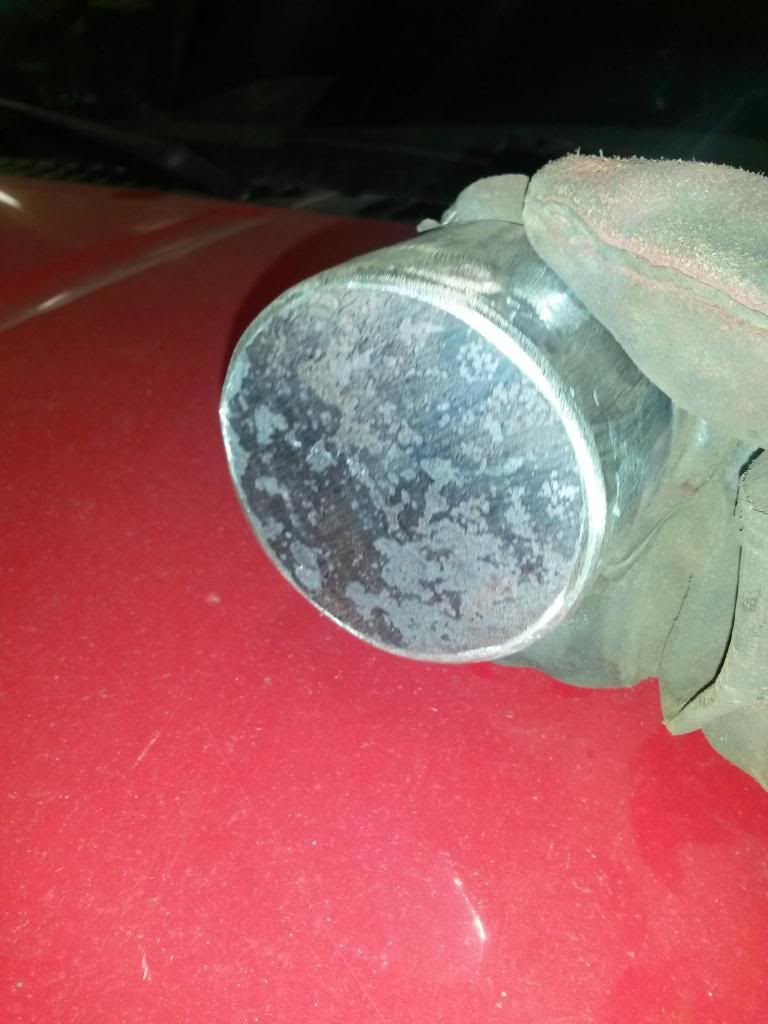

I went to work and grabbed a piece of 1/4" thick 3 1/4" diameter pipe. I then torched out a circle in a piece of 1/4" steel and capped off the top of the pipe. This is the fab work of the new perch.

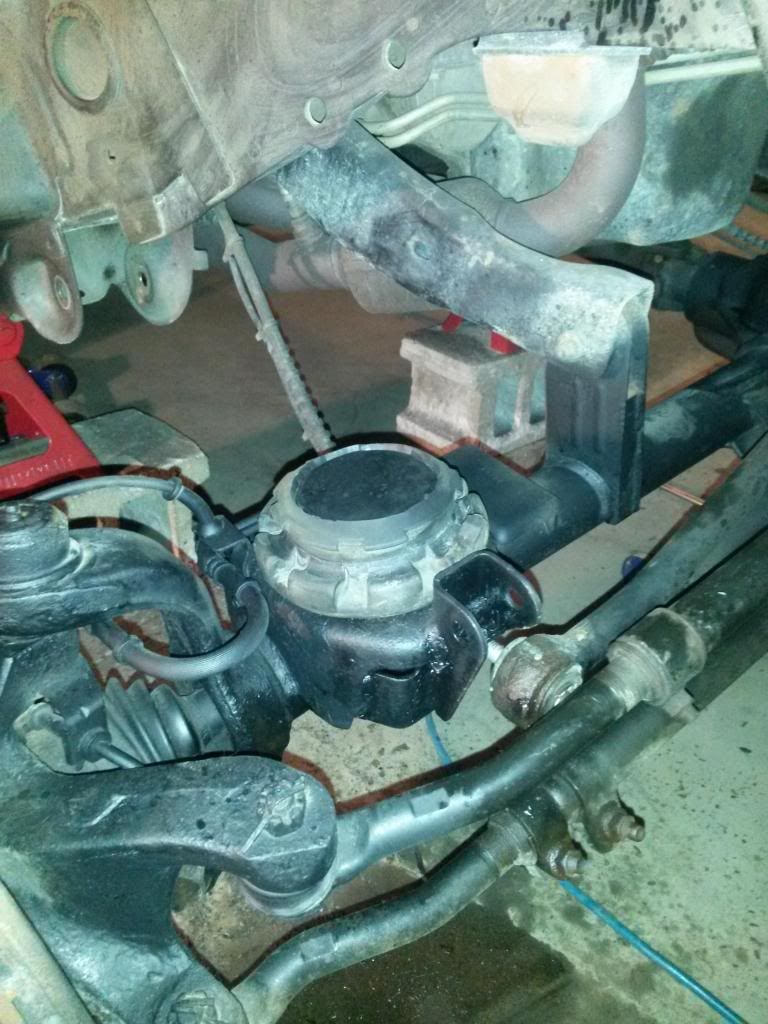

I then ground down the old rusty spring perch on the axle to as flat as a service as I could.

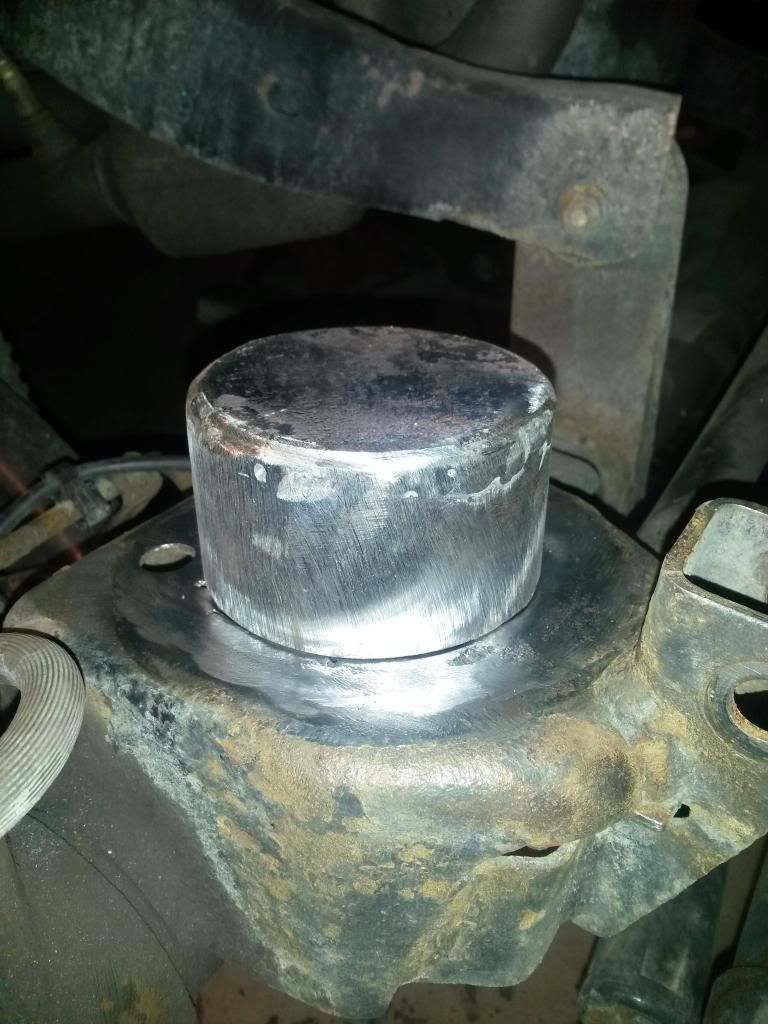

This is a quick mock up before I welded it.

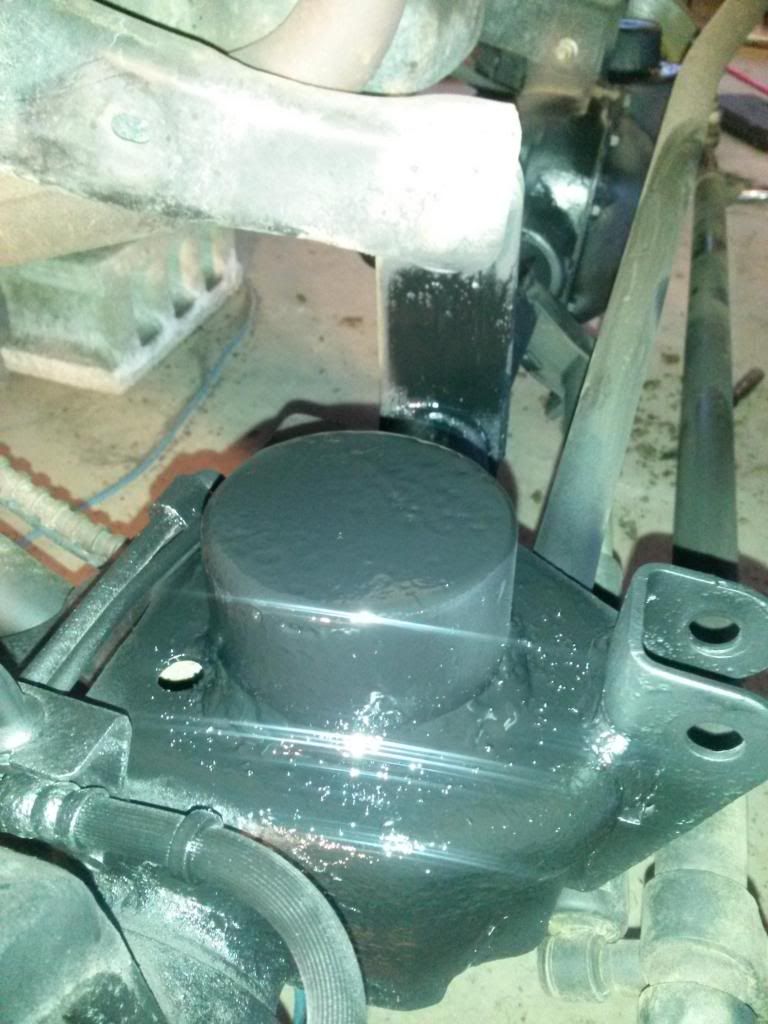

And finally, after paint and welding.





Hopefully someone can use this to fix their own rusty or broken spring perches! Enjoy.

illuzioun is offline
Sponsored Links
Advertisement

post #2 of 21 Old 03-16-2014, 04:02 PM
Vaporhead
Registered User
2004 WJ

Join Date: Oct 2013
Location: Moore
Posts: 321
Sounds like a job for a machinist. Glad I don't got rust like that. Good work though.
Vaporhead is offline
post #3 of 21 Old 03-16-2014, 05:20 PM Thread Starter
illuzioun
Registered User
2003 WJ

Join Date: Feb 2014
Location: Iron Range
Posts: 22
Quote:
Originally Posted by Vaporhead View Post
Sounds like a job for a machinist. Glad I don't got rust like that. Good work though.
Anybody that knows how to weld can do this. Grind, clean, weld. It's really not a hard job.
illuzioun is offline

post #4 of 21 Old 03-16-2014, 06:05 PM
Johnyre
Registered User
2002 WJ

Join Date: Nov 2013
Location: Arvada
Posts: 1,300
Quote:
Originally Posted by illuzioun View Post
Anybody that knows how to weld can do this. Grind, clean, weld. It's really not a hard job.
Agreed!!

As I roll down the trail,I hope my traction will not fail.But if I spin & begin to slide,please dear lord protect my ride
https://
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
http://fortcollinswheelers.com
Johnyre is offline
post #5 of 21 Old 03-16-2014, 06:08 PM
derekmac
Registered User

derekmac's Avatar
2005 TJ Wrangler

Join Date: Mar 2012
Location: Elmsdale
Posts: 1,218
Garage
Thanks for posting this! I'm sure when I go to do my lift down the road, I'll need to do mine as well.

2005 TJ Rubicon
derekmac is offline
post #6 of 21 Old 03-16-2014, 07:23 PM
billzcat1
Chicken in a Turkey Suit
2003 WJ

Join Date: Oct 2008
Location: Redmond
Posts: 8,534
Good thread and pics. I'm adding this to the FAQ thread.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


~Richard
billzcat1 is offline
post #7 of 21 Old 03-16-2014, 07:34 PM
evilcairn
Registered User
2001 WJ

Join Date: Dec 2012
Location: Nouméa
Posts: 76
Nice one , thanks for the guide.

WJ 2001 V8 , 6.5" lift IRO , 35" BF , Front DS TomWoods mutilCV, Fender Iceland, TrueTrac Eaton Front, Gears 4:56 , Custom Front bumper, custom rock slidder ....
evilcairn is offline
post #8 of 21 Old 03-16-2014, 08:13 PM
dlundblad
Registered User
2003 WJ

Join Date: Jun 2009
Posts: 613
That is basically what I did with mine.. Well what I had done. Lol. What kind of paint did you use?

03 WJ Laredo 4.Sl0w
2" BB-Overland Skids
IPF 868 lights-197K
245/75/16 GY DuraTracs
dlundblad is offline
post #9 of 21 Old 03-16-2014, 09:15 PM Thread Starter
illuzioun
Registered User
2003 WJ

Join Date: Feb 2014
Location: Iron Range
Posts: 22
Quote:
Originally Posted by dlundblad View Post
That is basically what I did with mine.. Well what I had done. Lol. What kind of paint did you use?
illuzioun is offline
post #10 of 21 Old 03-30-2014, 04:01 PM
mtennwj
Registered User
2000 WJ

Join Date: Jan 2014
Location: Memphis
Posts: 35
Do you have to disconnect anything when you are welding these on like the battery or computer etc?

2000wj limited quadra drive 129k
2000wj Laredo 2wd 235k
mtennwj is offline
post #11 of 21 Old 03-30-2014, 04:36 PM
js12278
Registered User
1999 WJ

Join Date: Mar 2013
Location: Springfield
Posts: 570
Welding. A skill all real men should learn.
js12278 is offline
post #12 of 21 Old 03-30-2014, 04:49 PM
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville
Posts: 3,077
Quote:
Originally Posted by mtennwj View Post
Do you have to disconnect anything when you are welding these on like the battery or computer etc?
As a general rule its always a good idea to disconntect the battery when welding. I have however, welded on mine several times with everything connected with no ill effects.

2000 WJ 4.5L - Stroked, Locked, & Long-Armed
Looking for 6" WJ springs!
StrokedWJ is offline
post #13 of 21 Old 03-31-2014, 11:04 AM
mtennwj
Registered User
2000 WJ

Join Date: Jan 2014
Location: Memphis
Posts: 35
Not trying to hijack the thread but my dad has a wire welder and will be doing the welding if I just disconnect the battery It should be ok should I pull the brake lines out of the way?

2000wj limited quadra drive 129k
2000wj Laredo 2wd 235k
mtennwj is offline
post #14 of 21 Old 03-31-2014, 11:12 AM
ThaBeefs
Registered User
2001 WJ

Join Date: Dec 2013
Location: Gepp
Posts: 334
Quote:
Originally Posted by mtennwj View Post
Not trying to hijack the thread but my dad has a wire welder and will be doing the welding if I just disconnect the battery It should be ok should I pull the brake lines out of the way?
i wouldnt pull them out of the way .... just lay something over them for protection will be good enough.

SOLD 02 WJ 4inch RCX 265-70-17 17x9 DCs
New 01 WJ Stock ... For now
ThaBeefs is offline
post #15 of 21 Old 04-01-2014, 12:01 PM Thread Starter
illuzioun
Registered User
2003 WJ

Join Date: Feb 2014
Location: Iron Range
Posts: 22
Yes make sure to disconnect battery. I welded mine up with only taking the brake lines off. I never disconnected them entirely. Just the brackets so I could wire tie them out of the way more.
illuzioun is offline
