Wj 2004 WJ TRL HWK Build - Trails and Camping

Well, after trying out a few other AWD's and 4x4's (Suzuki and Isuzu) I am back to Jeep again! Every time I purchased another vehicle that wasn't Jeep.. I just ended up feeling like the vehicle was a wannabe and lacking. So here is my new-to-me 2004 WJ with 136k. Nothing special yet, but with Upcountry, Varilock F/R and Skidplates I figured it was a good place to start.

Equipment Listing
Vehicle Description 2004 JEEP GRAND CHEROKEE LIMITED 4X4 SPORT UTILITY 4-DR


Code:
STANDARD EQUIPMENT
Luxury Group
Monotone Paint
136 Amp Alternator
625 Amp Maintenance Free Battery
Anti-Lock 4-Wheel Disc Brakes
Low Back Bucket Seats
Highline Door Trim Panel
Rear 60/40 Folding Seat
Child Seat Anchor System-LATCH Ready
Next Gen Multistage Front Air Bags**
Floor Carpet
Cargo Compartment Carpet
Cargo Tie Down Loops
Front & Rear Floor Mats
Covered Cargo Storage
Cargo Trim Panel w/Storage Net
Driver Foot Rest
Cargo Compartment Cover
Passenger Assist Handles
Mini Overhead Console
Full Length Floor Console
All 5-Speed Automatic Transmissions
Lock-Up Torque Converter
Quadra-Trac II On Demand 4WD System
Dana 30/186MM Front Axle
Tinted Windshield Glass
Front Door Tinted Glass
Deep Tint Sunscreen Glass
Flipper Liftgate Glass
Rear Window Defroster
Sun Visors w/Illum Vanity Mirrors
Rear View Auto Dim Mirror
Power Heat Driver Auto Dim Mirrors
Remote Keyless Entry
Sentry Key Theft Deterrent System
Air Cond ATC w/Dual Zone Control
Hood Insulation
Deluxe Insulation Group
Electroluminescent Instr Cluster
120 MPH Primary Speedometer
Rear Window Wiper/Washer
Dual Note Electric Horns
Glove Box
12V Auxiliary Power Outlet
Power Accessory Delay
Power Locks
Power Windows, Driver One-Touch
EXTERIOR COMPONENT COLOR
Illuminated Entry
Warning Chime
Courtesy Lamps

Glove Box Lamp

Rear Courtesy/Reading Lamps

Cargo Compartment Lamp

Radio/Driver Seat/Mirror Memory

Halogen Headlamps

Front Fog Lamps
CHMSL Lamp

Security Alarm

Front License Plate Bracket

Bright Grille

Black Windshield Moldings

Limited Badge

Grand Cherokee Badge

Jeep Badge

Side Roof Rails

20.5 Gallon Fuel Tank

Speed Control

Light Pewter Metallic Clear Coat

Infinity Speakers

Fixed Long Mast Antenna

Power Steering

Leather Wrapped Steering Wheel

Tilt Steering Column

Inside Mounted Spare Tire

Protective Coating and Remover

WJ-Vehicle Family

Four Wheel Drive (4WD)/(4X4)
Left Hand Drive (LHD)
Code:
OPTIONAL EQUIPMENT
Leather Trimmed Bucket Seats
Sandstone
Cold Weather Group

Skid Plate Group

Trailer Tow Group IV

Radio-CD/Cass/10 Disc/Infinity Spkrs

Quadra-Drive II (R) 4WD System

Up Country Suspension Group(97-2-26)

Mutually Exclusive Package

Supplemental Side Air Bags

Supp. Side Curtain Frt/Rr Air Bags

5-Spd Automatic
545RFE Transmission

3.73 Rear Axle Ratio

Dana 44/226MM Rear Axle

Vari-Lok Progressive Front Axle

Vari-Lok Progressive Rear Axle

4.7L V8 Power Tech Engine

Power Sunroof

Rain Sensitive Windshield Wipers

12V Rear Auxiliary Power Outlet

Power 10-Way Heated Memory Seats
Vehicle Information Center

Traveler/Mini Trip Computer

Automatic Headlamps

V-8 Badge

Adjustable Roof Rail Crossbars

Quadra Drive Badge

50 State Emissions

Federal Tier 2, Bin 9A Emissions

Power Steering Cooler

Hydraulic Engine Cooling

Light Pewter Metallic Clear Coat

All Radio Equipped Vehicles

AM/FM CD GPS Navigation Radio

10-Disc Remote CD Changer

Steering Wheel Mounted Audio Ctrls

Heavy Duty Suspension w/Gas Shocks

Full Size Spare Tire w/Matching Whl

P235/65R17 OWL All Terrain Tires

Goodyear Brand Tires

17X7.5 Aluminum Chrome Wheels

All Aluminum Wheels

Power Adjustable Pedals w/Memory

Tow Hooks

Fuel Tank Skid Plate
Shield
Transfer Case Skid Plate
Shield
Front Suspension Skid Plate

Class IV Receiver Hitch

7 Pin Wiring Harness

7 to 4 Pin Wiring Adaptor

Universal Garage Door Opener

Tire Pressure Monitoring Display

Manuf Statement of Origin

7 Additional Gallons of Gas

Spring - Left Front

Spring - Left Rear

Spring - Right Front

Spring - Right Rear

GVW Rating - 5500#

Customer Preferred Package 2TK

Customer Preferred Package 28K

V-8 Bonus Discount
Limited Equipment Discount




Coming up next I will be putting on my JK Rubicons with 255/65R17 Tires... still can't decide If I'll do wheel spacers yet.

The goal of this vehicle is to have a 4x4 with 4lo to get me to my favorite paragliding launches (wussy AWD just won't cut it). Allow for (ceiling winch) roof loading of a RTT and still fit out of the garage. Keep the lift profile low so my old Great Dane can still jump in the back. Increase offload abilities/flex better than stock. And add in a 242HD to try to maintain decent mpgs and decrease wear on the front axle, maybe gain 4PT and 4FT.

So there you have it, better pictures and build info to come!


Stock Specs;
-Purchased in Oct 2018
-2004 Limited
-Mileage 136K
-Color - Pewter
-Leather Seating
-Wheels - Rogue Chrome
-4.7l V8
-Upcountry Suspension Package
-D30 Front Varilok - 3.73
-D44A Rear Varilok - 3.73
-NV247 Quadra-Drive


2004 WJ TRL HWK Edition
Upcountry, 265/65R17in Tires, JK Rubicon Wheels
F/R Vari-lock
jayheats is offline
Sponsored Links
Advertisement

post #2 of 58 Old 10-09-2018, 03:20 PM
HarryH3
Registered User
2001 WJ

Join Date: Jul 2015
Location: Planet Houston
Posts: 2,159
Quote:
Originally Posted by jayheats View Post
And add in a 242 to try to maintain decent mpgs and decrease wear on the front axle.
Nice looking rig, but I think you can save yourself some money by not bothering with the NP242 swap, at least for those reasons. WJ's don't have locking hubs, so the wheels are always connected to the axle shafts, so everything up front will still be spinning in 2WD. Your current NP247 also doesn't drive the front axle until it detects that the rear is starting to go faster than the front, then the hydraulic coupler engages the front driveshaft.
jayheats likes this.
HarryH3 is offline
post #3 of 58 Old 10-09-2018, 03:28 PM Thread Starter
jayheats
Registered User

jayheats's Avatar
2004 WJ

Join Date: Dec 2013
Location: Morgan
Posts: 281
Quote:
Originally Posted by HarryH3 View Post
Nice looking rig, but I think you can save yourself some money by not bothering with the NP242 swap, at least for those reasons. WJ's don't have locking hubs, so the wheels are always connected to the axle shafts, so everything up front will still be spinning in 2WD. Your current NP247 also doesn't drive the front axle until it detects that the rear is starting to go faster than the front, then the hydraulic coupler engages the front driveshaft.
Thanks for the advice. Ya I will have to reconsider that. Does the 247 have any problems like the ZJ 249 did? VIC Coupler issues?

2004 WJ TRL HWK Edition
Upcountry, 265/65R17in Tires, JK Rubicon Wheels
F/R Vari-lock
jayheats is offline

post #4 of 58 Old 10-09-2018, 04:03 PM
Jeeples
Harsh, but fair

Jeeples's Avatar
2000 WJ

Join Date: Jul 2006
Location: West Jordan
Posts: 7,775
Quote:
Originally Posted by jayheats View Post
Thanks for the advice. Ya I will have to reconsider that. Does the 247 have any problems like the ZJ 249 did? VIC Coupler issues?
It's not a sealed unit like the 249 used, which means the fluid in the t-case is what operates it. This is good and bad.

The good is that it won't fail due to the fluid inside the coupler failing despite otherwise maintaining the t-case like in the 249.

The bad is that it's fairly maintenance sensitive, meaning timely fluid changes and use of the correct, dealer only supplied fluid is a must.

I actually like the 247 when it's in good working order, it has a quick reaction time and offers a a pretty seamless driving experience when on road conditions are less than ideal (heavy snow, rain, etc.). The downside is that typically the larger in tire size you go the slower the reaction time of the t-case as it will take more revolutions of the rear wheels spinning to force the t-case to transfer power to the front wheels. If the 245/65/17 size is you end goal you'll likely notice little to no change in t-case performance.
jayheats and cerealwars like this.

His: '00 WJ 4.7 Limited- Some stuff

Hers: '03 WJ 4.7 Laredo- Some more stuff


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by Jeeples
This is easily the worst post, and thread, I have ever seen in 7 years of being on JF.
Jeeples is offline
post #5 of 58 Old 10-09-2018, 05:28 PM
HarryH3
Registered User
2001 WJ

Join Date: Jul 2015
Location: Planet Houston
Posts: 2,159
The coupler inside the 247 is quite similar in operation to the Vari-loks inside your axles. When the rear starts to go faster than the front then the gerotor pump applies pressure to the clutch pack that then applies power to the front. In 4Lo the coupler is locked out and both driveshafts are locked together for maximum traction.

One VERY important thing to know about the NP247 (and the Vari-lok axles) is that you must keep all of the tires the same size. This includes the spare and the owners manual says to keep all 5 tires in rotation, to keep them all in the same wear range (and thus, rolling diameter). Mismatches will cause the Vari-lok and/or t-case coupler to be trying to engage all the time, doing their best to keep everything rotating at the same speed. This will wear out the clutches quite quickly.
jayheats and cerealwars like this.
HarryH3 is offline
post #6 of 58 Old 10-10-2018, 09:45 AM
Photoweborama
Registered User

Photoweborama's Avatar
1999 WJ

Join Date: Feb 2015
Location: Orangevale
Posts: 507
This answered my questions too. I was thinking about swapping my transfer case, now Iím going to just keep changing the fluid.


Sent from my iPad using Tapatalk
Photoweborama is offline
post #7 of 58 Old 10-10-2018, 12:23 PM Thread Starter
jayheats
Registered User

jayheats's Avatar
2004 WJ

Join Date: Dec 2013
Location: Morgan
Posts: 281
Well, for the sake of documenting upgrades (and it personally helps me keep a tally of what it is costing) I'll be posting the upgrades as they come.

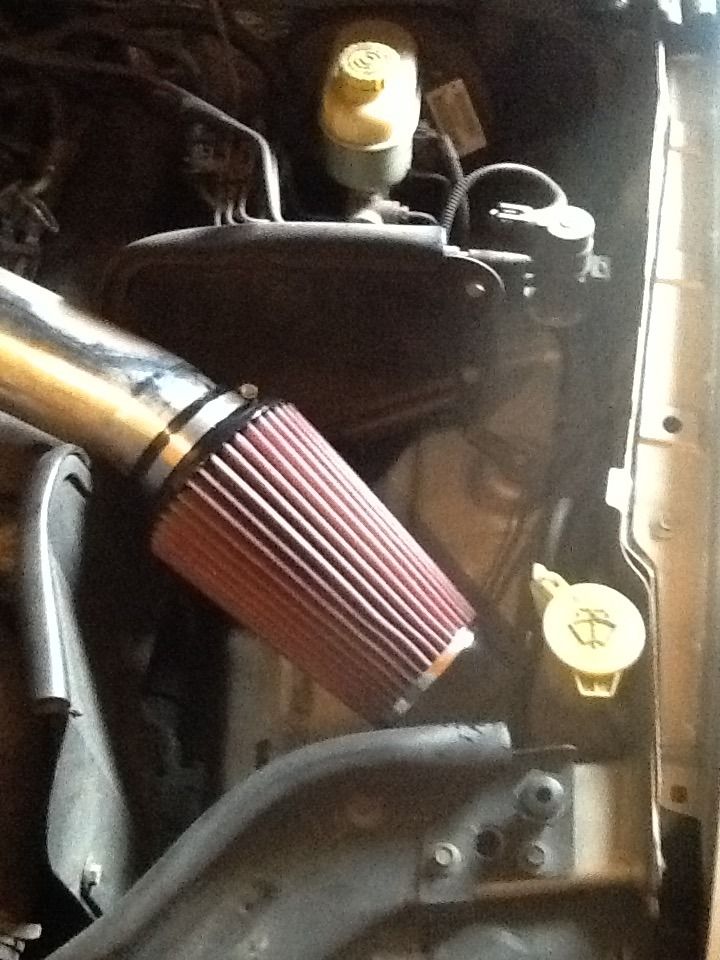

Today I changed the K&N Air Filter. I have no idea how many miles were on the old one, but it was so old it had tiny holes in the folded parts of the fins. I know K&N has a warranty 10 years or a million miles, but this filter may have actually been 10 years old so I just decided to buy another for $60.

Today I oiled and installed a new one.


2004 WJ TRL HWK Edition
Upcountry, 265/65R17in Tires, JK Rubicon Wheels
F/R Vari-lock
jayheats is offline
post #8 of 58 Old 10-12-2018, 06:33 AM Thread Starter
jayheats
Registered User

jayheats's Avatar
2004 WJ

Join Date: Dec 2013
Location: Morgan
Posts: 281

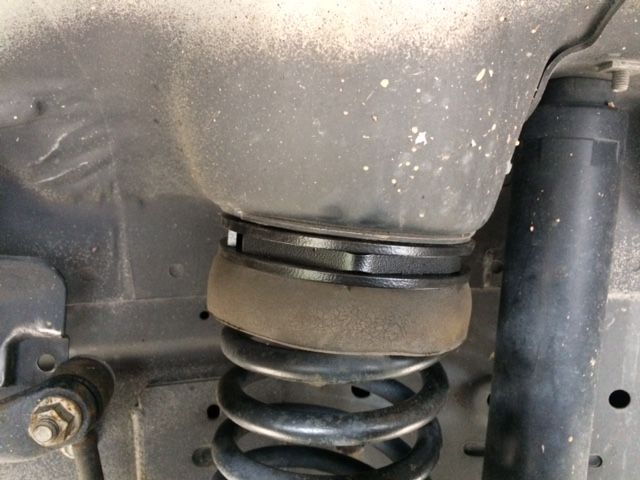

Yesterday I installed the RC Front .75 spacer to level out the front (I have an upcountry suspension already). Took me about 30min to do. No spring compressors were needed. Now both fenders are the same height at 33in from the ground. Barely noticeable to the eye, but was exactly what I needed for the tape - measurements to add up. Off to a slow start, but making progress day by day.

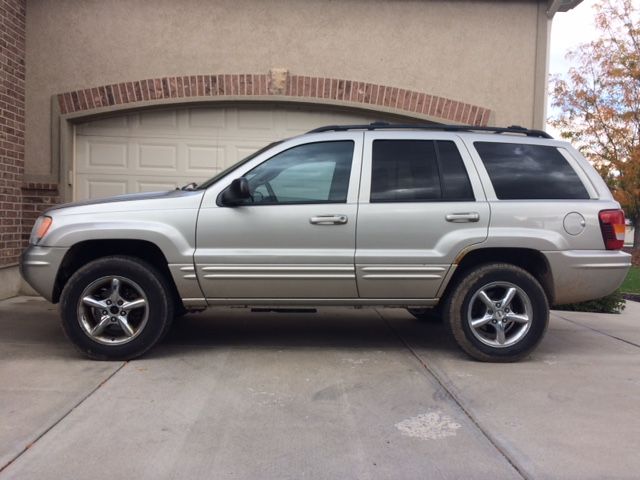

Before

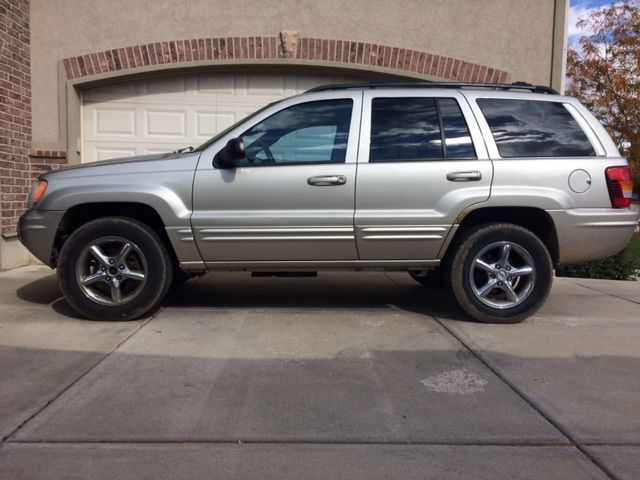

After


2004 WJ TRL HWK Edition
Upcountry, 265/65R17in Tires, JK Rubicon Wheels
F/R Vari-lock
jayheats is offline
post #9 of 58 Old 10-16-2018, 11:21 AM Thread Starter
jayheats
Registered User

jayheats's Avatar
2004 WJ

Join Date: Dec 2013
Location: Morgan
Posts: 281
Got the 255/65R17 tires installed today. This is a 2004 Limited WJ with an upcountry plus the RC .75 front spacer on JK Rubicons Wheels.


2004 WJ TRL HWK Edition
Upcountry, 265/65R17in Tires, JK Rubicon Wheels
F/R Vari-lock
jayheats is offline
post #10 of 58 Old 12-10-2018, 08:19 AM Thread Starter
jayheats
Registered User

jayheats's Avatar
2004 WJ

Join Date: Dec 2013
Location: Morgan
Posts: 281
Just cut open my system on my 2004 WJ 4.7 and saw that the actuator doors are NOT broken. My passenger blend door was also stuck down. The clicking I heard it seems is the (rear actuator) passenger actuator motor.. it seems to be stripped..

I'm going a little getto here. So.... I disabled the passenger actuator (cut a wire to that motor) and fused the two blend doors together to now work as a single zone ran off the driverside actuator.



If you look close you can see the hole I drilled and put in a pin, then epoxied it together. Now they will function as one unit. Crossing my fingers that this works.

Now my setup is single zone and I didn't need to pull my dash out.
BGDG280 and edhammond71 like this.

2004 WJ TRL HWK Edition
Upcountry, 265/65R17in Tires, JK Rubicon Wheels
F/R Vari-lock
jayheats is offline
post #11 of 58 Old 12-10-2018, 08:20 AM Thread Starter
jayheats
Registered User

jayheats's Avatar
2004 WJ

Join Date: Dec 2013
Location: Morgan
Posts: 281
I just did this fix on my 2004 WJ 4.7.

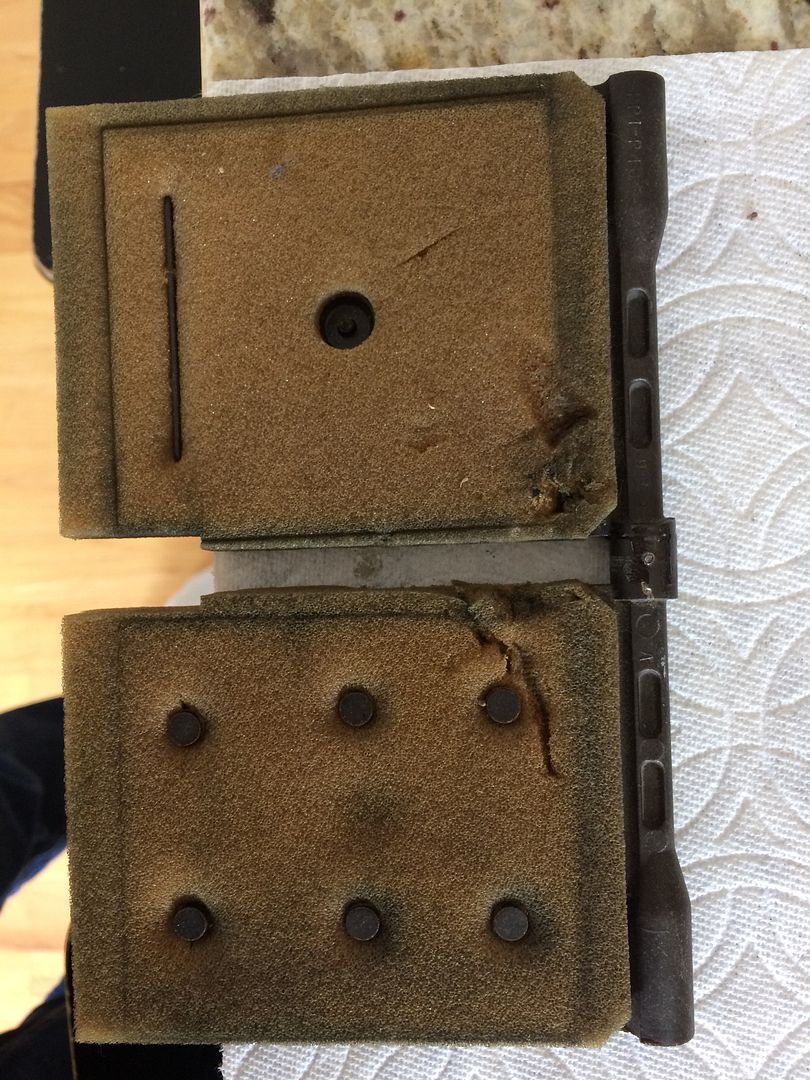

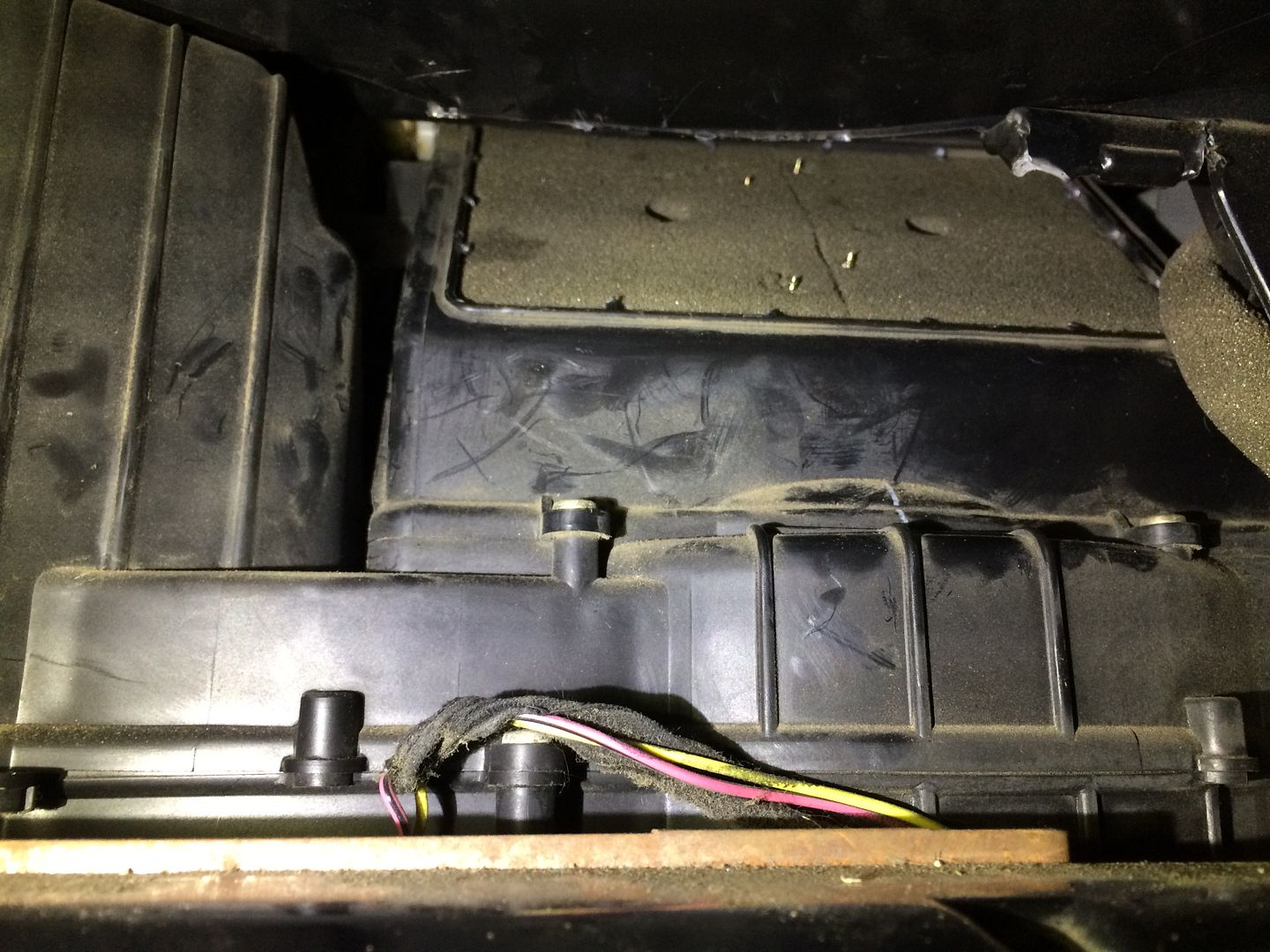

The other day I removed my Blower motor and noticed my recic door was broken but the drive motor was still good.

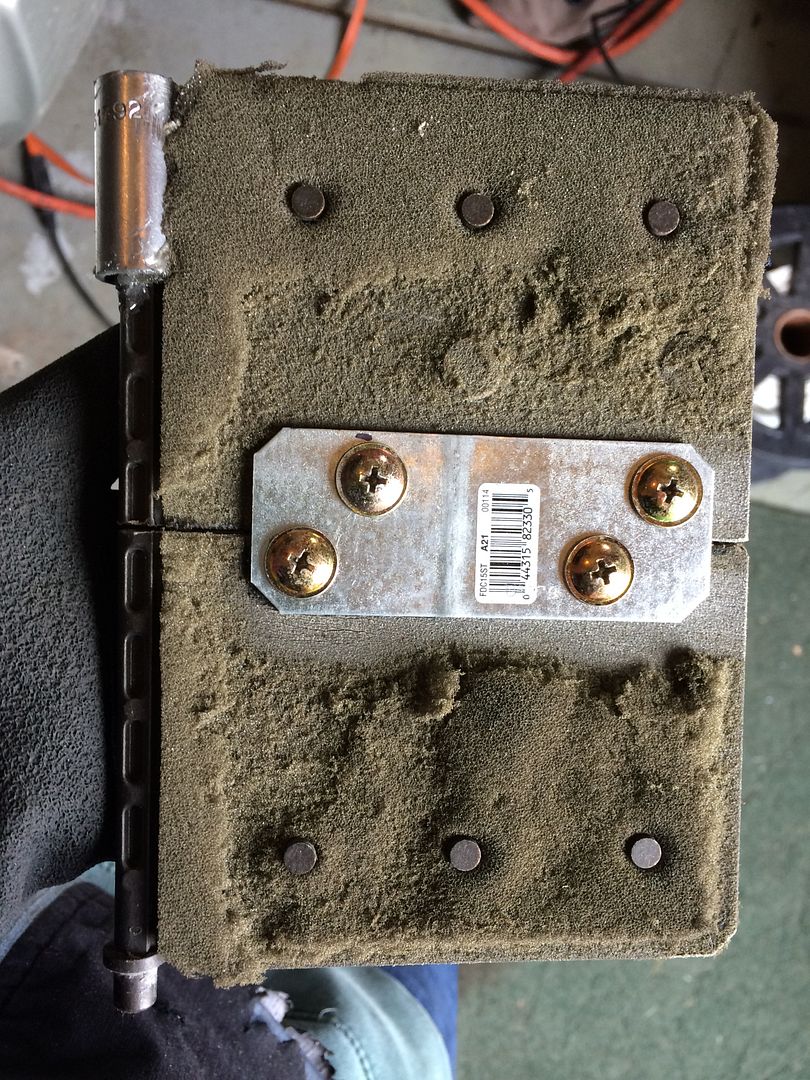

1) I cut out the grill behind the glove box and removed the blower motor

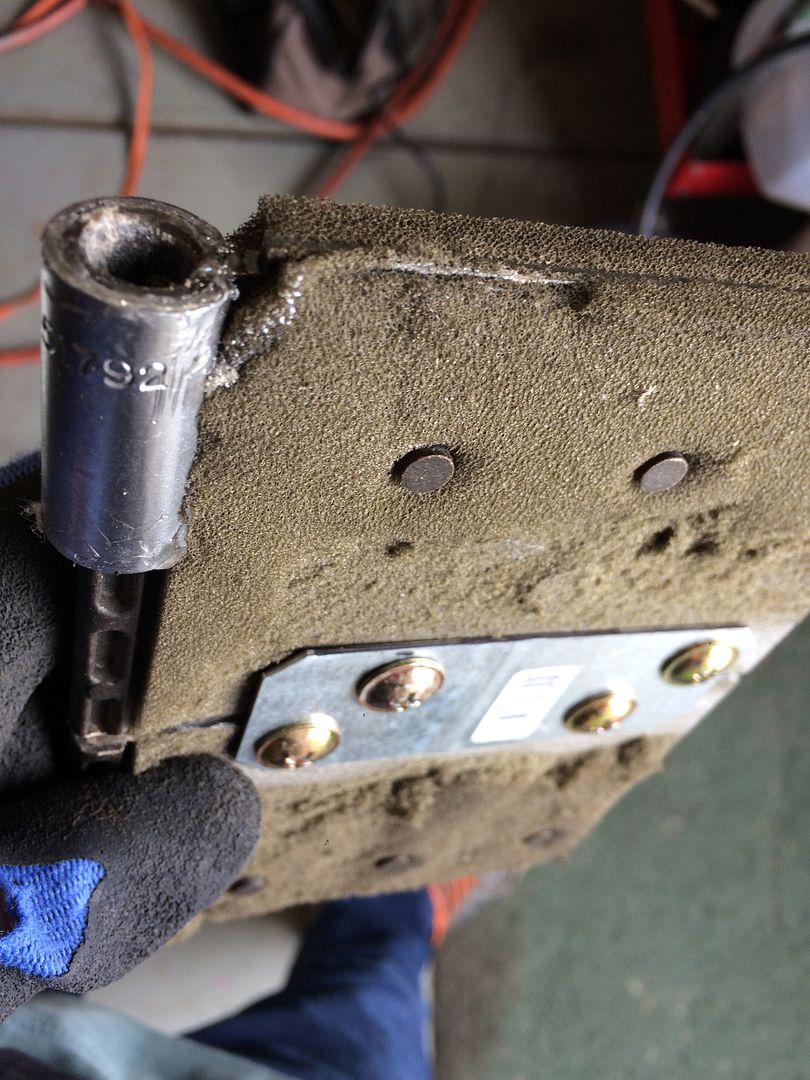

2) I pulled out the Recirc door (this is a pain) and glued / epoxied the broken pieces of the shaft back on and sleeved it (Let dry overnight)

3) Then I got a metal plate and screws and set it up the plate before I cut.

4) cut the door in half and screw on half of the plate.

5) make sure your actuator motor is in a good position. Took me a couple trys of unplugging my battery. Unpluigging the battery will stop the Actuator motor where you want it.

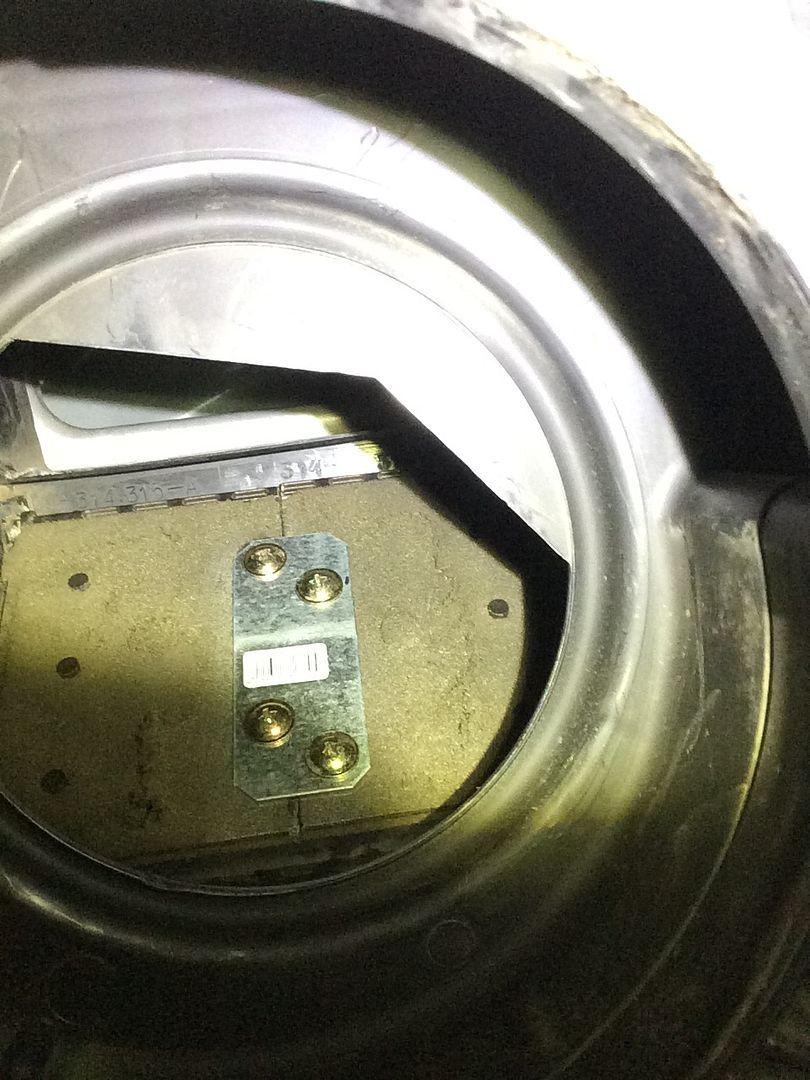

6) put the first half up and slide it onto the motor pin.

7) put the second plate up into place and get a short screwdriver to screw in the last two remaining screws

8) test and reassemble.









Everything works great and I have a functioning Recirc Door!

2004 WJ TRL HWK Edition
Upcountry, 265/65R17in Tires, JK Rubicon Wheels
F/R Vari-lock
jayheats is offline
post #12 of 58 Old 12-10-2018, 08:22 AM Thread Starter
jayheats
Registered User

jayheats's Avatar
2004 WJ

Join Date: Dec 2013
Location: Morgan
Posts: 281

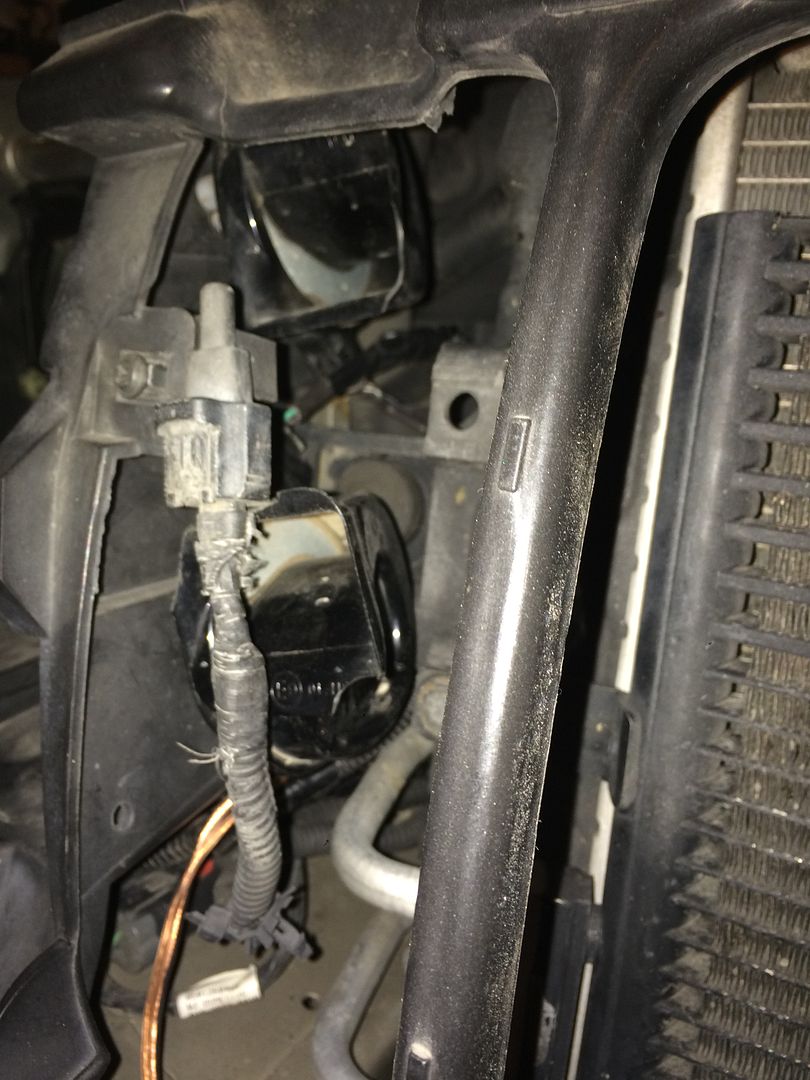

I'm working on getting my wheel wells inside the front bumper cleared out so tires can stuff better so I moved my horns up inside of the grill area..
Because I mounted them to the plastic..I needed to ground the horn stud to the frame and also extend both horn wires about 12inches


2004 WJ TRL HWK Edition
Upcountry, 265/65R17in Tires, JK Rubicon Wheels
F/R Vari-lock
jayheats is offline
post #13 of 58 Old 12-11-2018, 04:27 PM Thread Starter
jayheats
Registered User

jayheats's Avatar
2004 WJ

Join Date: Dec 2013
Location: Morgan
Posts: 281
Got these in the mail today... Rugged Ridge Floor Liners.

Some reason when I bought my Jeep, there were no mats.

These ought to do just fine for camping adventures and mud.

LongboardLiam likes this.

2004 WJ TRL HWK Edition
Upcountry, 265/65R17in Tires, JK Rubicon Wheels
F/R Vari-lock
jayheats is offline
post #14 of 58 Old 12-11-2018, 04:53 PM
Photoweborama
Registered User

Photoweborama's Avatar
1999 WJ

Join Date: Feb 2015
Location: Orangevale
Posts: 507
Quote:
Originally Posted by jayheats View Post
Got these in the mail today... Rugged Ridge Floor Liners.

Some reason when I bought my Jeep, there were no mats.

These ought to do just fine for camping adventures and mud.



Look great.. less expensive than others?


Sent from my iPad using Tapatalk
Photoweborama is offline
post #15 of 58 Old 12-11-2018, 05:19 PM Thread Starter
jayheats
Registered User

jayheats's Avatar
2004 WJ

Join Date: Dec 2013
Location: Morgan
Posts: 281
Wj WJ Rugged Ridge Floor Liner

Quote:
Originally Posted by Photoweborama View Post
Look great.. less expensive than others?


Sent from my iPad using Tapatalk
I got them on Ebay for $108 FREE SHIPPING. They were the cheapest floor liners I could find that custom fit the front area. The set came with both front and rears.

https://ebay.us/YbMD8f

2004 WJ TRL HWK Edition
Upcountry, 265/65R17in Tires, JK Rubicon Wheels
F/R Vari-lock
jayheats is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.



Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 2 (1 members and 1 guests)
McLarenross
Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
