TJ full door tear down for Paint.

Here you go guys a write up on how to remove all the parts necessary for a proper paint job.

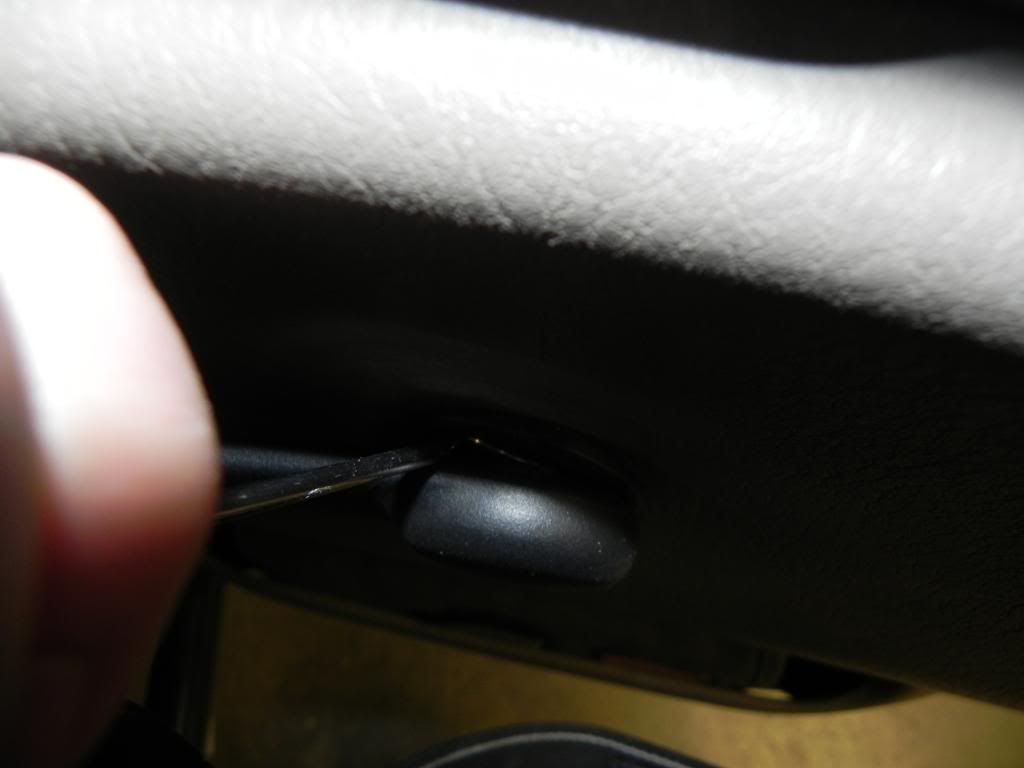

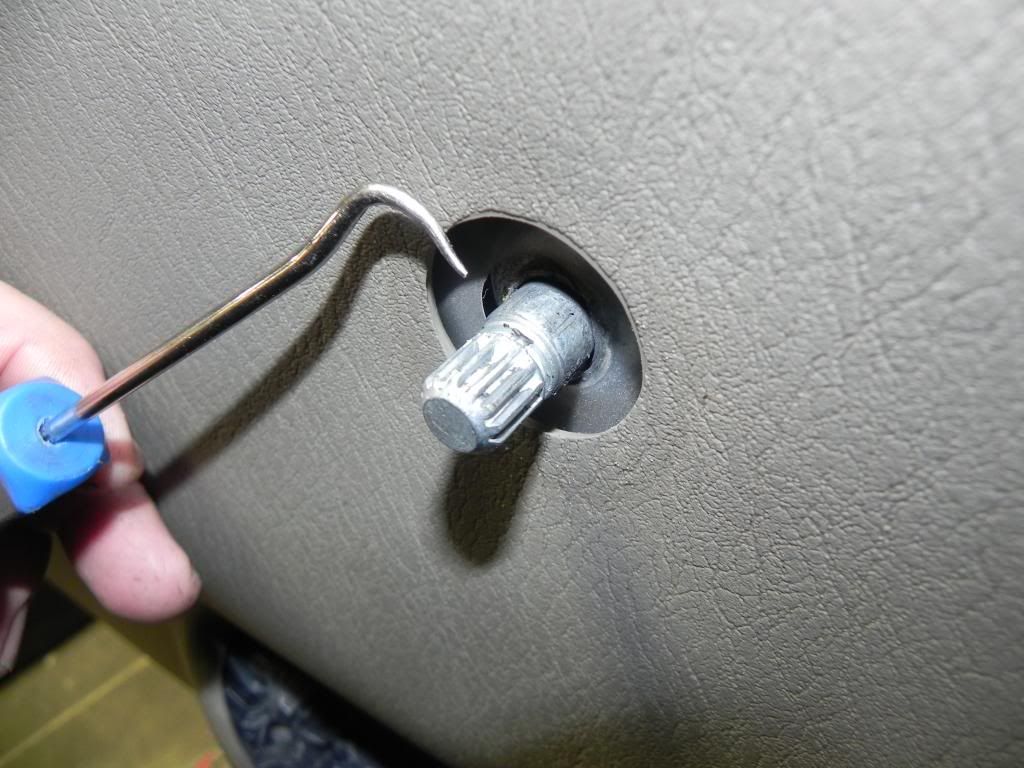

First start by removing the "C" clip that holds the window crank on. There is a proper tool for this, but I could not find mine. So, I used a pick tool.

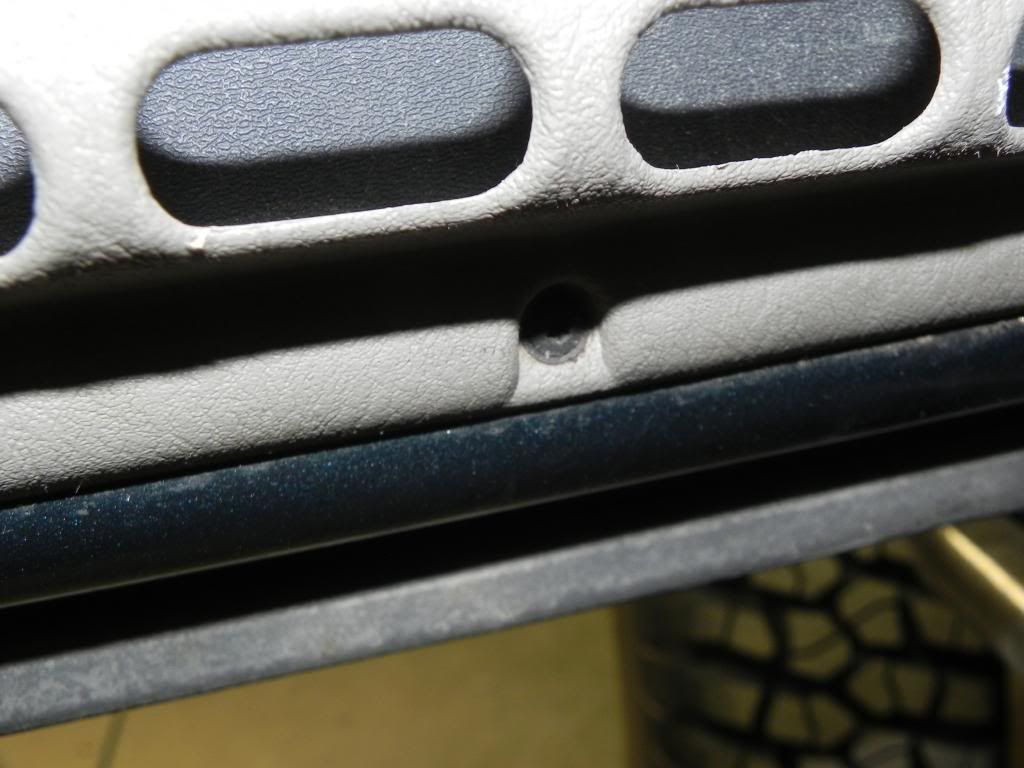

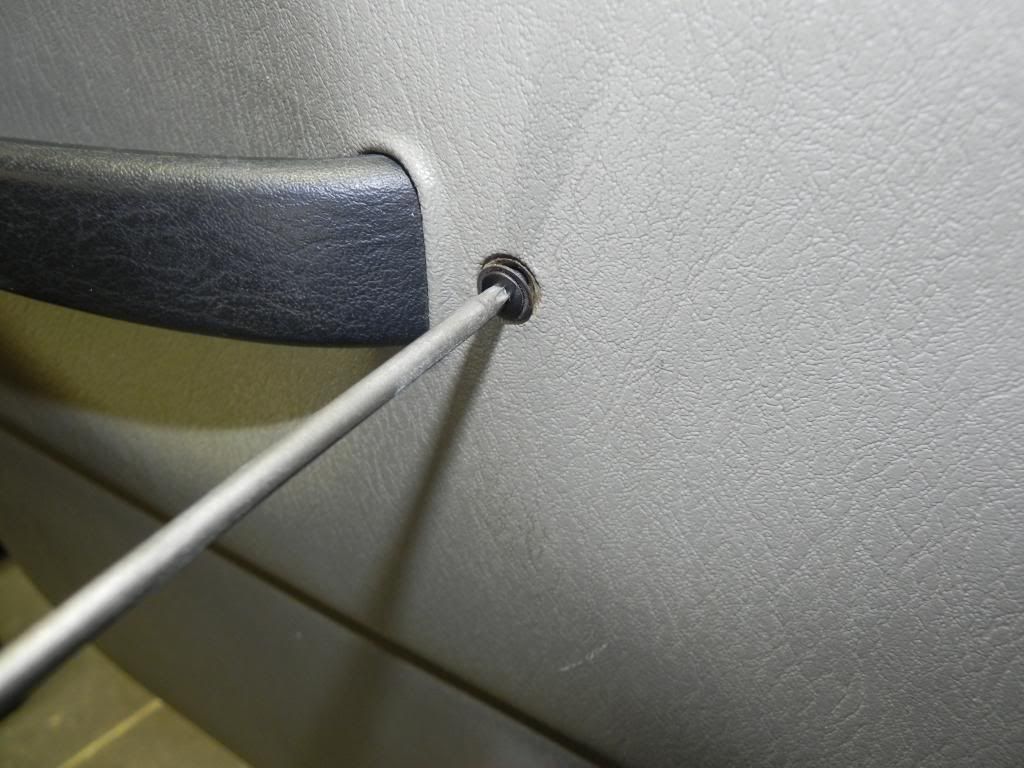

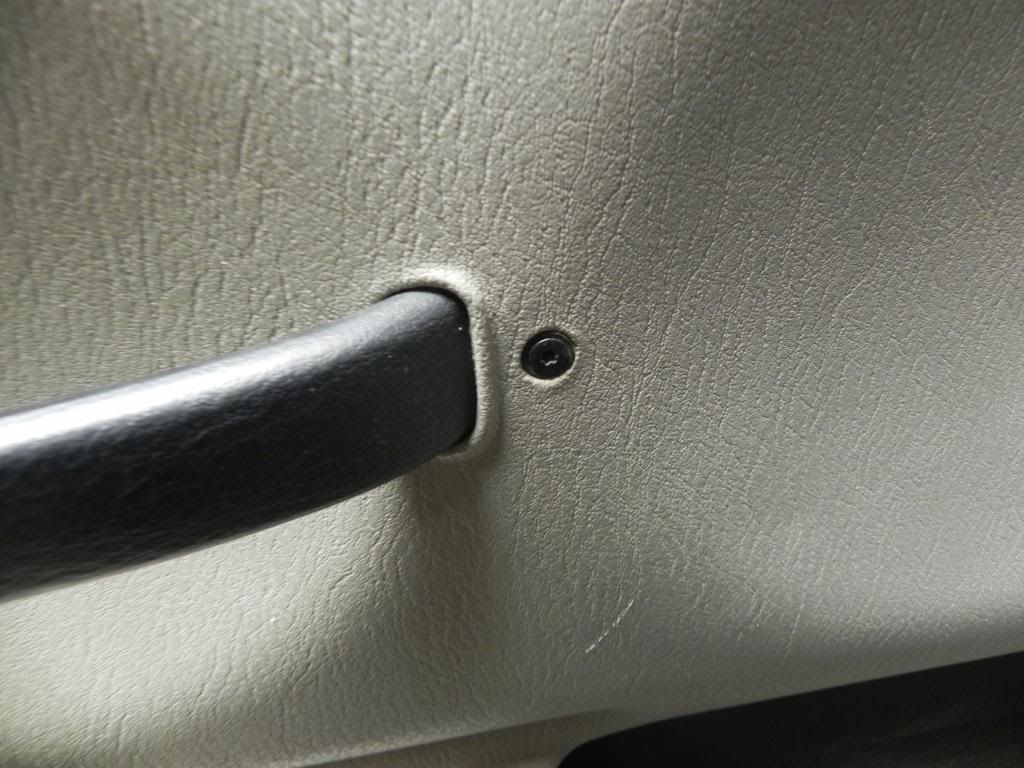

Then move on to the Torx screws, there are 2 in the pull strap and 3 along the side and bottom of the panel.

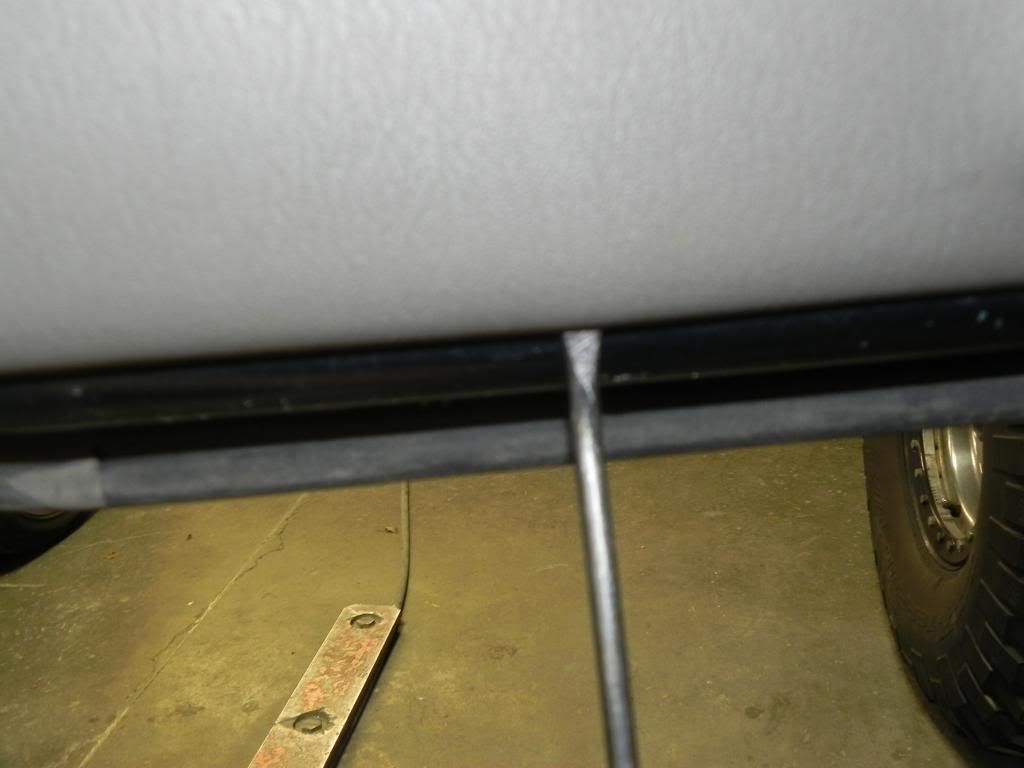

Now to pop the panel off the door frame. Slide a clip tool or putty knife or screw driver under the panel and lift with a little pressure to release the plastic clips.

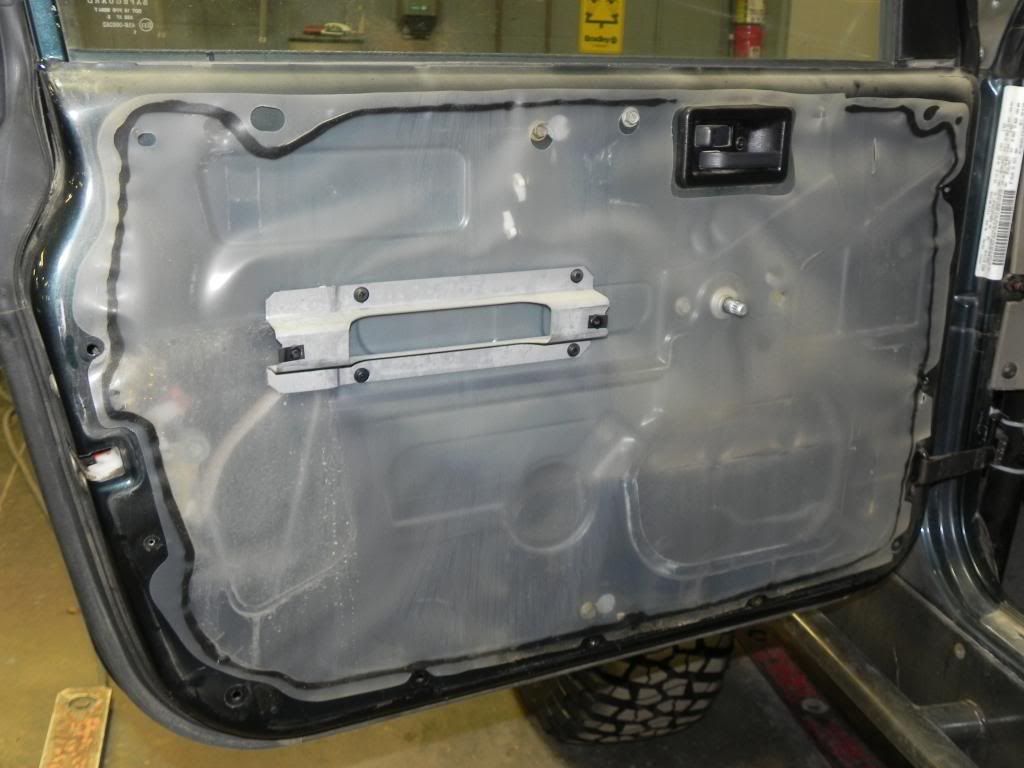

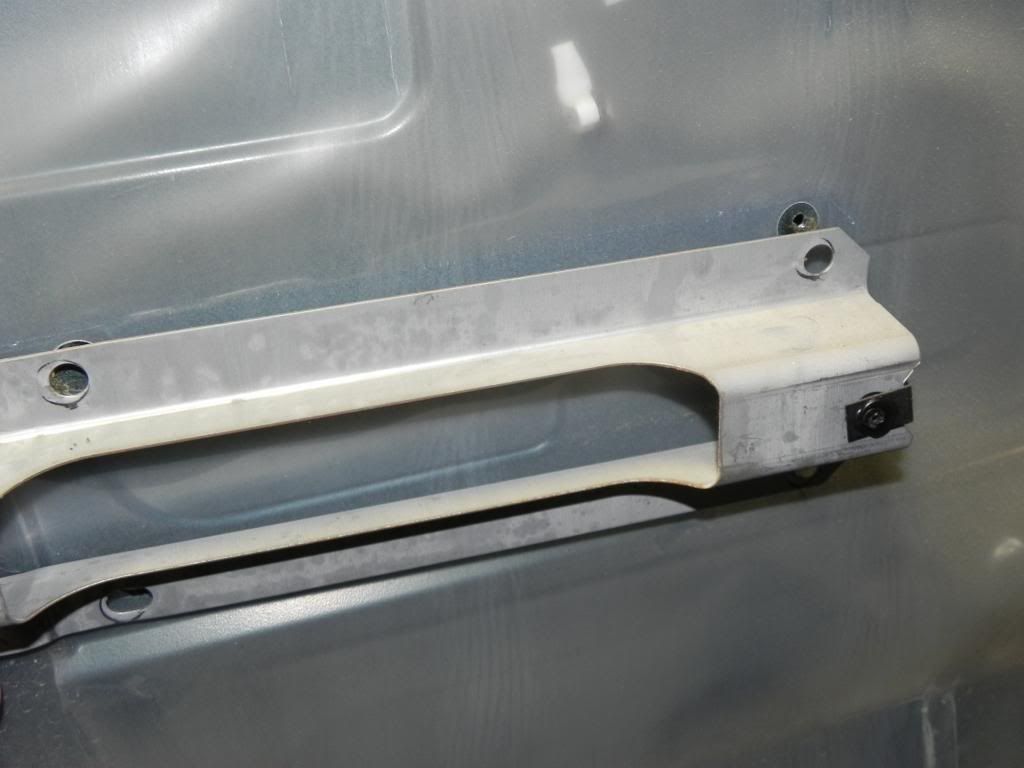

Now with the panel removed you can remove the reinforcement for the door pull.

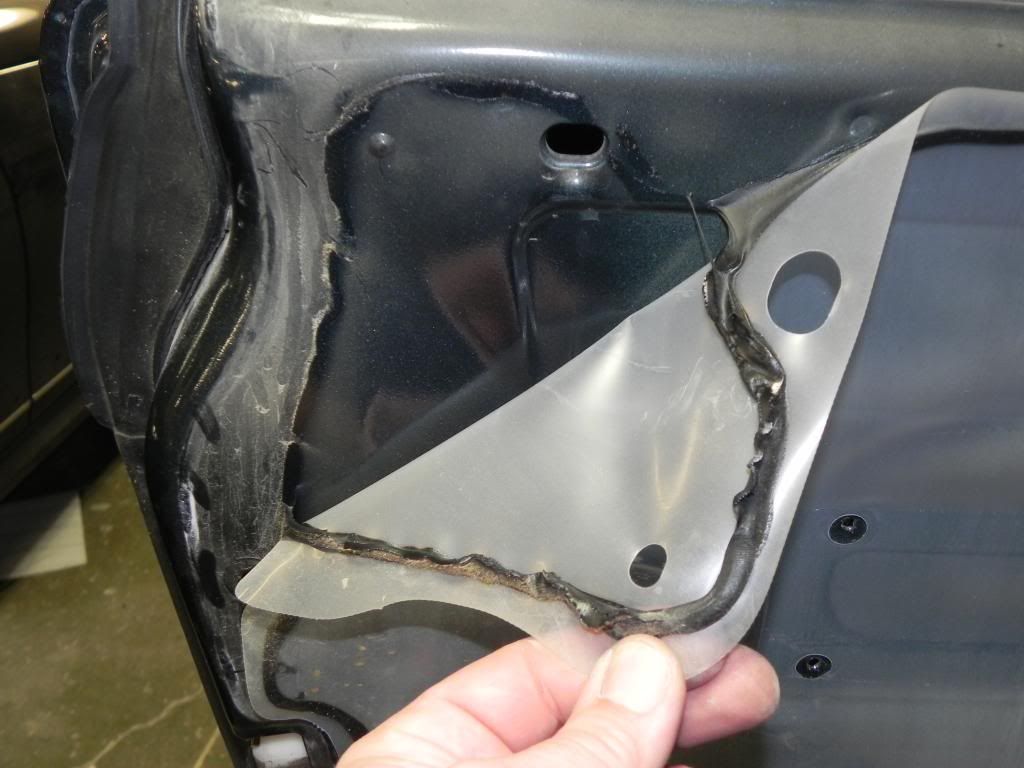

Pull back the vapor/water barrier being careful to not damage the plastic or the adhesive used to attach it.



Vapor barrier removed you can access the two screws holding the window on the regulator.

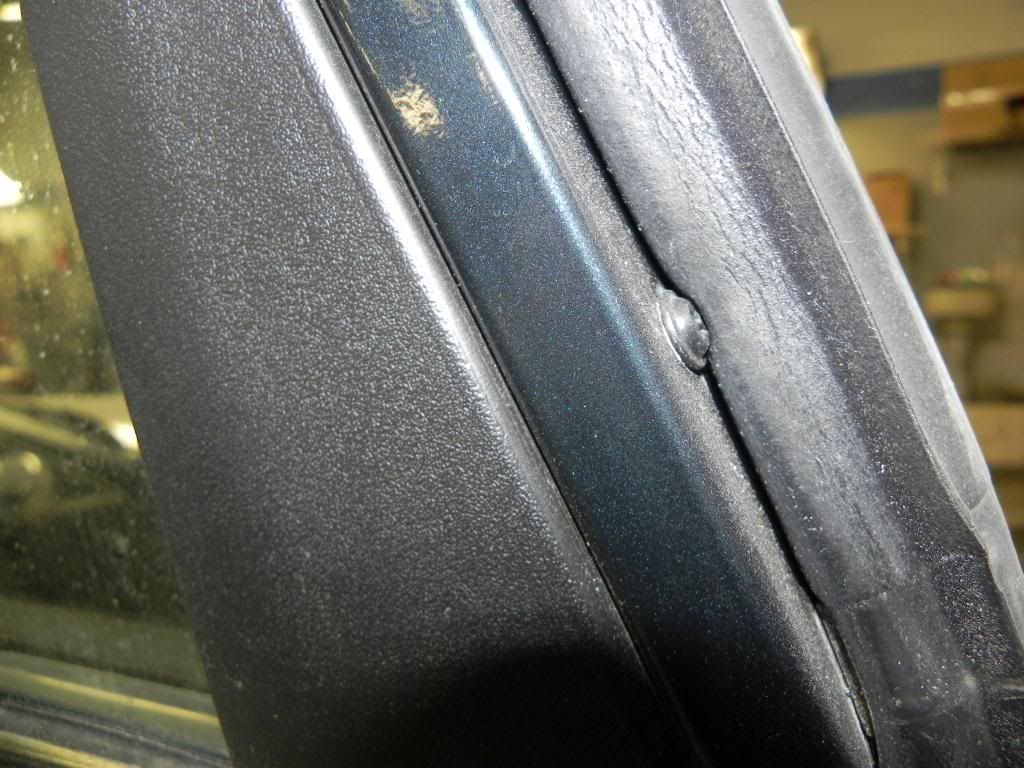

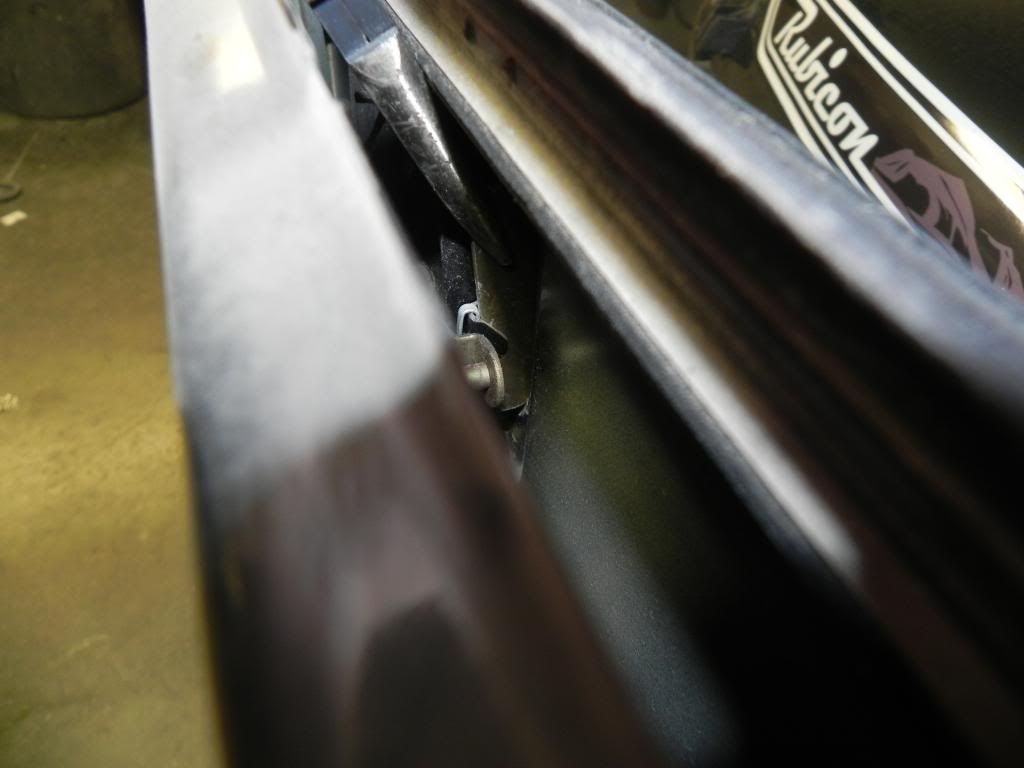

Then remove the two screws in the trim holding the run channel in.

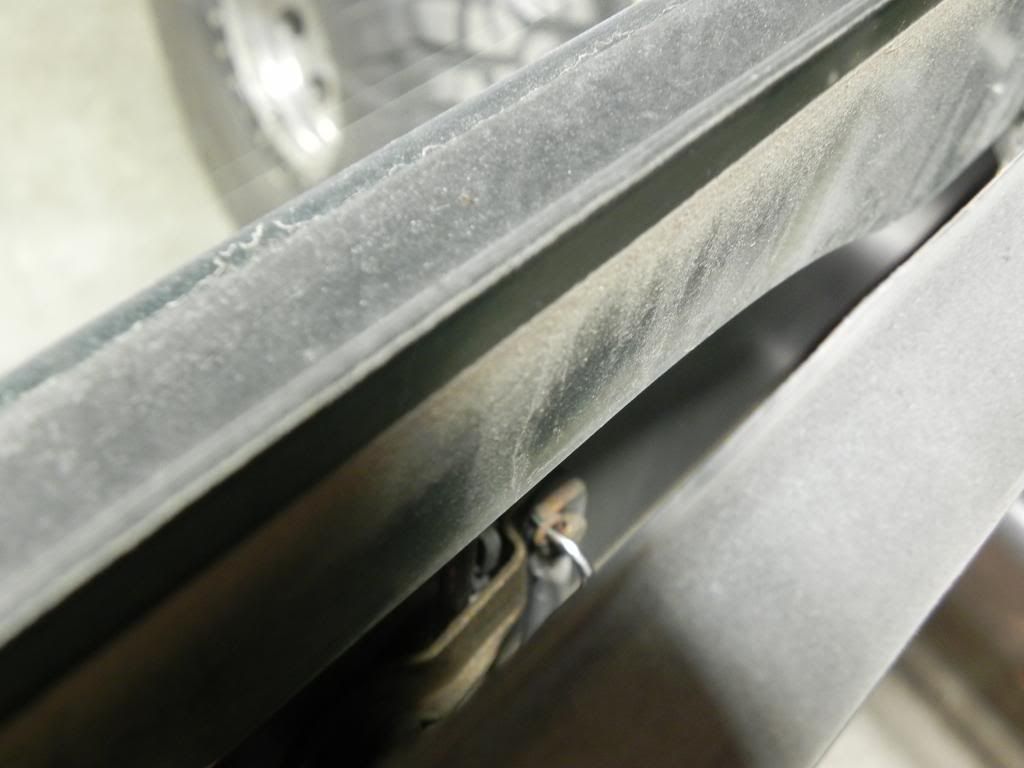

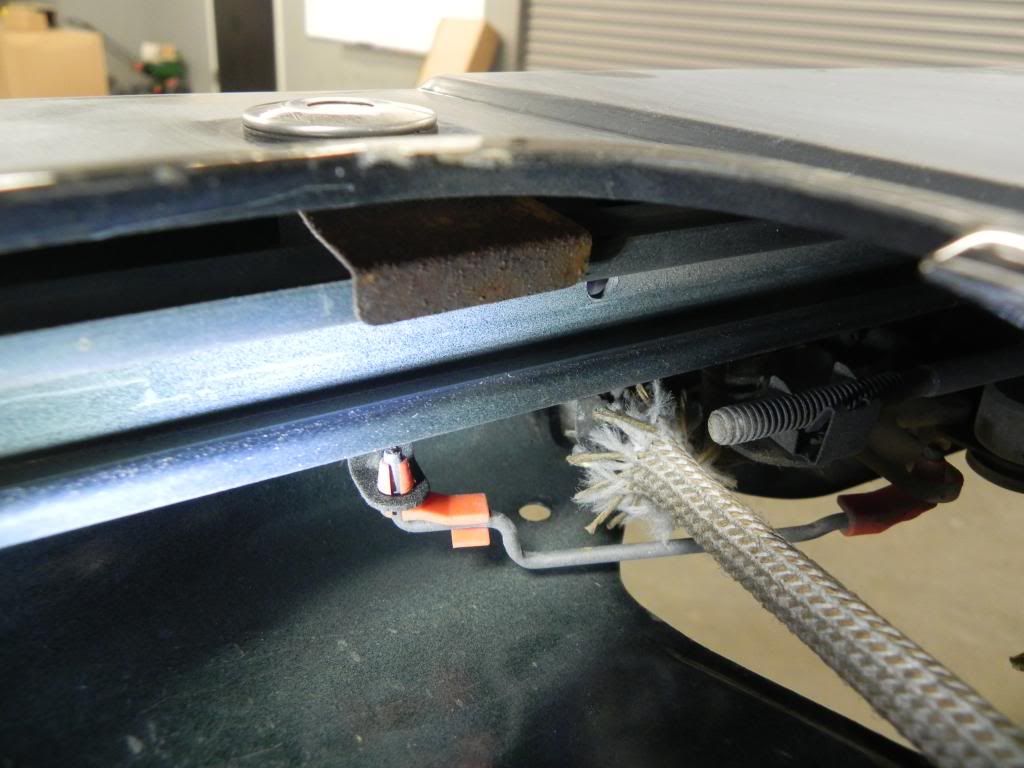

Now comes the fun. The outer door handle is attached to the rod that actuates the latch by a cotter pin and a spring washer.




The spring washer is located behind the rod that is held in place by the cotter pin.

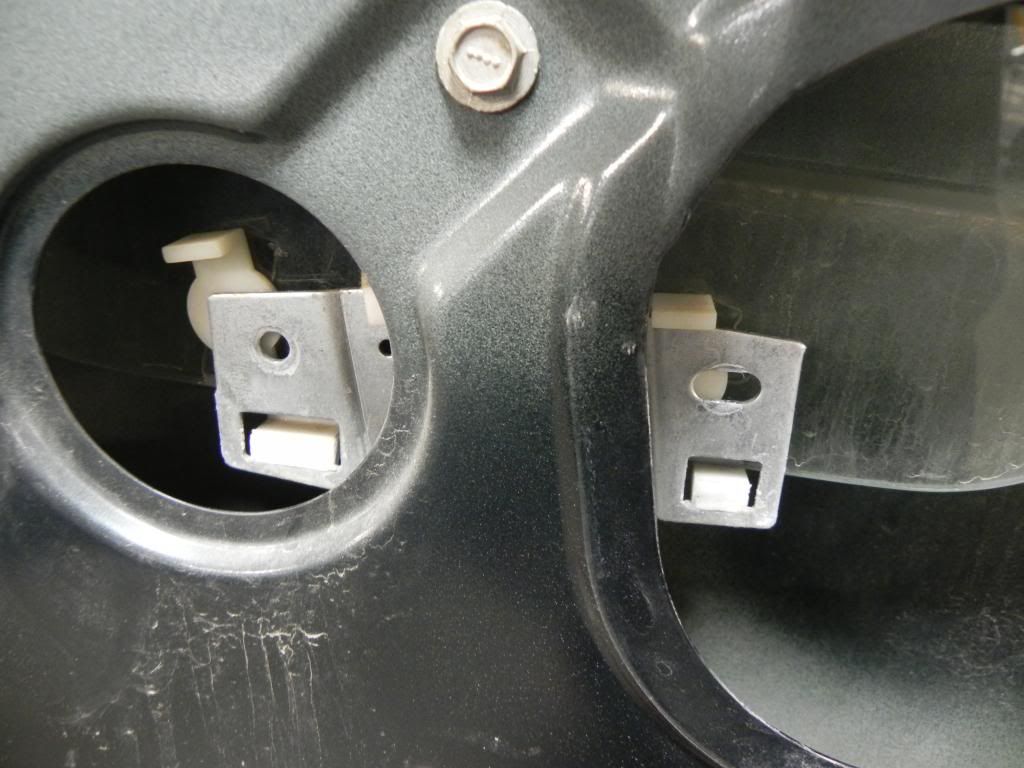

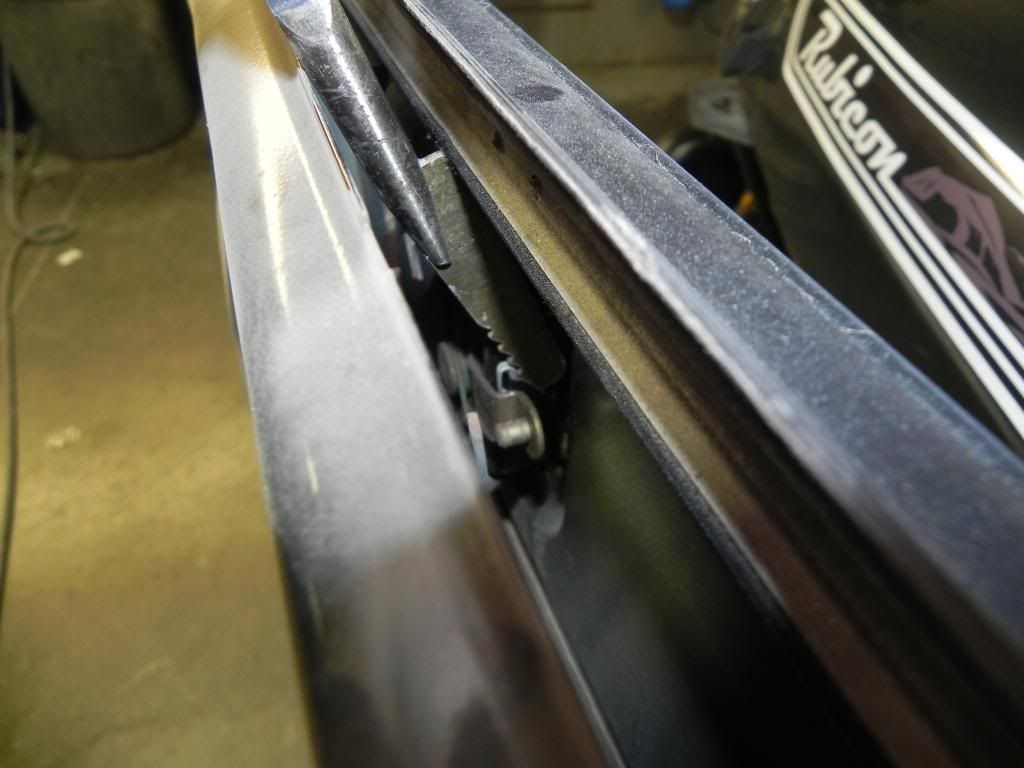

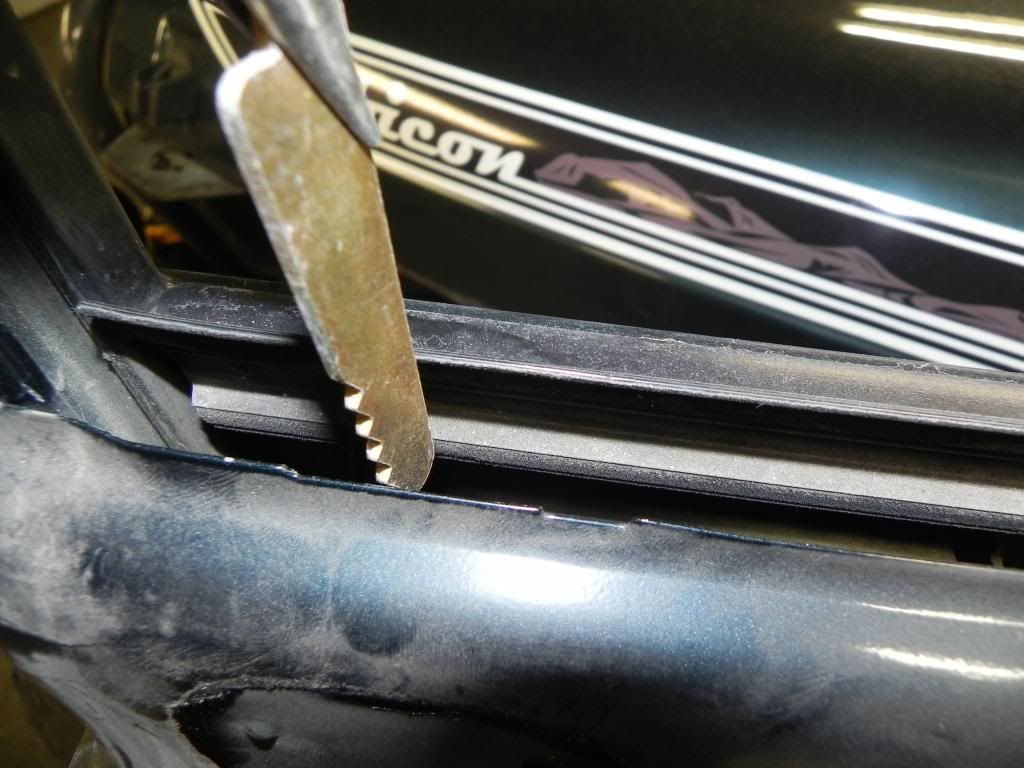

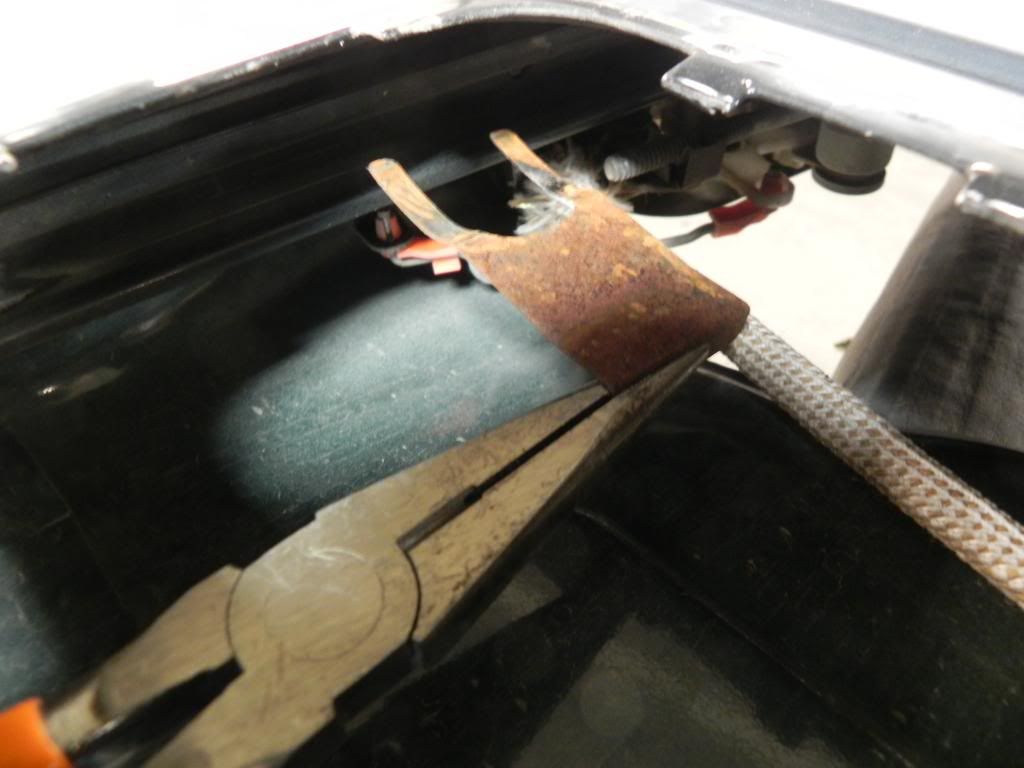

Now with a screw driver and a pair of needle nose pliers you can grap the slides that hold the outer door handle in place. Use the flat screw driver to move the retainer clip off the stepped portion on the slides and pull up with the pliers.

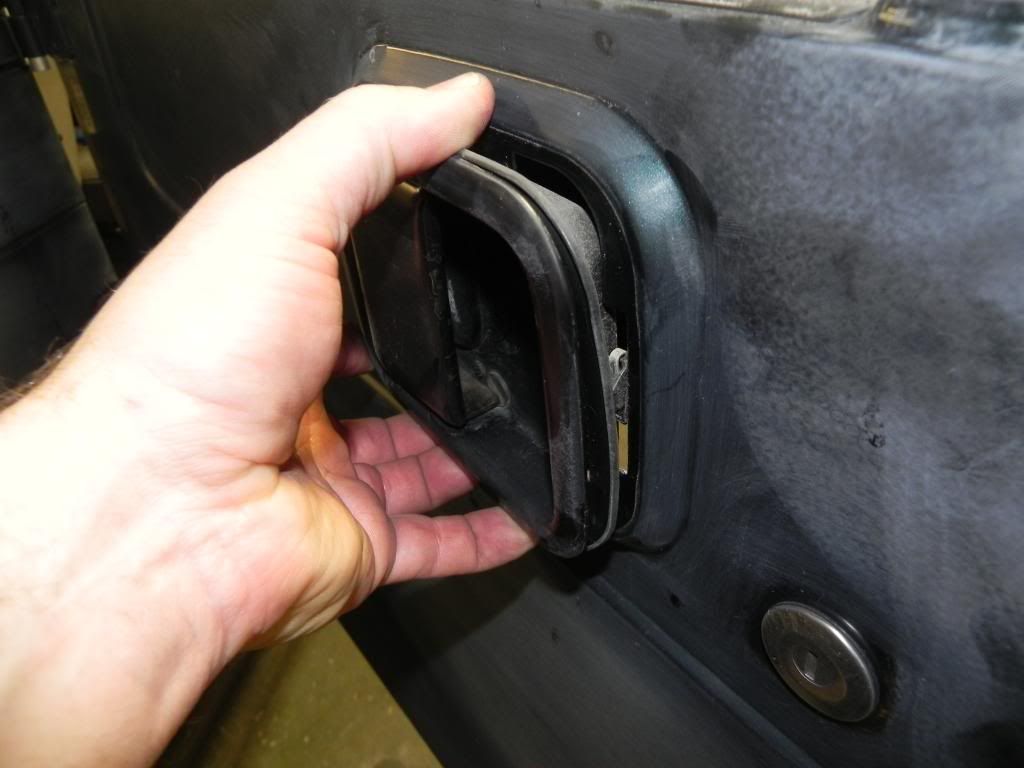

Then grab the handle and work back and forth till it comes free from the door.

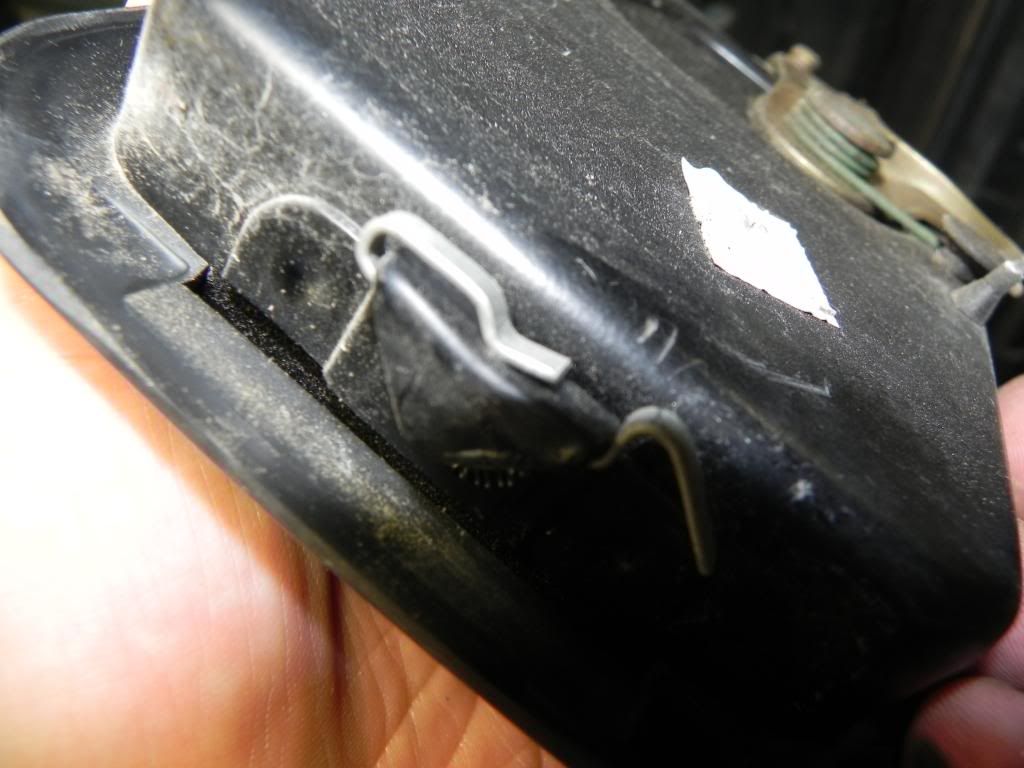

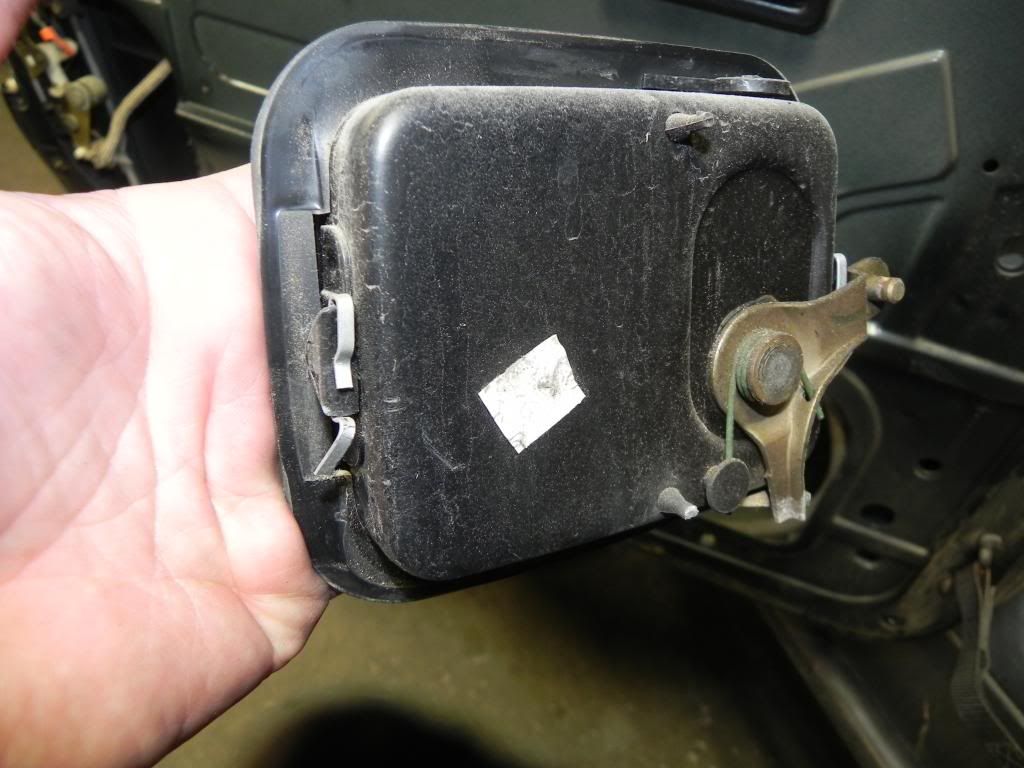

Now you can see the retainers that hold the slides in the door handle.

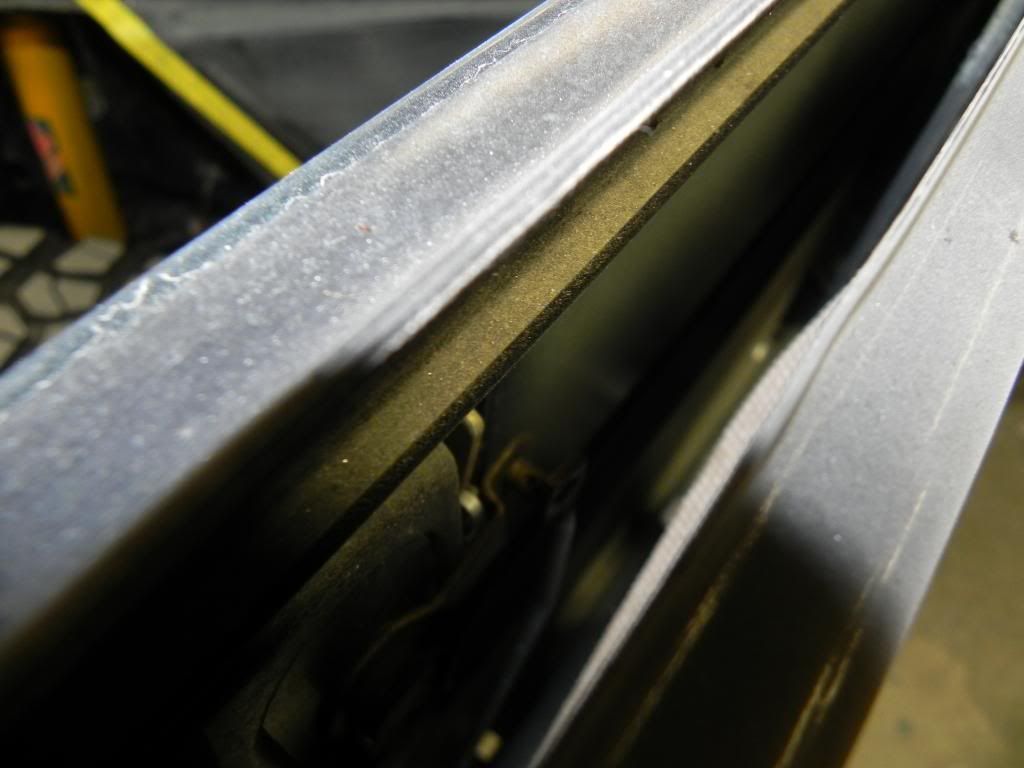

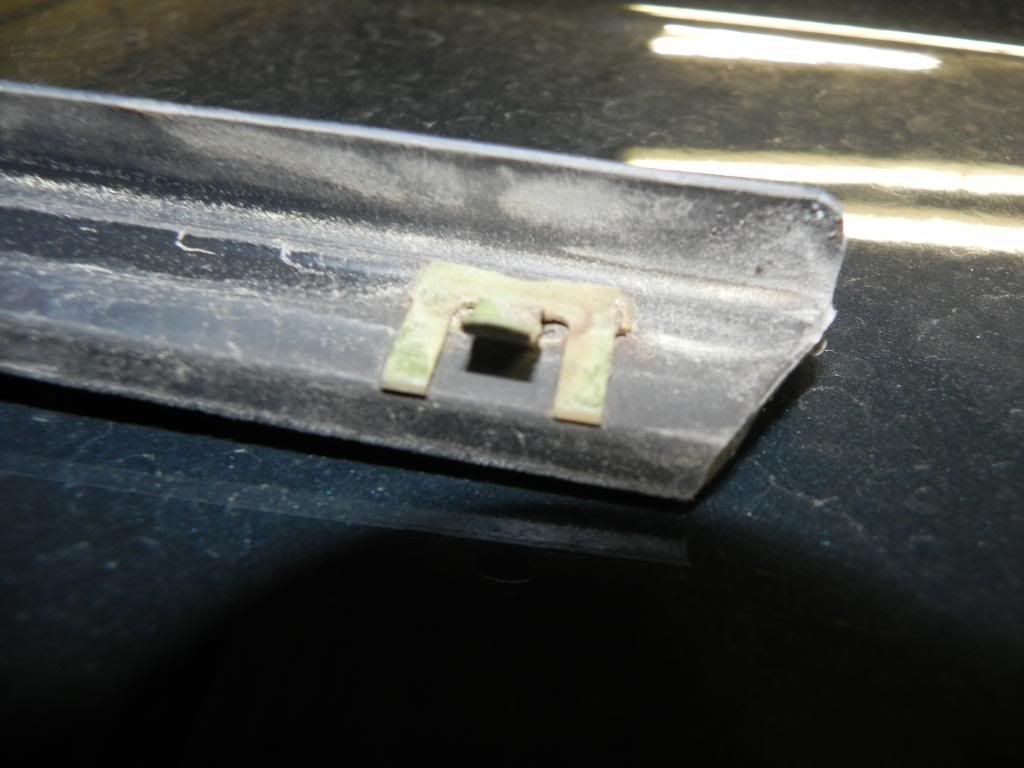

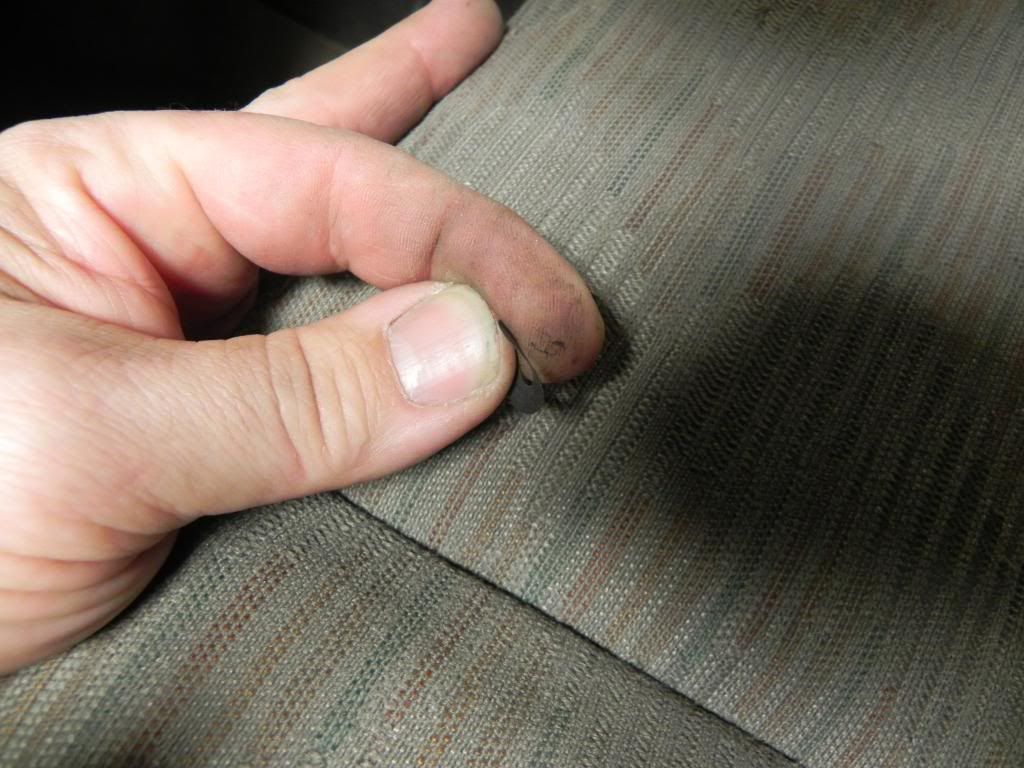

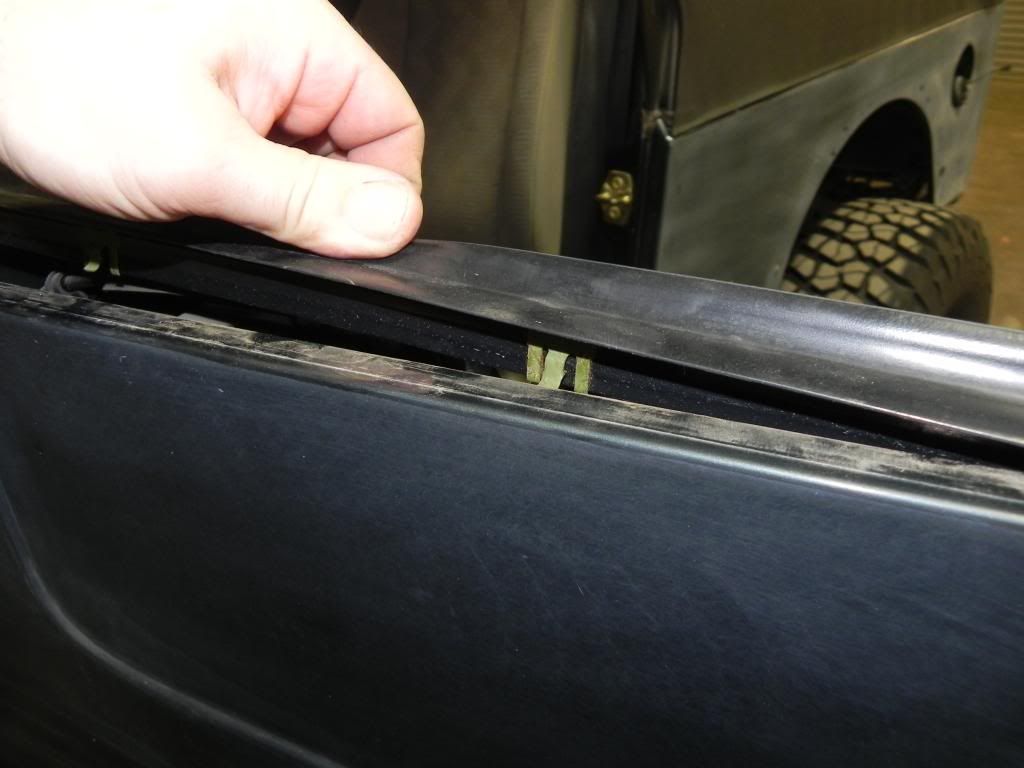

Time to remove the belt molding. It has a clip every four inches that can be tricky to remove. If you grab the molding with both hands and push towards the inside of the Jeep you can release and pull up on the belt molding. Just start on one end and move across as the clips become free.




Now the lock cylinder. Its pretty easy. Just grab the slide retainer with a pair of pliers and pull, then remove the colored clip holding the rod on.

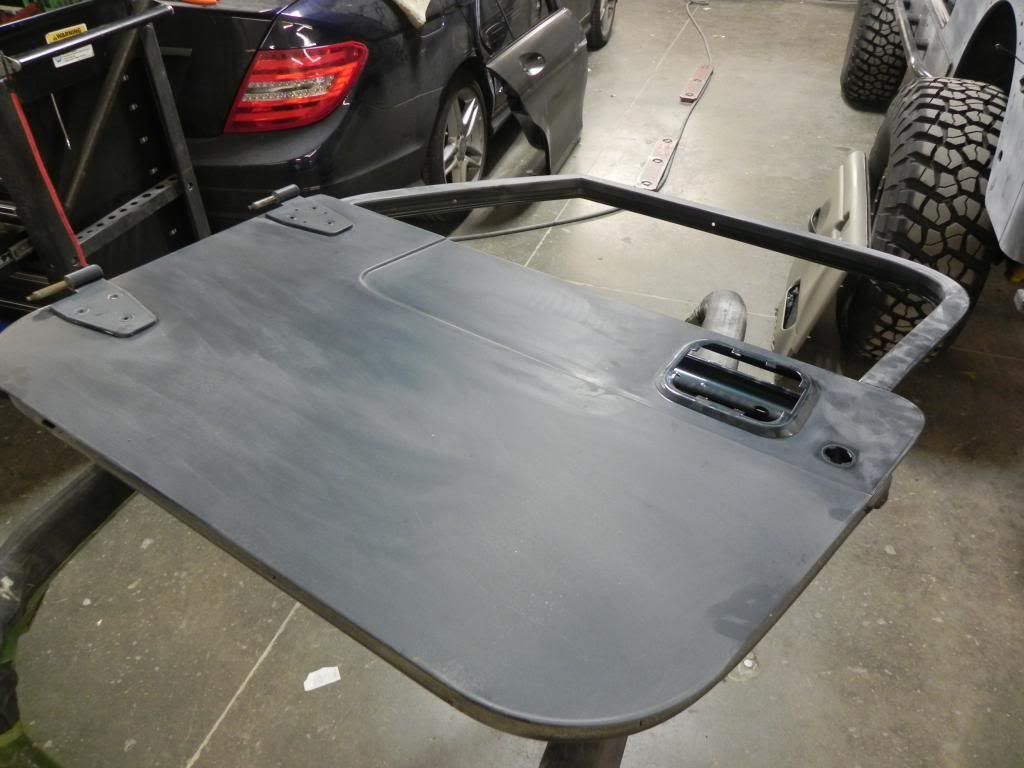

Then sand the door with a DA sander and what ever grit paper you need depending on the finish. I sanded this with 500 grit.



You can reverse the steps for reassembly.

Hope this helps someone get the Job done right.
