Yello - HEMI'd LCoG TJ

After much contemplation, flipping back and forth, reviewing finances, getting the blessings from the boss, checking my psyche, i have decided to go ahead with implanting the HEMI into the Yellow TJ that i bought Sept 2012. After selling O.D. in October 2010, i have been unable to sleep. Nightmares routinely ruin my nights and i randomly break out in sweats. At least that's the story i am going with....... I have decided that to ensure that the rest of the TJ will match up with the ponies i am adding to the 2004 Rubi i bought in Sept 2012:

- Tons
- An ATLAS 3.8.1
- Triangulated rear, stretched about 4-5", ORI's
- Hylined front and rear
- Drop down tailgate
- 40's on beadlocks
- Hydro Assist

My first concern were the axles. I did not want to go full width as i still want to fly under the radar on the roads with this and still make it through the narrow trails around here without having to climb up the sides of every tree. I kept my eyes open on most boards on a very regular basis. There was always something missing (Either the gearing, steering or width or carrier). I then pondered the notion of getting a set cut down (Not having the skills / tools to do it myself) and I even went so far as to buy a set of early '80's but as i researched more and more i found that to be too expensive and tedious. I considered buying new already built but once i started seeing the $$$, i said fakk that. I had pretty much given up, even had the custom frame and HEMI setup up for sale and then bam.... Found the axles off Pirates. 13hrs of driving later after less than 48hrs of coming across them online (As I had to re-act as the seller had a lineup to buy them), I had them in my possession.

- 1979 D60 Snowfighter, cut down to 65"WMS, dutchman 35 splines, detroit, 5.13's, setup for XJ, coils and hydro assist.
- Mid-80's CC 14 Bolt, disc's, detroit and 5.13's, setup for triangulated rear and coils


Still fit in the garage.... This is key. I had taken some measurements on Yello with the 35's and i had about 1/2" or clearance

I gotta say, at first i hated the yellow color but now after wheeling for a year, it's actually not that bad.


Current:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Past:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gecko5 is offline
Sponsored Links
Advertisement

post #2 of 55 Old 01-12-2014, 08:35 PM Thread Starter
gecko5
Registered User

gecko5's Avatar
2004 TJ Wrangler

Join Date: Feb 2009
Location: Reid's Mills
Posts: 266
Garage

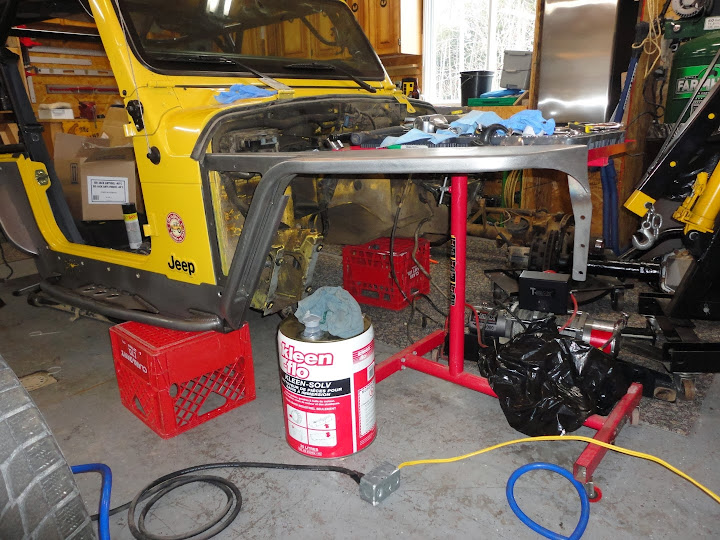

Some pics of progress to date:

















Current:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Past:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gecko5 is offline
post #3 of 55 Old 01-12-2014, 08:40 PM Thread Starter
gecko5
Registered User

gecko5's Avatar
2004 TJ Wrangler

Join Date: Feb 2009
Location: Reid's Mills
Posts: 266
Garage
Some goodies that i have been acquiring:















































Current:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Past:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gecko5 is offline

post #4 of 55 Old 01-13-2014, 08:28 AM
bu5150
Member
2006 LJ Wrangler

Join Date: Jan 2009
Location: Bismarck, ND
Posts: 118
Nice...who's rear bumper is that?

'06 LJ, RJ 60's, 5.38's, TnT Customs Suspension, 40" MTR's,TG Creeper Locks, BK Racing 5.3 LS
bu5150 is offline
post #5 of 55 Old 01-13-2014, 08:44 AM Thread Starter
gecko5
Registered User

gecko5's Avatar
2004 TJ Wrangler

Join Date: Feb 2009
Location: Reid's Mills
Posts: 266
Garage
Genright..

http://www.genright.com/ProductInfo....0#.UtP7rvviTNo

Current:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Past:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gecko5 is offline
post #6 of 55 Old 01-13-2014, 09:48 AM
csdilligaf
Registered User
2001 TJ Wrangler

Join Date: May 2009
Location: San Diego CA
Posts: 23
Oh, this is going to be a fun build to watch. What are the wheels? I run H1's and really don't follow the wheel market but I like those.
csdilligaf is offline
post #7 of 55 Old 01-13-2014, 09:53 AM
AngryTJ
Registered User

AngryTJ's Avatar
2005 TJ Wrangler

Join Date: Nov 2010
Posts: 4,468
All those amazing products and your doing a radius arm front suspension?

Follow me on Instagram @ Tarantula_TJ


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
AngryTJ is offline
post #8 of 55 Old 01-13-2014, 10:00 AM Thread Starter
gecko5
Registered User

gecko5's Avatar
2004 TJ Wrangler

Join Date: Feb 2009
Location: Reid's Mills
Posts: 266
Garage
Quote:
Originally Posted by AngryTJ View Post
All those amazing products and your doing a radius arm front suspension?
Point?

I personally have no issues with Radius arms and when you take into consideration clearance issues with the hemi, So far all the builds i have seem are sticking with Radius arms. I had the clayton kit on my last build and absolutely loved the flex and on-road characteristics. Lastly, the axles i had bought already had the radius arm mounts in place. I know that there are potential clearance issues running say a 3 link and the possible need for a truss on the axle. It works for me

Current:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Past:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gecko5 is offline
post #9 of 55 Old 01-13-2014, 10:00 AM Thread Starter
gecko5
Registered User

gecko5's Avatar
2004 TJ Wrangler

Join Date: Feb 2009
Location: Reid's Mills
Posts: 266
Garage
Quote:
Originally Posted by csdilligaf View Post
Oh, this is going to be a fun build to watch. What are the wheels? I run H1's and really don't follow the wheel market but I like those.

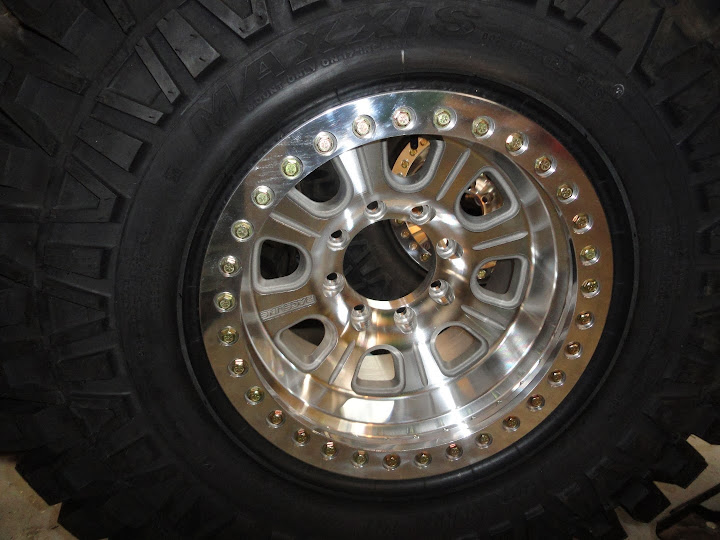

Raceline AL Monster Beadlocks

Current:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Past:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
gecko5 is offline
post #10 of 55 Old 01-13-2014, 10:43 AM
AngryTJ
Registered User

AngryTJ's Avatar
2005 TJ Wrangler

Join Date: Nov 2010
Posts: 4,468
Quote:
Originally Posted by gecko5
Point? I personally have no issues with Radius arms and when you take into consideration clearance issues with the hemi, So far all the builds i have seem are sticking with Radius arms. I had the clayton kit on my last build and absolutely loved the flex and on-road characteristics. Lastly, the axles i had bought already had the radius arm mounts in place. I know that there are potential clearance issues running say a 3 link and the possible need for a truss on the axle. It works for me
Simply wouldn't be my first or second choice due to binding and unloading characteristics of a radius arm suspension.

Your rig your money... I'll be watching the progress

Follow me on Instagram @ Tarantula_TJ


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
AngryTJ is offline
post #11 of 55 Old 01-13-2014, 06:43 PM
daddyjeep87
Web Wheeler

daddyjeep87's Avatar
1987 YJ Wrangler

Join Date: Feb 2013
Location: Smethport
Posts: 1,323
Garage
I will be following this one. I love the direction you are headed.

87 YJ, 5.7/TH350/NP241, Custom 4 link/ Radius Arms, ADS Nitrogen Shocks, 35" Cooper STT

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Look for the YJ of The Month thread in the YJ Technical Forum. Vote for your favorite Jeeps.

YJOTM August 19
daddyjeep87 is offline
post #12 of 55 Old 01-19-2014, 03:54 PM Thread Starter
gecko5
Registered User

gecko5's Avatar
2004 TJ Wrangler

Join Date: Feb 2009
Location: Reid's Mills
Posts: 266
Garage
Been busy!!!


On the D60.. I just decided to cut the brackets off. Ordered some replacements from TMR and got that in place. Man those existing brackets were a P I T A to get off:

https://lh3.googleusercontent.com/-q...Large%2529.JPG

https://lh3.googleusercontent.com/-9...Large%2529.JPG

https://lh5.googleusercontent.com/-7...Large%2529.JPG

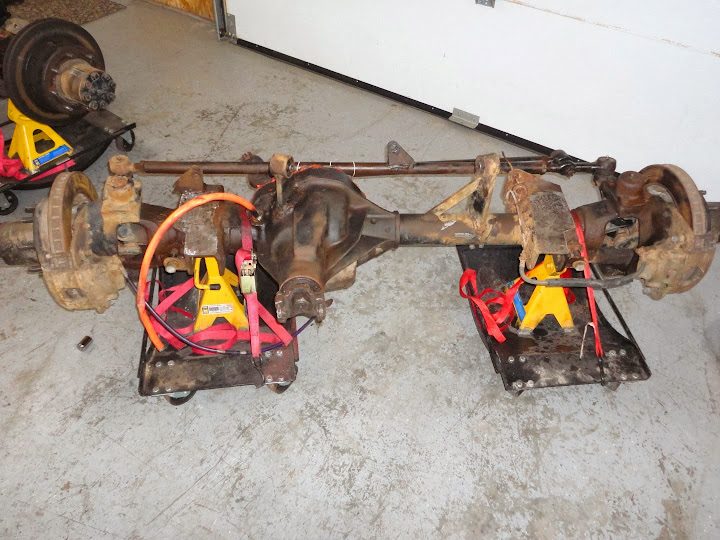

Also finally got the 14 bolt rebuilt and put back together. Still missing a caliper (Gotta pick it up) and i want to add a pinion guard. But other than that, all the bearings, races and seals are good to go.
