Subwoofer in OEM console

So I recently sold the Tuffy II and picked up an OEM console w/ sub from a 2004 Rubi. Since I already have an after market head unit, is there anyway to wire the sub up through my subwoofer output on the head unit? Also, is the sub pre-amplified within the console or does it need an external amp?


Got ignorance? Please see below.
Quote:
Originally Posted by kd4yor View Post
Chris, I just think your having buyers remorse for all the work in your 8.8 for no added gain (over the Dana 35).
Chris @ GATR is offline
Sponsored Links
Advertisement

post #2 of 16 Old 07-29-2007, 02:43 PM Thread Starter
Chris @ GATR
Registered User

Chris @ GATR's Avatar
2000 TJ Wrangler

Join Date: Feb 2007
Location: Georgia
Posts: 1,225
If possible also, can someone describe the colors of the wires running to the sub/amp. I didn't have a factory sub, so I don't know how many wires there were supposed to be. Thanks.

Got ignorance? Please see below.
Quote:
Originally Posted by kd4yor View Post
Chris, I just think your having buyers remorse for all the work in your 8.8 for no added gain (over the Dana 35).
Chris @ GATR is offline
post #3 of 16 Old 07-29-2007, 02:50 PM
EvilM0nkey
Registered User

EvilM0nkey's Avatar
2002 TJ Wrangler

Join Date: Jul 2007
Location: Richmond
Posts: 1,784
This is probably going to get moved, but i would imagine the sub is powered by the head unit. You would need an amplifier if that's the case
EvilM0nkey is offline

post #4 of 16 Old 07-29-2007, 03:02 PM
sryan2k1
Guest

Join Date: Dec 2006
Posts: 248
sryan2k1 is offline
post #5 of 16 Old 07-29-2007, 03:14 PM
jeepbro's
Registered User
2002 TJ Wrangler

Join Date: Mar 2007
Location: Wilmington
Posts: 2,770
i just took mine apart cause its not making any noise, and i believe there is an amp in the console with the speaker, because there are power and speaker wires going to it, but thats all i can help you with

2002 tj sahara 3" lift 35" km2, AtoZ rockers, 8k warn, 4.56 gears, lock-rites front and rear
jeepbro's is offline
post #6 of 16 Old 07-29-2007, 03:25 PM
arbby
Registered User
2005 KJ Liberty

Join Date: May 2006
Location: SW Ontario
Posts: 908
its an amp and sub i had one and resold it becuase I went with a tube/amp sub

|l,[___],
l---L--OlllllllO

()_) ()_)--o-)_)

Gone: 1993 YJ
arbby is offline
post #7 of 16 Old 07-29-2007, 04:10 PM Thread Starter
Chris @ GATR
Registered User

Chris @ GATR's Avatar
2000 TJ Wrangler

Join Date: Feb 2007
Location: Georgia
Posts: 1,225
Anyone know which wires go >TO> the subwoofer to give it a signal? I guess the power wires are self explanatory.

Got ignorance? Please see below.
Quote:
Originally Posted by kd4yor View Post
Chris, I just think your having buyers remorse for all the work in your 8.8 for no added gain (over the Dana 35).
Chris @ GATR is offline
post #8 of 16 Old 07-29-2007, 05:02 PM
35sUnlimited
Registered User

35sUnlimited's Avatar
2004 TJ Wrangler

Join Date: Sep 2004
Location: Panhandle of Fl
Posts: 704
I don't remember what color the wires are or what goes where, but I do remember it takes speaker level inputs from the front and rear so it does not fade with front or back. There is a also a ground, power, and remote turn on. 11 wires total.

The amp is built into the console in addition to housing the sub.

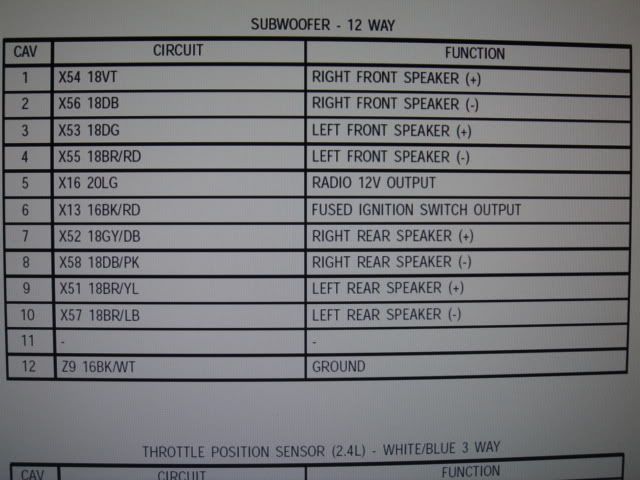

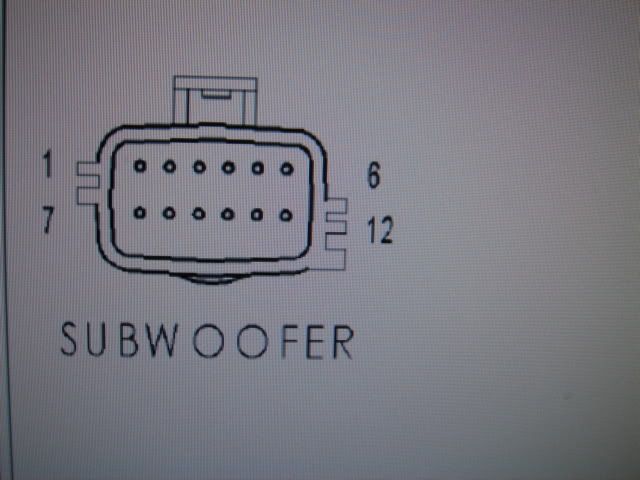

Maybe somebody has a wiring diagram from the FSM they can share. Also, there are some knowledgeable people over in the electronic forum. You may want to move the post.
