'97 ZJ 5.2 Budget Performance Build

I just started in on my newest project for a friend of mine. We picked up a very clean and very promising '97 Limited with a blown 318 for $750:




This thread should be appeal to anyone who is interested in "best bang for your buck" modifications as well as smaller, inexpensive things you can do along the way.

The objective: Build a good running daily driver while waking up the new 318 with a little extra power, and improving/cleaning things up along the way while staying on a budget. This DOES NOT mean this project will be slapped together! The basis is inexpensive, not cheap. Anyone expecting 400hp will be disappointed because serious power doesn't come without high costs. However, what you can expect to see is a huge improvement in low end torque, passing power, and the ability to run with stock 5.9's at a minimum.

I will begin taking pictures as the project moves along, but here's what we have so far:

We picked up a complete '96 5.2 with 87,000 miles for $300 and proceeded to tear it down to the short block for inspection. It looked like you would expect an engine with 87,000 miles to look like. Bearings look great with minimal wear and clearances are tight, visible crosshatch pattern on the cylinder walls, and no ridge to speak up at the top of the cylinders. In other words, this is an excellent start to our project.

Planned modifications include an aluminum plenum plate along with the kegger mod and gasket matching on the intake, a couple modifications to the TB, some mild porting on the heads, a double roller timing set, camshaft, and exhaust. We will also be replacing all of the usual items such as the oil pump, gaskets, head bolts, water pump, mounts, etc. Hopefully the budget allows us to get the heads into the machine shop and have them gone through.

-Camshaft: I haven't completely made up my mind yet. The towing cam from Hughes is an excellent choice for this build, but we're tempted to go a little bigger, with the HER0814AL. The lift with stock rockers puts us just over what is considered to be okay with stock springs. Way over if he decides to add 1.7 rockers in the future meaning we will have to install a new set of springs as well. I've also considered a custom ground cam between the two. I'd like to keep the duration of the larger cam but take the lift down to the .500 range. Possibly even a 112 LSA to make the cam a little more responsive.

I know cam selection is a mystery to many of you, so I'll try to go into as much detail with the cam and installation as possible.

Once the engine is done, the transmission will get a Fairbanks shift kit, I'll build one of my 242's for it, and we will be adding a 2" BB and 31's.


Want to swap an NP242 or NP231 into your ZJ? Here's how:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JrMechanic is offline
Sponsored Links
Advertisement

post #2 of 16 Old 10-19-2011, 04:25 PM
Benja
Registered User
1997 ZJ

Join Date: Jul 2010
Location: Chile
Posts: 152
Looks interesting ! good luck

97' Grand Cherokee Limited V8 41K
STOCK
Benja is offline
post #3 of 16 Old 11-06-2011, 08:55 PM Thread Starter
JrMechanic
Registered User

JrMechanic's Avatar
1993 ZJ

Join Date: Oct 2008
Location: Lima, Ohio
Posts: 3,377
About time I update this I'd say. We ended up with the Hughes HER0814AL cam, Hughes 1110 valve springs, and 1278 retainers. I don't think he'll ever regret the bigger cam. Once he gets a SCT tuner down the road, this Jeep is going to be an animal.

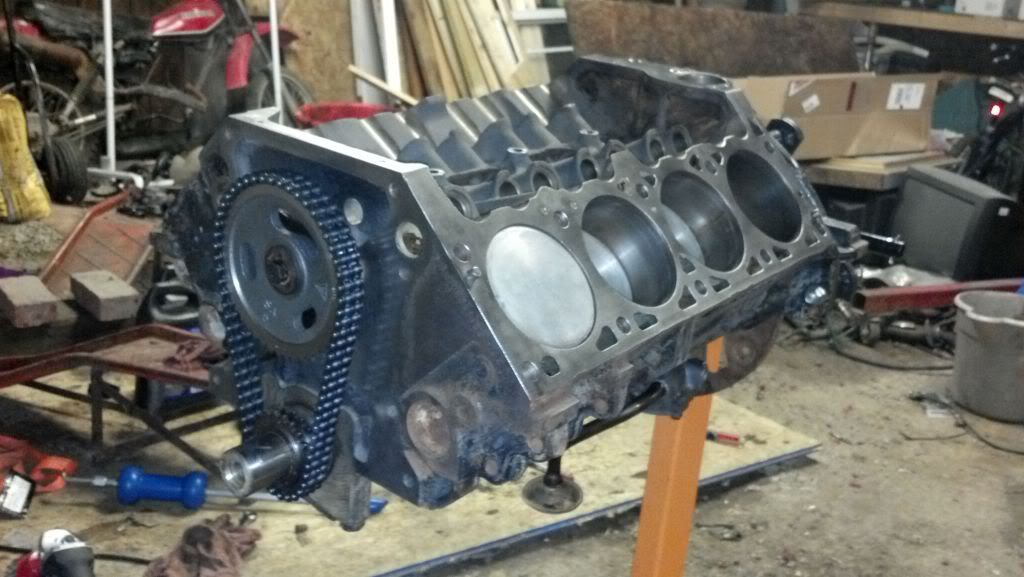

We've made quite a bit of progress. The short block is all cleaned and things are starting to go back together. The new rear main seal is installed along with the new oil pump and the oil pan, as well as the cam, double roller timing set, and timing cover and the block has been painted with 3 coats of gloss black high-temp enamel.

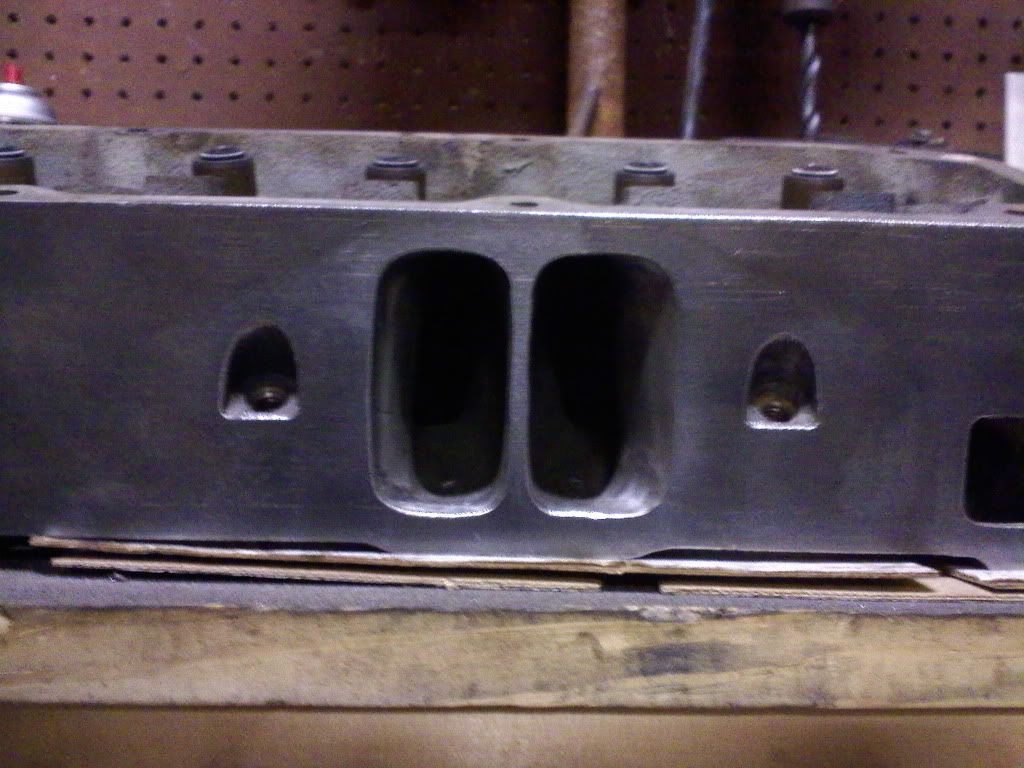

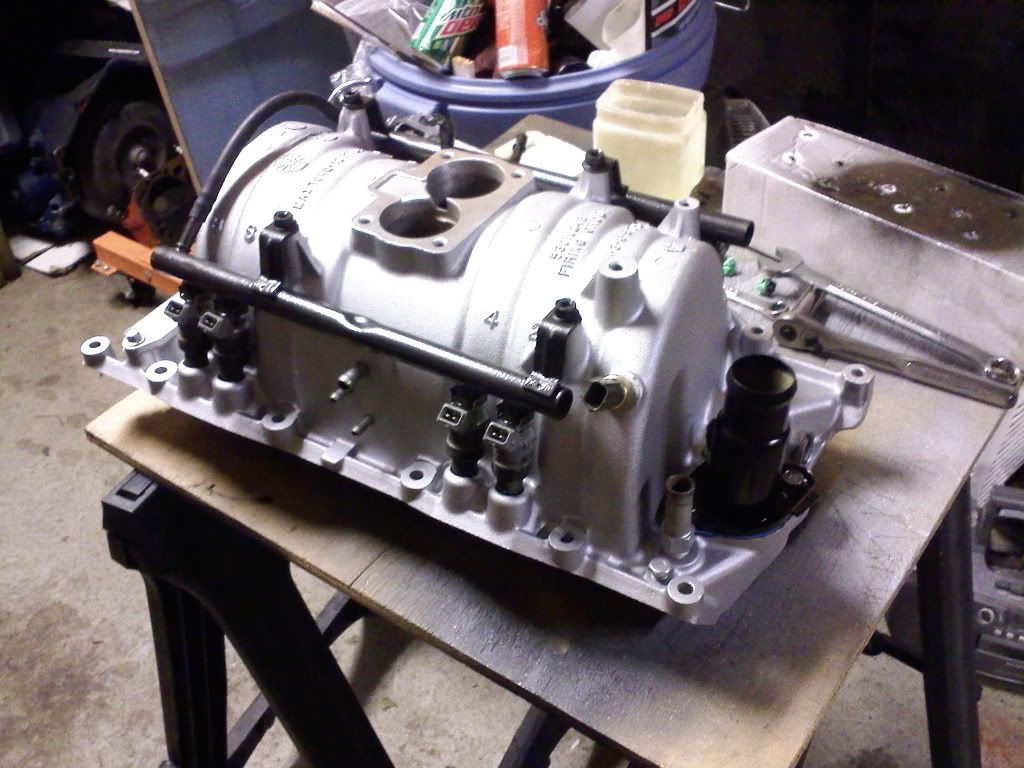

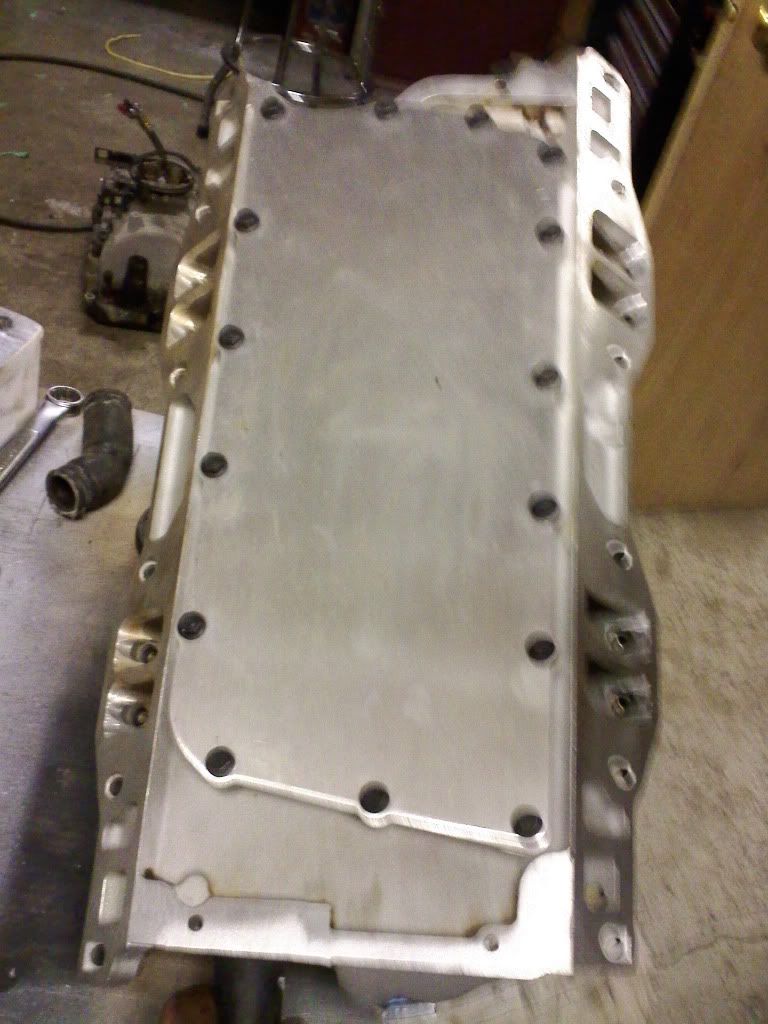

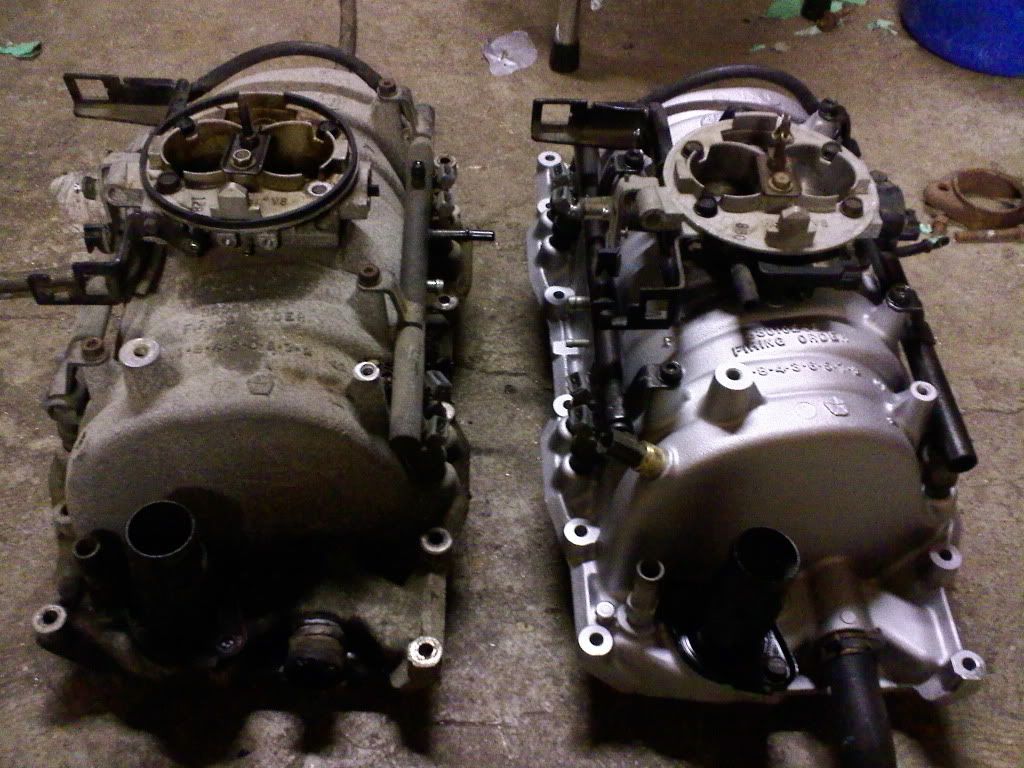

The heads are back from the machine shop, sadly I'm going to spend quite a bit of time massaging the ports and gasket matching as well as swapping the valve springs and retainers. I also began modifying the manifold. The center divider is gone and I started to cut down the runners but I need to pick up some new blades for my sawzall.

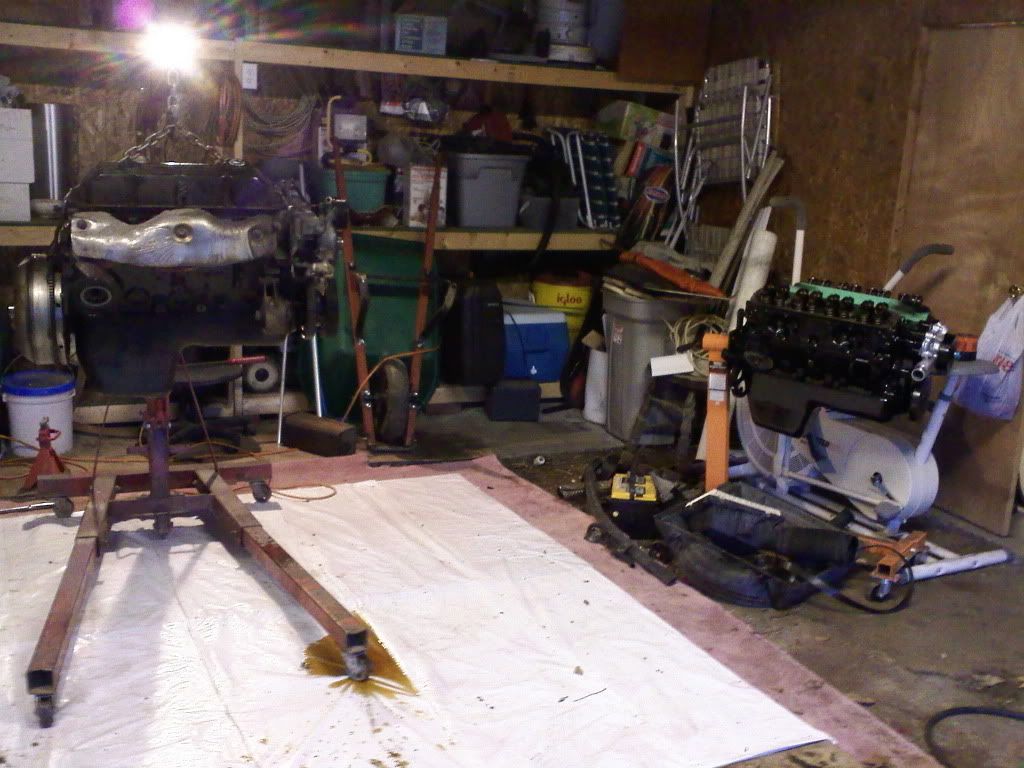

The goal is to have the engine completed by the end of this week and start pulling the old one out this weekend. Here's some pictures, please excuse the mess. I've had 3 other projects going on including another engine swap, and between work and school it's difficult to keep a clean garage.

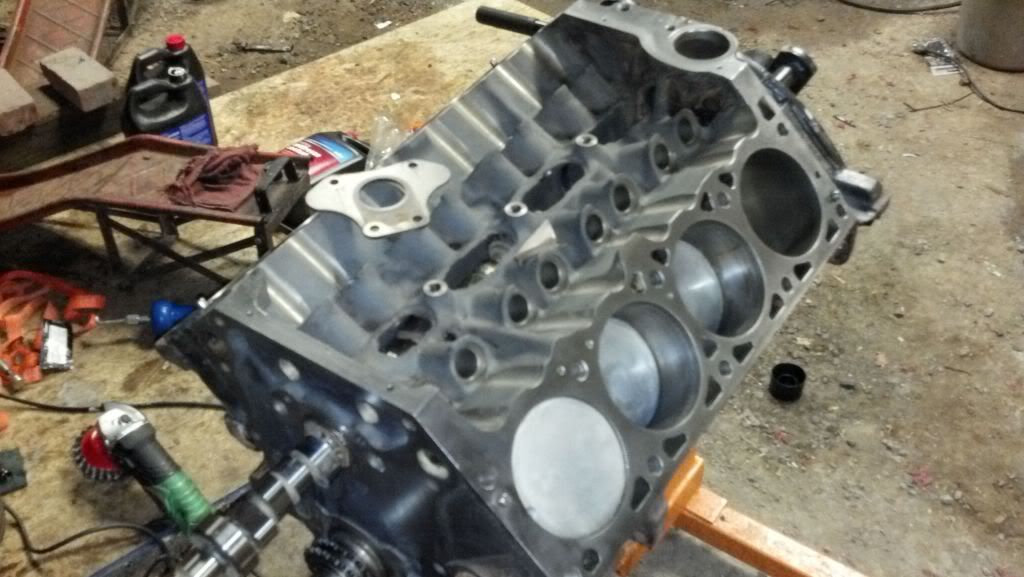

New cam going in:


Double roller timing set:

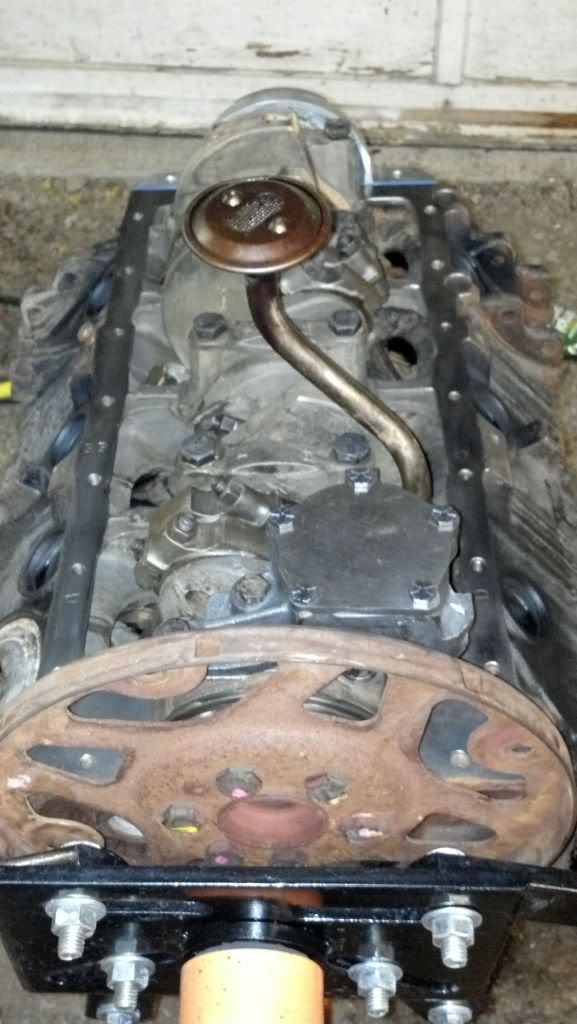

New oil pump:

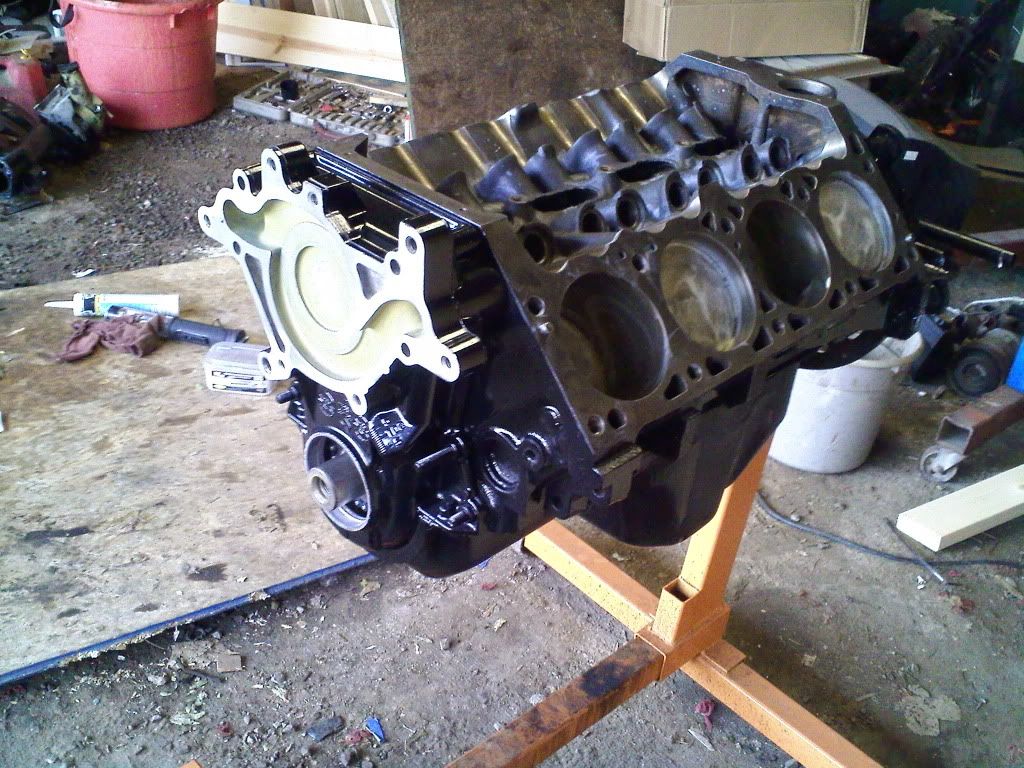

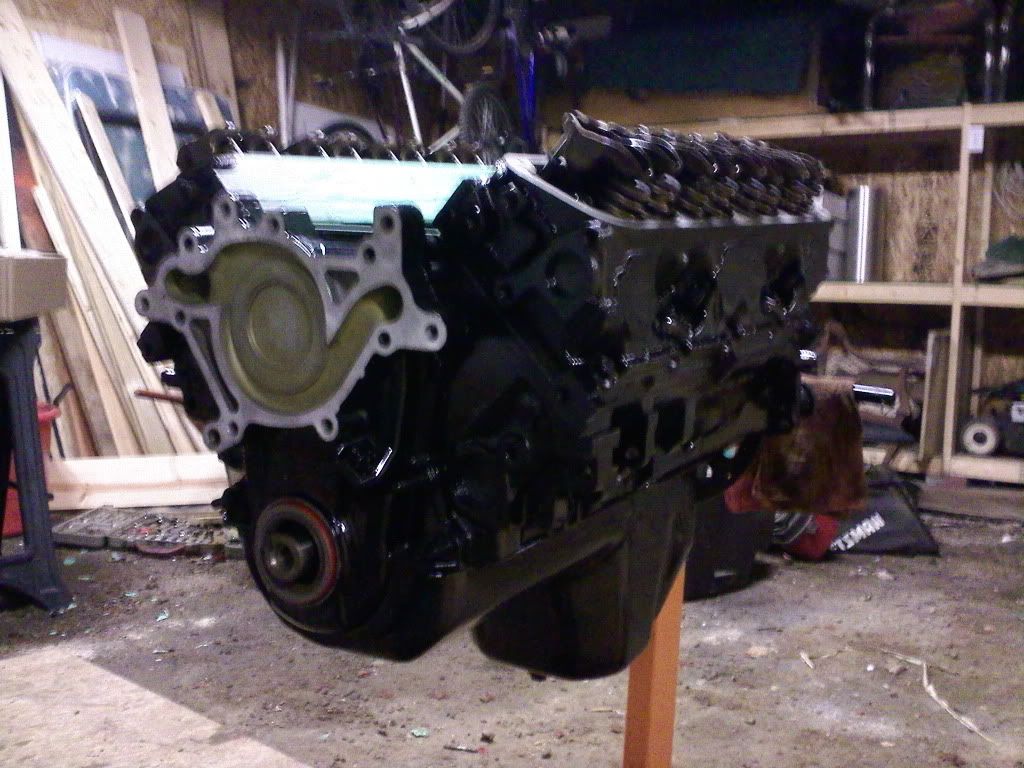

All painted and ready for the top end:

Want to swap an NP242 or NP231 into your ZJ? Here's how:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JrMechanic is offline

post #4 of 16 Old 11-06-2011, 09:26 PM
Greengc4x4
Registered User

Greengc4x4's Avatar
1998 ZJ

Join Date: Jun 2008
Location: Ohio
Posts: 3,970
Sweep that floor, haha
Greengc4x4 is offline
post #5 of 16 Old 11-06-2011, 09:56 PM
ZJ5point2GCL
Registered User
1998 ZJ

Join Date: Oct 2009
Location: Calgary
Posts: 3,392
Looks interesting, be following this build for sure.

98 Deep Slate Niner- 6''s on 35's ---11 F150 Platinum Pearl White- Modded Tiny V6 with Two Turbos. ---93 Black 5.2 limited- Slowly dying in my Parents Driveway
ZJ5point2GCL is offline
post #6 of 16 Old 11-07-2011, 03:14 PM
ksturgio
Registered User

ksturgio's Avatar
1997 ZJ

Join Date: Jun 2008
Location: Las Vegas
Posts: 2,976
Totally following your build. I haven't found a motor with less then 200,000 miles for less than $600 here in las Vegas. Planning on doing the same build in my 97. Wrist pin went and I'm dying without the jeep up and running.
ksturgio is offline
post #7 of 16 Old 11-24-2011, 09:31 AM Thread Starter
JrMechanic
Registered User

JrMechanic's Avatar
1993 ZJ

Join Date: Oct 2008
Location: Lima, Ohio
Posts: 3,377
Heads are ported, Hughes 1110 valve springs and 1278 retainers are installed, and painted. They're also torqued down on the engine with all of the valvetrain installed. I just have to clean up the runners on the intake and the new engine is done, the plan is to get the old engine pulled this weekend and get ready to drop the new one in. More pictures to come.

Want to swap an NP242 or NP231 into your ZJ? Here's how:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JrMechanic is offline
post #8 of 16 Old 12-05-2011, 07:15 PM Thread Starter
JrMechanic
Registered User

JrMechanic's Avatar
1993 ZJ

Join Date: Oct 2008
Location: Lima, Ohio
Posts: 3,377

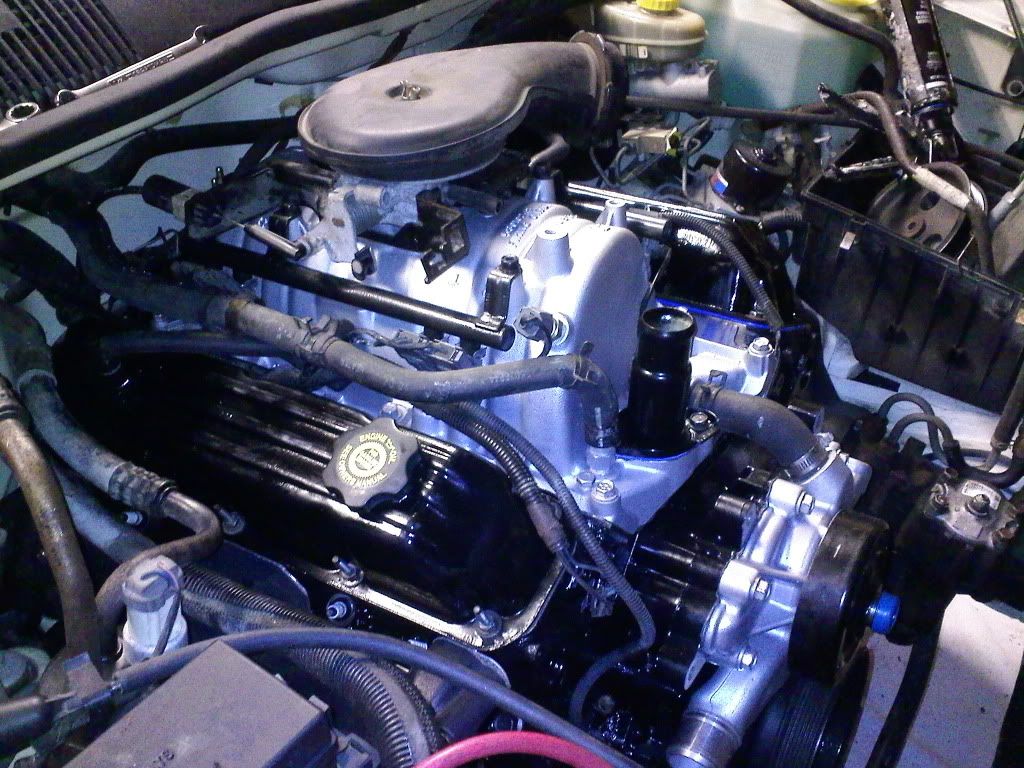

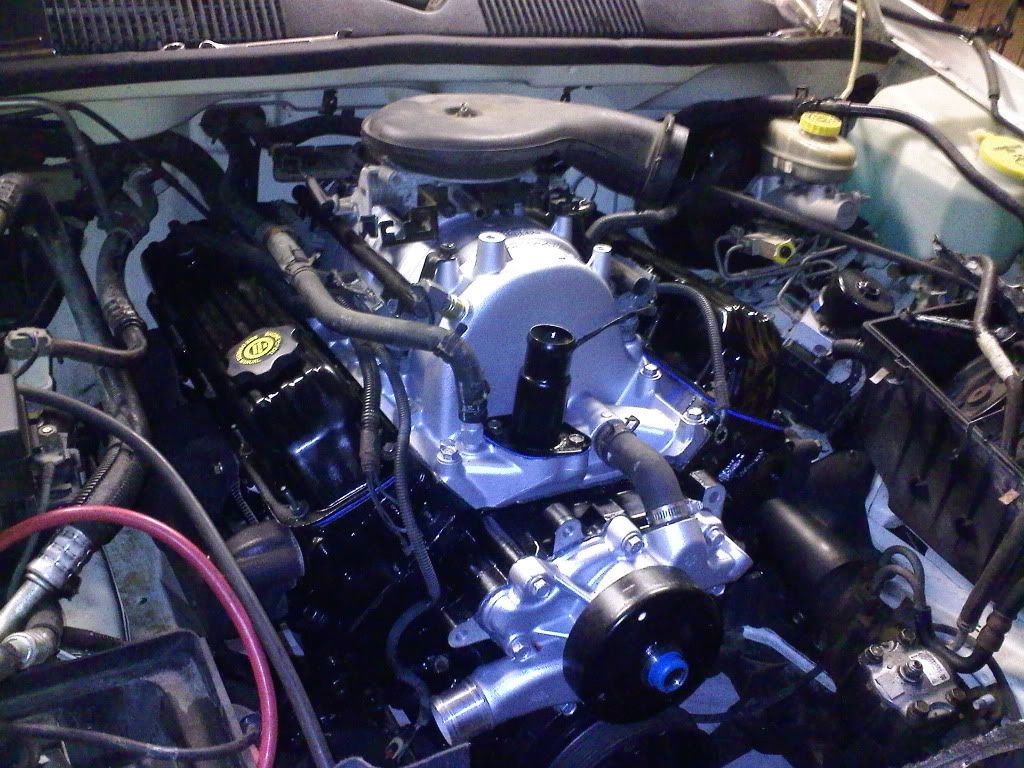

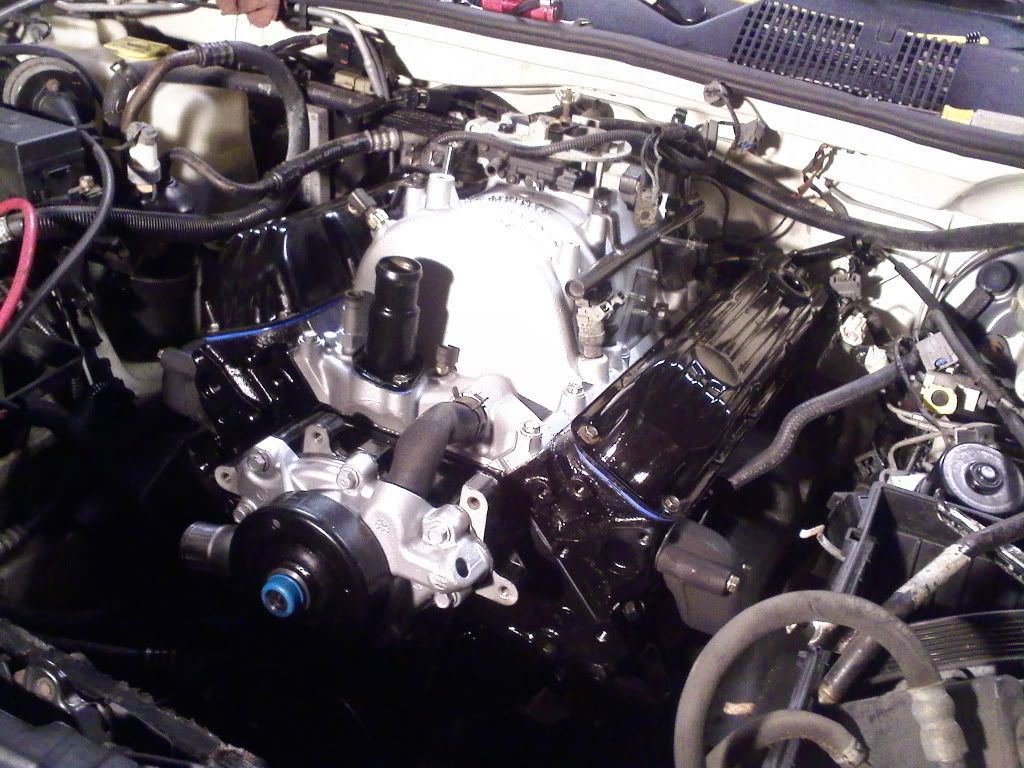

I need to go back and update this thread quite a bit, but the engine is in and the Jeep is done. There's a lot of words to describe it, but I feel "nasty" is a good one. Idle quality is great, throttle response is instant and strong, it revs much quicker than a stock 318, and it pulls HARD! Punch it from a stop and you'll be past 60 before you even think about letting off. On wet roads, it loses traction when you punch it in 4wd.
