post #61 of 73 Old 07-28-2015, 11:57 AM
monte350
Registered User
1997 ZJ

Join Date: Jan 2014
Location: willimantic
Posts: 475
MVF's page says that it won't (or unconfirmed)work on a 4.0/242 combo, but has anyone looked at the linkages/brackets from a 4.0 and the v8s to see if they are really different or not. other than the transfercase possibly being farther back because of the 46re, everything should be in the same place. am I right? for 50 bucks it might be worth it to try.


1995 Cherokee(XJ)-Rolled it
1998 Grand Cherokee(ZJ)-Sold it
1997 Grand Cherokee(ZJ)-DD
monte350 is offline
Sponsored Links
Advertisement

post #62 of 73 Old 07-28-2015, 12:33 PM
kg6mov
Hears the voices

kg6mov's Avatar
1996 ZJ

Join Date: Nov 2012
Location: Cupertino
Posts: 16,121
Try it, maybe PM collins and ask if he'll send you one at a discount if you promise high quality pictures.

The t-case is further back on the 4.0 because the engine is so long. 44re in the second gen V8 isn't longer then the 42re AFAIK.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1984 F250, 460 BB, T19, work truck/future tow pig
1987 Mercedes 300D Turbo, the diesel daily, 30mpg in style

Quote:
Originally Posted by Texas ZJ1 View Post
I heard someone yell "mall crawler" from the back porch. I'll go see who said that. Be right back.
kg6mov is offline
post #63 of 73 Old 10-28-2015, 02:40 PM
GreenHorn420
Registered User

GreenHorn420's Avatar
1998 ZJ

Join Date: Jan 2015
Location: Carson City
Posts: 97
Garage
Found this thread awhile ago and last night i had enough of this stupid contraption that Chrysler calls linkage.... so next mod is this one. so Thank you. the headache will be gone soon! and quick question is there any cons that you have found?
GreenHorn420 is offline

post #64 of 73 Old 10-30-2015, 05:30 PM
kg6mov
Hears the voices

kg6mov's Avatar
1996 ZJ

Join Date: Nov 2012
Location: Cupertino
Posts: 16,121
For reference, the linkage is not a chrysler design.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1984 F250, 460 BB, T19, work truck/future tow pig
1987 Mercedes 300D Turbo, the diesel daily, 30mpg in style

Quote:
Originally Posted by Texas ZJ1 View Post
I heard someone yell "mall crawler" from the back porch. I'll go see who said that. Be right back.
kg6mov is offline
post #65 of 73 Old 10-30-2015, 08:45 PM
wingless
Web Wheeler

wingless's Avatar
1994 ZJ

Join Date: Sep 2007
Location: Florida
Posts: 3,389
FWIW, when I disassembled, cleaned and rebuilt my transfer case shift linkage, I found that the black goo sealant on the bottom of the cabin lever bucket, the bottom of the large curved shifter panel and on the captive fender washers retaining the shaft bracket to the body were not in the condition I wanted for reassembly.

The material I found with identical properties to that used by the factory is EPDM Quick Roof Seam Tape. This double-sided adhesive butyl tape is identical to that used by the factory at all those locations.

This was trimmed and applied to all those locations before reassembly to ensure those locations do not leak during usage.

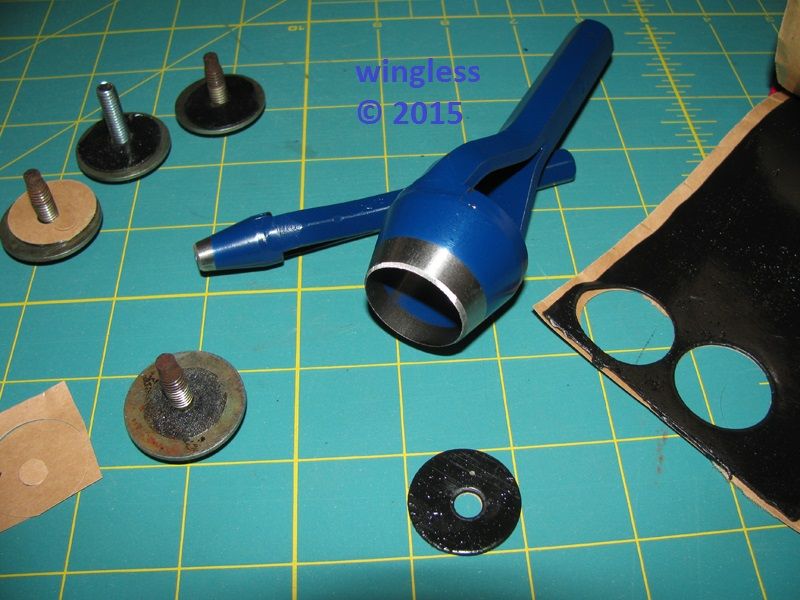

My experience was that round hole punches were required to carefully make screw clearance holes. If a screw was pushed through the tape, then the threads would grab the tape, turning it into a ball.

It was cut into strips for the cabin lever bucket perimeter and for the large curved shifter panel perimeter. It was "punched" into washer discs for the captive fender washers.








To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
wingless is offline
post #66 of 73 Old 11-20-2015, 12:10 PM
xj607
Registered User
1997 XJ Cherokee

Join Date: Mar 2013
Location: dalton
Posts: 22
Quote:
Originally Posted by wingless View Post
FWIW, when I disassembled, cleaned and rebuilt my transfer case shift linkage, I found that the black goo sealant on the bottom of the cabin lever bucket, the bottom of the large curved shifter panel and on the captive fender washers retaining the shaft bracket to the body were not in the condition I wanted for reassembly.

The material I found with identical properties to that used by the factory is EPDM Quick Roof Seam Tape. This double-sided adhesive butyl tape is identical to that used by the factory at all those locations.

This was trimmed and applied to all those locations before reassembly to ensure those locations do not leak during usage.

My experience was that round hole punches were required to carefully make screw clearance holes. If a screw was pushed through the tape, then the threads would grab the tape, turning it into a ball.

It was cut into strips for the cabin lever bucket perimeter and for the large curved shifter panel perimeter. It was "punched" into washer discs for the captive fender washers.






That's pretty cool, ill have to get some of this for when I put mine back together when I finish up my 5speed swap that's in the works right now
xj607 is offline
post #67 of 73 Old 11-20-2015, 12:16 PM
xj607
Registered User
1997 XJ Cherokee

Join Date: Mar 2013
Location: dalton
Posts: 22
boostwerksengineering.com sells these types of linkages for anyone looking for about 38-45 bucks depending on what set up you have, it includes the levers so no welding/fab required..... and if you don't have a welder or time to make the levers this kit is the way to go and isn't that much more after you source everything out, I probably would of ordered this if I didn't already make my own
xj607 is offline
post #68 of 73 Old 11-20-2015, 08:39 PM
MurdaJs
Web Wheeler
1996 ZJ

Join Date: Aug 2009
Location: Tustin
Posts: 3,294
Quote:
Originally Posted by xj607 View Post
boostwerksengineering.com sells these types of linkages for anyone looking for about 38-45 bucks depending on what set up you have, it includes the levers so no welding/fab required..... and if you don't have a welder or time to make the levers this kit is the way to go and isn't that much more after you source everything out, I probably would of ordered this if I didn't already make my own
Nice, looks like they use the same rod ends as you can get at tractor supply.

Their site says that it is for the 231 on a aw4 XJ only, maybe you should email them letting them know it works on your ZJ
MurdaJs is offline
post #69 of 73 Old 11-22-2015, 10:04 AM
wingless
Web Wheeler

wingless's Avatar
1994 ZJ

Join Date: Sep 2007
Location: Florida
Posts: 3,389
When I rebuilt my transfer case linkage I replaced all five bushings, the bearing and the bearing pad. The linkage parts were all cleaned and painted.

Plan on replacing the bushings any time the linkage is disassembled. My experience is that they do not tolerate disassembly w/o damage.

The bushing swap was not easy. I ended up using my shop press to help them in or out.

Freeing the linkage adjustment was not easy. Mine was rusted solid in-position. I used the shop press to break it free. Now it is easy to set, then secure in-position, using the bolt.

The cabin interior linkage bucket was removed, disassembled, cleaned, painted, lubed and reassembled. Particular attention was paid to the shaft and to the two plastic shoulder bearings. In my case there was corrosion bonded onto the two plastic shoulder bearings, The corrosion was scraped off carefully.

After reassembly the cabin interior bucket lever moved effortlessly.

When the entire linkage was reassembled, the cabin lever shifted the transfer case very smoothly, with little effort.


Cabin Lever Shifting Transfer Case Video


Before



After


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
wingless is offline
post #70 of 73 Old 11-24-2015, 05:21 PM
xj607
Registered User
1997 XJ Cherokee

Join Date: Mar 2013
Location: dalton
Posts: 22
Quote:
Originally Posted by MurdaJs View Post
Nice, looks like they use the same rod ends as you can get at tractor supply.

Their site says that it is for the 231 on a aw4 XJ only, maybe you should email them letting them know it works on your ZJ
There the ones who told me it would work so I don't know why they don't have that posted, and I havnt done it personally, I made them for my buddies zj and my xjs
xj607 is offline
post #71 of 73 Old 12-02-2015, 08:27 AM
GreenHorn420
Registered User

GreenHorn420's Avatar
1998 ZJ

Join Date: Jan 2015
Location: Carson City
Posts: 97
Garage
why did you need to lengthen the shift lever? is it to align it with the shift plate? because i have a 242 Tcase in the 5.9 and it sits aligned naturally. do i need to flip the shift plate on the Tcase?
GreenHorn420 is offline
post #72 of 73 Old 12-02-2015, 10:39 AM
kg6mov
Hears the voices

kg6mov's Avatar
1996 ZJ

Join Date: Nov 2012
Location: Cupertino
Posts: 16,121
It's to get enough travel out of the lever to cycle through all the positions on the case.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1984 F250, 460 BB, T19, work truck/future tow pig
1987 Mercedes 300D Turbo, the diesel daily, 30mpg in style

Quote:
Originally Posted by Texas ZJ1 View Post
I heard someone yell "mall crawler" from the back porch. I'll go see who said that. Be right back.
kg6mov is offline
post #73 of 73 Old 12-02-2015, 10:51 AM
Luke4010
Registered User
1997 ZJ

Join Date: Apr 2015
Location: Huntley
Posts: 582
Quote:
Originally Posted by xj607
boostwerksengineering.com sells these types of linkages for anyone looking for about 38-45 bucks depending on what set up you have, it includes the levers so no welding/fab required..... and if you don't have a welder or time to make the levers this kit is the way to go and isn't that much more after you source everything out, I probably would of ordered this if I didn't already make my own
So is it a sure thing that the 231 linkage they sell will work on my ZJ with a 231? Just want to make sure before I order.
Luke4010 is offline
