May 2014 YJOTM Winner '92 Vegas YJ - JeepForum.com
View Poll Results: Pick a winner. Not your nose.
'92 Vegas YJ 30 37.50%
Tecksjeep 22 27.50%
Lemoore-on 6 7.50%
Panaceabeachbum 9 11.25%
Grandboost98 4 5.00%
Carlos14 7 8.75%
Nancy Kerrigan 2 2.50%
Voters: 80. You may not vote on this poll

Closed Thread

LinkBack Thread Tools
post #1 of 78 Old 05-19-2014, 09:45 PM Thread Starter
Anticanman
RIP one good jeeper

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon
Posts: 20,366
May 2014 YJOTM Winner '92 Vegas YJ

Sorry its late again. Its corn planting season.

Six to choose. One will win. Rules to follow.






Luck Favours The Prepared
Anticanman is offline
Sponsored Links
Advertisement

post #2 of 78 Old 05-19-2014, 09:49 PM Thread Starter
Anticanman
RIP one good jeeper

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon
Posts: 20,366

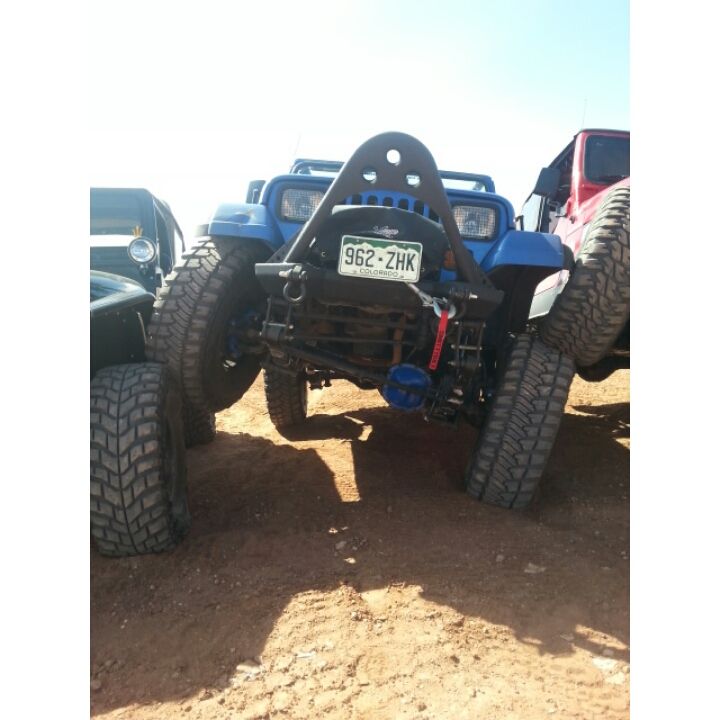

'92 vegas YJ


'92 YJ
4.0L with airaid air intake, 1" brown dog MML
AX15
NP231. Teralow 4:1, true nuetral plate and Advance Adapters SYE
98" Wheelbase

Suspension: SOA front with waggy springs bastard pack with XJ main leaf military wrap plus offset perches for a 3" front stretch
SOA rear, 1" rear stretch with bastard pack springs made up of stock and some procomp lift springs to help keep some arch
1/2" BESRK boomerang shackles F/R
14" Bilstein 5125 front shocks
WFO front shock hoops
Bilstein 5125 rear shocks


Front axle: D30, trussed, vacuum delete
4.56
Spartan locker
1.25" Spidertrax wheel spacers
SOLID diff cover

Rear axle: Ford 8.8 w/ disk brakes
4.56
Spool
welded tubes
1.5" Spidertrax wheel spacers
SOLID diff cover

Wheels and tires: 35x12.50r15 Goodyear MTR
15x8 cragar black steel wheels
-

Other stuff:
belly up flat skid
Mastercraft suspenion seats
custom shortened "stubby" front procomp bumper
M.O.R.E. hi-steer bracket with custom drag link & Tie rod
Tatton front Drive shaft that allows for stretch
Poison Spyder aluminum crusher corners
4 1/2" LED tail lights
Warn m8000
A/C converted to OBA w/ 3 gallon tank mounted in trunk area
Herculined interior
Sony CD player/radio
MK44 ammo can center console
GT Grant steering wheel
roll cage mounted fire extinguisher
rear parts box for spare parts, tools and first aid kit
Hi-lift jack
thumb throttle
rock lights
daystar interior switches for accessories
dimpled stock gas tank/skid to accomodate stretch
quick disconnect windshield pins
Flowmaster exhaust beat up from trails
body damage

parts built by me
full cage made from 1.75x.120 DOM- tied to the frame
Tube fenders using stock inner fenders w/ Genright mesh side louvers
rocker guards
oil pan skid
trans flat skid
traction bar made from 1.5x.250 DOM with ruffstuff heims and poly bushings
traction bar mount and custom made shackle
steering using 1.5x.250 DOM w/ Ruffstuff 5/8 hiems
Cut down XJ shaft for rear CV shaft using 3"x.250 4130 Chromolly
Steering box brace
license plate relocation mount
custom removable cooler mount on spare tire carrier








Luck Favours The Prepared
Anticanman is offline
post #3 of 78 Old 05-19-2014, 09:50 PM Thread Starter
Anticanman
RIP one good jeeper

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon
Posts: 20,366
Tecksjeep


1993 YJ

Engine
2.5L
K&N cold air intake
19# injectors
4.0L Throttle Body

Suspesion
3.5" Fabtech Springs
1.25" Boom Shackles (Rough Country)
WFO Concepts Poly Bushings

Axles
Rear-Ford 8.8 with 4.88 gears and Manual OX locker
Front-Dana 30 with 4.88 gears and a Spartan locker

Tires
35x12.50x15 Goodyear Wrangler MTR Kevlars

Drivetrain
AX5 Transmission
NP231 TC with Hack n' Tap SYE (PO)
Double Cardan driveshaft in the rear
XJ modified Drive Shaft up front

Body
Metal Cloak Arched Front fenders w/4" flare
Metal Cloak Rear extended corners w/ 4"flare
Homebrew Rocker Guards
Poison Spyder hood Louver
All stainless steel hardware
Smittybilt Stinger

Recovery
Smittybilt XRC 8,000lb winch

Other do dads
Blue LED gauage lights
Terra FLex Hand Throttle
Rugged Ridge Security center console
Racing seats
Polk Audio dash speakers
Rhino lined tub

I got my jeep because I have always wanted one. I test drove a 2005, 2007, and a 1993. I came home with the 93 because it felt like a jeep should feel. I vowed to myself that I would do all the work to it myself and gave myself a one year time limit for beefing it up. Although I had never owned a 4x4 or built one I knew it could be done. This is my dream, Made with my own hands and Lots of work.










Luck Favours The Prepared
Anticanman is offline

post #4 of 78 Old 05-19-2014, 09:51 PM Thread Starter
Anticanman
RIP one good jeeper

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon
Posts: 20,366
Lemoore-on


I bought the 92 2.5L Jeep back in July of 2010 (I was a Toyota guy for 20 years) It only had 78K on it so I thought it would be a good platform. It had a worn out saggy ProComp lift & shocks with 28” tires on it. It ran great. I joined Jeep Forum the next day because even though I had been wheeling for a long time I really knew nothing about Jeeps. I lurked on here and learned as much as I could & started formulating a plan. I collected parts for almost 2 years and did a bunch of normal maintenance (slave cylinder/clutch/motor mounts & stuff). So here it is now. I didn’t do it all myself, I had a lot of help.

Power steering swap from a 95 YJ.
OME 36R’s.
1” Booms rear/1/2” Booms front W/greasable bolts.
RE shocks.
J&B SYE.
Adams rear drive shaft.
Explorer 8.8.
OX locker.
4.88 gears.
Yukon Cromolly “C” clip eliminator shafts.
Dana 30.
OX locker.
4.88 gears.
vented/slotted rotors/ceramic pads.
Rusty’s steering kit.
33x12.5x15 BFG KM2’s.
Tera Flex 4:1 T-case.
True neutral plate.
Browndog 1” lift motor mounts.

Inside
fixed cracks in the floor pan.
Monsta liner “Spice”.
Seats out of some GM car.
Installed seat heaters.
LED dash lights. (red)
Tuffy console with head unit bin.
Tuffy glove box.
Added to the cage (more to do).
Head unit & amp 6x9’s behind the seat cage pods 6” in floor pod in front of shifters.
A pair of power ports in the dash.
Grant steering wheel.
40mm ammo cans cut in half then welded new bottoms in, mounted to rear wheel wells.

Outside
TJ fuel filler assembly.
TJ corner guards.
Rock Monkey Fab front bumper W/”D”ring & towbar mounts.
Warn 9000 winch.
Homemade Rocker guards.
Rock Monkey Fab rear bumper W/swing out spare. mount/Jerry can & Ammo can mounts.
TJ rear flares.
MCE flat front fenders.
LED tail & side marker lights.
Painted everything OD Green.
1” body lift (Daystar)
Rock Monkey Fab almost flat belly pan skid plate.



Future planed mods include

Cromolly TJ front shafts.
Shock mounts & longer Bilstein shocks.
35” tires
CB & 2 meter radio










Luck Favours The Prepared
Anticanman is offline
post #5 of 78 Old 05-19-2014, 09:52 PM Thread Starter
Anticanman
RIP one good jeeper

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon
Posts: 20,366

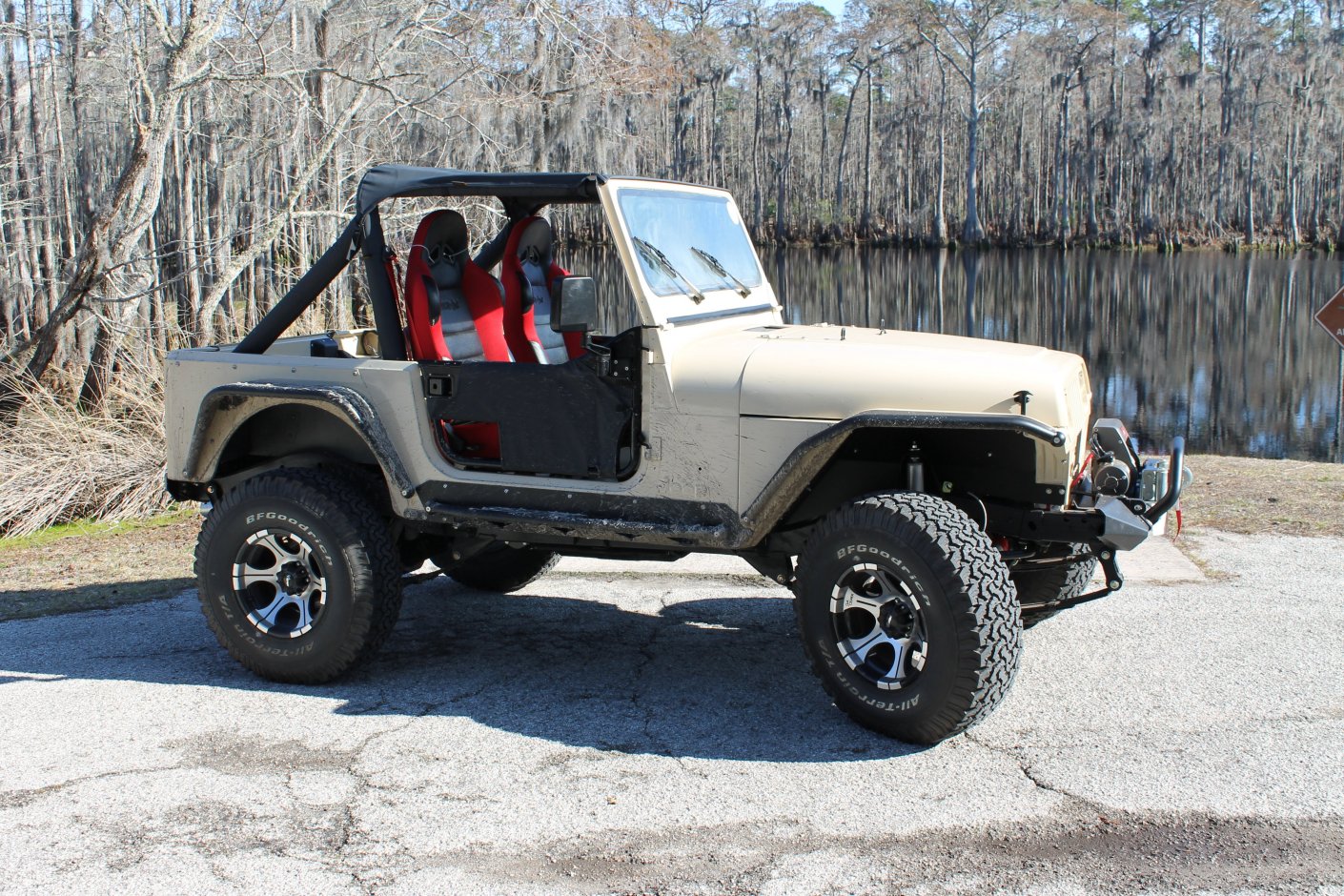

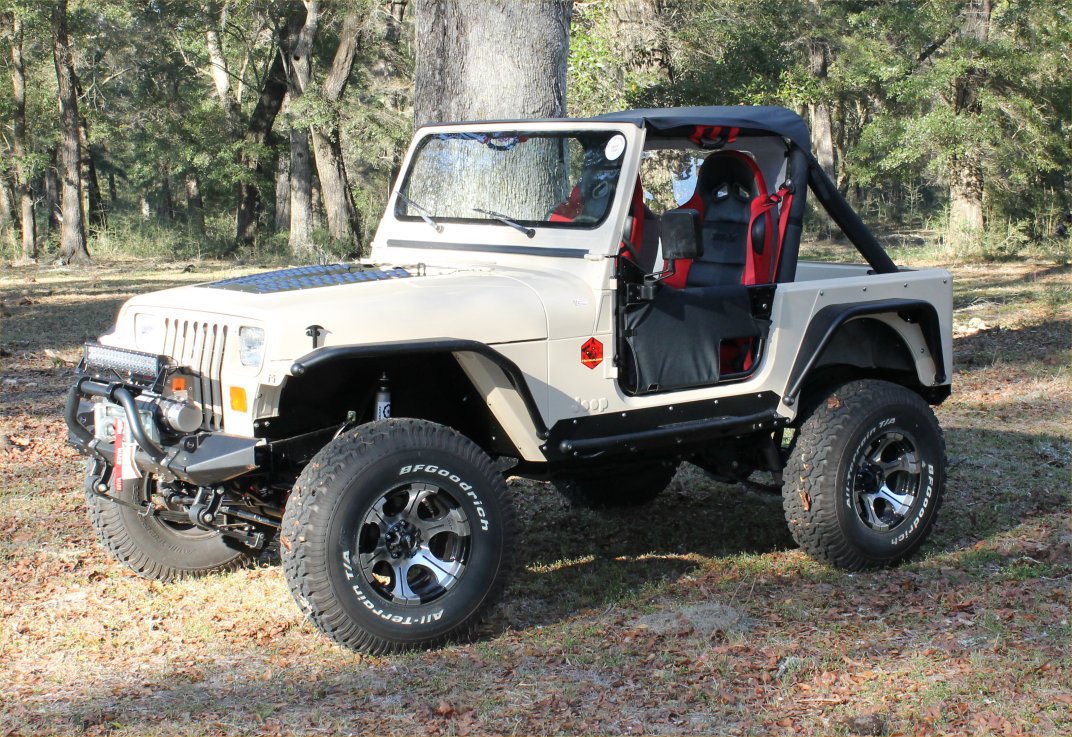

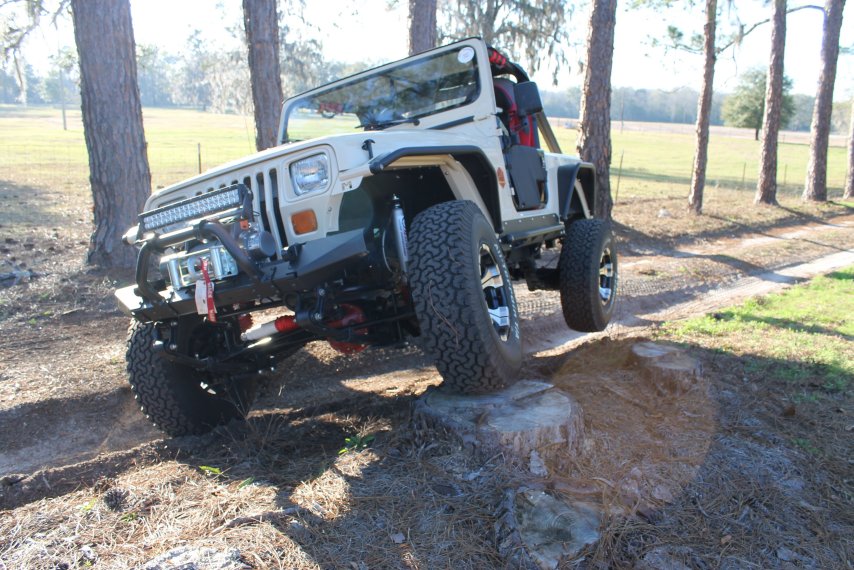

Panaceabeachbum


1989 Yj
Full Metal Cloak Fenders, corner guards and Front bumper
Metal Cloak Sliders
Curry rear bumper
5.3 Chevy Vortec V-8
4l60e Transmission, pac sun sheild, Kevlar bands
8.8 Ford rear, Super 88 axles, Rough Stuff diff covers, Detroit locker
Dana 30 front, Eaton E-Locker,Ruff Stuff diff cover, Yukon axles
Rustys HD steering linkage
Barnes 2" Skid
BDS 3.5"(rear) and 5" (front)Springs
Bilstein 5165 shocks.
Kevins Machine driveshafts
Flaming River Tilt steering column and steering shaft
NP 231 with Novak adapter, Advanced mount
novak TJ cable shifter assembly
Lokar Classic shifter
Novak Super Short yoke eliminator
Marshal gauges
4 core aluminum radiator, Elec fan
B&M Trans cooler
Warn Winch 8274
K&N Filters
Optima yellow top battery
Custom 3" exhuast
Custom Track Bar
Poisin Spyder hood louver
10k Lumen Led light bar
1200 Lumen BTFU light

Dick Cepek Wheels, BF Goodrich all terain 33" KO tires
Procar seats
Bestop top, roll bar pads
Bestop tube doors

I purchased this Jeep in 1994 . My kids and I covered about 100k miles of dirt road from Florida to Kentucky, blue ridge Mountains, Cumberland pass and many trails with the 4cyl and a lock-rite.
Aprox 2 years ago I decided to proceed with the V-8 project which turned into a full frame off rebuild and hasnt stopped yet.











Luck Favours The Prepared
Anticanman is offline
post #6 of 78 Old 05-19-2014, 09:53 PM Thread Starter
Anticanman
RIP one good jeeper

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon
Posts: 20,366

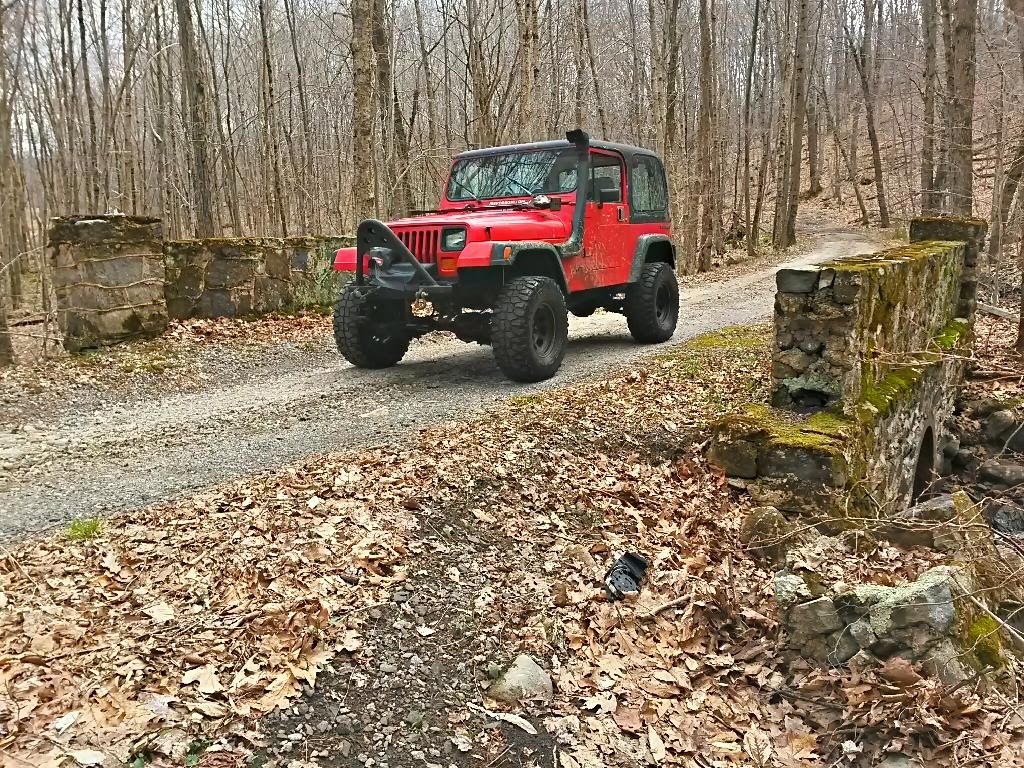

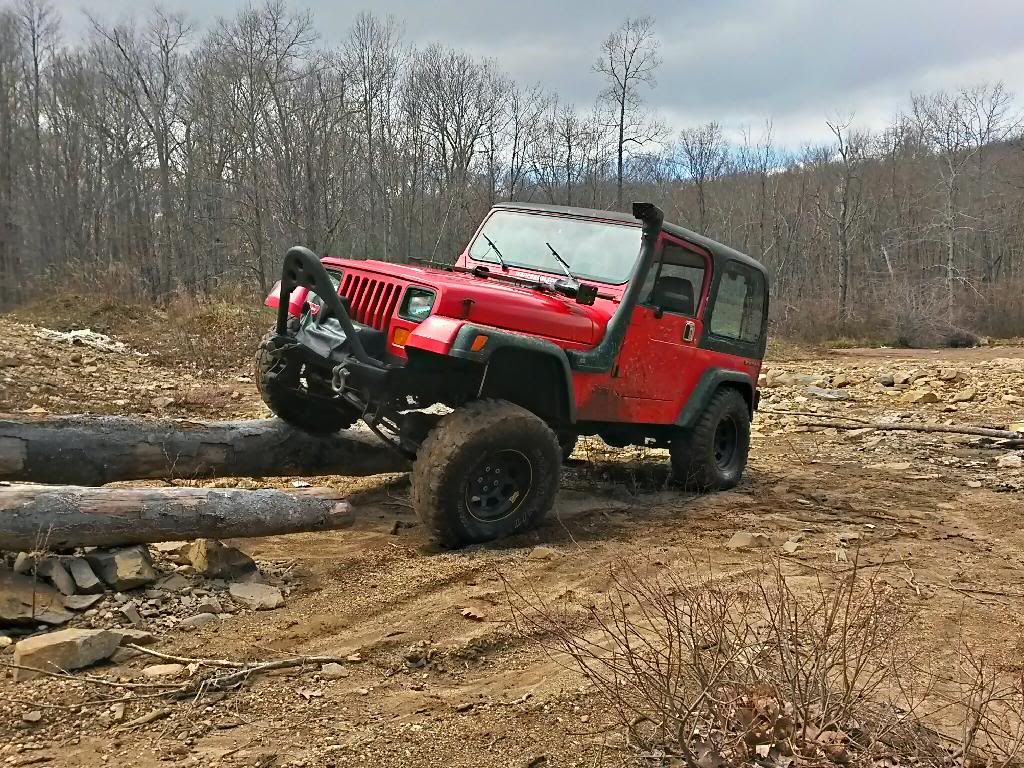

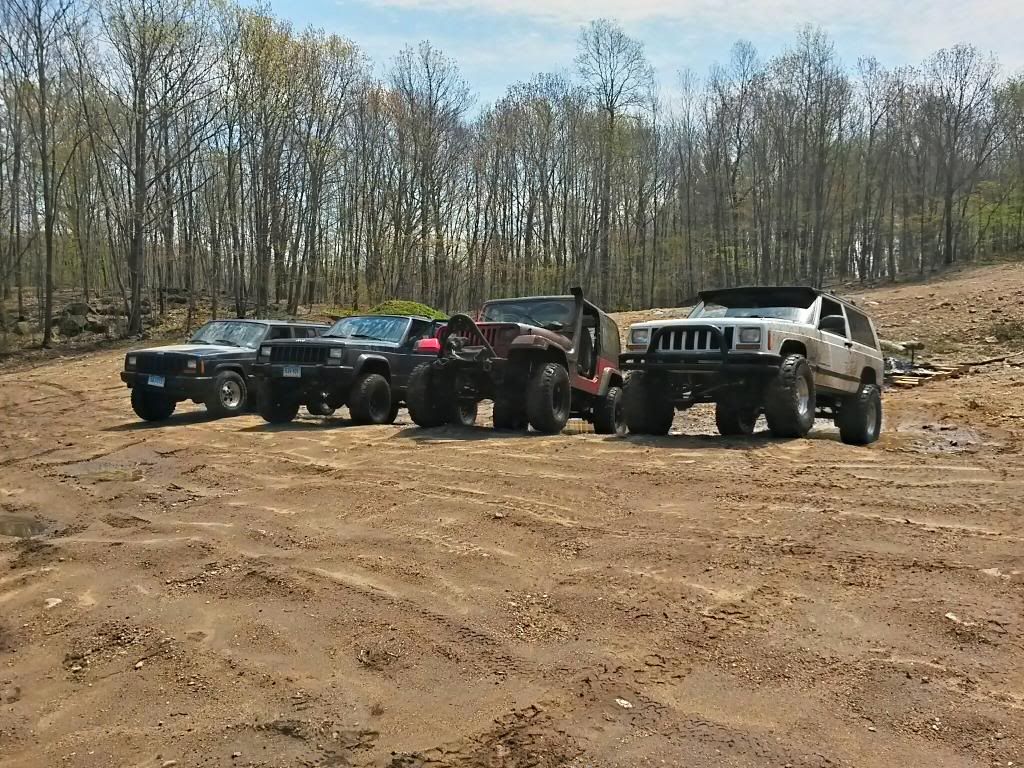

GrandBoost98


1989 Jeep YJ
2.5L TBI 4cly
AX5 trans with external slave swap
NP231J with JB conversions HD SYE
TJ exhaust
Dana 30
XJ 760x ujoint axle shafts
Alloy USA tube seals
Ford 8.8 with disks
All water tight with extended vent lines
Custom front and rear drive shafts
Goodridge extended brake lines front and rear
ARB Safari snorkel
3.5" H.D. BDS lift
5/8" H.D. M.O.R.E. booms
Teraflex rear shock bar
Aero Racing wheels
33x12.5x15 M/Ts
Front Smittybilt stinger
Rear Pro Comp bumper
Warn winch
O.R. Fab sport cage
Family roll bar swap
Tuffy stereo console
Tuffy trunk
Marine stereo
Marine speakers
Sound bar
Speaker wedges
CB radio
TJ flairs
60" Hi lift on the hood
Snatch block
misc recovery gear

Hardtop
Half hardtop
Safari top
Windjammer
Jammock
Full doors
Half doors
Tube doors










Luck Favours The Prepared
Anticanman is offline
post #7 of 78 Old 05-19-2014, 09:54 PM Thread Starter
Anticanman
RIP one good jeeper

Anticanman's Avatar
1994 YJ Wrangler

Join Date: Aug 2009
Location: Ripon
Posts: 20,366

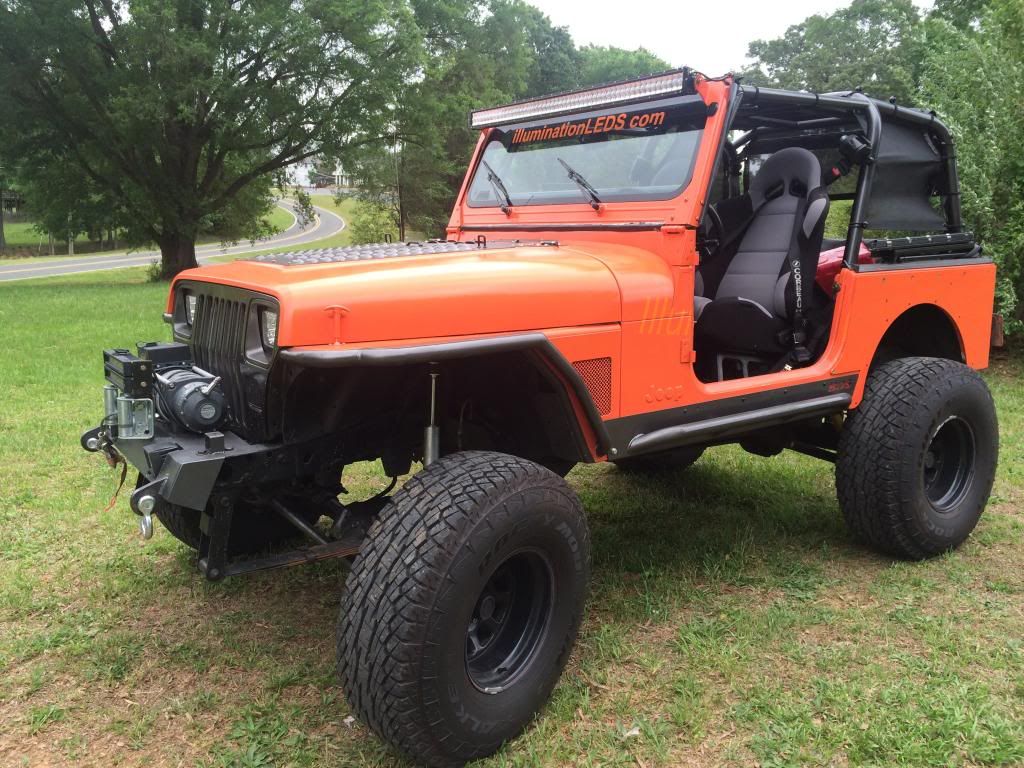

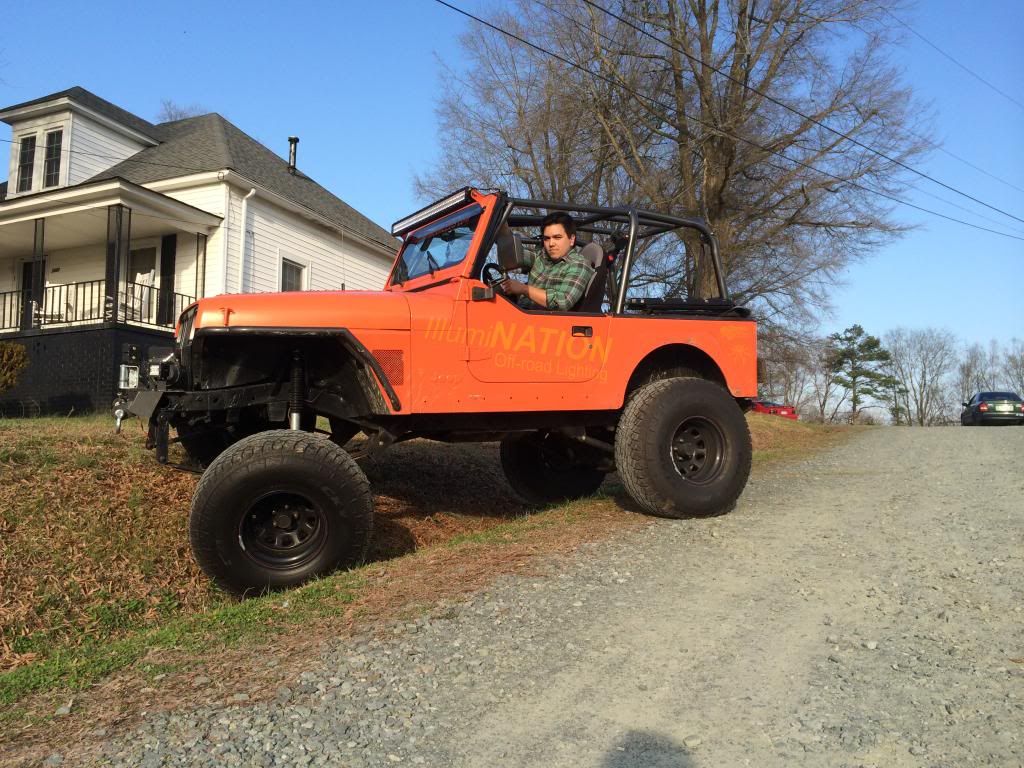

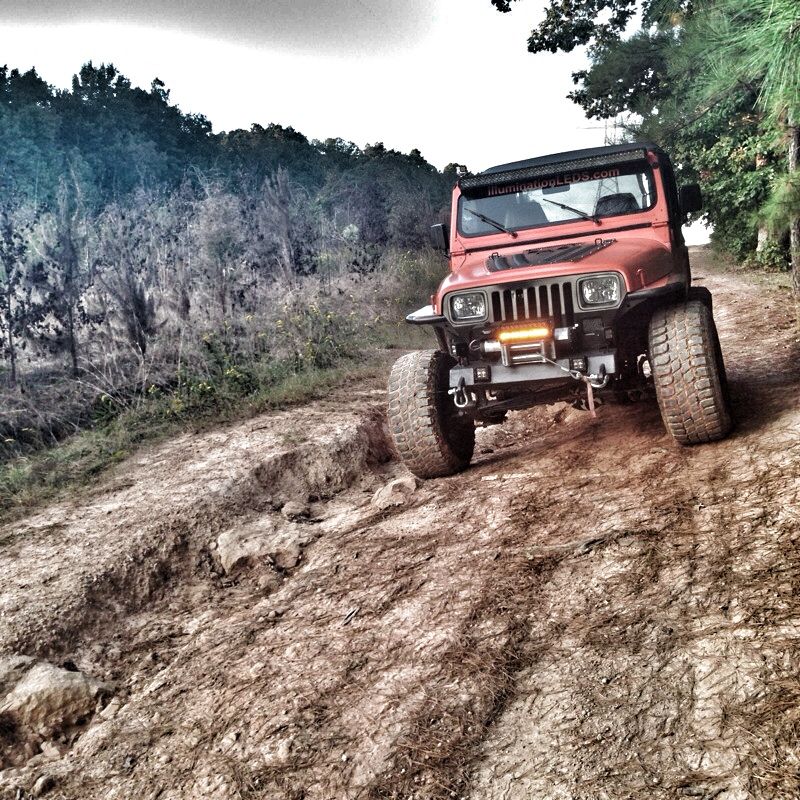

Carlos14


-1990 YJ
Specifications And Modifications:
-2.5l 4cyl. 147k on the dash.
-SOA D30 up front with custom steering, TJ longside shaft conversion and a Lokka locker. 4.56 gears.
-Trussed 8.8 rear axle with 4 link conversion on coils. 4.56 gears.
-35" Falken Wildpeaks
-BDS Rocker guards
-Poison Spyder Hood Louvers
-Poison Spyder D30 Bumbshell Diff Cover
-Illumination LEDs 50" LED light bar on top, 40" on rear,
Amber and White 12" bars on winch, p4 and P6 pods, rock lights
-custom front bumper thanks to Pawjob.
-rhino lined inside tub
-Spiderweb Shades setup
- Tube Fenders up front and rear, full corner armor
-BTF Sport Cage and PSC rear roll cage.
-Rugged Ridge 8,500lb winch

Brief History:
Bought this almost stock after selling my XJ. Knew it wouldn't stay that way long. Started with a shackle lift and then found the forum and started my build thread, A Teenager With a Dream. After a little paint and hard work I've finally reached a point where I'm pretty happy with the jeep. Still a fair amount to do but I've learned a lot and still have plenty to learn.











Luck Favours The Prepared
Anticanman is offline
post #8 of 78 Old 05-20-2014, 04:38 AM
roadyrob
Registered User
1987 YJ Wrangler

Join Date: Apr 2007
Location: west palm beach fl
Posts: 1,994
the nose knows-

Do everything with a positive attitude, it won't always work but you'll piss enough people off to make it worthwhile.

the voices aren't real but they sure have good ideas.
roadyrob is offline
post #9 of 78 Old 05-20-2014, 05:05 AM
Gage56
Registered User

Gage56's Avatar
1992 YJ Wrangler

Join Date: Feb 2013
Location: Northumberland
Posts: 1,605
Voted !!!

1992 YJ
Gage56 is offline
post #10 of 78 Old 05-20-2014, 05:43 AM
Rproject
Registered User

Rproject's Avatar
1987 YJ Wrangler

Join Date: Aug 2008
Location: Sandwich, IL
Posts: 2,758
All in.

1996 White ZJ
1987 Maroon YJ (sideways build)
1996 Forest Green XJ

The "sideways" build thread:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Rproject is offline
post #11 of 78 Old 05-20-2014, 06:53 AM
The_Goob
Registered User

The_Goob's Avatar
1991 YJ Wrangler

Join Date: Jun 2012
Location: Walcott
Posts: 4,510
Garage
Gotta go with Scott on this one!


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

YJoTM ~April '14 ~June '15 ~April '17


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
The_Goob is offline
post #12 of 78 Old 05-20-2014, 09:52 AM
Sparrows
Registered User

Sparrows's Avatar
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise
Posts: 4,473
Sub'd up for contemplation.
Cheers


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

June '13 YJOTM
Sparrows is offline
post #13 of 78 Old 05-20-2014, 12:35 PM
glenn-91YJ
Registered User

glenn-91YJ's Avatar
1991 YJ Wrangler

Join Date: May 2010
Posts: 1,021
Nice rigs!!!!

Owning a "Renegade" means being "Different"!

"The greatest danger to American freedom is a government that ignores the Constitution."
-Thomas Jefferson
glenn-91YJ is offline
post #14 of 78 Old 05-20-2014, 05:12 PM
tecksjeep
Registered User

tecksjeep's Avatar
1993 YJ Wrangler

Join Date: May 2013
Location: Greeley
Posts: 1,639
Voted!! Tough crowd this month!

5.7 Vortec, D60 front w/ detroit,14 bolt rear w/spool. 16" FOA Coilovers in rear ORI struts in front, Barnes Enduro Joints, Daves custom boat sides/rear armor.

Check out my build here!
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
tecksjeep is offline
post #15 of 78 Old 05-20-2014, 05:20 PM
bill8bud
Registered User

bill8bud's Avatar
1995 YJ Wrangler

Join Date: May 2009
Location: Sacramento
Posts: 1,071
Voted
bill8bud is offline
Closed Thread

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.



Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
