Leaking around slip yoke

Please help. Let me list the things I have done. I have changed seal about 5 times 2 of them was from jeep. I have changed the cone twice and the bushing in the cone twice also. Both new universal joints. I have made sure the vent tube was clear and able to breathe. I have put it on ramps and put it in gear while engine running and crawled up under it and no vibration. I also made sure slip yoke was smooth and clean. Still it drips fluid out of out put shaft on transfer case.

heath8635 is offline
Sponsored Links
Advertisement

post #2 of 13 Old 10-11-2021, 03:23 PM
calisk8er1080
Registered User

calisk8er1080's Avatar
1992 YJ Wrangler

Join Date: Dec 2013
Location: Erie
Posts: 345
Garage
Quote:
Originally Posted by heath8635 View Post
Please help. Let me list the things I have done. I have changed seal about 5 times 2 of them was from jeep. I have changed the cone twice and the bushing in the cone twice also. Both new universal joints. I have made sure the vent tube was clear and able to breathe. I have put it on ramps and put it in gear while engine running and crawled up under it and no vibration. I also made sure slip yoke was smooth and clean. Still it drips fluid out of out put shaft on transfer case.
Put a micrometer or calipers up to the slip yoke (the machined part, diameter R in the pic)) and see what it measures. Spec is 1.5". Don't know what the tolerance is, but but I would imagine it's pretty tight. Only reason I'm suggesting is it's the only part of the assembly you seem to have not changed, so I don't know what else it could be.

Source: https://www.dennysdriveshaft.com/p33...eep_np231.html



Edit: I just checked mine that I still have floating around and it came to 1.5025". So to be safe, I would consider 1.5000 the minimum acceptable OD

Ex-professional wrench turner
Professional metal gluer-togetherer
Insta @deathmetalwelder
calisk8er1080 is offline
post #3 of 13 Old 10-11-2021, 03:23 PM
bruinjeeper
Moderation in Moderation

bruinjeeper's Avatar
1995 YJ Wrangler

Join Date: Jun 2013
Location: Toronto
Posts: 10,665
...disregard.

Thought we were dealing with an SYE. My apologies. Carry on

~YJOTM MAY '16, JULY '19~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
bruinjeeper is offline

post #4 of 13 Old 10-11-2021, 07:47 PM
Boojo35
Registered User
1987 YJ Wrangler

Join Date: Jul 2007
Location: Beer City
Posts: 3,408
Garage
Maybe the yoke itself leaks. I will try to explain this clearly. The inside of the yoke is splined where it slides over the t-case output shaft. In order for these splines to be machined that hole with the splines in the yoke is open all the way through in the machining process. After the machining is done there is either a cap installed or it is welded shut. The cap or the weld would be facing the u-joint and easier to see with the u joint removed. These can leak over time and can be kinda hard to figure out. When this happens the fluid is not really leaking around the seal, it is coming down the splines and leaking out of the center of the yoke by the u-joint where that hole was capped back off. Check it out. Maybe, maybe not.

If you cannot fix it with a hammer then it has to be an electrical problem.
Boojo35 is offline
post #5 of 13 Old 10-12-2021, 12:22 PM Thread Starter
heath8635
Registered User

Join Date: Oct 2021
Posts: 6
Thank you for all the info. I will drop the drive shaft Thursday or Friday when I’m off and I post what I find on the measurements and the leaking around the splines.
heath8635 is offline
post #6 of 13 Old 10-22-2021, 02:52 PM Thread Starter
heath8635
Registered User

Join Date: Oct 2021
Posts: 6
Thank you I finally got time off work so I dropped the drive shaft. The slip yoke measured 1.502. So Iím really not sure.
heath8635 is offline
post #7 of 13 Old 10-22-2021, 02:54 PM Thread Starter
heath8635
Registered User

Join Date: Oct 2021
Posts: 6
I also checked the back of the yoke and held it up to the light and couldnít see any light through it. Now my mind has been blown lol. Iím at a loss. Thank you for all the help
heath8635 is offline
post #8 of 13 Old 10-22-2021, 04:59 PM
Awesome
Registered User

Awesome's Avatar
1995 YJ Wrangler

Join Date: Mar 2010
Location: Near Whacko
Posts: 4,681
Time for an SYE.

It probably would have been cheaper to start with that rather than getting all the other seals, parts and new quarts of fluid you've been using.

When I had the stock slip yoke, it leaked as well. Never enough to drip, but it kept the underside of the Jeep coated in ATF. The design has leaks built into it, in my opinion.

Granted, it seems that my SYE also leaks, but it's the housing that is leaking and not the yoke. Not enough to drip, but enough to wet the transfer case.
bruinjeeper likes this.

The 4th 5-seater YJ in the world.
Awesome is offline
post #9 of 13 Old 10-22-2021, 05:29 PM
cas6969
Registered User

cas6969's Avatar
1988 YJ Wrangler

Join Date: Jul 2020
Posts: 296
Same boat here, done all them things, still leaks. I've taking to viewing it as rear under body rust prevention.

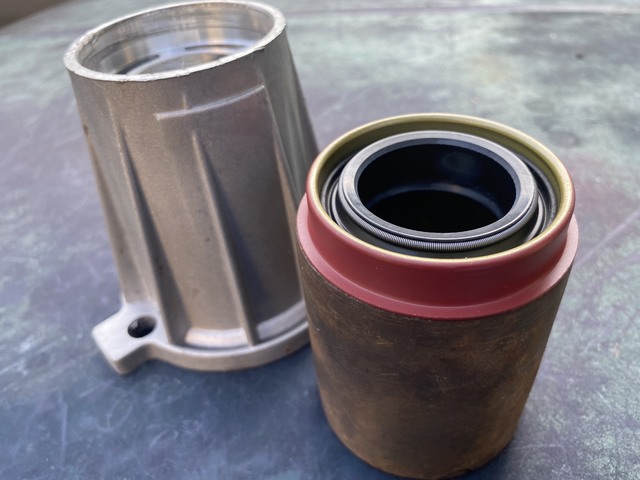

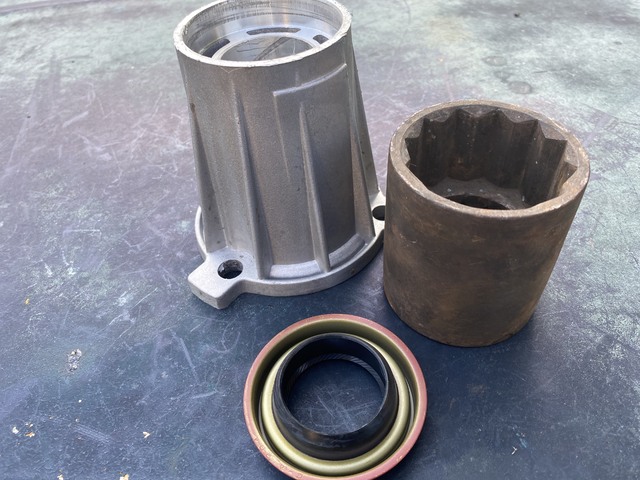

I will say though, depending on how you're seating the seal, it's easy to get it warp-ie and out of round without realizing it. The first one I just tapped in quick with a hammer, no big deal, done it many times before. It leaked worse than the old one. The second one I took a lot more care, doing it a lot more even. It also leaked. The third one I did on a new tail housing, right in front of me (as opposed to over head on the vehicle) When I installed it, much the same way, I was able to see just how out of round I'd made the lip of the seal while installing it. To the point where I pulled it out and threw it away. The fourth one I installed "right" (lol). Not really, but I wasn't lazy and went down the basement and got the right size socket to tap it in even. I then slopped some grease on the yoke before I installed it. It still leaks, but nowhere near as bad as the others did.

Just dig around in the bottom of your tool box till you find the right size socket.




Silicone, the thinking man's duct tape.
cas6969 is offline
post #10 of 13 Old 10-25-2021, 10:36 PM
11-11-11
Registered User

11-11-11's Avatar

Join Date: Apr 2020
Location: Hut-two-tree-four
Posts: 203
Garage
Wipe some Permatex around the outside of a new seal. The metal to metal area can leak.
11-11-11 is offline
post #11 of 13 Old 10-26-2021, 03:55 PM Thread Starter
heath8635
Registered User

Join Date: Oct 2021
Posts: 6
Thank you everyone for the responses. My is leaking so bad it leaves a puddle on ground and it leave drops on spare tire cover and back of jeep. I’m going to try a different seal this weekend. I’ve always used a socket to knock it in but I still maybe warping it.
heath8635 is offline
post #12 of 13 Old 10-26-2021, 04:10 PM
11-11-11
Registered User

11-11-11's Avatar

Join Date: Apr 2020
Location: Hut-two-tree-four
Posts: 203
Garage
Quote:
Originally Posted by heath8635 View Post
Thank you everyone for the responses. My is leaking so bad it leaves a puddle on ground and it leave drops on spare tire cover and back of jeep. Iím going to try a different seal this weekend. Iíve always used a socket to knock it in but I still maybe warping it.
Is the housing buggered? Replacement housing on Amazon is inexpensive.
11-11-11 is offline
post #13 of 13 Old 10-27-2021, 11:29 AM Thread Starter
heath8635
Registered User

Join Date: Oct 2021
Posts: 6
I’ve changed it twice. Both came from carparts.com. I guess they are good. They was crown parts
heath8635 is offline
