Clocking the Speedometer Gear

I'm replacing my speedo gear this afternoon (when Santa in the brown truck shows up), and I've got a question about clocking the gear. Most instructions I've seen say that you line up (rotate) the numbers on the adapter to the bump on the transfer case. I looked at my transfer case the other day, and there is no bump to line up with. The only other explanation I've seen says to line up the correct numbers on the adapter to the 6 o'clock position (towards the ground). Is this second explanation correct? I'm going to a 37 tooth gear, so I line up the set of numbers on the adapter (that covers 37) towards the ground? Thanks!

89WhyJ is offline
Sponsored Links
Advertisement

post #2 of 10 Old 07-17-2015, 08:36 AM
Randonexplosion
Registered User

Randonexplosion's Avatar
1988 YJ Wrangler

Join Date: Sep 2010
Location: Cortez
Posts: 8,513
Take note of how it is currently oriented. What direction is your current set of numbers pointing?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Randonexplosion is offline
post #3 of 10 Old 07-17-2015, 09:14 AM Thread Starter
89WhyJ
Registered User
1989 YJ Wrangler

Join Date: Jun 2009
Location: Stafford, VA
Posts: 162
Good point. I'll have to look. I don't know if I can trust it though, since I think the PO monkey'd around with it. I believe the PO pulled the speedo cable at some point and didn't install it properly. So I don't know if he messed with the adapter as well.
89WhyJ is offline

post #4 of 10 Old 07-17-2015, 09:23 AM
Randonexplosion
Registered User

Randonexplosion's Avatar
1988 YJ Wrangler

Join Date: Sep 2010
Location: Cortez
Posts: 8,513
Does your speedometer work currently? Worst case you install it, it doesn't work so loosen it back up and rotate it until it works...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Randonexplosion is offline
post #5 of 10 Old 07-17-2015, 10:17 AM
jokerchief462
Registered User

jokerchief462's Avatar
1989 YJ Wrangler

Join Date: Nov 2010
Location: Sin City
Posts: 2,881
Garage
It won't work if the plastic (blue) gear is messed upon the T-Case output shaft in the tail one.

Sent from underneath my Jeep

89YJ 2.5L TBI, AX-5, NP231 SYE, Ford 8.8, Yukon Grizzly, Tom Woods Shaft, 33" BFG T/As, 4" lift, Warn VR10000s.

AF Jeep Club Tail #184
jokerchief462 is offline
post #6 of 10 Old 07-17-2015, 11:17 AM Thread Starter
89WhyJ
Registered User
1989 YJ Wrangler

Join Date: Jun 2009
Location: Stafford, VA
Posts: 162
I took off the cable the other day and put a drill on it, and the speedometer does work. I figure when I swap the gear out, I'll able to check it out entirely. I just wanted to be sure when I put it back together, I do it properly.
89WhyJ is offline
post #7 of 10 Old 07-19-2015, 07:47 AM
sptrmike
Registered User

sptrmike's Avatar
1989 YJ Wrangler

Join Date: Mar 2010
Location: epping
Posts: 354
When I did mine I jacked up the rear end and supported the axle,removed the adapter and took the "o" ring off so it will rotate easier when put back in the case.With the Jeep in gear slowly rotate the tire by hand while turning the adapter until the gear is seated put a line on the case and adapter with a marker,put the "o"ring back on and while rotating the tire line your marks up and lock it down.
sptrmike is offline
post #8 of 10 Old 07-19-2015, 09:30 PM
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 5,812
Quote:
Originally Posted by jokerchief462 View Post
It won't work if the plastic (blue) gear is messed upon the T-Case output shaft in the tail one.

Sent from underneath my Jeep
That blue plastic gear you mention will be on an SYE T case shaft, the stock shaft will have a steel speedo gear cut into it.

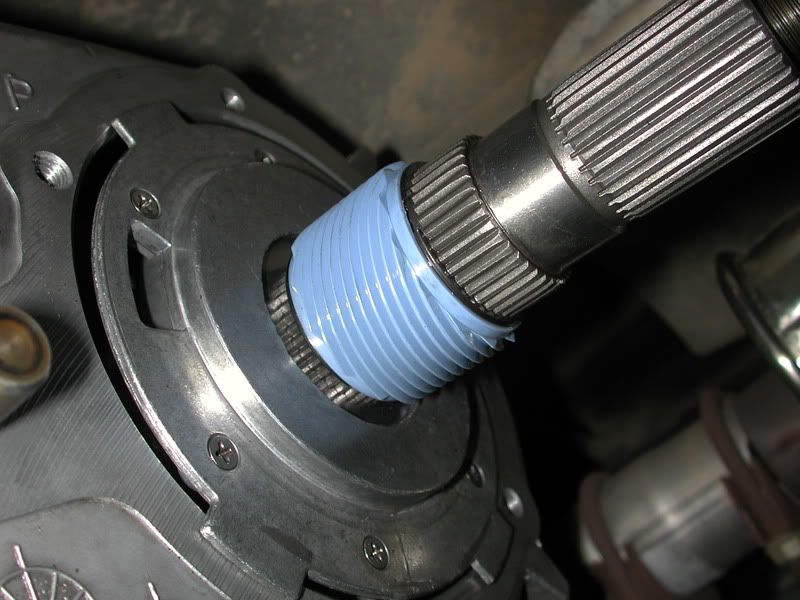

Original steel/cut gear first photo, on original shaft. Second photo, blue plastic gear on SYE shaft.






89WhyJ, you're getting the right kind of advice on clocking your new gear. Two different type speedo gears in YJs, there is a long shaft version and a short shaft version. I can't remember what your year would use (I'm thinking long shaft version) hopefully you got sent the correct gear type for your application.

....I'm not smart, but I can lift heavy things.......

Fill out your PROFILE, and don't forget to look in the FAQ for writeups

I'm stuck on da Rock
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by Brian4.2 View Post
We will be going Metric every inch of the way.
Quote:
Originally Posted by 40dog View Post
yes I'm a some guy and have always put gasket sealer on my surfaces before mating
Quote:
Originally Posted by Virjeep View Post
You should go to Pirate. I hear they are real smart over there. You'd fit right in.
Opihi59 is offline
post #9 of 10 Old 07-20-2015, 06:59 AM Thread Starter
89WhyJ
Registered User
1989 YJ Wrangler

Join Date: Jun 2009
Location: Stafford, VA
Posts: 162
Quote:
Originally Posted by Opihi59 View Post
That blue plastic gear you mention will be on an SYE T case shaft, the stock shaft will have a steel speedo gear cut into it.

Original steel/cut gear first photo, on original shaft. Second photo, blue plastic gear on SYE shaft.

89WhyJ, you're getting the right kind of advice on clocking your new gear. Two different type speedo gears in YJs, there is a long shaft version and a short shaft version. I can't remember what your year would use (I'm thinking long shaft version) hopefully you got sent the correct gear type for your application.
Yeah, I made sure to order the long shaft gear. So I got it apart Saturday morning, and swapped the gear out. I marked the current position of the adapter and then installed my 37 tooth gear. I started with the correct set of numbers pointing down, 6:00 position...where the adapter was positioned before I started. I ran out to grocery store with my phone's GPS speedometer app, and not only did the speedometer now work, it was dead on. I have no idea what the PO did that would make the speedo stop working. But it's so nice to not be tethered to my phone every time I go for a drive. Thanks for all the help everyone!
89WhyJ is offline
post #10 of 10 Old 07-20-2015, 11:14 AM
Opihi59
from here it gets rough

Opihi59's Avatar
1993 YJ Wrangler

Join Date: Dec 2007
Location: Beyond Honolulu
Posts: 5,812
Quite likely he had it clocked wrong.
