Vehicle Speed Sensor

Hey dudes!

I'm the new guy, first time jeep owner, and first just wanted to say how stoked I am to finally be a part of this awesome community!

Anyways, I bought a 1999 Cherokee Sport 2x4 4.0l and got a check engine light, got it diagnosed, and it popped a p0500, vss code. I havent pulled either of them out yet but started researching online and came across both this one

Speed Sensor 1

and

Speed Sensor 2

and I dont know which one is correct. Does anyone have a clear understanding of this? Also, my speedo isnt working, so would me replacing the sensor possibly fix this issue? (speedo DOES move during the self diagnostic test, just not while driving)

Thanks guys!

dirtydanzig is offline
Sponsored Links
Advertisement

post #2 of 13 Old 03-29-2015, 12:17 PM
CCKen
Web Wheeler

CCKen's Avatar
1999 XJ Cherokee

Join Date: Jul 2011
Location: Canton
Posts: 3,548
Quote:
Originally Posted by dirtydanzig View Post
Hey dudes!

I'm the new guy, first time jeep owner, and first just wanted to say how stoked I am to finally be a part of this awesome community!

Anyways, I bought a 1999 Cherokee Sport 2x4 4.0l and got a check engine light, got it diagnosed, and it popped a p0500, vss code. I havent pulled either of them out yet but started researching online and came across both this one

Speed Sensor 1

and

Speed Sensor 2

and I dont know which one is correct. Does anyone have a clear understanding of this? Also, my speedo isnt working, so would me replacing the sensor possibly fix this issue? (speedo DOES move during the self diagnostic test, just not while driving)

Thanks guys!
The Speed Sensor 1 is for the speedometer, the Speed Sensor 2 is for the transmission in and out speeds - nothing to do with the speedometer.

If you have a 2WD, there's a chance that the plastic drive inside the transmission is cracked/broken. You'll have to remove the whole VSS (adaptor and sensor) and look inside the trans to see this. The gear on the end on the VSS may be chewed up as well. Generally, a 4WD (Transfer Case) VSS won't have this problem.

Here's a break down of the VSS.

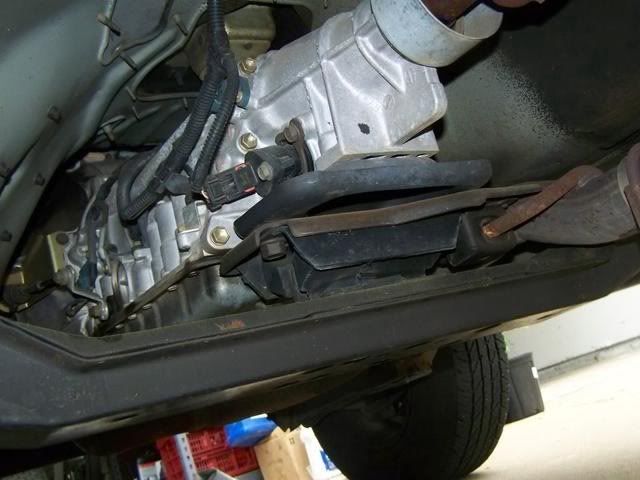

Here's a pic of a VSS on a 2WD Trans.

CCKen is offline
post #3 of 13 Old 03-29-2015, 12:30 PM Thread Starter
dirtydanzig
Registered User
1999 XJ Cherokee

Join Date: Mar 2015
Location: New Orleans
Posts: 67
Awesome! Thanks!
dirtydanzig is offline

post #4 of 13 Old 03-29-2015, 02:18 PM
CCKen
Web Wheeler

CCKen's Avatar
1999 XJ Cherokee

Join Date: Jul 2011
Location: Canton
Posts: 3,548
Let us know what you see when you get the VSS out.. Photos will help also.
CCKen is offline
post #5 of 13 Old 04-10-2015, 02:43 PM Thread Starter
dirtydanzig
Registered User
1999 XJ Cherokee

Join Date: Mar 2015
Location: New Orleans
Posts: 67
I decided to replaced the sensor itself first, since its easier to knock out, and I'm still having the same issue. I just wanted to ask right quick, if I take out the adapter and pinion, what tooth pinion is it and is it long or short shaft? just want to have it on hand before i pull it all apart. thanks!
dirtydanzig is offline
post #6 of 13 Old 04-10-2015, 03:05 PM
CCKen
Web Wheeler

CCKen's Avatar
1999 XJ Cherokee

Join Date: Jul 2011
Location: Canton
Posts: 3,548
Quote:
Originally Posted by dirtydanzig View Post
I decided to replaced the sensor itself first, since its easier to knock out, and I'm still having the same issue. I just wanted to ask right quick, if I take out the adapter and pinion, what tooth pinion is it and is it long or short shaft? just want to have it on hand before i pull it all apart. thanks!
If you still don't have speedo after changing the VSS sensor (only) you may want to pull the adaptor out and look in the hole, See if the VSS drive gear in the trans is cracked or missing.
CCKen is offline
post #7 of 13 Old 04-10-2015, 03:15 PM Thread Starter
dirtydanzig
Registered User
1999 XJ Cherokee

Join Date: Mar 2015
Location: New Orleans
Posts: 67
Yep....the teeth on the pinion were fine but here lies this fella.
Attached Images

dirtydanzig is offline
post #8 of 13 Old 04-10-2015, 04:15 PM
CCKen
Web Wheeler

CCKen's Avatar
1999 XJ Cherokee

Join Date: Jul 2011
Location: Canton
Posts: 3,548
Quote:
Originally Posted by dirtydanzig View Post
Yep....the teeth on the pinion were fine but here lies this fella.
This whole design for the 2WD AW4 is a POS. The 4WD TC has helical splines cut in the output shaft.
CCKen is offline
post #9 of 13 Old 04-11-2015, 11:51 AM Thread Starter
dirtydanzig
Registered User
1999 XJ Cherokee

Join Date: Mar 2015
Location: New Orleans
Posts: 67
So, I read the link up above but the guy only ends up sawing to contact a tranny shop and get it fixed, resulting in $250+ smackaroos, but then I came across another forum with a fella with the same issue and he got a lot of "its just the process of removing two bolts and swapping the broke one out for a new one, takes 2 minutes tops" so what would you suggest?
dirtydanzig is offline
post #10 of 13 Old 04-11-2015, 05:21 PM
CCKen
Web Wheeler

CCKen's Avatar
1999 XJ Cherokee

Join Date: Jul 2011
Location: Canton
Posts: 3,548
Quote:
Originally Posted by dirtydanzig View Post
So, I read the link up above but the guy only ends up sawing to contact a tranny shop and get it fixed, resulting in $250+ smackaroos, but then I came across another forum with a fella with the same issue and he got a lot of "its just the process of removing two bolts and swapping the broke one out for a new one, takes 2 minutes tops" so what would you suggest?
What would I suggest..... LOL

1st, respond to that "fella" and say he's full of $h!t. 2 Minutes...LOL

2nd, Get a Factory Service Manual for your XJ at Pacific Coast Manuals.com. $7.95 for a pdf download. There you can read up on how to do the job, then determine if it's a 2 minute job, or if you can do the job.

Edit: There are seven bolts holding the rear case to the transmission case. If it matters.
CCKen is offline
post #11 of 13 Old 04-11-2015, 06:21 PM Thread Starter
dirtydanzig
Registered User
1999 XJ Cherokee

Join Date: Mar 2015
Location: New Orleans
Posts: 67
Do your other 2400 posts simply consist of poking fun and just redirecting people who need help to an online download? If that's the case, why are you on a forum? But, thanks for your suggestion, I guess. I don't know why I thought someone might have ever actually learned something from someone with actual experience, as opposed to a human spam bot. Thanks.
dirtydanzig is offline
post #12 of 13 Old 04-11-2015, 10:19 PM
SLO_Ken
Registered User
1986 CJ7

Join Date: Nov 2009
Location: California
Posts: 1,109
I don't actually have an XJ, but I do have the '99 XJ FSM. Here's a couple screenshots from the transmission section regarding removing the speedometer pinion shaft. It is a bit more involved than 2 bolts...
Attached Images


California 4.0 OBDII Engine Swap
https://www.jeepforum.com/forum/f8/california-4-0-obdii-swap-1530716/
SLO_Ken is offline
post #13 of 13 Old 04-12-2015, 09:10 AM
Kalali
Registered User
2000 XJ Cherokee

Join Date: Apr 2012
Location: Ocean
Posts: 643
Quote:
Originally Posted by dirtydanzig View Post
Do your other 2400 posts simply consist of poking fun and just redirecting people who need help to an online download? If that's the case, why are you on a forum? But, thanks for your suggestion, I guess. I don't know why I thought someone might have ever actually learned something from someone with actual experience, as opposed to a human spam bot. Thanks.
Dude, chill out. If you don't like what you hear (here), then follow the advice from the other "fella" on the other site. CCKen gave you the best advise by pointing to the best source for getting an FSM so you can get objective input as opposed to advice from some fella's rear end.
Kalali is offline
