Unread 04-18-2008, 11:31 PM   #61
rookie1
Registered User

Join Date: Mar 2008
Location: florida
Posts: 11
sorry..i was away for a while...anymore updates on skid installation?

rookie1 is offline   Reply With Quote
Unread 04-19-2008, 09:02 AM   #62
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,623
Here's some preliminary info that I've posted on another site.

Quote:
This is what I did on the 3 rear and 1 center hole for the engine/trans skid plate. These are called T-Nuts and can be found a lumber/building supply store. I actually got mine at my local ACE Hardware and they are M10 to match up with the Hex Rivnuts. There are 2 types, 1 will have holes as seen in the pictures, the other will have spiked tabs. They are used for installing "nut plates" in a piece of lumber by drilling a 1/2" hole and then nailing them on, the spiked ones require no nails of course. I attached mine with 1/8" steel pop rivets.

FYI: a 1/8" steel rivet/steel mandrel has a shear strength of 450 in/lbs and tensile strength of 350 in/lbs; a 5/32 has 525 and 500. An 1/8" aluminum rivet with steel mandrel has 210 and 325 while the 5/32 has 340 and 490.

The 1st shot is just the T-Nuts, the 2nd is installed inside the center channel, the 3rd and 4th are installed on the bottom of the rear cross member. I didn't see the need to try and snake them inside the rear channel.

The Hex Rivnuts, what a PITA! I have 3 of the wrong size that were "recommended" to me to try out, they ranged in price from a freebie and from $1.20 - $2.25. Then after nearly 2 weeks I finally received a price quote on the correct ones and ordered them last Monday (4/7). I don't know if the "1 week delivery" was when they will get them from Belgium or when I will have them, so I'm still waiting. They'll end up costing about $1.30 each and I can make 11 sets from the 100 that I ordered. Update 4/18/08: still no word on these. I think that they maybe run batches as they get orders, it's not a "ship off shelf" item. I ordered from a second supplier on 4/16 (with plants in the US, Germany, France and Brazil) and again, I'm waiting.

You'll also need:
3 - M10 x 1.5 x 50mm Hex bolts, class 9.6 or better (equivalent to an SAE grade 5)
10 - M10 x 1.5 x 25mm (same as above)
13 - heavy flat washers (I am using 3/8")
eskid-plates-026.jpg   eskid-plates-038.jpg   eskid-plates-043.jpg   eskid-plates-044.jpg
__________________
Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline   Reply With Quote
Unread 04-19-2008, 03:38 PM   #63
Jeepster55
Registered User

Join Date: May 2007
Location: Indianapolis
Posts: 446
looks great....alot of work. still has to be an 'easier' way.

at my age, it's all about EASY!!!
Jeepster55 is offline   Reply With Quote
Unread 04-19-2008, 04:44 PM   #64
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,623
Not much or hard work to it really, drilling 1/8" holes and popping a few rivets while laying on your back. I still would like to know what the factory uses on these 4 holes.
__________________
Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline   Reply With Quote
Unread 04-21-2008, 05:26 PM   #65
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,623
Good news: I finally received the correct rivnuts! They are pretty snug, a slight tap with a hammer is all that it takes to get them in the hole.

Bad news: It takes so much torque to collapse them that they will turn in the thin sheet metal sheet metal if you just put a wrench or socket on your bolt and start turning it down..

They do make a special hand tool for these that's about $40. Much better than $649 for the least expensive power tool! I'm ordering the $40 tool tomorrow. I'll keep you posted.
__________________
Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline   Reply With Quote
Unread 05-13-2008, 06:23 PM   #66
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,623
They're installed. Give me a couple of days to do a write up, how to and where to get the parts.







__________________
Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline   Reply With Quote
Unread 05-13-2008, 09:07 PM   #67
Coasty161
Registered User
2008 JK Wrangler

Join Date: Oct 2006
Location: Port Huron, MI
Posts: 393
time to go north of mke now...if i recall there is farmland out there that the owner will let u wheel on. wish i remember the name(s).
Coasty161 is offline   Reply With Quote
Unread 05-19-2008, 04:14 AM   #68
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,623
Disclaimer: I hesitate to post Jeep list prices. Some dealers may charge less, many charge more. My dealer likes to charge 15% over list unless I complain.

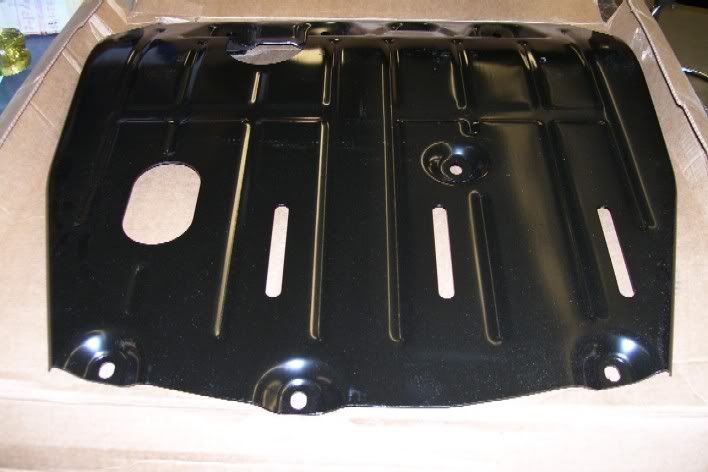

Engine/Trans Skid Plate......pn 5105236AB....Mopar List Price $160.00



Fuel Tank Skid Plate, left....pn 5105235AA.............................43.35
Fuel Tank Skid Plate, right..pn 5105234AA............................. 43.35



Some of you may want or need these:
5116330AB.."transmission shield" $2.45!!!
5116057AB...."accessory drive shield" $7.35!!!!



The hardest part to this ordeal was finding the fasteners to install in the frame work and channels to enable me to bolt up the Skid Plates. The Hex Rivnuts have been taken care of. I also have listings for a couple that you can get from Jeep and my own supply that I am also selling.

I thought the T-Nuts (also called Tee Nuts and Weld Nuts) would be easy since I found mine at my local ACE Hardware store in my little town of 4000. I bought the last 3 that they had last Saturday and asked them to order a “supply” of them but they haven’t been able to give me any answer on availability yet. I’ve checked at the local Home Depot and Menards in the next big town over and they don’t carry anything in the right size and configuration. Meanwhile I have done some internet shopping and found just the right pieces but they are custom made and would take 3-4 weeks to get them with a price to match. I also found the same thing without the holes drilled for the pop rivets. I’m ordering them on Monday, should have them in about a week and I’ll drill them and make them available.

The M10 T-Nuts are hard to find. If some of you want to look around on your own they also make these with a 3/8-16 tread and you’ll need 4 – 3/8”x1” bolts to go with them.

You will need 4 of the T-Nuts for the ’07 MK’s, they are used in the center hole and three rear holes on the front Skid Plate and are attached with 1/8” pop rivets. The ‘08’s may be able to use these in the 3 round holes in their front mounting locations. I used 1/8" steel rivet/steel mandrel pop rivets on mine.

FYI: a 1/8" steel rivet/steel mandrel has a shear strength of 450 in/lbs and tensile strength of 350 in/lbs; a 5/32 has 525 and 500. An 1/8" aluminum rivet with steel mandrel has 210 and 325 while the 5/32 has 340 and 490.

You'll also need:
3 - M10 x 1.5 x 50mm Hex bolts, class 9.6 or better (equivalent to an SAE grade 5)
10 - M10 x 1.5 x 25mm (same as above)
13 - heavy flat washers (I am using 3/8")
and some split ring lock washers, shake proof washers or, what I like, the blue label, medium strength threadlocker made by Loctite.

Installation

Get your Jeep up in the air so that you can work on it using ramps, jack stands or, if you’re lucky enough, a hoist. Don’t forget to block the tires to prevent it rolling.

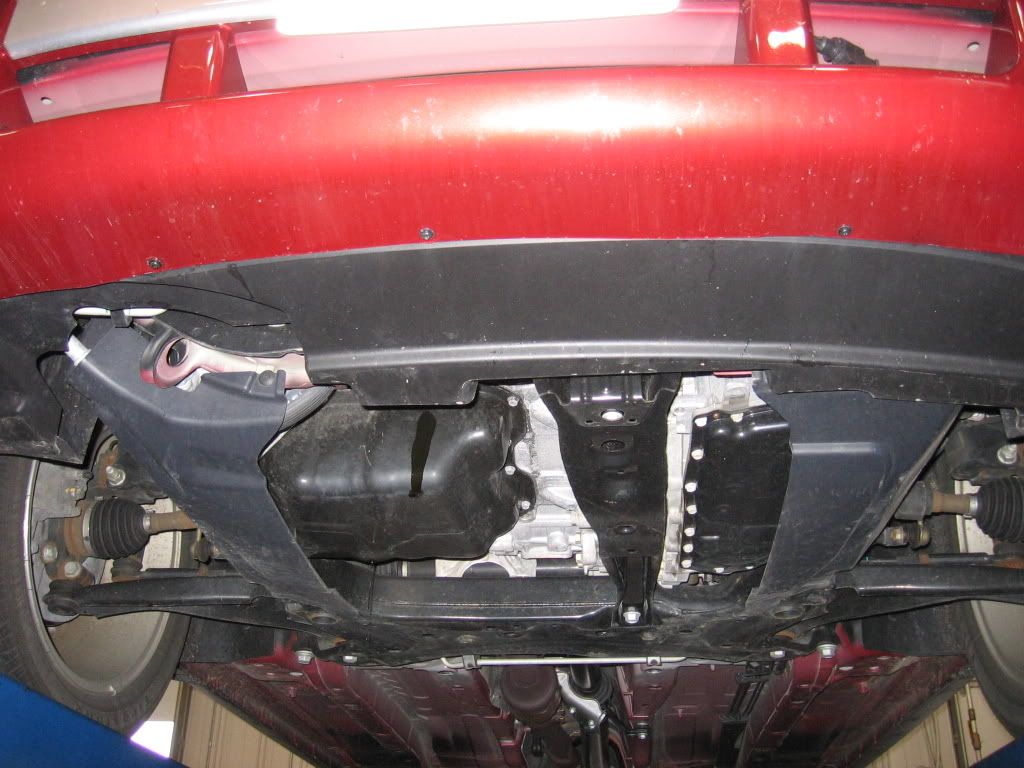

Compass owners only - you’ll need to remove the front close out by using a T20 Torq bit on the 7 screws and 2 small screw drivers on the 4 plugs on the ends. Pry out the center plug by inserting the small screw drivers in the indentations on the sides of the body of the plug and gently wiggling out the center until you can slip a trim stick or pair of needle nose pliers between the body of the plug and the insert and finish prying it out. Remove the rest of the plug.

All MK’s – the bolts that hold the either the rest of the close out or the bolts that hold the plastic belly pan on all take a 10mm socket. Remove as necessary.

Install the T-Nuts – These are pretty easy to install. Insert the T-nut with the barrel up in the holes, center them and drill with a nice sharp 1/8” drill bit. This is pretty tough material and I recommend a new premium grade drill bit. Mark an alignment location and as you drill, insert (but don’t pull) a pop rivet to hold it in place. Drill the second hole and insert a pop rivet there too, and then drill the last hole. Clean off any burrs on the inside of the channels, I used a flat blade screw driver bent to fit in the main hole to clean the burrs. On the center hole I slid the T-Nut up inside, aligned the holes and popped it into place. On the 3 rear holes I attached them from the bottom side.

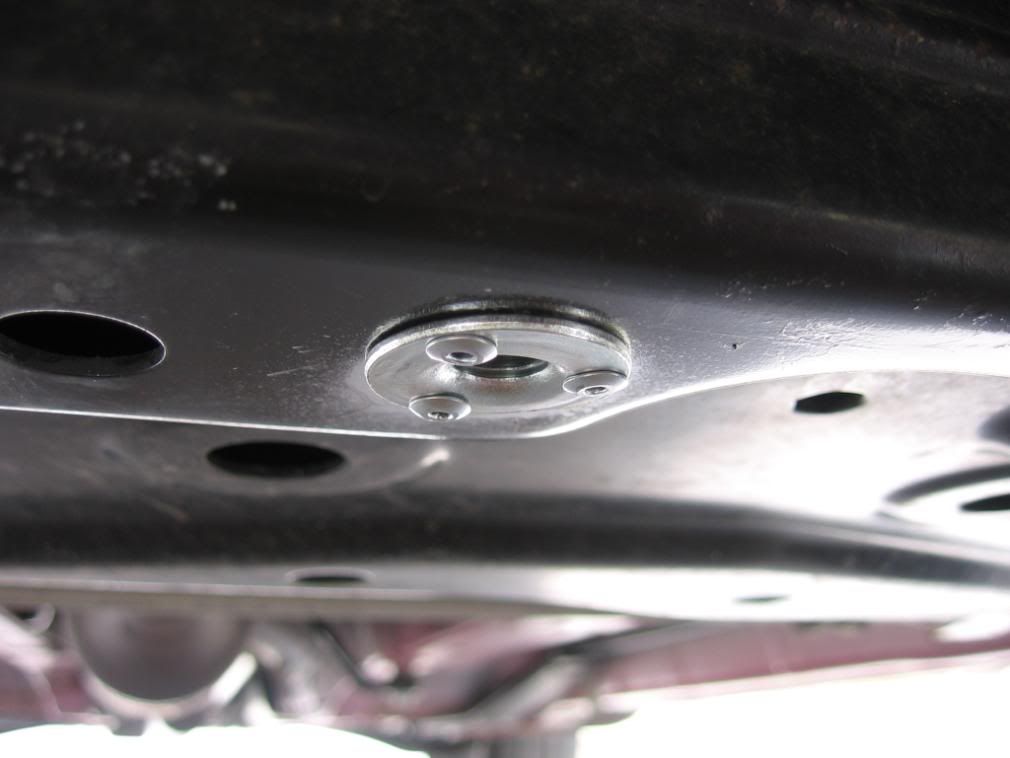

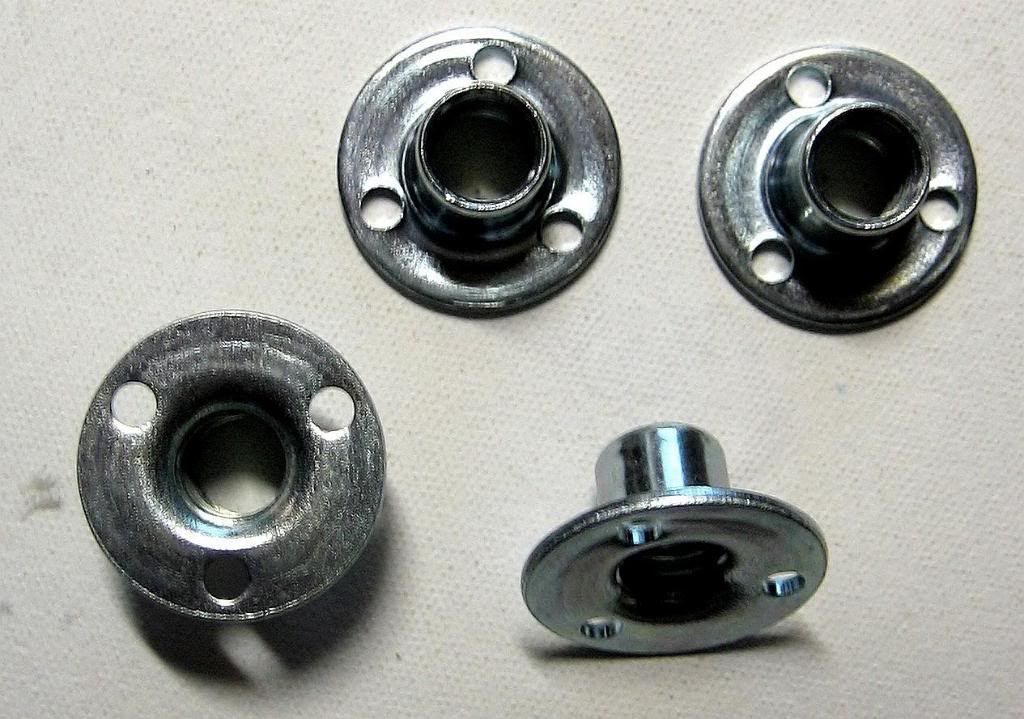

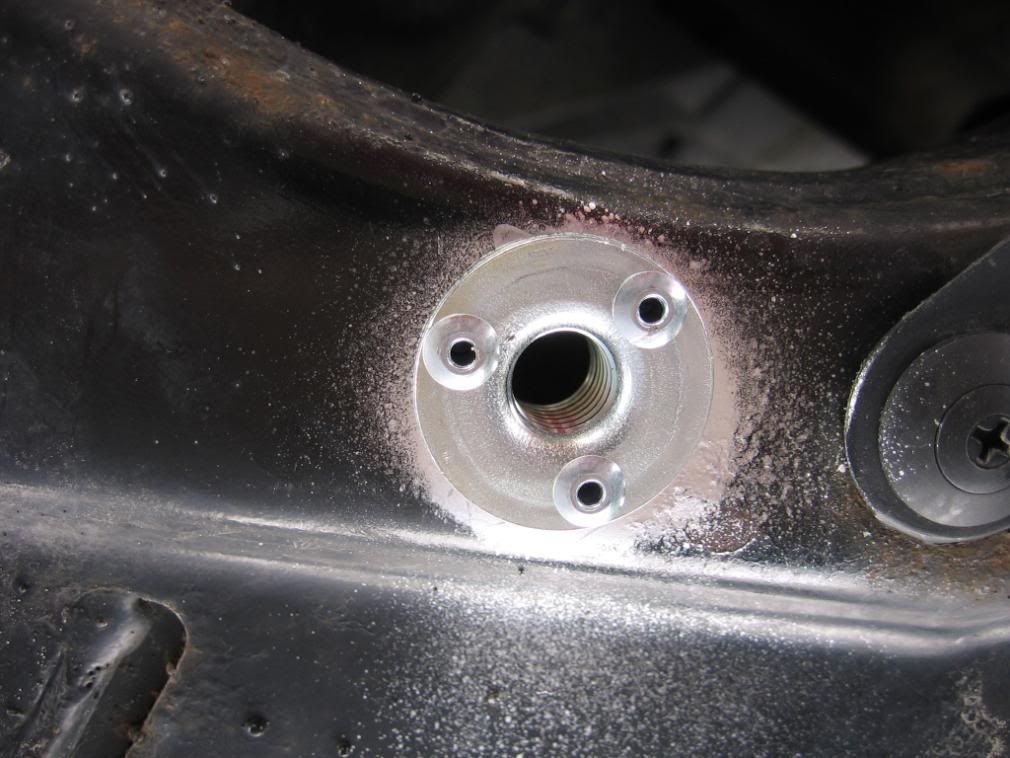

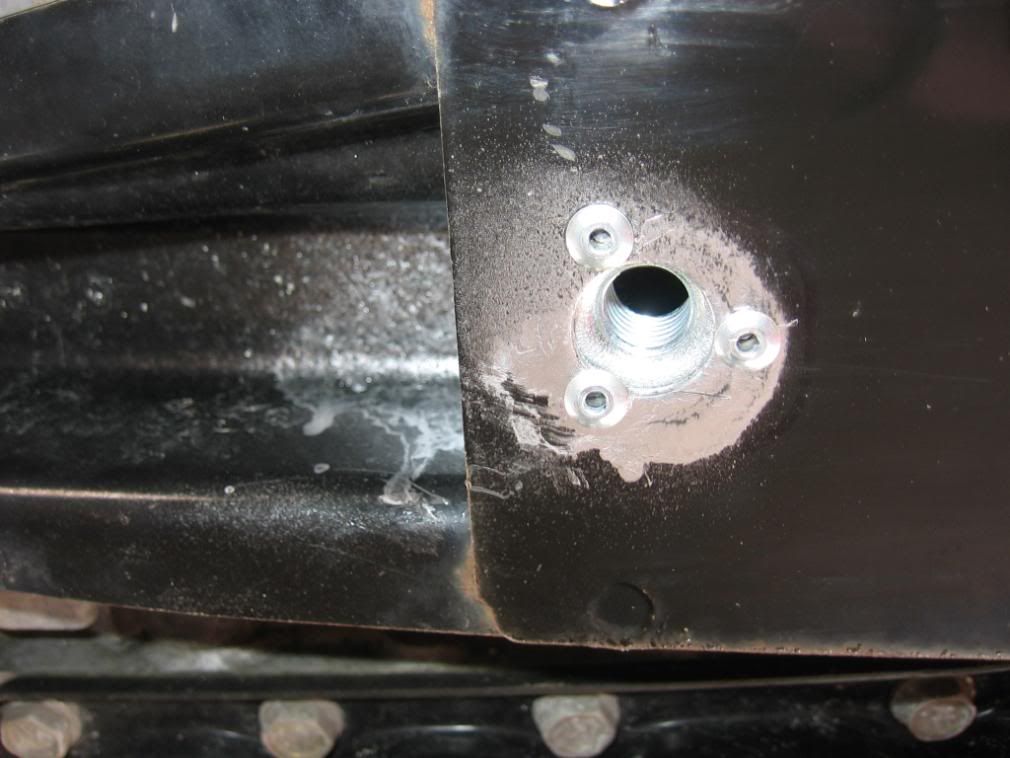

The 1st shot is just the T-Nuts, the 2nd is installed inside the center channel, the 3rd and 4th are installed on the bottom of the rear cross member. I didn't see the need to try and snake them inside the rear channel.

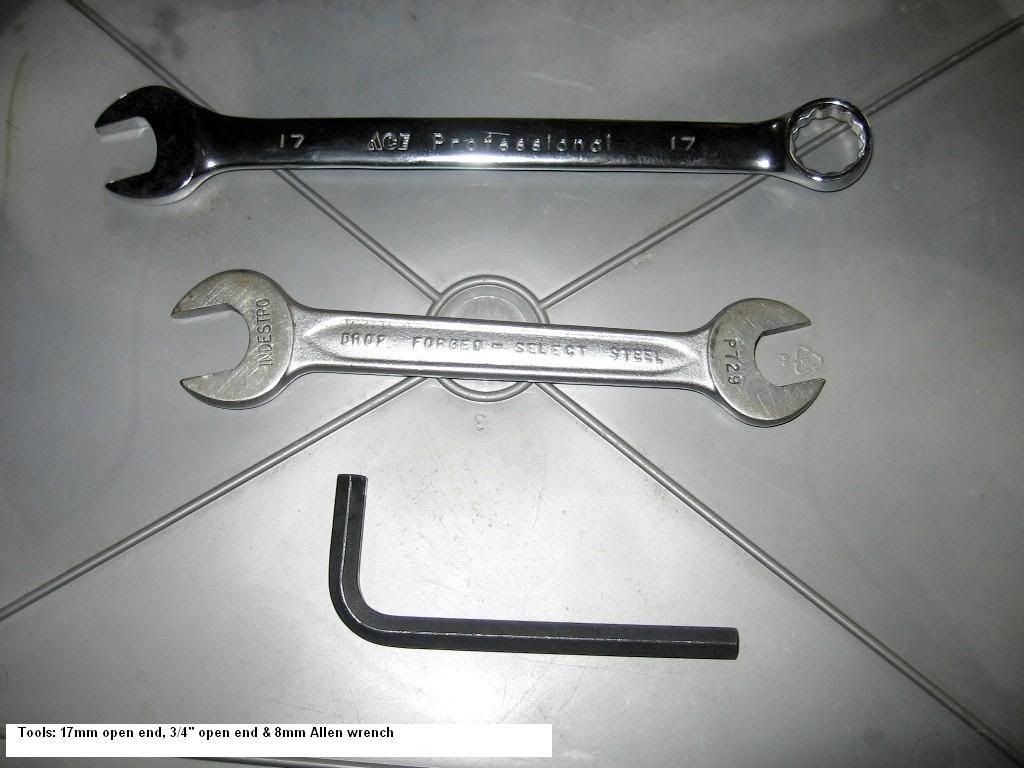

These are the tools that you’ll need. The shorter the 3/4" wrench, the better.

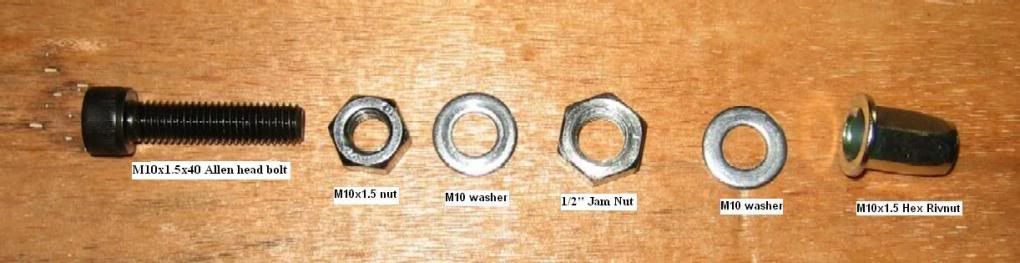

This is the pieces that make up the Assembly tool


This is it assembled. Where it says “lube” I used some wheel bearing grease but tried some air tool lub and found that almost anything will do. This is considered a “low load bearing” surface.



Here's how to use it. http://www.8thcivic.com/forums/do-yo...cargo-net.html
__________________
Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline   Reply With Quote
Unread 05-19-2008, 04:14 AM   #69
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,623
Here are all of the fasteners that are usable for this installation.



The ones from Jeep are not stocked by many of the dealers, so you’ll need to order them. They are slightly smaller than the hex holes so be careful when installing them that they don’t fall in your face when you’re trying to hold the assemble tool and the three wrenches that it takes to install them. I did use one of each of the Jeep Rivnuts on mine just to confirm that they will work. So if you want to get yours from Jeep you have the two options shown.

What I will supply and preferred to use when all was said and done are the three items shown on the left. You’ll need 4 T-Nuts (pop rivets included), 7 of the second one (full Hex) and 2 of the third (half hex). The first one on the left is the T-Nut that I have on order, the second is the Rivnut used in the Sheet Metal Hex Holes and the third is in the rear channel for the fuel tank skid plates. The one used in the sheet metal is a very nice .001” interference fit that will hold it in place while you getting your wrenches on it. I was able to tap them in with a 12oz ball peen hammer. The hex holes do very slightly so some of them took a firmer tap than others but still no problems. The rear most hex hole for the gas tank skid plates takes the smaller one. That hole is actually in a piece of steel that about .2” thick and just didn’t want to cooperate. I used the smaller one there and it worked fine.

For those that are thinking that these are a big difference in size, the .37mm difference between the largest and smallest is only .014”. The hex holes generally measured 12.87 and the smallest Rivnut is 12.55, .32mm = .012”, not a problem.


Installing the Hex Rivnuts – This is really easy too, except for one on the Fuel Tank that I’ll get to a little later. Using the tool as described put a reference mark on the pulling nut, assemble it with the Rivnut on the end and tap it into the hole. Hold the ½” jam nut stationary with a ¾” wrench along with the allen head bolt and turn the M10 nut with a 17mm wrench. Watch you refernce mark on the pulling nut (the M10) and turn it 3 ½ turns. After you’ve done the 3 Rivnuts in the front you’ll develop a feel for how tight these need to be and it will make the rears a bit easier.

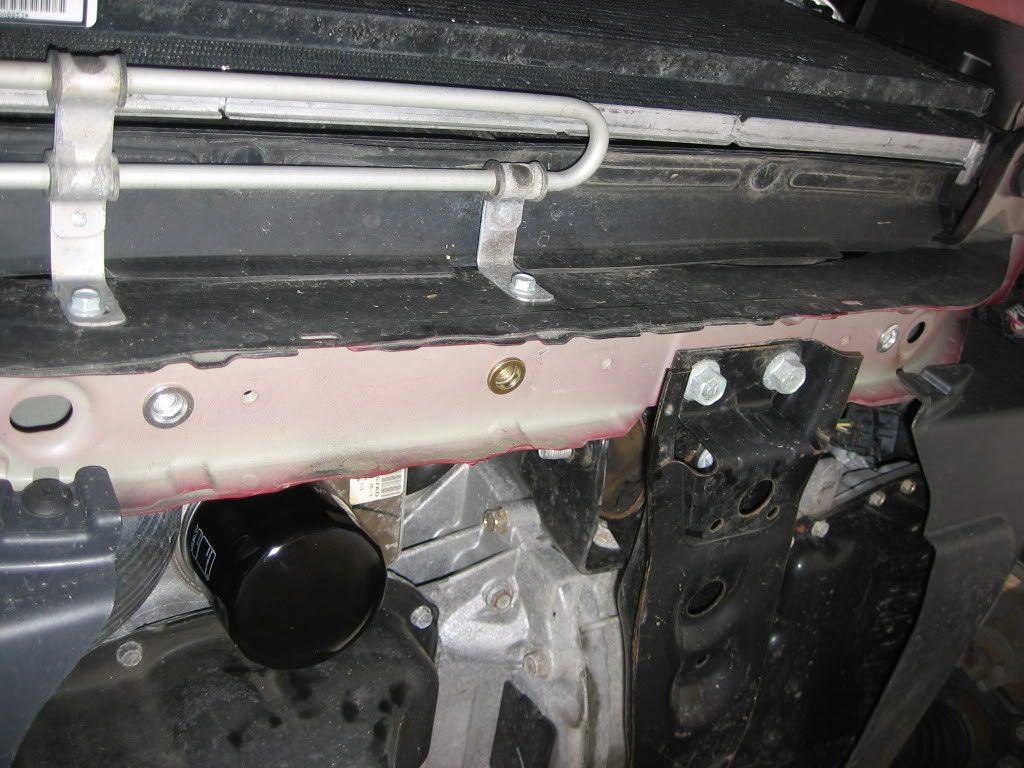

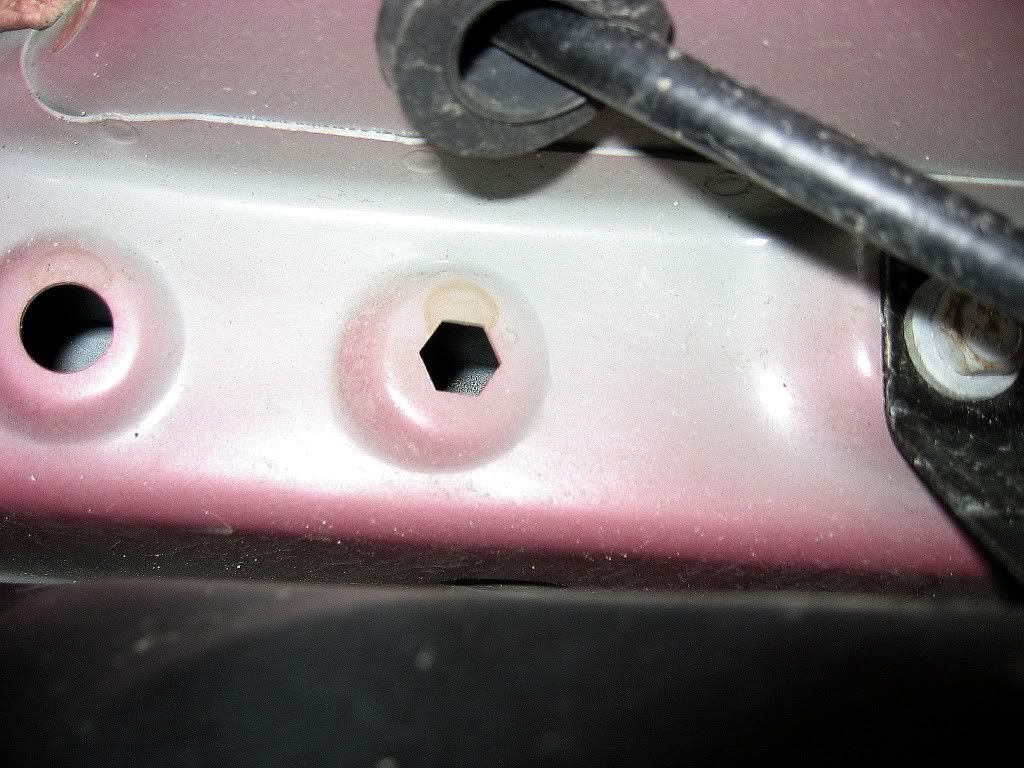

Here are my 3 in the front. The center one is one of my oversized Rivnuts that I used because I slightly oversized that hole while I was experimenting before I made the Assembly Tool. I have these available too if anybody makes a boo-boo. Use the tool as described and you won’t need any of these.

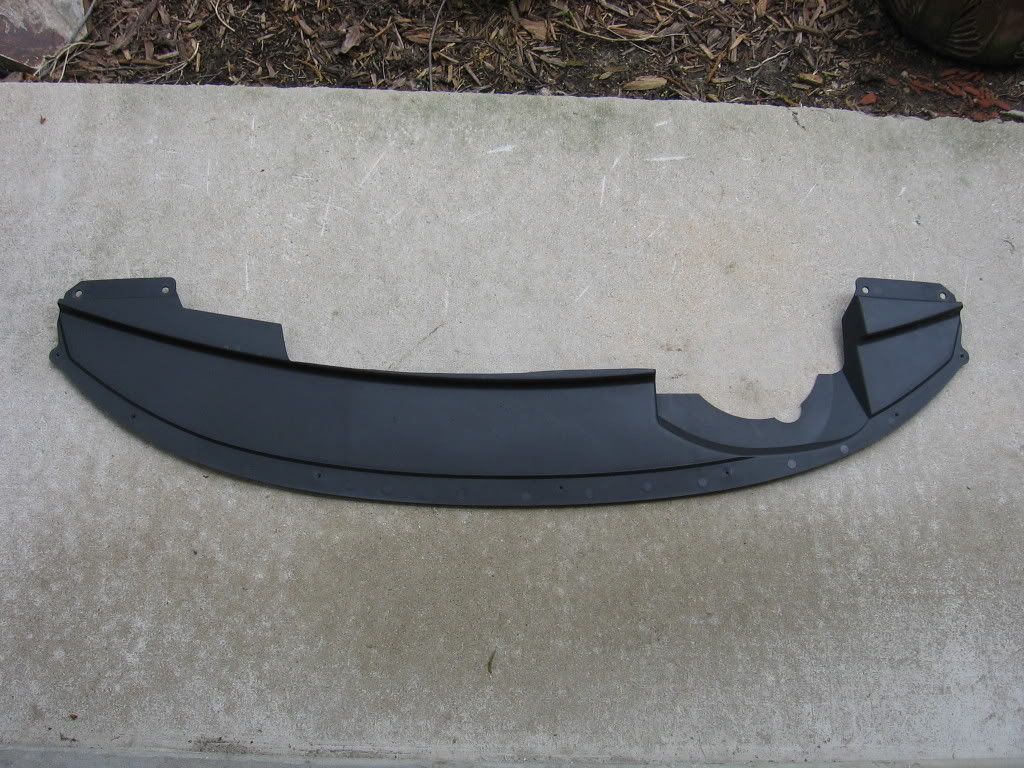

Note on Compass. If you want to re-inastall your front close out you need to trim it. I just drilled the one corner and used a blade for plastic in my jig saw.

Before:



After:



Re-install the close out now.

With the Rivnuts installed your ready to mount the Engine/Trans Skid Plate.

First, just start the three M10x25 bolts/washers in the rear and one of the M10x50 in the center. Now that the skid plate is holding up on its own with these in loosely, push up very hard on the front of the Skid Plate and put in two of the M10x50 bolts. Now swap the long bolt that you had in the center with a short one and put the long one in the remaining hole up front. The reason that the front is so hard to push up is that you are compressing against the side shields. There is nothing else in the way. If you like, now is a good time to remove each bolt separately, put some Threadlocker on it if you didn’t use lock washers and snug each one of them down. If you want a torque spec, don’t go any more than 20 – 25 lb/ft. You don’t want to over compress the Rivnuts. You’re done on the front.

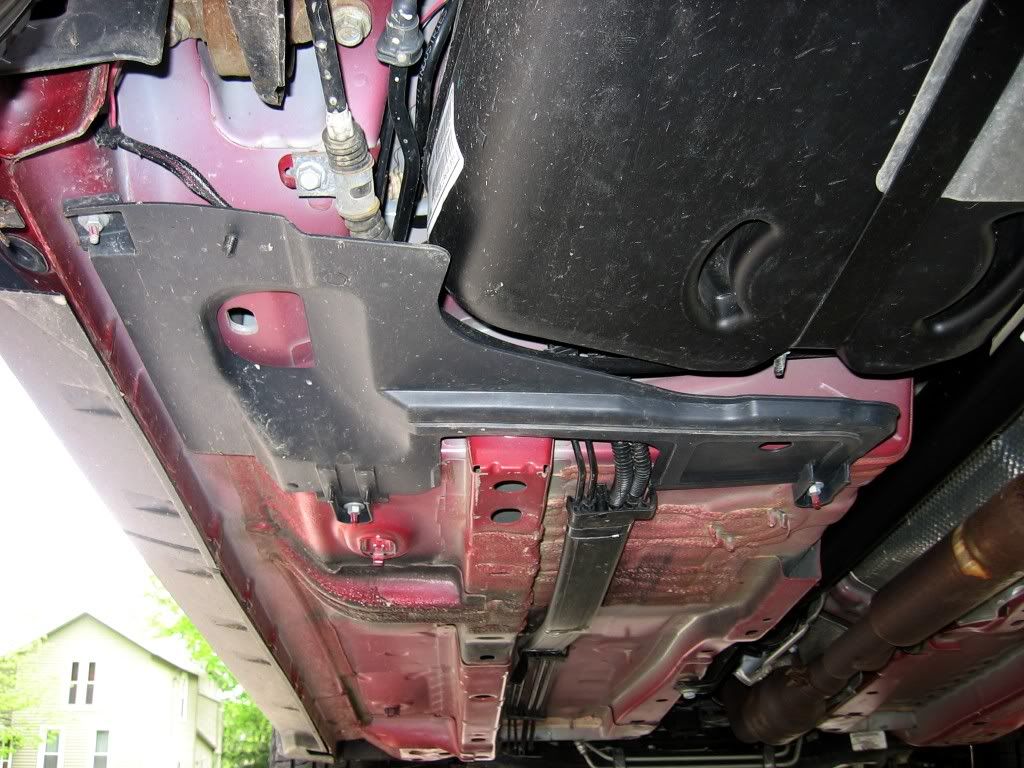

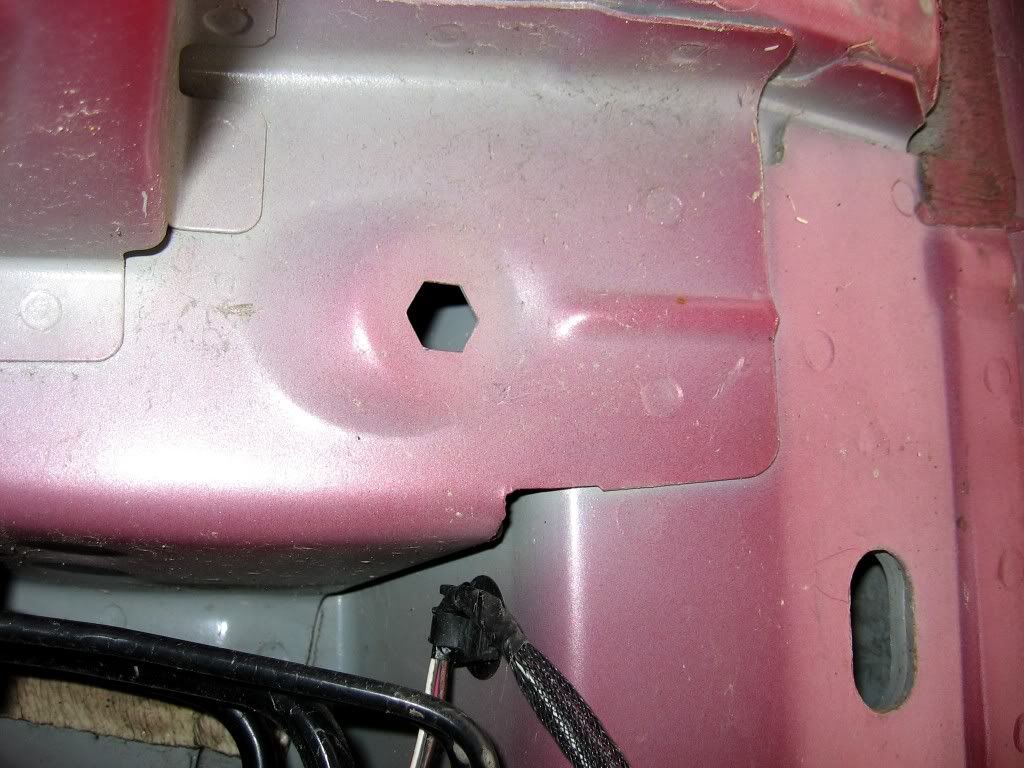

Installing the rear Rivnuts requires that you remove a close out on each side between the body and gas tank. These are used on the Compass but not on the FD II Patriot and I’m not sure about the other Patriots. I can’t find a listing in the parts books for them but the pictures that I have of the FD II don’t show them. Use a 10mm socket to remove the three nuts on the left side and four nuts on the right side. There is also a section of wiring harness attached to these. Once you drop the close out down you can push out the plastic retainer for the harness.





Once these are removed you can install the outboard Rivnuts just like you did the three in the front.

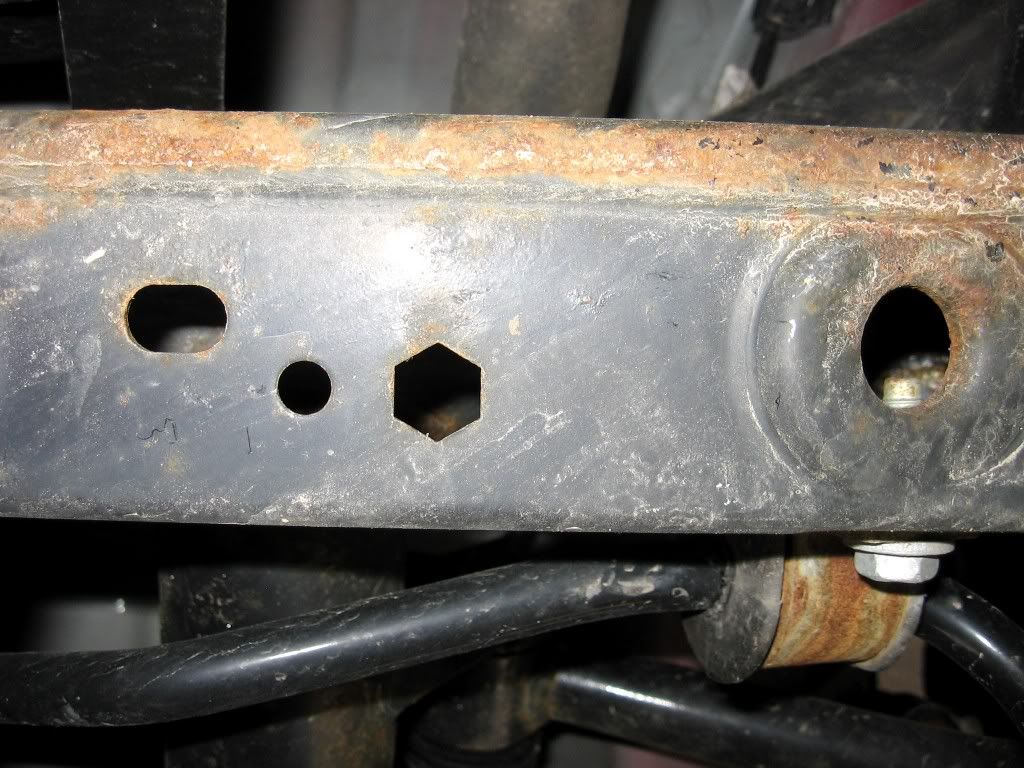

Next install the ones in the rear that goes into the thicker rear framework and uses the ½ Hex Rivnut.

__________________
Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline   Reply With Quote
Unread 05-19-2008, 04:16 AM   #70
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,623
The last two that are mounted higher up are the most difficult. As you can see in the picture there is a cable that gets in the way and it’s just a tight spot to get to. You won't be able to get your hammer up in there to drive the Rivnut in the hole, I used a 6" extention for 3/8" drive to tap it in. The extention takes up some of the shock so you'll need a couple of good whacks to seat the Rivnut. I put the long end of the allen wrench in the cap screw and stuck a 10mm deep socket on the short end to help hold it steady. You can only get a short turn on the pulling nut but these are your last two, don’t give up!



When these are all installed you can put some Threadlocker on the rear and upper bolts w/washers and start them in the Rivnuts, hook the Fuel tank skid plates into place and install the outboard bolt/washer and Threadlocker and tighten everything down.

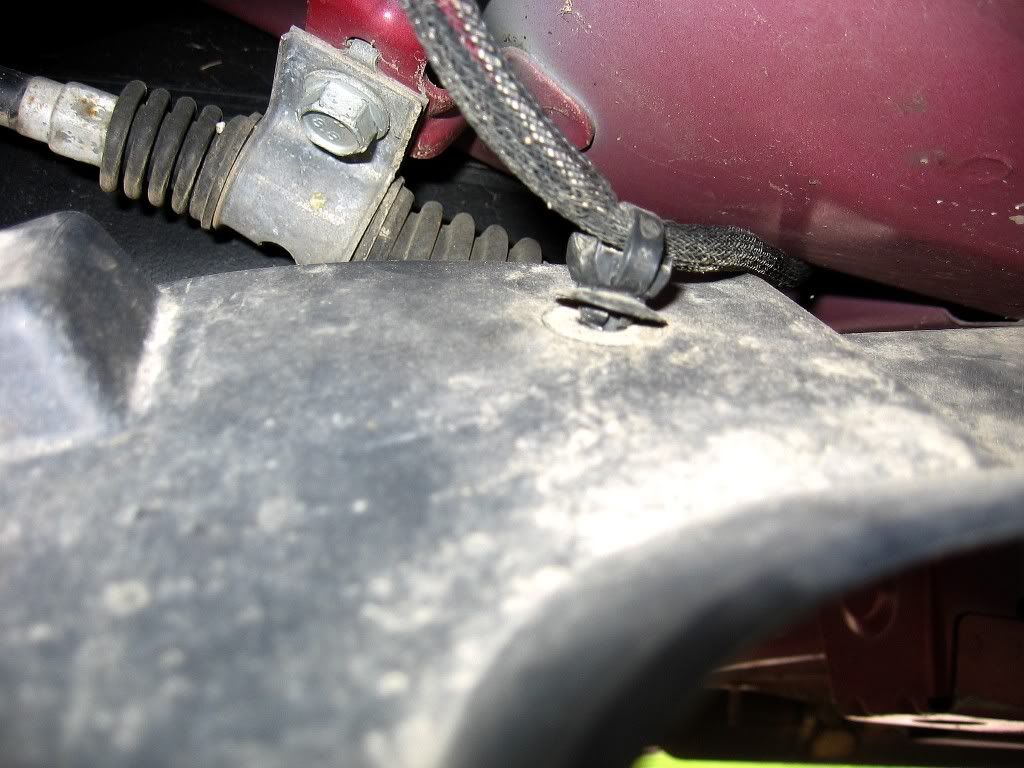

Last step. Use a wire tie to pull that little bit of wiring harness that was attached to the close outs over to the bracket that’s handy. It will require that you trim the close outs if you want to install them correctly. I didn’t see the need since the FD II doesn’t use them.



Final Note: If you change your own oil, you’ll need a socket type Oil Filter Wrench.

Rivnuts and T-Nuts for sale.
__________________
Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline   Reply With Quote
Unread 02-08-2009, 07:05 PM   #71
fortuneer
Member

fortuneer's Avatar
2007 MK Compass

Join Date: Jun 2008
Location: Biloxi, Mississippi
Posts: 106
Desire armor for my Compass

A number of my fellow Compass and Patriot owners have listed skid plates among their mods. I have looked on various sites including Mopar and cannot find reference to skid plates for these two models. Where can I get ahold of some armor?
__________________
"There's gold in them hills" (and I'm still stuck in Florida!) ...well, in south Miss now, lol

Black '07 Compass Sport 5-speed 4X4 ("Fortuneer"), K&N filter, cat-back exhaust; RR lift, sunroof, trailer tow group, Boston Acoustic audio, sport bars, rear taillight guards, more to come... Finally got it back from the wife so I can let my Neon R/T rest for a rebuild.
fortuneer is offline   Reply With Quote
Unread 02-08-2009, 08:17 PM   #72
Argent33
Registered User
2014 JK Wrangler

Join Date: Feb 2008
Location: Canton, Michigan
Posts: 339
MOPAR offers skid plates - they come standard on the Trail Rated Patriots

Gramps has a how to on how to mount them on a Compass
__________________
~Paul

-[O l l l l l l l O]- 2014 Freedom Edition JKU - Hydro Blue 6-Spd
Argent33 is offline   Reply With Quote
Unread 02-09-2009, 04:01 AM   #73
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,623
Threads merged. See above.
__________________
Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline   Reply With Quote
Unread 08-09-2009, 09:54 AM   #74
udmover
Registered User
2011 WK

Join Date: Dec 2006
Location: , Delaware
Posts: 28
Skid Plates?

Anyone know of a skid plate supplier for the Patriot? I can't seem to find any on the Mopar website... yet I have seen and heard of people having them installed. Also, if it is a non-Mopar part and installed by someone other than the dealer, are there any warranty issues to worry about?
udmover is offline   Reply With Quote
Unread 08-09-2009, 10:38 AM   #75
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,623
Quote:
Originally Posted by Gramps View Post
The front one is 5105236AB (superseded from AA) which Mopar Specifies as the "Engine/Trans Skid Plate" for MK's from 2007-2009.

The gas tank 'skid plates' are 5105234AA (right) and 5105235AA (left).

Credit goes to Jeepster for finding the correct part number for the Front Skid Plate. My parts people came up with the right numbers for the Gas Tank Skid Plates but could only come up with the Front Belly Pan number of 5116372AB which is plastic.
Just the OEM are the only ones that I know of that are commercially available. I'm sure there have been a few custom made units but I have no sources.

See previous posts for installation info.

NOTE: The 3 front holes under the radiator are round on the '08/'09 not hex like the '07. I have been supplying T-nuts for these to be welded in. They maybe able to be pop-riveted in to place but I have had no feedback as to actual hole size and how much edge distance there is to hold a pop-rivet so I'm unsure as to what was finally done but that means there have been no complaints either.
