Unread 03-18-2013, 09:49 AM   #1
Kenny-g
Registered User
2013 JK Wrangler

Join Date: Nov 2012
Location: Goodfellow AFB, TX
Posts: 515
"Raptor [Grille] LEDs" Mod

My write up from another forum. I love the outcome and am very satisfied with how everything looks/operates! Maybe someone else will like the idea and do it too.
Quote:
Originally Posted by Kenny-g View Post
Over the weekend I completed project Raptor LEDs as I've nicknamed it...I was over thinking it before and didn't want to attempt it but after making one sketch/blueprint I realized that it's really not that complicated so I got my horrible sketch of a blueprint down and started my work.

Kind of starting to look like the diagram lol

Completely done with soldering. It's funny how I thought that this would be the hardest part of the porject before I actually got into it but it ended up being the easiest since it's pretty straight forward...either you solder them good or you don't. In which case you just start over. The instalation was more of a PITA because it required meticulous planning and figuring out how to zip tie things around other things so as to not let the wiring look bad. Anyways, pic of the finished soldering;

This is the layout to help give y'all an idea of how it'll be wired up.

The top right is the add-a-circuit that'll obviously be in the fuse box and the wiring will go behind the grille, above the radiator, and in front of the fan shroud. The negative wire is the bottom left wire and that will be connected with one of the other already present grounds around the front end of the Pat.

The instalation should only take a hour if you know exactly how you're going to run the wiring and if you know you have the correct length wires. I didn't know either for sure. All I knew is where I wanted to mount them and that the positive wire was going to the fuse box and the negative was going to a ground near the drivers side headlamp. The crappy part is when I started I dropped a nut and then a socket in the engine bay and couldn't find it -___- fail...an hour and a half later I found it with the help of my buddy who's a certified Chrysler tech who just happens to be in the Air Force now lol Anyway so on with the install.

To take off the plastic piece that sits above the empty space behind the grille; undo the two 10mm bolts out of the ends and then use a hex bit (6 sided star) to remove the 7 small screws connecting it to the grille. Once done take two screw drivers and go to town on the annoying body push pin things (5) that attach the plastic to the radiator frame/hood latch frame, whatever it's actually called. The pics are in order as described;


Right next to the intake thing you can see where one of those push pin things go;

I didn't take a pic of it but take off the intake thing pictured above by twisting the two screws to the left. Easy peasy.

*note: To be honest, I hate those damn push pins cause they're a PITA to get to in some of their locations do I only reinstalled the 3 that were the easiest to get to. I still have the other two but I am not going to reinstall them.

Now you have your plastic piece off the top so you have a lot of room to work with now to begin routing your wiring.

The add-a-circuit was used on the ignition/AC fuse (22 I believe?) so the lights come on when the key is turned so they will always be on as long as the key is in and turned.

Close up;

Then I drilled a hole through this spot on the box and through its lid;


Where I grounded them;

This is the drivers side connector for the LEDs wiring to plug into. I elected to go this route so that if an LED burns out for whatever reason it would be easy to replace.
[imh]http://i726.photobucket.com/albums/ww263/KennyWilcox/CA1A5608-B875-4730-B1EA-458CD6CA72D4-83486-000071DB138AC552_zps0a7dcc92.jpg[/img]
The passenger side connector;


At this point the center connector is just laying in the middle until I could figure out a good place to zip tie it or something. I brought the LEDs and their wiring inside so I could figure out how I'm going to mount them and wrap the wiring to keep them from water.

Side note, you know you're from the south when you come inside from workin on your vehicle and get a glass of sweet tea lol


I figured the best way to mount them for now is to use [GULP] insane super glue (an all weather Loc-Tite product). I don't like using this but this stuff is super durable and tough.

Passenger side;

Center;

Drivers side;

DS wiring;

Center wiring;

PS wiring;


Now you're done! Just put the plastic pieces back on the same way you took the off. If I could do it again, I'd do the 7 small screws first and then the bolts by the fender and lastly the push pins. I believe I stripped one of the small screw holes but it was only one.

Night pics;




During the day, they are barely noticable which is fine since I don't have daytime running lights anyway. When the key is in the ignition and turned to the AC and completely turned over.

All in all, I am very pleased and this is a pretty easy project I plan to extend the positive wire because I don't like it sitting atop the intake thing.


__________________
Project; LOST YETI
'13 Wrangler Sport "Lee-Roy2.0"
32" BFGoodrich Mud Terrain T/As | Rubi MOABs | OMIX-ADA Locking Lugs | Rough Country hybrid front bumper & 8K lb Smittybuilt winch coming soon!
Kenny-g is offline   Reply With Quote Quick reply to this message
Unread 03-21-2013, 07:15 AM   #2
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,623
Any thoughts on doing all 7 slots?
__________________
Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline   Reply With Quote Quick reply to this message
Unread 03-21-2013, 08:12 AM   #3
Kenny-g
Registered User
2013 JK Wrangler

Join Date: Nov 2012
Location: Goodfellow AFB, TX
Posts: 515
Wouldn't be hard to do...just splice in 4 more lights. Since they don't pull hardly anything you shouldn't have any issue with this. I preffered the three because I drew my inspiration from the Raptors grille with 3 LEDs. Plus, IMO, it would start to look too much like a semi truck with too many small LED's on the front of it haha

Sadly, two days after finishing this project I traded the Pat in for a '13 Wrangler. I had no intentions of doing so, I just got the bug to look again and they made me a insane deal that I couldn't pass on.
__________________
Project; LOST YETI
'13 Wrangler Sport "Lee-Roy2.0"
32" BFGoodrich Mud Terrain T/As | Rubi MOABs | OMIX-ADA Locking Lugs | Rough Country hybrid front bumper & 8K lb Smittybuilt winch coming soon!
Kenny-g is offline   Reply With Quote Quick reply to this message
Unread 03-21-2013, 08:31 AM   #4
Lehman26
Registered User
2012 MK Compass

Join Date: May 2011
Location: columbia, pa
Posts: 352
Congrats on the new wrangler any pics? 2 or 4 door?
Lehman26 is offline   Reply With Quote Quick reply to this message
Unread 03-21-2013, 08:33 AM   #5
misfit77
Registered User
1996 ZJ

Join Date: Sep 2012
Location: tucson, az
Posts: 631
That's a wrangler?
misfit77 is offline   Reply With Quote Quick reply to this message
Unread 03-21-2013, 08:48 AM   #6
Lehman26
Registered User
2012 MK Compass

Join Date: May 2011
Location: columbia, pa
Posts: 352
Quote:
Originally Posted by misfit77 View Post
That's a wrangler?
Not in the pics above..I was referring to kenny-g in last post he just traded that patriot for a '13 wrangler
Lehman26 is offline   Reply With Quote Quick reply to this message
Unread 03-21-2013, 09:18 AM   #7
Kenny-g
Registered User
2013 JK Wrangler

Join Date: Nov 2012
Location: Goodfellow AFB, TX
Posts: 515
Thanks. It's a White 2 door sport. I made a thread titled "Took the plunge" in the JK area, two pics are in there haha
__________________
Project; LOST YETI
'13 Wrangler Sport "Lee-Roy2.0"
32" BFGoodrich Mud Terrain T/As | Rubi MOABs | OMIX-ADA Locking Lugs | Rough Country hybrid front bumper & 8K lb Smittybuilt winch coming soon!
Kenny-g is offline   Reply With Quote Quick reply to this message
Unread 03-21-2013, 09:24 AM   #8
XtrailratedJ
Registered User
1996 XJ Cherokee

Join Date: Apr 2008
Location: Tampa, FL
Posts: 952
Now do it on the JK!!!!!!!!!!!!!!
__________________
96 XJ 4.0L/AX15/NP231/AUSSIE'D D30/C8.25/4.5" RE LIFT/33'S/BUMPERS, SLIDERS, ETC...
"I pitty the fool who lists D30's and 31's, then tries to talk **** on PBB":

Originally Posted by Durt_Diver:
Those pics might be a little too flexy for this thread. You don't happen to have any pics of your friends xj on a curb by chance?
XtrailratedJ is offline   Reply With Quote Quick reply to this message
Unread 03-21-2013, 09:45 AM   #9
Kenny-g
Registered User
2013 JK Wrangler

Join Date: Nov 2012
Location: Goodfellow AFB, TX
Posts: 515
Lol I'd use RI Dually's If I could afford them...sam thing, right? lol
__________________
Project; LOST YETI
'13 Wrangler Sport "Lee-Roy2.0"
32" BFGoodrich Mud Terrain T/As | Rubi MOABs | OMIX-ADA Locking Lugs | Rough Country hybrid front bumper & 8K lb Smittybuilt winch coming soon!
Kenny-g is offline   Reply With Quote Quick reply to this message
Unread 03-22-2013, 08:27 AM   #10
tommudd
Registered User
2004 KJ Liberty

Join Date: Aug 2008
Location: Central OH/ Moshi Tanzania, Ohio/Tanzania
Posts: 4,241

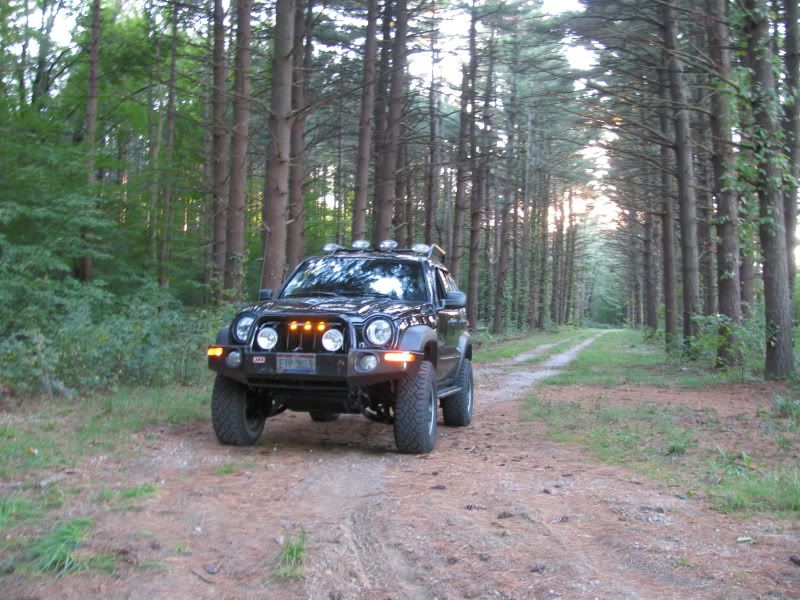

You're late to the party,
Did those on my KJ about 5 years ago
__________________
04 Liberty, Kilimanjaro Edition, Rock Lizard RockRails/Roof Rack/Front-Rear bumper,32 inch Goodyear Duratracs,Moabs,4.10s/ 4.25 inch JBA Coilover lift /other goodies
tommudd is offline   Reply With Quote Quick reply to this message
Unread 03-22-2013, 11:50 AM   #11
Tiddy
Registered User

Join Date: Mar 2013
Posts: 5
Looks good, good job
Tiddy is offline   Reply With Quote Quick reply to this message
Unread 03-22-2013, 12:55 PM   #12
Kenny-g
Registered User
2013 JK Wrangler

Join Date: Nov 2012
Location: Goodfellow AFB, TX
Posts: 515
"Raptor [Grille] LEDs" Mod

@ tommudd, looks sweet! But I wanted to make a thread for Patriot owners to follow easily.
