position springplate left/right rear strut

Hello,
sorry I'm not perfect in English.
Has anyone information or pictures for the position of the springplate left/right rear strut.
Distance of plate to the tire is different, this can be done wrong when installing mount.

Greeting from Germany,
offi

offi is offline
Sponsored Links
Advertisement

post #2 of 11 Old 08-01-2009, 06:54 PM
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville
Posts: 5,623
I don't have any measurments, I'm not sure what needs to be measured. See is any of these pictures on the lift kit installation help you yo out. Let me know, please.

http://www.jeepforum.com/forum/f98/mk-lift-kit-installation-rro-2-1-8-kit-516202/

Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline
post #3 of 11 Old 08-02-2009, 03:13 AM Thread Starter
offi
Registered User
2008 MK Patriot

Join Date: Jun 2009
Location: BRD
Posts: 7
in the pictures on the lift kit installation ́ dont find one.
but look at my pictures, maybe you can compare with you.




offi
offi is offline
post #4 of 11 Old 08-02-2009, 04:47 AM
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville
Posts: 5,623
I didn't recall any differences between the left and right strut assemblies when I did my lift lit so I checked out the '08 parts manual to see if the components were the same and they are except for the spring which is offset. You can download a Parts book from here and take a look at section 17.

Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline
post #5 of 11 Old 08-02-2009, 11:01 AM Thread Starter
offi
Registered User
2008 MK Patriot

Join Date: Jun 2009
Location: BRD
Posts: 7
I think that both stuts are equal.
Maybe I have one of the two 180 degrees twisted built in.
It would be very good if you are look under your pat.

Thank you, offi
offi is offline
post #6 of 11 Old 08-02-2009, 03:57 PM
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville
Posts: 5,623
Quote:
Originally Posted by offi View Post
in the pictures on the lift kit installation ́ dont find one.
but look at my pictures, maybe you can compare with you.




offi
Here you go. Mine is a Compass with the 2 1/8' lift kit and 235/60-18 tires.

Left


Right

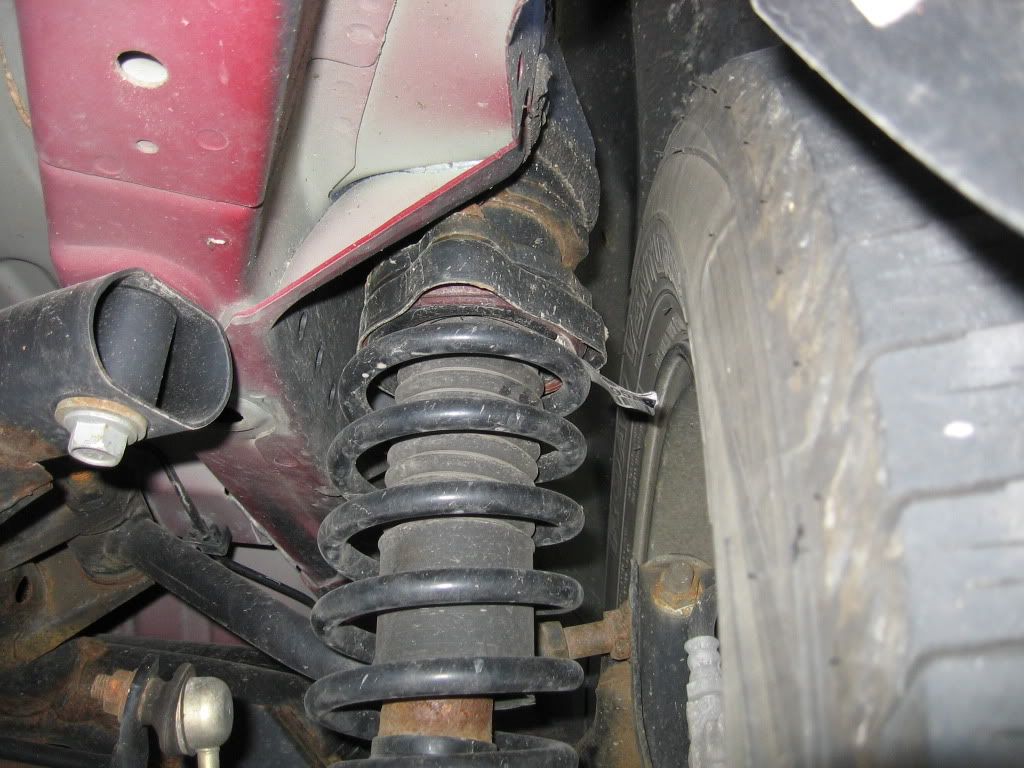

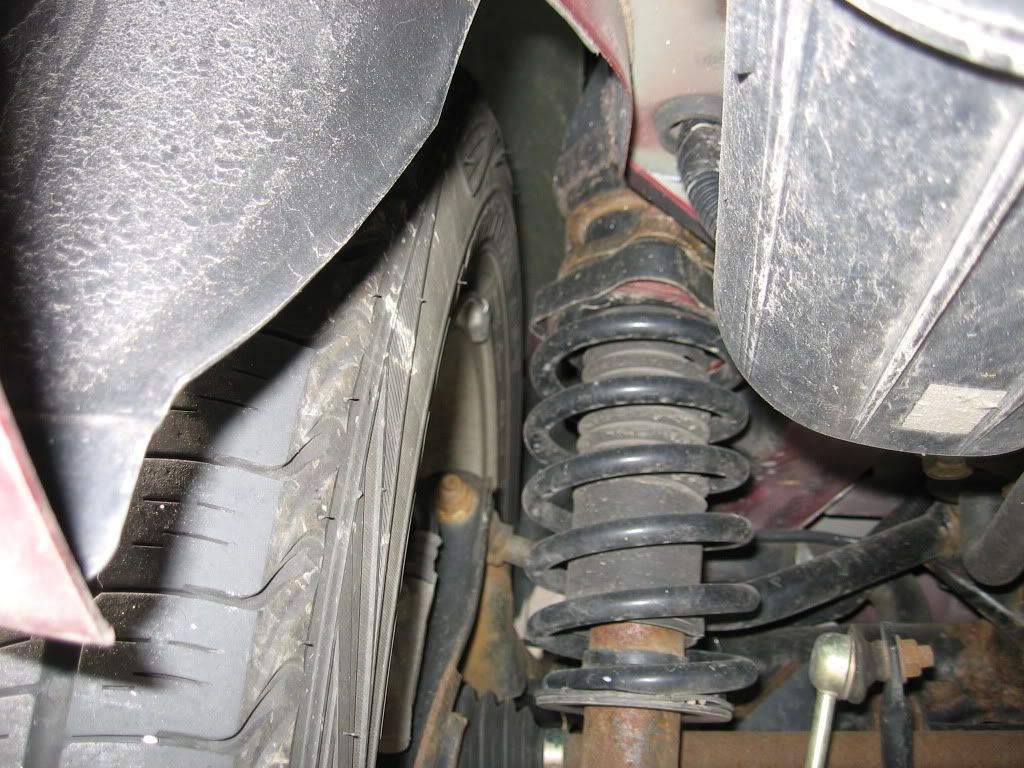

It looks like your drivers side is 180 degrees out. On the top plate the "3 ears" go front, back and to the outside.

Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline
post #7 of 11 Old 08-03-2009, 04:50 AM Thread Starter
offi
Registered User
2008 MK Patriot

Join Date: Jun 2009
Location: BRD
Posts: 7
Bob,
thanks for your pictures.

Yes looks like.
And I must say, then the distance is not very large, therefore may have some contact with the tires.
Before I start with the rebuilding, perhaps there is someone with original chassis?

Greeting offi
offi is offline
post #8 of 11 Old 08-06-2009, 01:21 AM Thread Starter
offi
Registered User
2008 MK Patriot

Join Date: Jun 2009
Location: BRD
Posts: 7
Hello,
I hope that not all of the forum on holliday.
Has no body with standart rear suspension some pictures, or can make some.
I would be start on Monday to change the suspension on the right posion, you would help me so much.


Greeting from Germany
offi is offline
post #9 of 11 Old 08-12-2009, 12:08 PM Thread Starter
offi
Registered User
2008 MK Patriot

Join Date: Jun 2009
Location: BRD
Posts: 7
Hello,
GRAMS is right.
So i have to turn the suspension on the drivers side for 180 degrees to the right position.
Super the light rubber noise is lost.

Thank you, offi
offi is offline
post #10 of 11 Old 08-12-2009, 05:01 PM
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville
Posts: 5,623
Sorry we didn't get more pictures posted for you. I tried to catch my neighbor at home, when it wasn't raining, to get some pictures of hers but things just didn't work out. Glad you got it fixed, though!

Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline
post #11 of 11 Old 08-21-2009, 12:12 AM Thread Starter
offi
Registered User
2008 MK Patriot

Join Date: Jun 2009
Location: BRD
Posts: 7
Hello Gramps,
no problem.
If someone in the forum with rubber noises on back side you can gif them the information, since I am not daily in the forum.
