Unread 01-14-2014, 03:40 PM   #31
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 3,854
Quote:
Originally Posted by Astennis1 View Post
Got bored at work so I made this. FL relay means the front locker relay ect.

Note I have not done this specific wiring for the lockers yet, but is ,from what I understand that the cpu switches on the ground bus, ( which makes since because they can use small switches that do not have to switch under load) technically correct.

Edit: I was thinking about this and you really can sub all of the relays in my drawing for plain ole switches in the cab since you are not on load current. Relays would be a waste of money and wiring time because their is no need to fuse grounds.


Is this a diagram showing where to splice into the OEM system?
Or is it a redesign of the system?

ronjenx is offline   Reply With Quote
Unread 01-14-2014, 04:06 PM   #32
Astennis1
Registered User
2013 JK Wrangler

Join Date: Oct 2012
Location: Ocean Springs, Mississippi
Posts: 208
I took this from your explanation of:

Splice a switch to ground on the violet/light green wire on the rear locker relay, and a switch on the violet/dark blue wire on the front locker relay. You don't bypass the OEM ground wire. You simply tap your wire onto it. That way, the OEM switches will still operate the locker.

This is just taking it a step further and making a master switch so they cannot be accidentally switched
__________________
I LOVE LAMP

13 JKUR
Astennis1 is offline   Reply With Quote
Unread 01-14-2014, 04:09 PM   #33
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 3,854
Quote:
Originally Posted by Astennis1 View Post
I took this from your explanation of:

Splice a switch to ground on the violet/light green wire on the rear locker relay, and a switch on the violet/dark blue wire on the front locker relay. You don't bypass the OEM ground wire. You simply tap your wire onto it. That way, the OEM switches will still operate the locker.

This is just taking it a step further and making a master switch so they cannot be accidentally switched
I asked because the diagram doesn't look like the OEM circuit.
ronjenx is offline   Reply With Quote
Unread 01-15-2014, 02:53 AM   #34
HOKIES2010
Web Wheeler

HOKIES2010's Avatar
2011 JK Wrangler

Join Date: Jul 2010
Location: Navarre Beach, FL
Posts: 1,725
If I wanted to make a switch to prevent accidental engage I would just make a flip cover for the locker swtiches
__________________
HOKIES2010 is offline   Reply With Quote
Unread 01-15-2014, 06:25 AM   #35
Astennis1
Registered User
2013 JK Wrangler

Join Date: Oct 2012
Location: Ocean Springs, Mississippi
Posts: 208
Well I didn't know the oem circuit just went off of what I was told. Either way from the splices out it should work.

This sounds like it is closer to the OEM (plus my splices) from what you talked about in previous post.

Better?

__________________
I LOVE LAMP

13 JKUR
Astennis1 is offline   Reply With Quote
Unread 01-15-2014, 12:14 PM   #36
442Wrangler
In like Flynn.

442Wrangler's Avatar
2008 JK Wrangler

Join Date: Dec 2008
Location: Little Lamplight
Posts: 2,032
Quote:
Originally Posted by brianjw View Post
A locked rear is amazing in soft sand, deep snow etc. It helps to maintain momentum in 4 high rather than having to crawl in 4low. Traction control can really screw you in 4 high in the JK where it cannot be disabled. Not for everyone or every condition but it can be much more helpful in certain instances.
I can disable it (and have) on my 08...so nice to be in control of my car not some crazy compuper.
__________________
2008 JK Rubicon
-255/80/17 BFG KM2s, 16/59 JKU springs, 2013 Rubi rims, RC stubby hybrid front bumper, XRC8 winch with synthetic line, RR evap skid, and more to come

1998 TJ Sahara Sold
-3.25" RC spring lift, Eagle alloys 125s, 33x12.5x15 Cooper STTs, XRC8 winch with stock bumper mount

1994 YJ SE Sold
-4" RC spring lift, 33x12.5x15 Firestone M/Ts, Eagle alloys 125, and a 4 cylinder to boot

1960 Willys Wagon
-Going to be restored and painted Omaha Orange


"I would rather wake up in the middle of nowhere than in any city on earth."
-Steve McQueen

Male RN Jeep Club #1
442Wrangler is offline   Reply With Quote
Unread 01-15-2014, 08:02 PM   #37
MontyTJ02
Registered User
2008 JK Wrangler

Join Date: Oct 2004
Location: Western Taxachusettes
Posts: 1,055
Quote:
Originally Posted by Astennis1
Well I didn't know the oem circuit just went off of what I was told. Either way from the splices out it should work. This sounds like it is closer to the OEM (plus my splices) from what you talked about in previous post. Better?
Do we really need all the relays? BTW that diagram was awesome! I'm going to try this mod this weekend.
__________________
FireFighter's Jeep Club #84

I started out with nothing and still have most of it left.

Im getting tired of thinking...guess I'll do some wishful drinking.
MontyTJ02 is offline   Reply With Quote
Unread 01-15-2014, 08:07 PM   #38
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 3,854
Quote:
Originally Posted by MontyTJ02 View Post
Do we really need all the relays?
No.
Just a wire connected to the violet wire from the OEM locker relay, a switch in the cab, and a short wire from the switch to any handy ground point.

Astennis1,
Yes, your new diagram is much better.
ronjenx is offline   Reply With Quote
Unread 01-15-2014, 09:48 PM   #39
INowUnderstand
Registered User
1986 CJ7

Join Date: Dec 2012
Location: San Angelo, Texas
Posts: 226
As mentioned no the extra relays not needed because that curcuit is not handling the high amp power draw of the locker. It is only turning on a relay which is a very small amp draw. So normal switches can handle it. So all you have to do is put switches to connect to ground. You can still put in a master by putting in another switch on a common ground coming from both switches.
INowUnderstand is offline   Reply With Quote
Unread 01-16-2014, 06:53 AM   #40
Astennis1
Registered User
2013 JK Wrangler

Join Date: Oct 2012
Location: Ocean Springs, Mississippi
Posts: 208

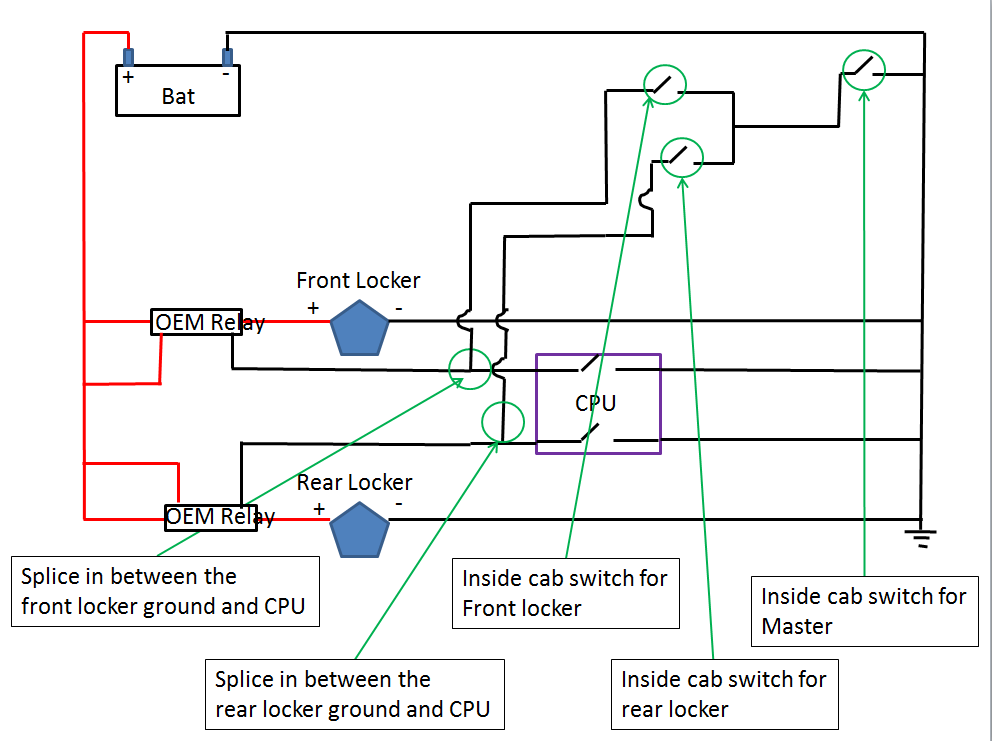

Yeah I forgot about the OEM relays used to switch the lockers in the first drawing, which is why my wiring has relays. Just didn't feel like removing them.


Third times a charm.

__________________
I LOVE LAMP

13 JKUR
Astennis1 is offline   Reply With Quote
Unread 01-16-2014, 08:36 AM   #41
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 3,854
Quote:
Originally Posted by Astennis1 View Post
Yeah I forgot about the OEM relays used to switch the lockers in the first drawing, which is why my wiring has relays. Just didn't feel like removing them.


Third times a charm.

Even better, but quite there, yet.

The notes "Splice in between the rear [front] locker ground and CPU" should read
"Splice into the violet wire between the rear [front] locker relay and the cpu".
ronjenx is offline   Reply With Quote
Unread 01-16-2014, 12:39 PM   #42
Astennis1
Registered User
2013 JK Wrangler

Join Date: Oct 2012
Location: Ocean Springs, Mississippi
Posts: 208
Yeah I missed that, but not changing it. Thanks.
__________________
I LOVE LAMP

13 JKUR
Astennis1 is offline   Reply With Quote
Unread 01-17-2014, 05:41 AM   #43
MontyTJ02
Registered User
2008 JK Wrangler

Join Date: Oct 2004
Location: Western Taxachusettes
Posts: 1,055
Quote:
Originally Posted by Astennis1
Yeah I forgot about the OEM relays used to switch the lockers in the first drawing, which is why my wiring has relays. Just didn't feel like removing them. Third times a charm.
Perfect! Thanks!
__________________
FireFighter's Jeep Club #84

I started out with nothing and still have most of it left.

Im getting tired of thinking...guess I'll do some wishful drinking.
MontyTJ02 is offline   Reply With Quote
Unread 01-29-2014, 01:44 PM   #44
ar325
Registered User

Join Date: Nov 2013
Location: Gilbert, Arizona
Posts: 29
thanks for the post
