rubicon guys. need a bit of help

Okay ive been trying to find a certain item that only comes on the Rubicons. Its the little panel with the locker switches. I've looked and looked but just cant seem to find it. Can someone help me out with a place to buy one other than the stealership. Also are the buttons for the lockers momentary or not? Thanks

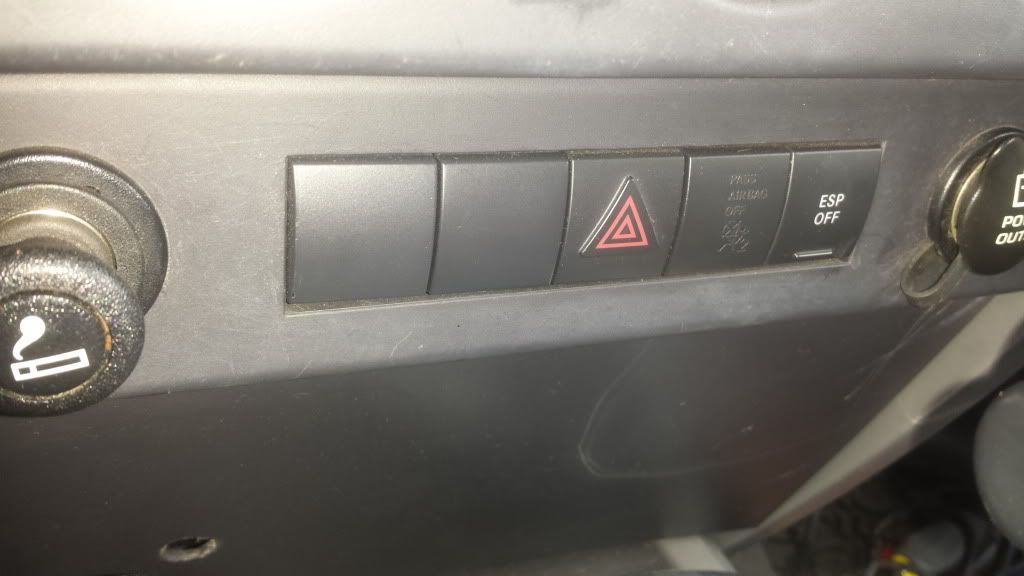

heres a pic of what im trying to get but t u e Rubicon version




__________________
2007 JK Sahara- trying to figure this one out


2005 WK 9" lift on 37's with all the goodies- regretfully sold :(
jager00 is offline   Reply With Quote
Unread 10-08-2013, 11:47 AM   #2
Spank
Registered User
2012 JK Wrangler

Join Date: Jul 2007
Location: Colorado
Posts: 1,022
You mean this?

http://www.quadratec.com/products/52446_110.htm

Keep in mind that you can't simply install it and call it good. It will require programming. Unless, of course, you want to wire it up the buttons directly to the lockers.
__________________
'12 Wrangler Unlimited Rubicon
Spank is online now   Reply With Quote
Unread 10-08-2013, 11:53 AM   #3
jager00
Registered User
2005 WK

Join Date: Apr 2009
Location: salisbury, maryland
Posts: 3,840
Yes thank you! How does it electronically disconnect the sway bar?
__________________
2007 JK Sahara- trying to figure this one out


2005 WK 9" lift on 37's with all the goodies- regretfully sold :(
jager00 is offline   Reply With Quote
Unread 10-08-2013, 11:59 AM   #4
HappyTrails
Registered Voter w/ID

HappyTrails's Avatar
2008 JK Wrangler

Join Date: Nov 2008
Location: West Georgia
Posts: 1,849
Yes, the button for the lockers is momentary push only.
__________________
2008 2-dr Rubicon, auto,
RK 2.5" Max Travel lift, Fox 2.0 shocks, 37" Nittos, 5.38's, River Raider skids, Warn VR8000-S.
RIPP Gen 2 Stg 2 Supercharger.
Re-inventing the circle and straight line.
HappyTrails is online now   Reply With Quote
Unread 10-08-2013, 12:46 PM   #5
RockyClymer
RedRock4Wheeler

RockyClymer's Avatar
2008 JK Wrangler

Join Date: Apr 2008
Location: Colorado
Posts: 4,441
As HT said and jager00 said, you either have to plug it into the canbus system and program it, or you will have to have some flipflop relays and logic as the buttons are momentary contact only as I recall...
__________________
08 JK 23S - Colorado Jeep Club No. 204
Too much to list - see my profile for details on build
NRA Life member
"It takes a special kind of stupid to believe criminals will follow gun laws."
I do not consider myself a smartass. I point out the obvious, search for the truth, and speak fluent sarcasm. I am, by experience, an accomplished curmudgeon.
RockyClymer is offline   Reply With Quote
Unread 10-08-2013, 06:59 PM   #6
Neo1130
Registered User
2009 JK Wrangler

Join Date: Jun 2009
Location: Olympia, WA
Posts: 632
I have a schematic that will work... It uses 4 relays wired to act as a latching circuit... If I can find a PDF upload section I'll upload it... If not, I'll convert to a JPG and post that up as well...
Neo1130 is offline   Reply With Quote
Unread 10-09-2013, 04:53 PM   #7
jmb6420
Engr. & Mechanic

jmb6420's Avatar
2008 JK Wrangler

Join Date: Apr 2011
Location: Tulsa, Ok
Posts: 555
Quote:
Originally Posted by jager00 View Post
Yes thank you! How does it electronically disconnect the sway bar?
By adding this:

http://www.quadratec.com/products/52446_112_07.htm
__________________
Mike
08 Rubicon Red Jeep Club #629

"You can't fix stupid" Ron White

ɹǝʌo ǝɯ dıןɟ 'sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
jmb6420 is offline   Reply With Quote
Unread 10-09-2013, 04:57 PM   #8
jager00
Registered User
2005 WK

Join Date: Apr 2009
Location: salisbury, maryland
Posts: 3,840
Lol looks like I'll not be lazy and do it manually
__________________
2007 JK Sahara- trying to figure this one out


2005 WK 9" lift on 37's with all the goodies- regretfully sold :(
jager00 is offline   Reply With Quote
Unread 10-09-2013, 05:06 PM   #9
jrmars07
Registered User
2010 JK Wrangler

Join Date: Nov 2010
Location: St Louis, IL
Posts: 454
Why do you want all this? This panel is all computer driven and horrible to try and relay anything or put your own switches there. IMO you'd be much better just putting in your own rocker switches.
__________________
[CENTER]2010 2dr Wrangler
2.5" ProComp Lift, Front Adj Trackbar, JKS Disco's
Fox Shocks
Tera Front Lower Controls Arms, Rear Upper Control Arms, Synergy HD Balljoints
Tom Woods 1310 Driveshafts
33" KM2's on ProComp 7069 16x8's
Superchips Flashpaq
AEV Premium Front Bumper, IPF 900XSD Lights, Warn 9.5ti w/ Synthetic Line
AEV Rear Bumper, Tuffy Security Deck
D30 Front Sleeved and Gusseted, RCV's, ARB Locked
4.88 G2 Gears
D44 Rear ARB Locked, Chromoly Shafts[/CENTER]
jrmars07 is offline   Reply With Quote
Unread 10-09-2013, 06:45 PM   #10
jager00
Registered User
2005 WK

Join Date: Apr 2009
Location: salisbury, maryland
Posts: 3,840
I just want it to look like it belongs there. I like the simple yet functional look. Need to get the piece below that to to get rid of that hole. Its bugging me lol
__________________
2007 JK Sahara- trying to figure this one out


2005 WK 9" lift on 37's with all the goodies- regretfully sold :(
jager00 is offline   Reply With Quote
Unread 10-09-2013, 06:46 PM   #11
jager00
Registered User
2005 WK

Join Date: Apr 2009
Location: salisbury, maryland
Posts: 3,840
How are those g2 gears treating you?
__________________
2007 JK Sahara- trying to figure this one out


2005 WK 9" lift on 37's with all the goodies- regretfully sold :(
jager00 is offline   Reply With Quote
Unread 10-10-2013, 08:32 AM   #12
jwmbishop
Registered User
2011 JK Wrangler

Join Date: May 2011
Location: corsicana, tx
Posts: 3,297
You might be better off using the switch set from an 11 - they relocated both locker and sway to a panel under the speaker on the far left of the dash... I find it more of an issue getting to it - but only because I learned to wheel in an 05 so am used to reaching with my right hand. Lost track of how many times Ive turned the seat heater on to climb a rock...
__________________
J Wm Bishop EA, ASADE
How to start an online argument - express opinion - wait.
jwmbishop is offline   Reply With Quote
Unread 10-10-2013, 08:43 AM   #13
JIMBOX
Web Wheeler
2008 JK Wrangler

Join Date: Oct 2008
Location: NORCAL/NORNV
Posts: 4,822
Just remember that the Rubi "momentary" switchs are only signals to the RUBI programmed ECU and each sw. is associated with a multitude of OTHER REQUIRED sensors to operate the lockers/swaybar/4hi/4lo-etc

I think you're wasting time/money and also jeopardizing your systems integrity/lifespan-possible warranty-

Good luck

JIMBO
__________________
Yellow Jeep No. 683
http://i294.photobucket.com/albums/m...10-snow027.jpg
--YA GOTTA HAVE CLASS--
JIMBOX is online now   Reply With Quote
Unread 10-10-2013, 06:59 PM   #14
Neo1130
Registered User
2009 JK Wrangler

Join Date: Jun 2009
Location: Olympia, WA
Posts: 632
Quote:
Originally Posted by JIMBOX View Post
Just remember that the Rubi "momentary" switchs are only signals to the RUBI programmed ECU and each sw. is associated with a multitude of OTHER REQUIRED sensors to operate the lockers/swaybar/4hi/4lo-etc

I think you're wasting time/money and also jeopardizing your systems integrity/lifespan-possible warranty-

Good luck

JIMBO
Yes, but he can also set up his own system that will work just as well, without having to go through the ECU and isn't dependent upon all those sensors... As I said, a momentary switch to activate a latched relay circuit, which energizes whatever motor/solenoid he wants...
Neo1130 is offline   Reply With Quote
