Recessed rear bumper light install

Well to be honest, I've been putting this off for awhile.

Fernjack got me kickstarted with his rear light install.(Thanks Bro..)

I also took the time to paint bedliner behind the bumper, it's hard to wash and road tar is always getting in there. Pics below.

Here's the stuff I used..



Couple of pics showing the crap that gets behind bumper



This is the stuff I used to cleam the tar and other stuff off the area to be bedlined



Bedlining complete..



Continued......


-- Joel --
krutj is offline
Sponsored Links
Advertisement

post #2 of 55 Old 08-07-2010, 02:45 PM Thread Starter
krutj
Web Wheeler

krutj's Avatar
2009 JK Wrangler

Join Date: Oct 2009
Location: NW Pennsylvania
Posts: 1,332

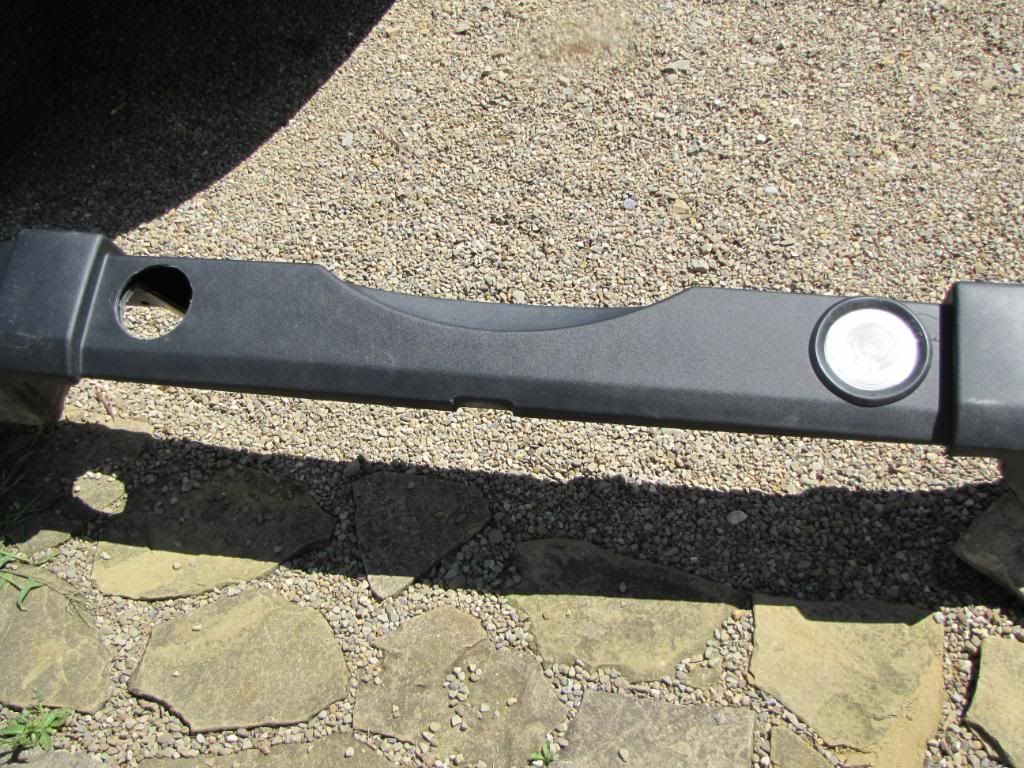

For Cutting the holes, I used a 4 1/2" hole saw. It wasn't big enough, so the dremel came in handy

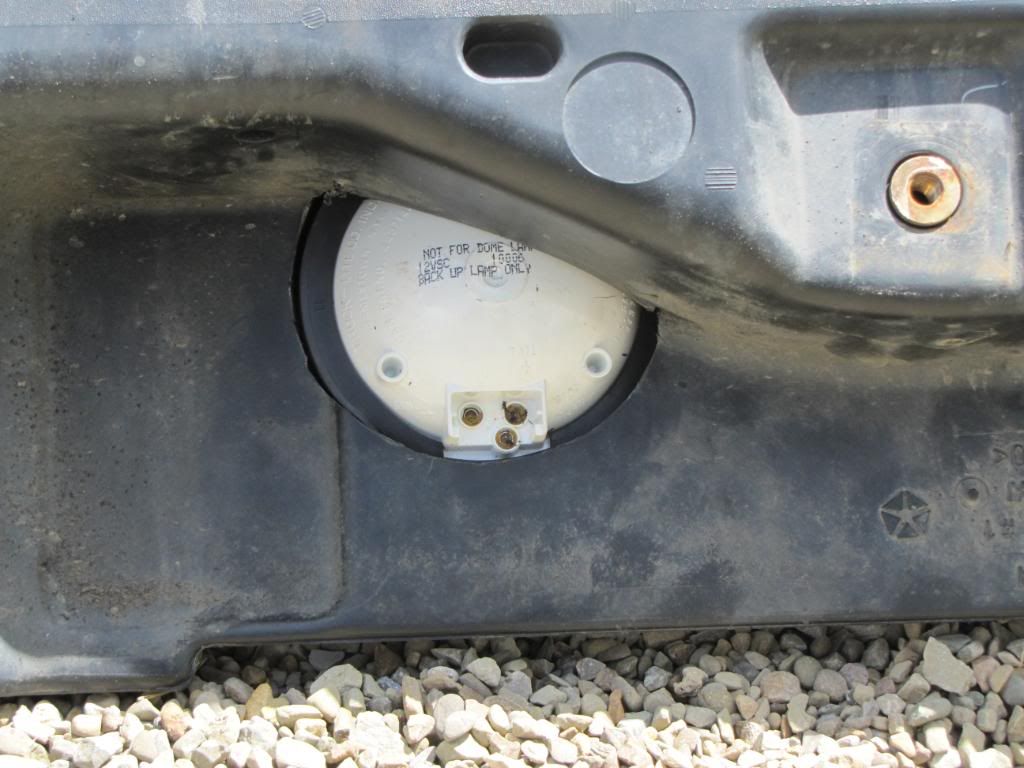

This took some time and some trimming on the backside.

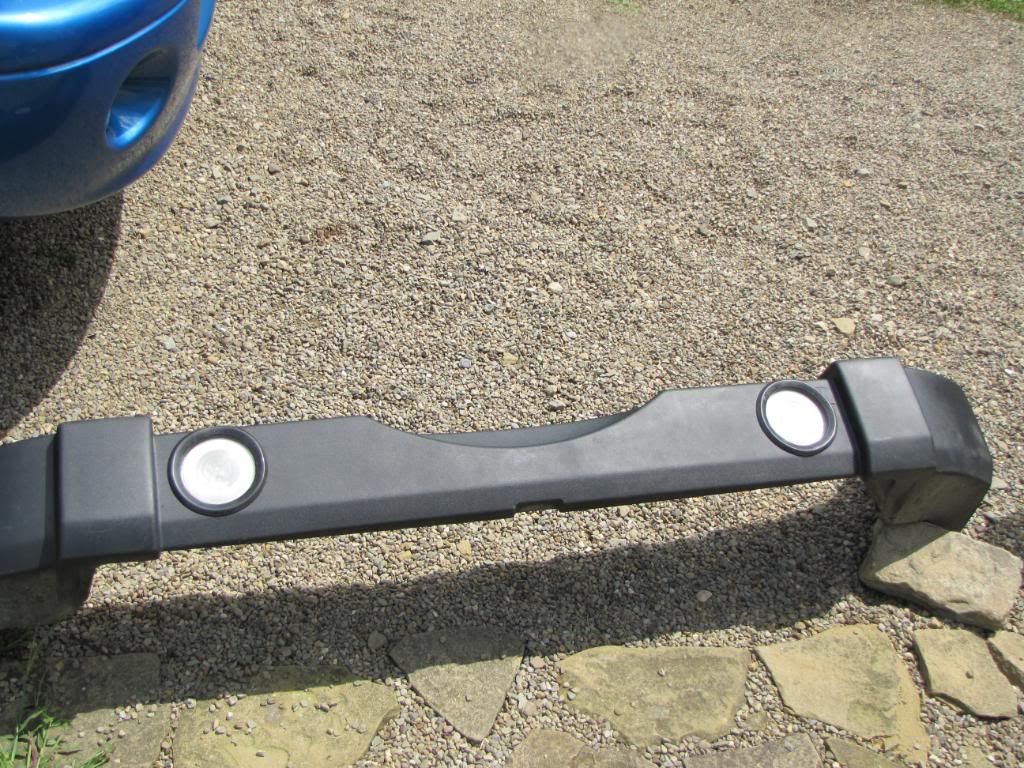

Before re-installing...



All done......



.

-- Joel --
krutj is offline
post #3 of 55 Old 08-07-2010, 02:47 PM Thread Starter
krutj
Web Wheeler

krutj's Avatar
2009 JK Wrangler

Join Date: Oct 2009
Location: NW Pennsylvania
Posts: 1,332

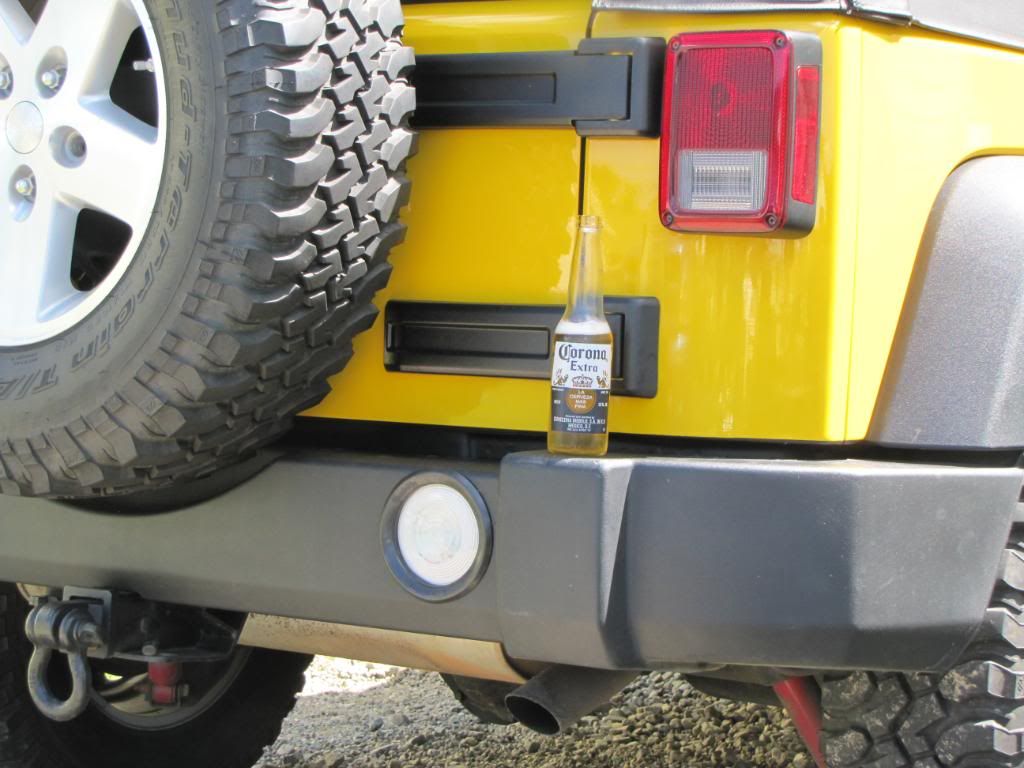

REWARD TIME!!!!!!!!!!!!!!!!!



Took about 5 hours to do everything, minus the beer breaks!

-- Joel --
krutj is offline
post #4 of 55 Old 08-07-2010, 02:47 PM
fernjack
Registered User
2007 JK Wrangler

Join Date: Apr 2009
Location: Winnipeg
Posts: 1,031
Quote:
Originally Posted by krutj View Post
Well to be honest, I've been putting this off for awhile.

Fernjack got me kickstarted with his rear light install.(Thanks Bro..)

I also took the time to paint bedliner behind the bumper, it's hard to wash and road tar is always getting in there. Pics below.

Here's the stuff I used..



Couple of pics showing the crap that gets behind bumper



This is the stuff I used to cleam the tar and other stuff off the area to be bedlined



Bedlining complete..



Continued......
Damn ! Now I gotta take the bumper off again and paint there ! LOL !.........Coulda told me you were going to do that ! LOL ....

07' Rubi Unlimited 6spd. , Rescue green #64 CDN , 35x12.5 mudders
Rick .
fernjack is offline
post #5 of 55 Old 08-07-2010, 02:49 PM
fernjack
Registered User
2007 JK Wrangler

Join Date: Apr 2009
Location: Winnipeg
Posts: 1,031
You did an Awesome job Bro ! Looks sweet ..... like OEM

07' Rubi Unlimited 6spd. , Rescue green #64 CDN , 35x12.5 mudders
Rick .
fernjack is offline
post #6 of 55 Old 08-07-2010, 02:52 PM Thread Starter
krutj
Web Wheeler

krutj's Avatar
2009 JK Wrangler

Join Date: Oct 2009
Location: NW Pennsylvania
Posts: 1,332
Quote:
Originally Posted by fernjack View Post
You did an Awesome job Bro ! Looks sweet ..... like OEM
Thanks bro, I'm still envious of your electrical connector supply......

Painting the area behind the bumper took no time at all, compared to the rest....lol

-- Joel --
krutj is offline
post #7 of 55 Old 08-07-2010, 02:59 PM
fernjack
Registered User
2007 JK Wrangler

Join Date: Apr 2009
Location: Winnipeg
Posts: 1,031
LOL ..... I get lots from the Sparkys on job sites and we have an evil store up here (Princess Auto) which always has stuff on sale (they do mail order) . I've got boxes of LED lights and heatshirnk , all kinds of stuff .....I go mental in there LOL . My ex pretty much banned me from going there on my own LOL ...

07' Rubi Unlimited 6spd. , Rescue green #64 CDN , 35x12.5 mudders
Rick .
fernjack is offline
post #8 of 55 Old 08-07-2010, 03:31 PM
ls6tt
Registered User
2010 JK Wrangler

Join Date: May 2008
Location: DFW Texas
Posts: 211
how are the lights mounted? are they just shoved into the bumper?
ls6tt is offline
post #9 of 55 Old 08-07-2010, 03:37 PM
fernjack
Registered User
2007 JK Wrangler

Join Date: Apr 2009
Location: Winnipeg
Posts: 1,031
Krutj did you use the OEM back-up wiring to trigger a relay or just used a switch ?

07' Rubi Unlimited 6spd. , Rescue green #64 CDN , 35x12.5 mudders
Rick .
fernjack is offline
post #10 of 55 Old 08-07-2010, 03:53 PM Thread Starter
krutj
Web Wheeler

krutj's Avatar
2009 JK Wrangler

Join Date: Oct 2009
Location: NW Pennsylvania
Posts: 1,332
Quote:
Originally Posted by ls6tt View Post
how are the lights mounted? are they just shoved into the bumper?
These are light weight, all in one, bulbs, housing, etc. in a sealed unit, held in place by the rubber grommet. To remove them, the bumper will need removed and the lights pushed out from the back. They are very secure.

These are the same lights used on heavy duty trucks. I used these on my tanker trucks when I was in the truckin' business.

-- Joel --
krutj is offline
post #11 of 55 Old 08-07-2010, 03:54 PM
ls6tt
Registered User
2010 JK Wrangler

Join Date: May 2008
Location: DFW Texas
Posts: 211
awesome, got a link to them?
ls6tt is offline
post #12 of 55 Old 08-07-2010, 03:58 PM Thread Starter
krutj
Web Wheeler

krutj's Avatar
2009 JK Wrangler

Join Date: Oct 2009
Location: NW Pennsylvania
Posts: 1,332
Quote:
Originally Posted by fernjack View Post
Krutj did you use the OEM back-up wiring to trigger a relay or just used a switch ?
I went with a switch, my reasoning was that there's no light back there, and I thought it would be nice to flip a switch and see what I'm doing(and back-up) Most of my "stucks" have required pulling out rearward, so I thought " why not ".

Plus it was a fun project and when dildo drivers have high beams behind me....well, now I'm armed...lol

-- Joel --
krutj is offline
post #13 of 55 Old 08-07-2010, 04:00 PM
JLC08JK
What was I thinking?

JLC08JK's Avatar
2008 JK Wrangler

Join Date: Sep 2009
Location: Los Angeles
Posts: 6,068
Looks great
Also gave me an idea to take some factory fogs and use them in the same place. I don't know if they would be too deep though.
I added your link to the F.A.Q.
JLC08JK is online now
post #14 of 55 Old 08-07-2010, 04:26 PM Thread Starter
krutj
Web Wheeler

krutj's Avatar
2009 JK Wrangler

Join Date: Oct 2009
Location: NW Pennsylvania
Posts: 1,332
Quote:
Originally Posted by JLC08JK View Post
Looks great
Also gave me an idea to take some factory fogs and use them in the same place. I don't know if they would be too deep though.
I added your link to the F.A.Q.
Thanks...

The sealed units that I used were 2" deep, this is one reason that the job took some time. It matters where you put them as far as clearance goes. Outside the bumpout has more room, but you're dealing with a curve.
I pretty much laid under it, re-measuring for awhile. Can't move a 4 1/2" hole once you make it....lol

-- Joel --
krutj is offline
post #15 of 55 Old 08-07-2010, 04:32 PM Thread Starter
krutj
Web Wheeler

krutj's Avatar
2009 JK Wrangler

Join Date: Oct 2009
Location: NW Pennsylvania
Posts: 1,332
Quote:
Originally Posted by ls6tt View Post
awesome, got a link to them?
I bought these at a NAPA.

Here's the info That I have for them:

LMP-B/U,SEALED CLEAR #50-40204-3

GRMT-MDL-40 #50-40700-3

CONNECTOR ASSEMBLY #50-94993-3

You can see the individual parts and put together in the first pic.....

-- Joel --
