Unread 01-02-2014, 08:15 AM   #31
sanctified
Registered User
2013 JK Wrangler

Join Date: Mar 2013
Location: WVC, UT
Posts: 447

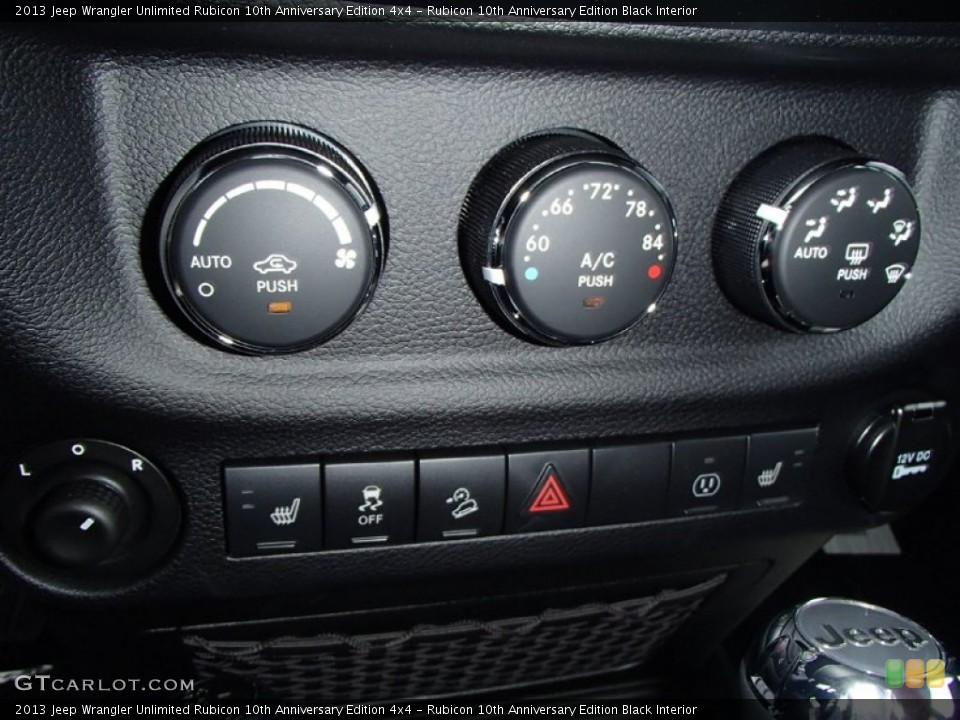

Now I'm confused because I thought they had the regular plug but I checked '13 Rubi pics and now see that on the driver side center console where I have my 12V power is where power mirror controls are. In place of my hook on the right the rubi has the 12v.

Where did I see that power plug? Arrgggg

__________________
2013 JK (see info on left)
SOLD: 1983 CJ7
Utah Jeep Crew #178
sanctified is offline   Reply With Quote
Unread 01-02-2014, 09:05 AM   #32
justin credible
Registered User
2012 JK Wrangler

Join Date: Mar 2006
Location: Ogden, Utah
Posts: 274
Quote:
Originally Posted by sanctified View Post
Where did I see that power plug? Arrgggg
It's on the front of the center console. 180 from the picture you posted.
justin credible is offline   Reply With Quote
Unread 01-02-2014, 09:43 AM   #33
jeepwrnglr92
Registered User
2013 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 1,954
The other thing I am going to do is to take the plug out of the center console and put it on the outside and fill the hole. I have no use for a plug in there. To much trouble to use it if you have stuff in it.

I plan to mount that right above the cup holder just to the left of it so it does not interfere with anything if a cup is in the holder.
__________________
2013 Jeep Wrangler Sport
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline   Reply With Quote
Unread 01-04-2014, 05:40 PM   #34
jeepwrnglr92
Registered User
2013 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 1,954
ok so i bought a 50$ harness from the dlr for the rear connector (my guy will let me return it if I need to) and got the wiring diagram. Shows pin 1 of 6 is the power.
I still get no power back there.

I am going to at this point assume that connector is not live and it needs a program to activate it. If this is the case then I'm done and wont add the rear power outlet. I don't want to spend 100$ to have them turn it on.

If any one has any ideas please let me know.
__________________
2013 Jeep Wrangler Sport
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline   Reply With Quote
Unread 01-05-2014, 06:08 AM   #35
jeepwrnglr92
Registered User
2013 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 1,954
On a good note I was able to get a 2nd power port on the dash.
The silly thing on the right is called a grocery bag holder. To replace this with an out let you need to cut the hook off then drill a hold for the outlet, or buy a new bezel with the correct openng in it .

There are like 15 bezels that one could chose from for about 117$ on up. So instead of paying all that money I just sacrificed a 6$ hook and made my own. They use this part in many of the jeep models.

You need to replace the full console panel if you want the factory option.
I was trying to upload pictures but they are to big. Ill see if i can get to a computer and post them and link from photobucket or something.
__________________
2013 Jeep Wrangler Sport
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline   Reply With Quote
Unread 01-05-2014, 11:10 AM   #36
sanctified
Registered User
2013 JK Wrangler

Join Date: Mar 2013
Location: WVC, UT
Posts: 447
Quote:
Originally Posted by justin credible View Post
It's on the front of the center console. 180 from the picture you posted.
Thanks for clarifying that for me. I'm a moron.

Quote:
Originally Posted by jeepwrnglr92 View Post
On a good note I was able to get a 2nd power port on the dash.
I'd love to see a picture of this. How much was the plug? Is it OEM?
__________________
2013 JK (see info on left)
SOLD: 1983 CJ7
Utah Jeep Crew #178
sanctified is offline   Reply With Quote
Unread 01-06-2014, 04:59 AM   #37
jeepwrnglr92
Registered User
2013 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 1,954
Quote:
Originally Posted by sanctified View Post
Thanks for clarifying that for me. I'm a moron.



I'd love to see a picture of this. How much was the plug? Is it OEM?
Plug is OEM just like the one in the picture above in this post.
Maybe $15 for it and the cover. I had to make my own wiring harness for it but not difficult at all.

Ran out of time to upload pictures last night. I'll see what I can do in the next days. Work is gonna be nuts this week.
__________________
2013 Jeep Wrangler Sport
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline   Reply With Quote
Unread 01-12-2014, 09:13 AM   #38
KevinMac
Registered User

Join Date: May 2013
Location: Detroit, MI
Posts: 8
Quote:
Originally Posted by jeepwrnglr92 View Post
ok so i bought a 50$ harness from the dlr for the rear connector (my guy will let me return it if I need to) and got the wiring diagram. Shows pin 1 of 6 is the power.
I still get no power back there.

I am going to at this point assume that connector is not live and it needs a program to activate it. If this is the case then I'm done and wont add the rear power outlet. I don't want to spend 100$ to have them turn it on.

If any one has any ideas please let me know.
I also have a '13 JKUS and it came with the base stereo, i.e. no subwoofer. However, I did just score the plastic panel/sub/harness from someone doing a custom stereo install.

I tore out the old panel today and probed pin 1 and 6 with my multimeter and got 13.5v, so it is hot. This is not a switched circuit as I did not have the key 'on'. Is it possible you didn't have a good ground? I'd recommend trying again and use the #6 pin as your ground. Hope this helps!
KevinMac is offline   Reply With Quote
Unread 01-13-2014, 04:54 AM   #39
jeepwrnglr92
Registered User
2013 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 1,954
Great score. I need to get me a score like that

Ill have another look. So you a re saying pin6 should be hot? Funny the dlr gave ma a diagram that show pin 1 to p be the hot. I i did test all of them.
Ill check the ground again.

So I am i am looking at the plug 1 is in the upper left and 6 is the bottom right?
__________________
2013 Jeep Wrangler Sport
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline   Reply With Quote
Unread 01-13-2014, 09:56 AM   #40
KevinMac
Registered User

Join Date: May 2013
Location: Detroit, MI
Posts: 8
Quote:
Originally Posted by jeepwrnglr92 View Post
Great score. I need to get me a score like that

Ill have another look. So you a re saying pin6 should be hot? Funny the dlr gave ma a diagram that show pin 1 to p be the hot. I i did test all of them.
Ill check the ground again.

So I am i am looking at the plug 1 is in the upper left and 6 is the bottom right?
Sorry, I think I confused you. Pin 1 is hot, Pin 6 is the ground for that harness.

Pin 1 (lt blue/pink wire) is upper left. Pin 6 (black wire) is lower right.
KevinMac is offline   Reply With Quote
Unread 01-13-2014, 11:44 AM   #41
jeepwrnglr92
Registered User
2013 JK Wrangler

Join Date: Feb 2007
Location: WPB FL
Posts: 1,954
what position is your fuse in? I want to say its fuse 7 but not sure i remember correctly. Accordign to the manual its in the lower left of the box as you look from the passenger side to the driver side.
I posted it a few posts back.
I tried mine in both positions.

Trying to find the female end of the connector is nuts. no one has it.
__________________
2013 Jeep Wrangler Sport
2002 Avalanche: To many mods to list
jeepwrnglr92 is offline   Reply With Quote
Unread 01-13-2014, 01:55 PM   #42
KevinMac
Registered User

Join Date: May 2013
Location: Detroit, MI
Posts: 8
Quote:
Originally Posted by jeepwrnglr92 View Post
what position is your fuse in? I want to say its fuse 7 but not sure i remember correctly. Accordign to the manual its in the lower left of the box as you look from the passenger side to the driver side.
I posted it a few posts back.
I tried mine in both positions.

Trying to find the female end of the connector is nuts. no one has it.
You are correct, it is M7, a yellow 20amp. Mine is in the 2 holes closest the passenger side fender.
KevinMac is offline   Reply With Quote
Unread 01-13-2014, 01:57 PM   #43
KevinMac
Registered User

Join Date: May 2013
Location: Detroit, MI
Posts: 8
The connector is not available from Mopar. My new assembly should arrive today from Ups, I will look at the connector for any part numbers and post if three is one.
KevinMac is offline   Reply With Quote
Unread 01-13-2014, 06:37 PM   #44
KevinMac
Registered User

Join Date: May 2013
Location: Detroit, MI
Posts: 8
So it came in but unfortunately there is no part number in the connector itself. Sorry about that, I'm out of ideas.
KevinMac is offline   Reply With Quote
Unread 01-25-2014, 11:23 PM   #45
14JKU
Registered User
2014 JK Wrangler

Join Date: Nov 2013
Location: Carlsbad, CA
Posts: 8
Quote:
Originally Posted by jeepwrnglr92 View Post
ok so i bought a 50$ harness from the dlr for the rear connector (my guy will let me return it if I need to) and got the wiring diagram. Shows pin 1 of 6 is the power.
I still get no power back there.

I am going to at this point assume that connector is not live and it needs a program to activate it. If this is the case then I'm done and wont add the rear power outlet. I don't want to spend 100$ to have them turn it on.

If any one has any ideas please let me know.
Do you have a part number for the OEM rear power/sub harness?
14JKU is offline   Reply With Quote
