post #16 of 32 Old 12-02-2010, 04:47 PM Thread Starter
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 4,595
The little computer in the smartbar sends status messages to the JK's computer over the CAN C bus. That would include both engaged and disengaged.
People who have unplugged their smartbar have gotten a light on the instrument cluster, which can be turned off with an aftermarket programmer.

Here is a link that describes how to make the e-disco into a no-computer controlled electric unit, and a manually actuated unit.
I think I'll give the manual conversion a try.
http://www.jeepforum.com/forum/f12/h...p-pics-358591/

ronjenx is online now
Sponsored Links
Advertisement

post #17 of 32 Old 12-03-2010, 07:39 AM
jstrubberg
Registered User
2009 JK Wrangler

Join Date: Jul 2010
Location: Missouri
Posts: 2,123
Ok....


Why? Have there been issues with the computer screwing this up? If not, why all the hate?
jstrubberg is offline
post #18 of 32 Old 12-03-2010, 07:59 AM Thread Starter
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 4,595
Quote:
Originally Posted by jstrubberg View Post
Ok....


Why? Have there been issues with the computer screwing this up? If not, why all the hate?
I don't know about all the hate, but there have been e-disco failures. There are no parts available, so the whole assembly must be replaced. I see this as unacceptable.
The mechanical portion of the e-disco is pretty rugged; not much there to fail.
So, failure will most likely be in the computer control or the actuator, both of which are in one assembly. If it were available, replacement would be simple and easy, and a lot cheaper.

That's why people would like to see a mechanical conversion for the e-disco.
I think it would be nice to pull a cable in the cab, and have it disconnect every time.
ronjenx is online now
post #19 of 32 Old 12-03-2010, 08:23 AM
jstrubberg
Registered User
2009 JK Wrangler

Join Date: Jul 2010
Location: Missouri
Posts: 2,123
If ther are electronic failures, agree 100%.

I'm just not a fan of changing things without a good problem description.
jstrubberg is offline
post #20 of 32 Old 01-24-2011, 10:38 PM Thread Starter
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 4,595
I started this thread to see how the e-disco works, and to try to improve its reliability by making it completely mechanical.

The conversion to mechanical is done, and it works well.
I have to fabricate a lever for the console. Right now, you can see the wooden release handle. The final lever will be one you pull back to an over-center position, so it will keep the release spring compressed, like the original actuator did.

Inside the disconnect housing, the disengage and engage springs are retained. This allows the lever to be moved to the position desired, and the disco will unlock when the torsion bar is unloaded, and re-lock when the teeth are aligned. There is no need for an indicator light, because the status will be obvious from how the lever feels.

Where the cable enters the disco case, there will be a boot to make it waterproof.

Here is a pic. Next step: the lever.

ronjenx is online now
post #21 of 32 Old 01-28-2011, 10:09 PM Thread Starter
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 4,595

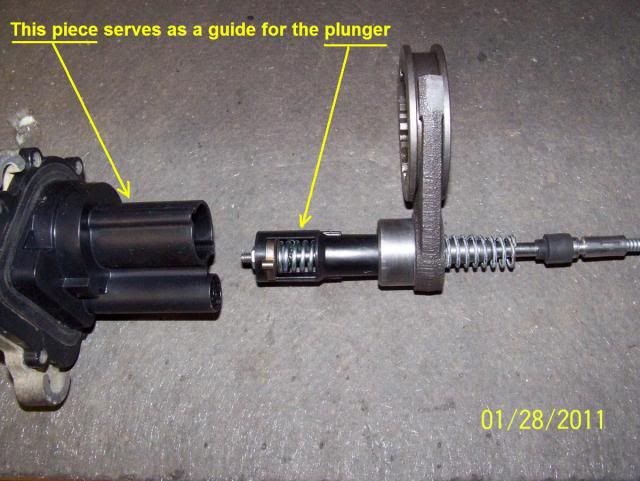

Here are some pics of how the conversion to manual control was done.









ronjenx is online now
post #22 of 32 Old 01-28-2011, 10:23 PM Thread Starter
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 4,595
Here is a clip of the progress on the lever.
It's a mock-up using an XJ console I had in the barn. I won't be installing the sway bar/lever into my JK until the electronic one fails.

The piece of track hanging from the bar simulates the bar being loaded from the Jeep being on uneven ground. As the Jeep moves, the bar will unload, and release. The lever will remain in the release position from being over-center.
When moved to the reconnect position, the lever will be free until the splines on the bar line up. It will be obvious when the bar reconnects, as the lever will be held in the forward position.
Watch the lever as the bar reconnects. You will see it move forward.

ronjenx is online now
post #23 of 32 Old 01-28-2011, 10:27 PM
JLC08JK
What was I thinking?

JLC08JK's Avatar
2008 JK Wrangler

Join Date: Sep 2009
Location: Los Angeles
Posts: 6,068
Looks good Ron
Is the cable off the shelf or did you put it together?
JLC08JK is offline
post #24 of 32 Old 01-28-2011, 10:34 PM Thread Starter
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 4,595
Quote:
Originally Posted by JLC08JK View Post
Looks good Ron
Is the cable off the shelf or did you put it together?
It's off the shelf. No part number yet, as this may not be the correct length to reach the console.
ronjenx is online now
post #25 of 32 Old 01-29-2011, 10:31 AM
RockyClymer
RedRock4Wheeler

RockyClymer's Avatar
2008 JK Wrangler

Join Date: Apr 2008
Location: Colorado
Posts: 4,784
My simple advice - get a patent....this looks like a good future mod when the e-discos start to fail....

08 JK 23S - Colorado Jeep Club No. 204
Too much to list - see my profile for details on build
16 JK Rubi with all the trimmings
NRA Life member
"It takes a special kind of stupid to believe criminals will follow gun laws."
I do not consider myself a smartass. I point out the obvious, search for the truth, and speak fluent sarcasm. I am, by experience, an accomplished curmudgeon.
RockyClymer is offline
post #26 of 32 Old 03-24-2011, 06:22 PM Thread Starter
ronjenx
Web Wheeler

ronjenx's Avatar
2008 JK Wrangler

Join Date: Jan 2009
Location: Maine
Posts: 4,595
See post # 22 for a clip of the lever in action. Let me know if the lighting is adequate, and how it plays.
ronjenx is online now
post #27 of 32 Old 03-24-2011, 07:26 PM
Apocalypse
Registered User
2008 JK Wrangler

Join Date: Jun 2008
Location: Indianapolis
Posts: 512
As far as ESP goes I really can't understand why it would have any effect whatsoever unless the ESP system is fundamentally different for Rubi vs non-Rubi. The only reason I can see for the dash light issue is as a dummy light in case you didn't realize your e-disco was malfunctioning. Now if the ESP/BAS lights are lit and your Odometer is saying espoff, just from removing e-disco then perhaps there is more at stake but from I have read, the systems appear to work independently of each other. My apologies beforehand if this regurgitated info is incorrect

08 JK lots to do...
IndyORV

Apocalypse is offline
post #28 of 32 Old 07-08-2015, 02:50 PM
WTM3
Registered User

Join Date: Jul 2015
Posts: 3
My Sway Bar light has been flashing on the dash of my 2009 JKUR. 4 Wheel Parts says i need a new disconnect module. What the heck does that mean?
WTM3 is offline
post #29 of 32 Old 07-08-2015, 04:04 PM
YATZI1980
Registered User
2011 JK Wrangler

Join Date: Feb 2011
Posts: 513
Quote:
Originally Posted by jstrubberg
If ther are electronic failures, agree 100%. I'm just not a fan of changing things without a good problem description.
Mine failed at like 28,000 miles. Went mechanical conversion have never looked back. One day I'll get around to doing it Ronjenx way. His is really brilliant.
YATZI1980 is offline
post #30 of 32 Old 07-09-2015, 08:38 AM
WTM3
Registered User

Join Date: Jul 2015
Posts: 3
I have ordered the offroad evolution knob deal. looks simple, but effective.
WTM3 is offline
