How to: DIY lighting

I read about a lot of you installing lighting and I have not tackled any myself yet? Can anyone explain in great detail and step by step how to wire up auxiliary lighting? I would like to mount some long distance lights on my windshield, but refuse to pay the ridiculous install prices.

Cmp8254 is offline
Sponsored Links
Advertisement

post #2 of 11 Old 11-13-2013, 05:51 PM
Andyjr
Registered User
2012 JK Wrangler

Join Date: Apr 2012
Location: Reisterstown
Posts: 293
With any light kit you buy there should be instruction included. Installation is pretty straight forward, positive and negative wires. You will spend more time running the wires then you will hooking the lights up.
Andyjr is offline
post #3 of 11 Old 11-13-2013, 09:12 PM Thread Starter
Cmp8254
Registered User
2012 JK Wrangler

Join Date: Dec 2011
Location: Severn
Posts: 78
Thanks, but what about relays and things?
Cmp8254 is offline
post #4 of 11 Old 11-13-2013, 09:16 PM
lpukas2
Registered User
2002 TJ Wrangler

Join Date: Aug 2011
Location: Tucson
Posts: 309
Google
lpukas2 is offline
post #5 of 11 Old 11-13-2013, 10:43 PM
houndman72
Registered User
2008 JK Wrangler

Join Date: Jan 2012
Location: Hobart
Posts: 349
relays are easy and so is wiring. Do not go cheap on wire and connectors, but Don't forget to use a fuse and properly ground. Yahoo search 12V relay and follow the instructions.

Rock krawler Stock Mod 2.5, Bilstein 5100 series shocks, Mamba M5 18" rims, 285/65/18 Nitto Trail Grappler tires, Body Armor Front bumper w/winch and LOTS of LED lights all over the place for blinding oncomers! LOL
houndman72 is offline
post #6 of 11 Old 11-13-2013, 10:44 PM
sjones26573
Registered User
2004 TJ Wrangler

Join Date: Aug 2011
Location: Concord/Harmony/Raleigh
Posts: 9,835
Your lights should have come with relay instructions unless they are used or uber cheap. If not we can help.

The Offroad Club @ NC State; Founder
The Yellowtail Build
Jeep-Owner.com
sjones26573 is offline
post #7 of 11 Old 11-14-2013, 02:04 AM
mudb8
want it rite or rite now?

mudb8's Avatar
1999 TJ Wrangler

Join Date: Sep 2008
Location: Estacada, oregon
Posts: 5,977

I want your factory 07-up take-off/thrown out JK front/rear Lower Control Arms! Bent ones are perfect also as long as the bushings and cold cut rings are in good shape/useable


HighLine Hood Jeepers
TJ Adjustable Track bars
DIY highline fenders.... 34-37's under 0"-2.5" lifts
shock length, bumpstop extension, tire size chart click here
DIY shock shifters, more uptravel/better ride




2011 E-350 4x4 Van conversion

2006 Rubicon Unlimited

ASE Certified Master Tech/Fabricator @ jeepwest.com
mudb8 is offline
post #8 of 11 Old 11-14-2013, 09:09 AM
1222
RIP John

1222's Avatar
2012 JK Wrangler

Join Date: Jul 2007
Location: Henderson
Posts: 13,239
Like already mentioned installing aftermarket lights isn’t all that difficult. Since this seems to be the first time (we’ve all had our first time moments) you’ve done this it can seem a bit intimidating but not to worry. Just remember to hook up the power source for your lights to the battery and not spliced into the JK’s electrical system.

The hard part, if you can call it that, is routing the wires in such a way as to not look like a hack job and the location for the switch inside the cab. Just take your time and think it through. After your install is finished and your lights turn on for the first time you’ll feel like a pro and never worry about future installs again.

Also already mentioned is the fact that in the light kit you buy there will be directions to follow as far as the wiring. For the most part a relay should be included and have wires already attached, again with instructions as to where they go.
1222 is offline
post #9 of 11 Old 11-14-2013, 09:13 AM
14Sport
JY YJ

14Sport's Avatar
1995 YJ Wrangler

Join Date: Oct 2013
Location: The Dirty South
Posts: 2,762

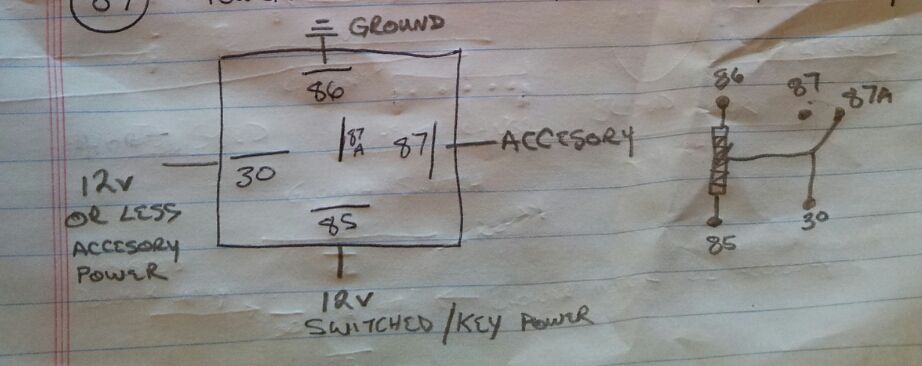

A relay may sound intimidating but all it is is a way to control a large amp circuit with a small amp circuit. That's it. Just putting a switch between the battery and accessory would mean that the switch would have to be rated for the same or more amperage as the accessory. That could be rather a large switch for some accessories. The relay eliminates the need for a very large switch.
14Sport is offline
post #10 of 11 Old 11-14-2013, 09:26 AM
Vin
Registered User
2012 JK Wrangler

Join Date: May 2010
Location: Long Island
Posts: 3,472
I can tell you for a fact, that KC light kits come with everything you need to wire them (Harness, relay, switch) Basically you wire the lights to the relay. Then run the wire to a switch inside the cab. Then you power the relay strait from the battery. The relay handles the power and the switch lets the power travel to the lights. DC wiring is pretty much like water. It runs in one direction. You just have to make sure it flows. If there is a break, the power stops flowing.
Vin is offline
post #11 of 11 Old 11-14-2013, 08:55 PM
houndman72
Registered User
2008 JK Wrangler

Join Date: Jan 2012
Location: Hobart
Posts: 349
well I install any type, shape or form of lighting and 12 volt toys/accessories. Question I have is, what is everyone either charging or are shops asking to get paid to install them? Just curious... Thanks for any input back.

Rock krawler Stock Mod 2.5, Bilstein 5100 series shocks, Mamba M5 18" rims, 285/65/18 Nitto Trail Grappler tires, Body Armor Front bumper w/winch and LOTS of LED lights all over the place for blinding oncomers! LOL
houndman72 is offline
