Unread 11-30-2011, 05:06 PM   #16
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,625
I have a guy that builds computers and repairs anything electrical doing the work for me...I would break something, I'm positive!

Mol is offline   Reply With Quote
Unread 11-30-2011, 05:52 PM   #17
DAYJ
Registered User
2013 JK Wrangler

Join Date: Apr 2010
Location: Otterbach, Germany
Posts: 956
How did you change the color or the numbers and letters on the lcd display? maybe I missed it, but wonderful job on the write up. cheers
__________________
New- 2013 Commando Green Rubicon
Old-2010 Flame Red Rubicon Unlimited

Utah Jeep Crew Member #47
Cheyenne Trail Junkie


ROADS!? Where we're going, we don't need roads... (Doc)
DAYJ is offline   Reply With Quote
Unread 11-30-2011, 07:40 PM   #18
JemLT1YJ
Registered User
2011 JK Wrangler

Join Date: Feb 2011
Location: Jenera, OHIO
Posts: 388
Quote:
Originally Posted by dsy

Yea sorry forgot to mention that part of. While I had the overlay out, I cut out the dark plastic windows that are part of the overlay over the LCD display windows and glued in a piece of red screen gel. I originally started out by just putting a layer of the screen gel between the LCD display and the overlay, but that made the display too dim to see in the daytime. By removing the dark film from the overlay and just running the screen gel it came out just right. I spaced on taking pictures of that part.

Its really a nice mod. The red is very easy on the eyes at night. Everything is red on mine now (blinkers, fog light indicator, high beam indicator) except for the warning lights. I left those stock so they get attention right away.
Here
JemLT1YJ is offline   Reply With Quote
Unread 11-30-2011, 11:33 PM   #19
JR_Rubi_Red_JK
Registered User
2012 JK Wrangler

Join Date: Oct 2011
Location: Orange, CA
Posts: 160
I agree. It looks great.
JR_Rubi_Red_JK is offline   Reply With Quote
Unread 12-01-2011, 06:02 AM   #20
billy mo
Registered User
2008 JK Wrangler

Join Date: May 2004
Location: Central Florida
Posts: 386
Nice! This is what it would look like if a Jeep and BMW had a love child.
__________________
'08 JK Unlimited Rubicon, Steel Blue Metallic, Auto, 33"s, 2.5" RE, 6" KC's, Drake Hood Latches
billy mo is offline   Reply With Quote
Unread 12-01-2011, 07:03 AM   #21
E1wood5150
Registered User
2009 JK Wrangler

Join Date: Oct 2010
Location: Manakin Sabot, Va
Posts: 109
I dont see a picture of the stereo. Have you changed the head unit to one with a red display? Or do you have My-Gig? Those would be logical answers, but I have the 6 disc head unit, and the blue stereo and red dash would drive me crazy.

The above statement makes the presumption I have the ability to dis-assemble the dash AND stereo AND de-solder the old lcds, AND re-solder the lcds. I dont.
__________________
'09 Wrangler Unlimited X-Deep Water Blue
AEV 2" Budget Boost
Kumho Road Venture A/T 285-70-17
MORE TO COME!
E1wood5150 is offline   Reply With Quote
Unread 12-01-2011, 07:34 AM   #22
MikeTHIS
Registered User
2007 JK Wrangler

Join Date: Sep 2010
Location: Long Island, NY
Posts: 423
Quote:
Originally Posted by E1wood5150
I dont see a picture of the stero. Have you changed the head unit to one with a red display? Or do you have My-Gig? Those would be logical answers, but I have the 6 disc head unit, and the blue stereo and red dash would drive me crazy.

The above statement makes the presumption I have the ability to dis-assemble the dash AND stereo AND de-solder the old lcds, AND re-solder the lcds. I dont.
I can't remember if it was here or the SRT board I was on - but someone disassembled the MyGig and swapped LED's to match the dash.
__________________
[B][SIZE="1"]2007 Steel Blue Wrangler Sahara

Current Mods:
.::Fabtech 3" Lift with Dirt Logics
.::Pro Comp 17" 7005 Wheels
.::Mickey Thompson Baja MTZ 35x12.5R17 Tires
.::PIAA Windshield Light Brackets
.::PIAA 5296 520 ATP Lights
.::Rugged Ridge Light Bar
.::Truck-Lite 7" LED Flood Lights
.::Truck-Lite 7" LED Headlights
.::Truck-Lite 4" LED Spot Lights
.::Katzkin Leather with Seat Heaters
.::20% tint
.::Optima Yellow Top
.::6" Shorty Antenna[/SIZE][/B]
MikeTHIS is offline   Reply With Quote
Unread 12-01-2011, 07:50 AM   #23
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,625
Quote:
Originally Posted by MikeTHIS

I can't remember if it was here or the SRT board I was on - but someone disassembled the MyGig and swapped LED's to match the dash.
Just LEDs on the hard buttons, or is there a way to change the backlighting and color of the display?
Mol is offline   Reply With Quote
Unread 12-01-2011, 07:52 AM   #24
MikeTHIS
Registered User
2007 JK Wrangler

Join Date: Sep 2010
Location: Long Island, NY
Posts: 423
Quote:
Originally Posted by molshove

Just LEDs on the hard buttons, or is there a way to change the backlighting and color of the display?
Well - IIRC it was a Nav unit, so they only did the buttons.

Let me see if I can find the thread.
__________________
[B][SIZE="1"]2007 Steel Blue Wrangler Sahara

Current Mods:
.::Fabtech 3" Lift with Dirt Logics
.::Pro Comp 17" 7005 Wheels
.::Mickey Thompson Baja MTZ 35x12.5R17 Tires
.::PIAA Windshield Light Brackets
.::PIAA 5296 520 ATP Lights
.::Rugged Ridge Light Bar
.::Truck-Lite 7" LED Flood Lights
.::Truck-Lite 7" LED Headlights
.::Truck-Lite 4" LED Spot Lights
.::Katzkin Leather with Seat Heaters
.::20% tint
.::Optima Yellow Top
.::6" Shorty Antenna[/SIZE][/B]
MikeTHIS is offline   Reply With Quote
Unread 12-01-2011, 08:08 AM   #25
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,625
Okay, stupid question, what the hell does IIRC mean?
Mol is offline   Reply With Quote
Unread 12-01-2011, 08:15 AM   #26
MikeTHIS
Registered User
2007 JK Wrangler

Join Date: Sep 2010
Location: Long Island, NY
Posts: 423
Quote:
Originally Posted by molshove
Okay, stupid question, what the hell does IIRC mean?
Oh Mike - If I Recall Correctly

lol
__________________
[B][SIZE="1"]2007 Steel Blue Wrangler Sahara

Current Mods:
.::Fabtech 3" Lift with Dirt Logics
.::Pro Comp 17" 7005 Wheels
.::Mickey Thompson Baja MTZ 35x12.5R17 Tires
.::PIAA Windshield Light Brackets
.::PIAA 5296 520 ATP Lights
.::Rugged Ridge Light Bar
.::Truck-Lite 7" LED Flood Lights
.::Truck-Lite 7" LED Headlights
.::Truck-Lite 4" LED Spot Lights
.::Katzkin Leather with Seat Heaters
.::20% tint
.::Optima Yellow Top
.::6" Shorty Antenna[/SIZE][/B]
MikeTHIS is offline   Reply With Quote
Unread 12-01-2011, 08:29 AM   #27
MikeTHIS
Registered User
2007 JK Wrangler

Join Date: Sep 2010
Location: Long Island, NY
Posts: 423
@Molshove

Closest I found (not at my computer) is a guy who knows how and you can send your radio to.

That my be perfect for your needs anyway
__________________
[B][SIZE="1"]2007 Steel Blue Wrangler Sahara

Current Mods:
.::Fabtech 3" Lift with Dirt Logics
.::Pro Comp 17" 7005 Wheels
.::Mickey Thompson Baja MTZ 35x12.5R17 Tires
.::PIAA Windshield Light Brackets
.::PIAA 5296 520 ATP Lights
.::Rugged Ridge Light Bar
.::Truck-Lite 7" LED Flood Lights
.::Truck-Lite 7" LED Headlights
.::Truck-Lite 4" LED Spot Lights
.::Katzkin Leather with Seat Heaters
.::20% tint
.::Optima Yellow Top
.::6" Shorty Antenna[/SIZE][/B]
MikeTHIS is offline   Reply With Quote
Unread 12-01-2011, 08:31 AM   #28
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,625
Quote:
Originally Posted by MikeTHIS

That my be perfect for your needs anyway
its funny because It's true
Mol is offline   Reply With Quote
Unread 12-01-2011, 09:23 AM   #29
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,625
I found this write-up on changing the LEDs in the center stack/hard buttons on RER Mygig, from a Charger Forum - I will copy and paste because the images do not display in that forum - and here is the link http://www.chargerforums.com/forums/archive/index.php/t-77449.html

I wanted to change the backlighting color of my entire car for a while, and after getting some inspiration from Optimus124, I decided to just do it. What good is a Go ManGo with green backlighting? I had a thread about this (http://www.chargerforums.com/forums/showthread.php?t=58382), but I wanted several posts up front to allow for all of the pictures, so I've closed down that thread and everything new will be here.

First off, this will completely void your warranty (at least for the components you touch)! Don't try this if you aren't willing to give that up. You should be confident in your soldering skills to try this. You will be working next to a lot of other small components, and if you don't have a steady hand, or you like to use a lot of solder, you could screw something up.

Overall, I would give this a 4-7 on the difficulty scale (1-Easiest, 10-Hardest) depending on what you're working on.

Here are the components that I use:

LED:
Orange, 609nm
1160 mcd (millicandela)
1.9V (voltage drop)
20mA
45 viewing angle (angle when brightness is 1/2 of rated)
http://search.digikey.com/scripts/DkSearch/dksus.dll?Detail?name=404-1097-ND

Resistor:
634ohm
1%
1/2w
http://search.digikey.com/scripts/DkSearch/dksus.dll?Detail?name=CMF634HFCT-ND

This is not the only option. You can use whatever you want. I recommend that whatever LED you get, you get something with a wide viewing angle. This will help to lessen the bright/dark spots. If you are using a different LED, here is a website that you can use to find out what resistor to use (make sure to use 14V as source voltage):
http://led.linear1.org/1led.wiz

To date, I have used 25 LEDs. Here is the breakdown of LEDs used for the different items (estimates are noted with an ansterik*):
5 - Dual-Zone HVAC
2 - Heated Seat Switches (1 each)
1 - ESP button (0 if going for blue)
3 - Homelink garage opener
12 - Navigation Radio
2 - Headlight Switch
*4 - Steering Wheel buttons
*4 - Driver Window Switch
*2 - Pass. Window Switch
*2 - 2 x Rear Window Switches
*1 - Mirror Switch
*3 - VES

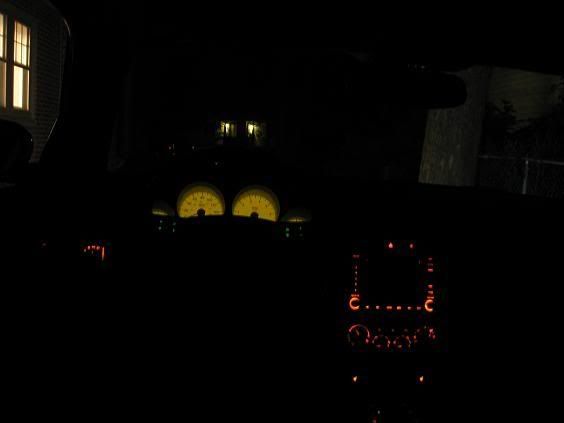

And here is how my car looks currently:


Without further ado, here are the writeups:


NAV Radio

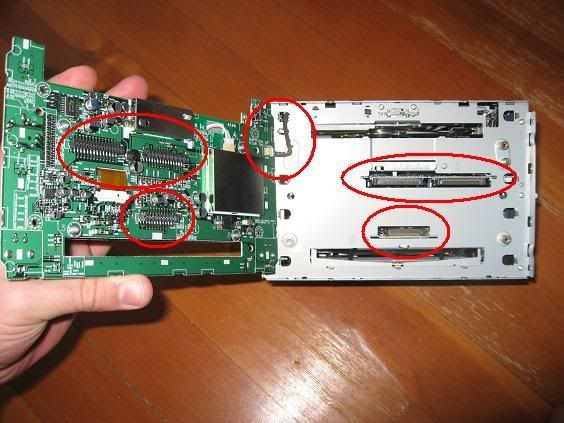

Okay, this has been the hardest and most time-consuming to date. Just be prepared to take this one apart and fix it a time or two if it doesn't work out right the first time.
*** Be Warned: The Nav Radio will not really dim if you change to LEDs (the screen still will. though)***

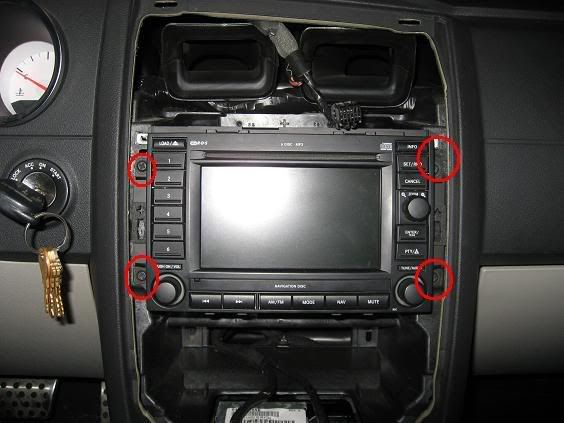

First, take off the center stack bezel and just the Nav should be left there. It is attached with four PH2 Phillips screws (normal Phillips) as shown below.

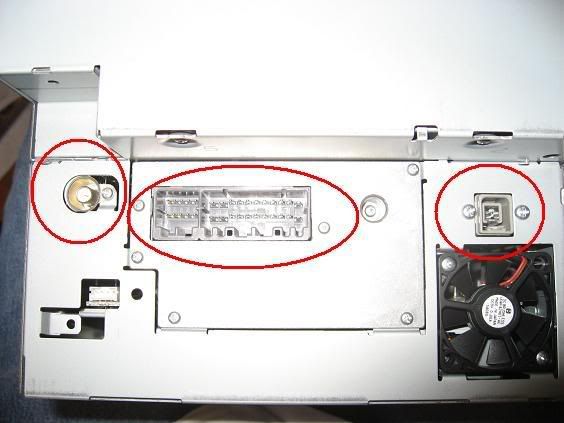

There are three or four connectors on the back of this radio. One main connector for power, one for the radio antenna, another for the GPS antenna, and a fourth if you have Sirius and/or VES. The radio antenna just pulls out of the back of the radio, and the other three plugs have locking tabs that are on the bottom of the connectors.


First thing to do once you have the radio out is remove the three knobs. Just grab ahold of them and pull. Once you have the knobs off, there are 12 screws holding the faceplate on. Four on each side and two on the top and two on the bottom. These screws are PH1 Phillips screws (small Phillips). Once these are gone, there are three tabs on top and bottom that you can release with a small screwdriver and then take the faceplate off.

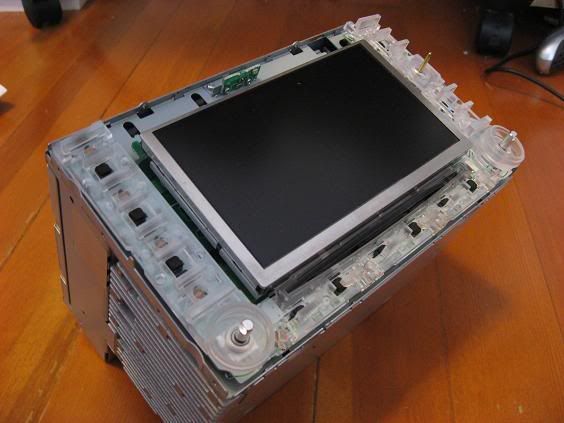

Now for the real work. First, you will need 12 LEDs and 6 resistors. You will need to sand down the resistors almost to the metal part so that they will fit. The bulbs that they currently have in there are very low profile and are much smaller than the LEDs. If you don't sand down the LEDs as far as they can go, you won't be able to put the faceplate back on.


For this install, the resistors will not go on the LEDs as in the other installs. The LEDs will replace the bulbs and the resistors will go on the back side of the PCB. More on this in a minute. To get the LEDs ready, cut the leads short and bend them as flat as possible against the bottom of the LED.

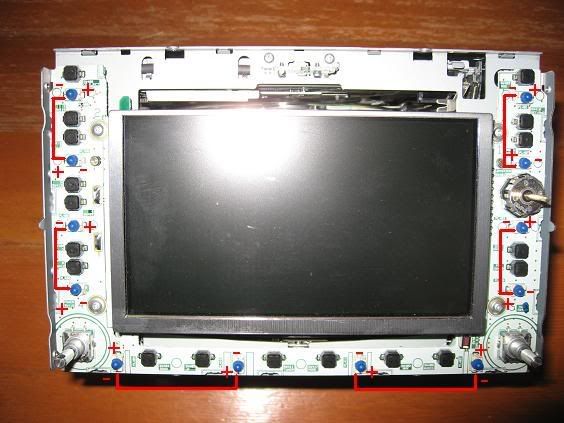

Onto the circuit part of the install. For those that have been reading this thread before this got posted, I mentioned something about needing a 150ohm resistor because each bulb is powered by 5V. I have now determined that this is incorrect and that resistor change is unnecessary. After screwing this up a couple of times, I started to trace out how the circuit works. The end result: there are 6 circuits that have two lights on each. Because there are two bulbs on one circuit, they each take half of the voltage (11V / 2 = 5.5V). That is why I thought it was running on 5V earlier. Here is a pic of the PCB with polarities for the LEDs and showing how the LEDs are connected by the PCB.

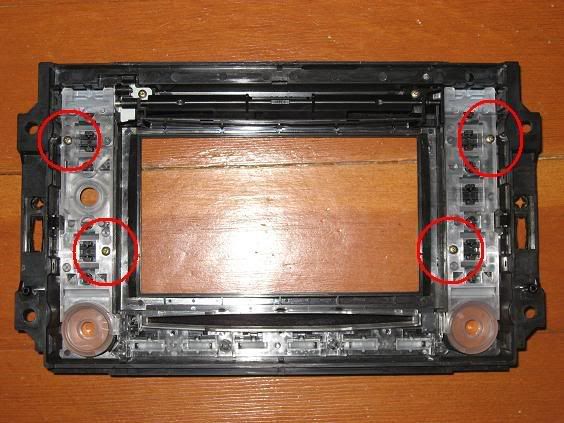

As you put the LEDs on the PCB, try to make them as close as possible to the PCB. This will help in keeping you from possibly coming back and tweaking it later to get everything to go back together correctly. Once the LEDs are installed, they will look something like this.


Take extra care to make sure they are centered on the rectangle on the PCB. This will help for alignment to the light pipes. You will want to take the light pipes off of the faceplate and lay them on the PCB to make sure that the LEDs are aligned to the holes correctly. To take the light pipes off, look at the back of the faceplate and you will see 4 PH1 screws. Remove these and the light pipes will come off (there are 3 pieces).


Lay these on the PCB to be sure of alignment and that everything will go together smoothly. You will also want to make sure that the LEDs are lower that flush with the top of the holes. If they are flush or higher than the top of the holes, you won't be able to put the faceplate on.


Now onto the resistors. On the PCB you will see 4 PH1 Phillips screws holding the PCB to the rest of the radio. Remove these and pull the PCB off. There are three connectors on the back that will disconnect as you pull it off, but these will add a little resistance. There is also a cord attached to the left side that you need to unplug.

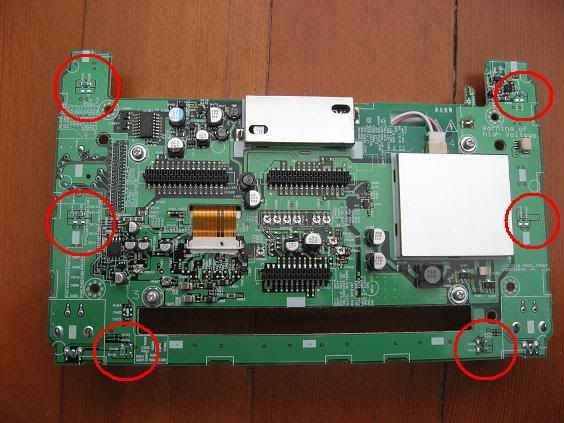

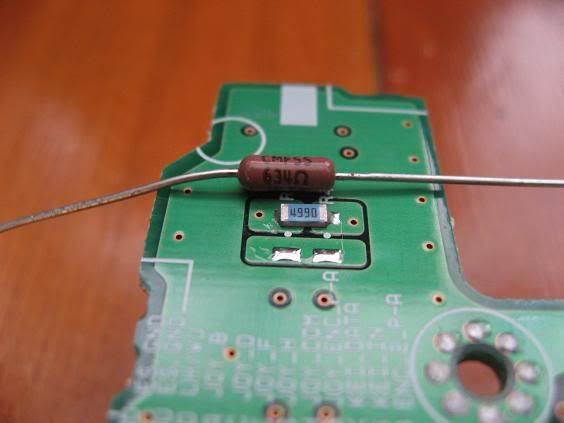

On the back of the PCB you will see six groups of two surface-mount resistors in the circled areas. They should have "6R8" written on them.


Note that the configuration of these two resistors is an area with a metal circle goes through one resistor to another area with no metal circle, through the other resistor and ends up at another area with a metal circle. You will need to remove all of the resistors and place one resistor (the one you're using for everything else) connecting the two areas with the metal circles.


After I screwed this up for the second time, I took this into work, and a coworker helped me figure out I could use this area to put my resistors, we installed surface-mount resistors because they were available and I didn't have my resistors. Putting a regular resistor there shouldn't hurt anything because there is a lot of clearance between the PCB and radio when its installed. I showed one in the picture for reference.

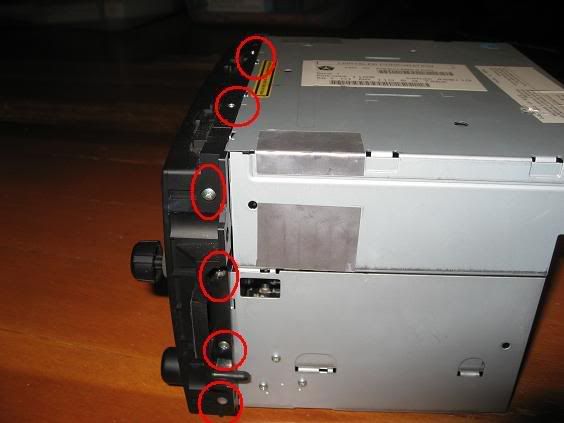

When putting the faceplace back on, it should snap back into place without any effort. If there is effort, something isn't right, and you have a clearance problem. if the screw holes are slightly off and just need a little coaxing to line up, that's fine. Also, once you snap the faceplate on, make sure all of the buttons press and spring back. If they are sunk in, you have a clearance problem. Also, the first couple of times I did this, some of the buttons didn't acknowledge unless I pressed harder than normal. This was a clearance problem. Like I said earlier, you might have to take this back apart a couple of times to get it right.

Once it's all put back together, install into the car and enjoy! :rockon:



HVAC (A/C, climate control, etc.)
You need to remove the center bezel to get to the HVAC controller. Once you have that removed and the connectors removed, there are four screws that need to be removed. These are 4mm hex head screws.


You need to remove the knobs before you can separate the housing, so turn all of them counter-clockwise and just pull them off. There are 8 snaps that you can release with a flat head screwdriver. Now you can take everything apart and get the PCB (circuit board) by itself. The bulbs that are there don't have any polarity, so the PCB is not marked for that, but you will need to know what the polarity is for the LEDs. Here is the polarity for all 5 of the lights.


To remove the existing bulbs, you will work with the two sides with the small metal piece. Start by putting your iron as close as you can to one side to heat up the solder underneath the bulb. Once it's hot and flowing, try to tilt it up. Now go to the other side and repeat. Keep doing this until it is totally free. Here is a bulb sitting next to the solder pads.

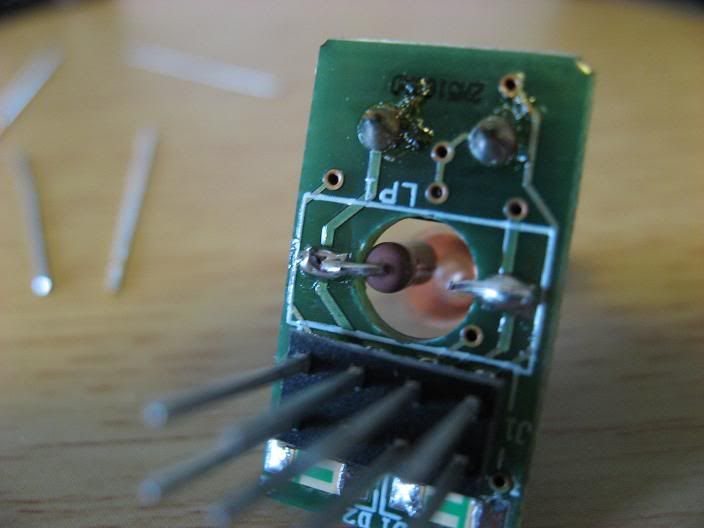

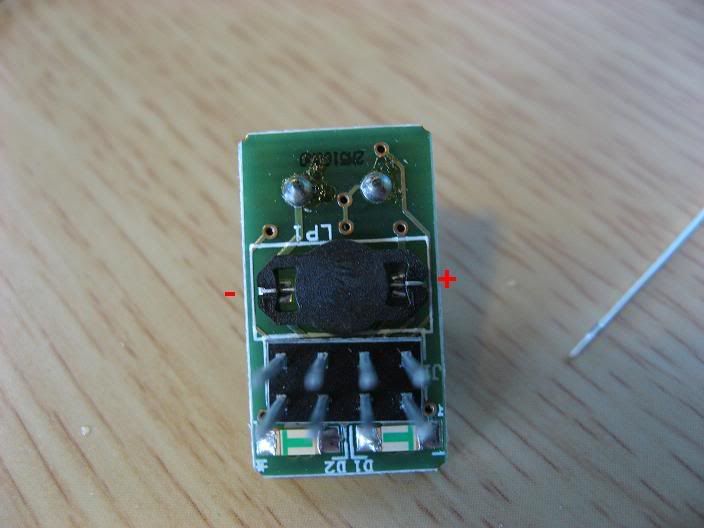

When replacing bulbs with LEDs, resistors need to be added in-line with the LED so they don't blow up. You can purchase LEDs with these resistors added in and these will make the installation a little easier. If you have the resistor built-in, you can reuse the plastic base from the old bulbs. Pull the metal leads free from the sides, straighten the leads out, and pull the bulb right out. Repeat this process in reverse to put the LED in. Note that the LED won't fit down into the hole because of its lip. If you sand it down, it should fit just fine. I recommend against leaving the LED sit on top of the base because of the hot spots described later.

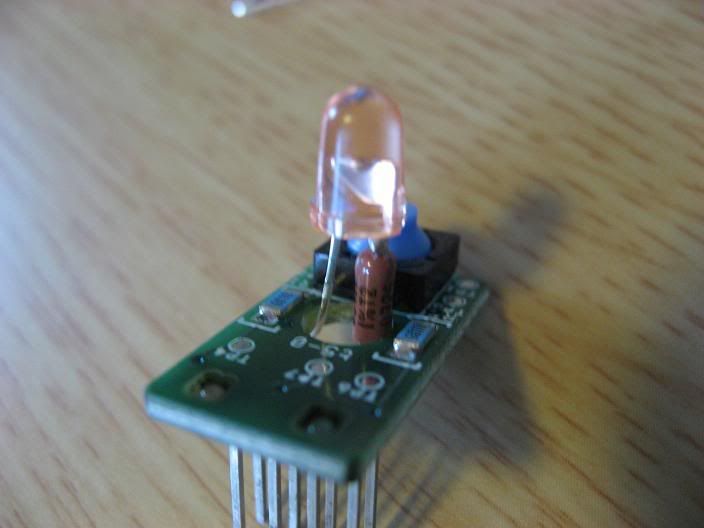

I had to buy separate LEDs and resistors. Doing it this way gave more options for color, viewing angle, and brightness. When put on (paying attention to polarity) it looks like this.


By no means is this the only way to orient the parts, nor is it necessarily the best way. It's just they way I did it.

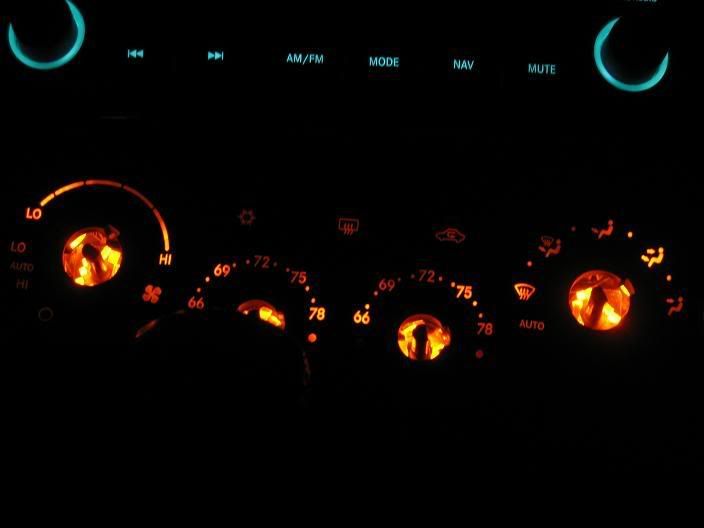

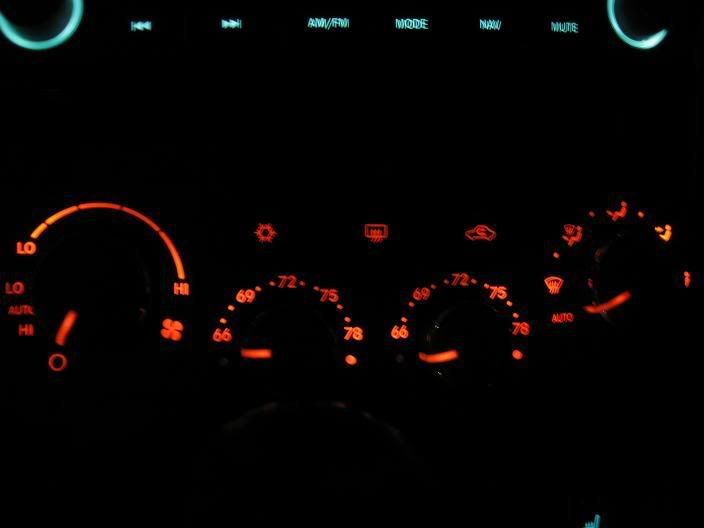

I put it back together (not snapping the housing closed) and took it out to look at the results. Unfortunately, when I turned on the backlighting, there were very bad "hot spots" of light.

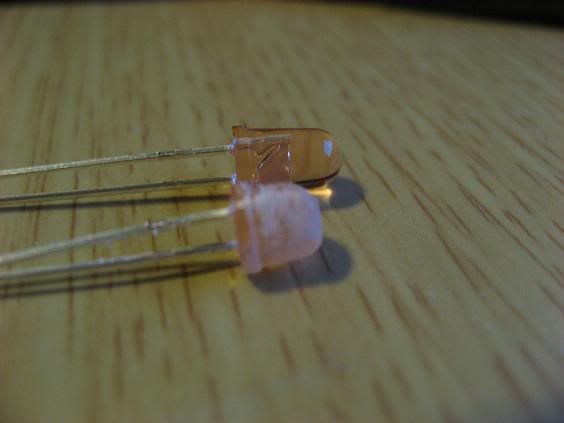

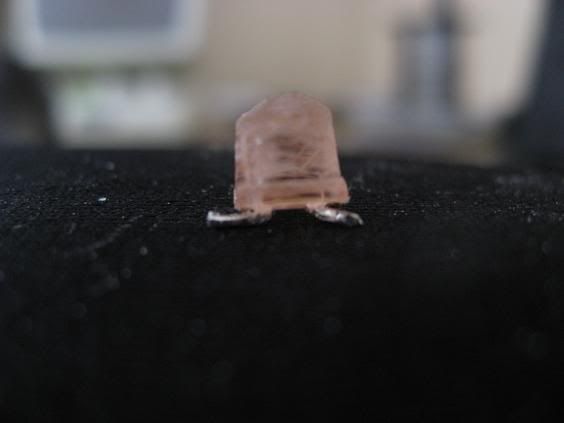

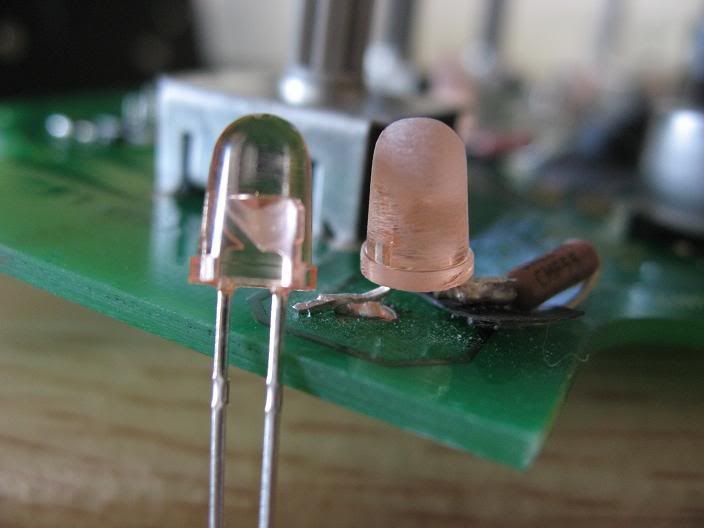

Using a suggestion from FxFIXER, I sanded all of the LEDs hoping to diffuse the light a bit and distribute it more evenly. You can see how sanding dramatically changes the optics of the LED. I also tried to make them as low to the board as possible. When lowering them, there was a place where the resistor could become shorted, so I put some electrical tape down to prevent the short.
Mol is offline   Reply With Quote
Unread 12-01-2011, 09:30 AM   #30
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,625
After doing all of this, the hot spots were still there, but not quite as bad, and even enough for me to live with. I'm sure there still are other things you could do to improve this, but I'm happy enough with it the way it is.


Put it all back together and enjoy! :rockon:


ESP Button
This is held onto the center stack bezel with two 4mm bolts, like the HVAC unit. There are 6 clips to release to get the front and back separated. I ended up breaking one of them to get it apart, so be warned. Once you have it apart, you will see a small square green thing. That is the backligting LED for the ESP switch. The green cover can come off, and underneath is a blue LED. If blue is your color, then no more work is needed. :grin: If you're like me, blue isn't what you're going for.

**This is an LED, so no resistor is necessary!** If you do use a resistor when you swap, or have resistors built-in to your LED, the brighness will just go down.
Because this LED has a low profile, getting this off is a little harder than the bulbs of the HVAC, but the idea is the same. Heat up the solder on one side, rock it, repeat on the other side, and repeat both until it comes off. For putting on your new LED, here is the polarity.
[IMG]http://i184.photobucket.com/albums/x148/zergthebear/ESPLED.jpg[/URL]

Put it all back together and enjoy! :rockon:
[URL]http://i184.photobucket.com/albums/x148/zergthebear/ESPOrange.jpg[/IMG]


Heated Seat Switches

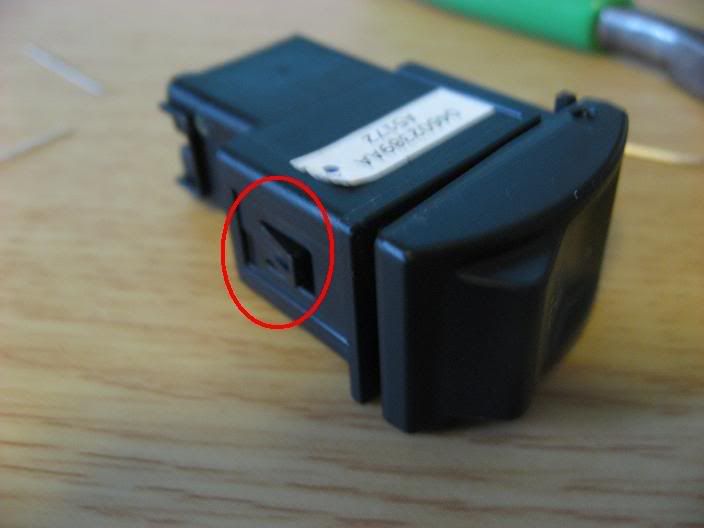

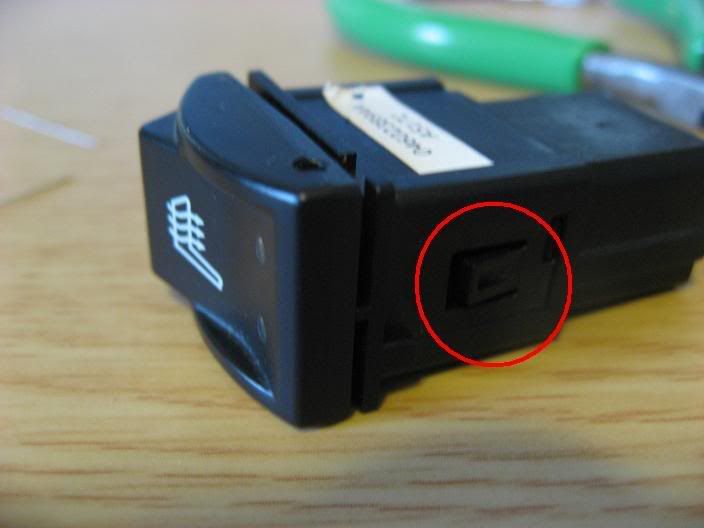

Remove the shifter bezel and pull out on the ashtray and disconnect the buttons from the wiring harness. There are two retaining clips on each button that hold it in place:



Once you have these pressed, the switch just slides out the front of the panel. There are two clips to separate the front from the back. This is a bulb, so, like the HVAC, we will need LEDs and resistors. The bulb is actually soldered onto the back of the PCB. Looking at the back, here is the polarity.


Remove this bulb the same way as the others. work on one side, then the other, then repeat. I found it easiest to put my iron in the small hole in the plastic. Be careful, though, because you iron will probably get some melted plastic on it. Here is the LED installed.

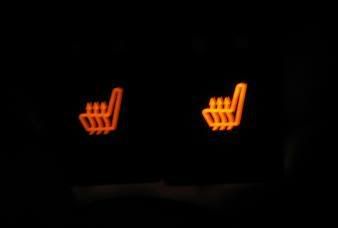

Unfortunately, when I put these back together, they turned out to be substantially brighter than the HVAC, so I have some work cut out for me.


There are a number of things I can do to bring down the intensity of these buttons, but I'm not going to do anything about it right now. I'll probably start with sanding down the tips to diffuse the light and using a layer or two of my orange film (lighting gel) to aid in that effort.

Otherwise, put it all back together and enjoy! :rockon:

**UPDATE**
After doing this, the heated seats were significantly brighter than the HVAC unit. This bothered me, and so I took them back out and modified them. I sanded down the LEDs (not sure if this had any impact - probably not) and added two layers of tissue paper to the inside of the switch. Once you have the switches out, there are two points at the top that act as hinges. Just take a small screwdriver and pop the button off of the switch. Then cut out two small squares of tissue paper and tape them to the back side of the switch. Reassemble and you're done. Sorry, I forgot to take pictures of these steps until everything was back together. Here is a before/after pic showing the difference the tissue paper makes.


It still might be slightly brighter, but it doesn't stand out anymore like it used to. :rockon:
Mol is offline   Reply With Quote
Reply
Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
