Unread 05-17-2012, 08:50 AM   #16
04 RUBI
Registered User
2009 JK Wrangler

Join Date: Mar 2007
Location: Atl, GA
Posts: 102
Quote:
Originally Posted by mini-me

Not sure why you don't like it, it is an awesome place for the wiring. Its tucked up in there, no issues with trails. You can change the bumper etc and no worries and it works great to keep the wire up and away from carnage with the offroad trailer. I have a modified M100 trailer I use with this and it works perfect and looks OEM. Trust me, this is the way to go.
Can you post pic? I haven't mounted mine yet and you have me curious.

04 RUBI is offline   Reply With Quote
Unread 05-17-2012, 08:51 AM   #17
wmshay6
Registered User

Join Date: Apr 2009
Location: Maryland
Posts: 81
What is the CVCW of a Baja

Quote:
Originally Posted by planman44 View Post
I have a 7 pin and trailer brakes for the same reason you need them. I pull a jayco baja popup camper. I had rv dealer install 7 pin and brakes for $150
What's that bad boy weigh? And how does it tow? I currently tow my Fleetwood Graphite (2700 GVWR) with a Nissan Titan. It's kind of overkill . . . .
wmshay6 is offline   Reply With Quote
Unread 05-17-2012, 09:00 AM   #18
mini-me
Registered User
2012 JK Wrangler

Join Date: Aug 2007
Location: Colorado
Posts: 187
Quote:
Originally Posted by 04 RUBI View Post
Can you post pic? I haven't mounted mine yet and you have me curious.
See page 1, pic is there.
__________________
2012 Sport in DCR
mini-me is offline   Reply With Quote
Unread 05-17-2012, 10:29 AM   #19
04 RUBI
Registered User
2009 JK Wrangler

Join Date: Mar 2007
Location: Atl, GA
Posts: 102
Quote:
Originally Posted by mini-me

See page 1, pic is there.
Oops. It wouldn't show on my phone. Thanks.
04 RUBI is offline   Reply With Quote
Unread 05-18-2012, 09:32 AM   #20
Lynhalla
Member

Lynhalla's Avatar
2008 JK Wrangler

Join Date: Sep 2010
Location: St. Johns, Florida
Posts: 309
Quote:
Originally Posted by wmshay6 View Post
What's that bad boy weigh? And how does it tow? I currently tow my Fleetwood Graphite (2700 GVWR) with a Nissan Titan. It's kind of overkill . . . .
unloaded weight is 3015 lbs. GVWR is 4,800 lbs. Tows great. I know I am pushing limits but manual trans and 5:13 gears help. Just took 1500 mile trip to Tenneesee mountains and it did well. a couple long 7% grade hills had me down to third gear but was able to maintain 40mph. Looking to add some umph this year by adding Ripp SC
Lynhalla is offline   Reply With Quote
Unread 05-21-2012, 01:59 PM   #21
oO_Rogue_Oo
Registered User
2008 JK Wrangler

Join Date: Feb 2010
Location: Pearl, MS, Mississippi
Posts: 56
Quote:
Originally Posted by mini-me View Post
This is the best mod ever. Get the mopar 7 pin harness. Use a hole cut blade and fit it into the body just left of the rear door. Super easy.

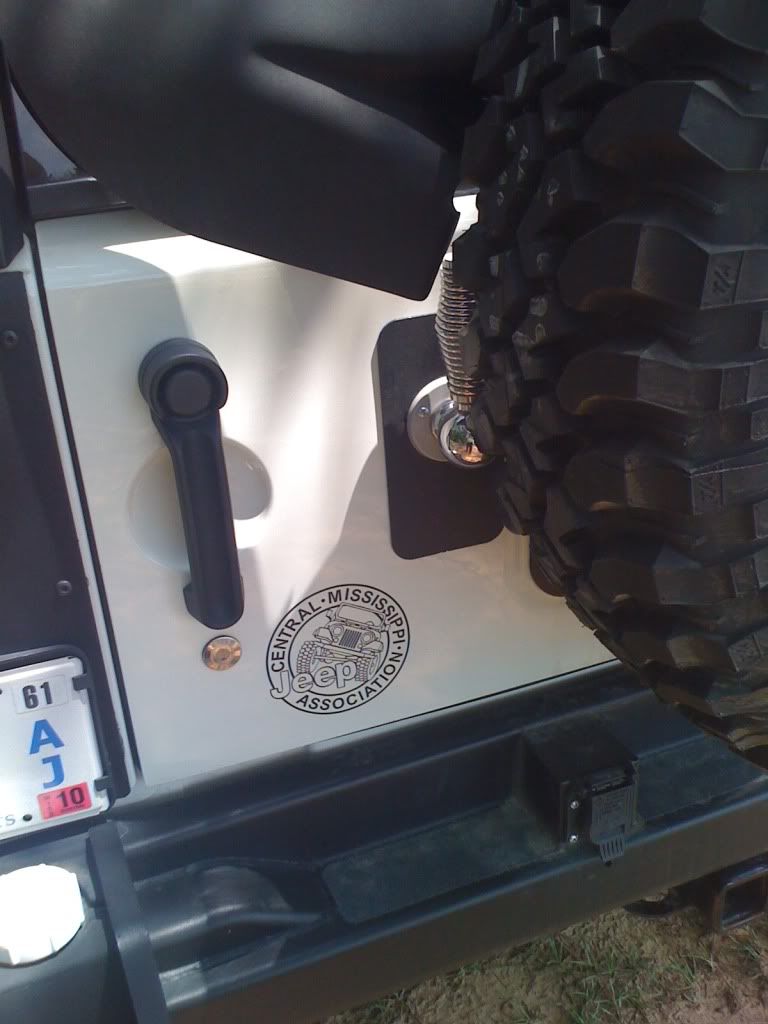

Seen this done before and didn't like it for one reason; it gets in the way when trying to access the tailgate with the trailer hooked up. Also don't like running heavy power wiring so close to the fuel filler. I mounted my setup on the bumper, just built a little box for it out of 1/8" sheet. So far it's never been in the way; is very well protected and no worries with wiring so close to fuel.

__________________
"The society that separates its scholars from its warriors will have its thinking done by cowards and its fighting by fools."
Thucydides circa 460 bc - c. 400 bc
oO_Rogue_Oo is offline   Reply With Quote
Unread 05-21-2012, 06:37 PM   #22
rubicube416
Registered User

Join Date: Feb 2012
Location: Cold Lake, Alberta
Posts: 85
I put a thread up a few months ago about wanting to do it on mine and it was pretty easy, having a car hoist to able to use made the job much easier then crawling around underneath it because i tried it that was and gave up lol
__________________
2011 Wrangler Rubicon
KMC XD series Addict rims

"If you don't stand behind our troops, Feel free to stand in front of them"
rubicube416 is offline   Reply With Quote
Unread 05-25-2013, 09:33 AM   #23
DocWEFest
Registered User
2009 JK Wrangler

Join Date: May 2013
Location: Forest Lake, MN
Posts: 1
Quote:
Originally Posted by mini-me View Post
This is the best mod ever. Get the mopar 7 pin harness. Use a hole cut blade and fit it into the body just left of the rear door. Super easy.
This is a very interesting way to mod. I am interested in doing this as my first mod followed by a 2.5" lift. What measures did you take to protect the metal once you drilled the holes? How is it fastened on, additional drilling for the bolts I would assume? Did you take precautions to safe guard against water, any sealing, rubber gaskets or silicone?
DocWEFest is offline   Reply With Quote
Unread 05-25-2013, 10:46 AM   #24
mini-me
Registered User
2012 JK Wrangler

Join Date: Aug 2007
Location: Colorado
Posts: 187
No need to seal anything, it is all exposed in there anyway, it doesn't change anything. Its one large bore hole in the middle, then once you have that and insert the adapter in there then you mark the other 4 smaller holes and drill them. After all the holes are drilled you can just dab some paint to cover the metal. It won't rust out in your life time. Its really easy and the best mod I have ever done. We have done this to a half dozen Jeeps and no problems.
__________________
2012 Sport in DCR
mini-me is offline   Reply With Quote
Unread 05-28-2013, 12:40 PM   #25
waterboarder
Registered User
2007 JK Wrangler

Join Date: Sep 2007
Location: Belfast
Posts: 6,347
Quote:
Originally Posted by wmshay6 View Post
Has anyone added a 7Pin connector / harness to their JKU?
I have, detailed thread here: http://www.jeepforum.com/forum/f96/i...ler-jk-586378/
waterboarder is offline   Reply With Quote
Unread 05-28-2013, 08:40 PM   #26
nwbronco
Registered User
2014 JK Wrangler

Join Date: Jun 2009
Location: Olympia, Washington
Posts: 1,245
You guys are killin' me. I bought a 4 to 7 adapter and it plugs into the stock connector. Done.


Bob K.
__________________
His 14 Anvil JKUR-X
Hers 09 Blue JK
Kid's '08 Yellow JKU
'13 Black 10A Rubicon JKU
nwbronco is offline   Reply With Quote
Unread 05-28-2013, 09:42 PM   #27
waterboarder
Registered User
2007 JK Wrangler

Join Date: Sep 2007
Location: Belfast
Posts: 6,347
Quote:
Originally Posted by nwbronco View Post
You guys are killin' me. I bought a 4 to 7 adapter and it plugs into the stock connector. Done.
The extra pins on a 7-pin connector provide:

a). Trailer brake control.
b). Reverse lights on the trailer.
c). A "hot" wire to charge the battery on the trailer.

You don't get that simply by using a 4 to 7 pin converter.
waterboarder is offline   Reply With Quote
Unread 05-29-2013, 12:13 AM   #28
nwbronco
Registered User
2014 JK Wrangler

Join Date: Jun 2009
Location: Olympia, Washington
Posts: 1,245
Fair enough. I don't pull anything that needs those.

Bob K.
__________________
His 14 Anvil JKUR-X
Hers 09 Blue JK
Kid's '08 Yellow JKU
'13 Black 10A Rubicon JKU
nwbronco is offline   Reply With Quote
Unread 05-29-2013, 12:33 AM   #29
waterboarder
Registered User
2007 JK Wrangler

Join Date: Sep 2007
Location: Belfast
Posts: 6,347
Quote:
Originally Posted by nwbronco View Post
Fair enough. I don't pull anything that needs those.
....then it seems rather strange that you would need a 7-pin connector converter. Generally, any trailer that has a 7 pin connector has one because it has trailer brakes. If you're just pulling trailers that have a 7 pin connector on them when they could be using a 4-pin connector...that would just be rather strange.
waterboarder is offline   Reply With Quote
Unread 05-29-2013, 12:12 PM   #30
nwbronco
Registered User
2014 JK Wrangler

Join Date: Jun 2009
Location: Olympia, Washington
Posts: 1,245
Quite a few trailers I have pulled have the 7 pin and no trailer brakes. They were U-Haul and car dolly trailers. You know as well as I that it's a crap shoot on most of those types. I just finished building a quad trailer for a friend. We put a 4 pin on it. Went up to the trailer sales and looked at similar 5x8 trailers. No 2 were alike is a lot of 6. And 2 had 7 pin connectors. Sales guy was useless. I asked him about it and I might as well said it in Latin.

Bob K.
__________________
His 14 Anvil JKUR-X
Hers 09 Blue JK
Kid's '08 Yellow JKU
'13 Black 10A Rubicon JKU
nwbronco is offline   Reply With Quote
