I just finished installing my RoadlessGear in cab winch controller, but I have a new variation on the installation location so I thought I'd share some pictures.

The controller has its own switch panel:



but I didn't really like any of the install locations I had seen. I decided to just take the switches and install them directly into the knee panel on the left side of the steering wheel.

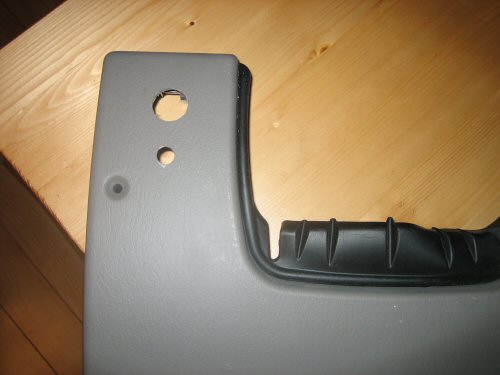

First I popped out the panel and drilled holes to mount the switches in a vertical configuration, with the "arming" switch on top, and the momentary toggle below it:

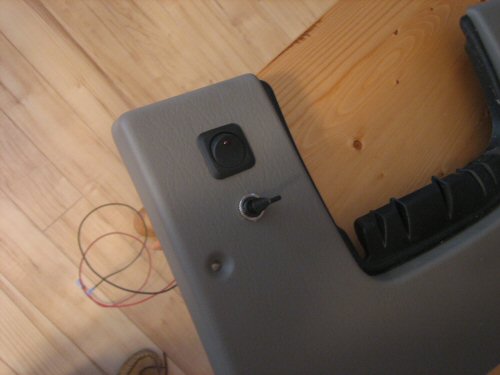

Then I put the switches in:

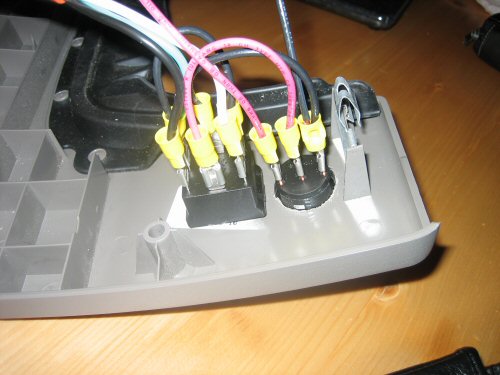

I also ended up putting quick disconnects on the switch wires so I could take that panel out easily when needed, and I had to buy more wire at Ace hardware in order to have enough to get to the winch. I ended up buying 12 feet of wire and that was plenty. The 8 feet that came with the kit was not nearly enough.

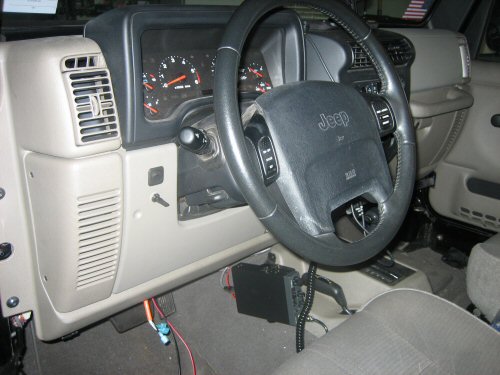

Here is the "test fit" before I connected the wires:

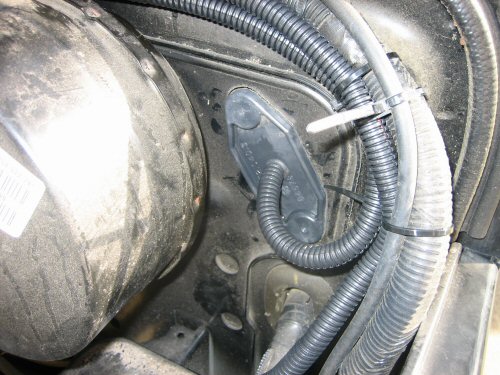

I ran the wires to the winch through the firewall by drilling a hole in the clutch block-off panel (I have an auto tranny) and using a tight grommet:





I ran the wire (in wire loom) across the firewall to the passenger side, then to the winch following the main winch wires. Then I just had to connect the wires to the winch solenoids following the instructions:

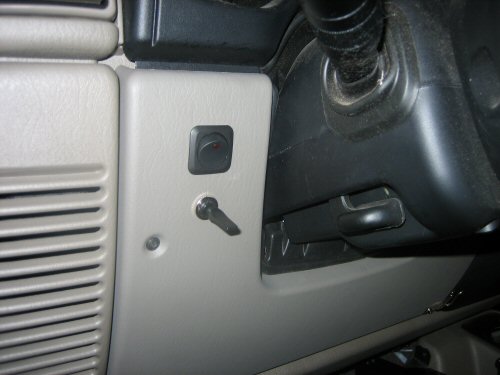

Here's the finished product, with the "arm" switch off:

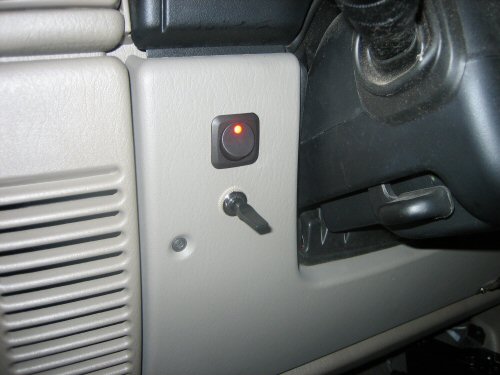

...and here is it "armed" ...



...works like a champ.

The arming switch needs a power source, so I used one of the ignition-switched leads from my Painless 7-circuit fuse box (I'll do a separate write-up for that) so that it is only functional with the ignition on. Of course the regular plug-in wired remote controller still works as usual.

I like having it on the left side of the wheel so no doofus passengers start playing with it. Also, I don't really like the switch plate that came with it (though I did have a black one). I think putting the switches in directly almost gives it a factory look.

Of course, there are no labels for the switches, but it is easy to remember. You "pull" the toggle switch down to pull the cable in, and everything else is obvious from there.
