2006 LJ Wrangler

Join Date: Apr 2005
Posts: 270
Unlimited,
Thanks for posting this information. I busted the stock bolt while trying to tighten it. I'm all set now after a trip to AAA Metric Supply in Denver.


Quote:
Originally Posted by Unlimited04 View Post
had some death wooble symptoms the other day, so decided to check the track bar. broke the axle side front track bar bolt this morning checking the torque....today wasnt my day. Spent 5 hours screwing with the t-case linkage too....

The stock track bar bolt is 10.9 and has 9mm shaft, but M10 (10mm x 1.5) threads....which is why its so loose inside your track bar bushing.

Stock Bolt Shaft (9mm):


Stock Threads (10mm):


Normal Class 8.8, Class 10.9 and Class 12.9 Bolt Shaft (10mm):


Normal Class 8.8, Class 10.9 and Class 12.9 Bolt Threads (10mm):


This makes no sense to me, because the OD of the non-thread shaft should be the same as the major diameter as the threads, not the minor diameter. Every bolt you buy at the hardware store is like this, but Jeep's bolt isn't. And the hole is drilled to 7/16" - so its a custom metric bolt in a standard drilled hole. Whatever, typical Chrysler engineering...crap like this is why they went bankrupt.

So the local hardware store doesn't have any hex head 10.9 bolts because they are morons. they only have 8.8 hex heads, and 12.9 socket head cap screws. Then the hardware store guy tried to tell me Class 8.8 = Grade 8.

I bought two hex Class 8.8 and one socket head cap Class 12.9, all M10 x 1.5.

[Engineering Speak]

All 10.9 bolts have a tensile strength of 145 ksi (kilo-psi), all 8.8 bolts have a tensile strength of 116 ksi. For reference Grade 5 = 120 ksi and Grade 8 = 150 ksi. Class 12.9 has a tensile strength of 174 ksi. Source: www.mcmaster.com

Many say the factory torque spec is 55 ft-lbs. BUT - a Class 8.8 M10 bolt can only take 40-45 ft-lbs of torque before the threads distort and the bolt is useless. A Class 10.9 M10 bolt can take ~55-60 ft-lbs. A Class 12.9 M10 bolt can take ~73 ft-lbs.
Source: http://dodgeram.org/tech/specs/bolts/M_bolts.html and http://www.dansmc.com/torque_chart.htm and and http://books.google.com/books?id=_Pk...esign+handbook

[/Engineering Speak]

What does this mean? Since the stock torque spec is at the upper limit of a 10.9 and grade 8 bolt, you can very easily overtorque the stock bolt, causing the threads to deform and the next time you go to use the bolt it is useless and will not torque properly. It will just snap. Thats what happened to me. The solution - buy a 12.9 M10x1.5 75mm bolt and torque to 55-65 ft-lbs.

Also, every M10 x 1.5 bolt you buy from McMaster or a hardware store will have a 10mm OD shaft instead of the stock 9mm, which makes it fit more snug in the track bar (a good thing!). You'll have to drill out the stock washer, I worked it with a 3/8" drill bit for a while. I couldn't find a thick, larger OD 10mm ID washer to match the stock one.

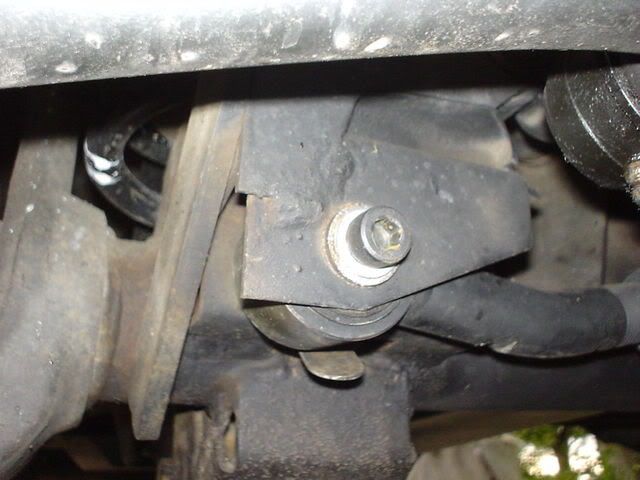

Finished - Class 12.9 Socket Head Cap Screw, Class 10.9 thin washer + drill out stock washer:


I reused the stock nut after chasing the threads with an M10 tap - I chewed them up trying to get the busted bolt out. Torqued to 55-60 ft-lbs and used a bit of blue lock-tite. make sure to tighten the Class 12.9 M10 bolt with an 8mm Allen head - careful not to strip the allen head!
Chest_Rockwell is offline
post #518 of 711 Old 04-17-2013, 05:55 PM Thread Starter
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,178
Quote:
Originally Posted by Chest_Rockwell View Post
Unlimited,
Thanks for posting this information. I busted the stock bolt while trying to tighten it. I'm all set now after a trip to AAA Metric Supply in Denver.
good deal.


since this got bumped, i might as well update it.

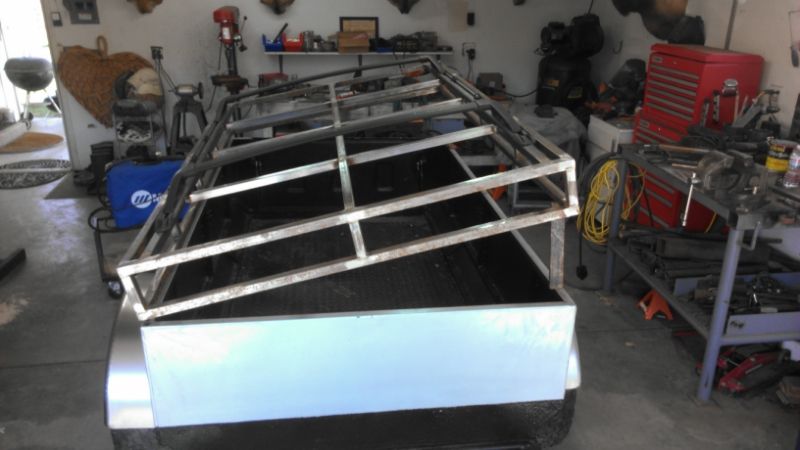

On the trailer, I got the lid frame fully welded, and got the hinges installed. I used stainless steel hinges, with removable pins - basically like interior house door hinges. This means I'll be able to remove the entire lid easily if I need to use the trailer for hauling large items. The hinges were welded on with 308L stainless steel wire and 100% argon gas using a Millermatic 211 Autoset.

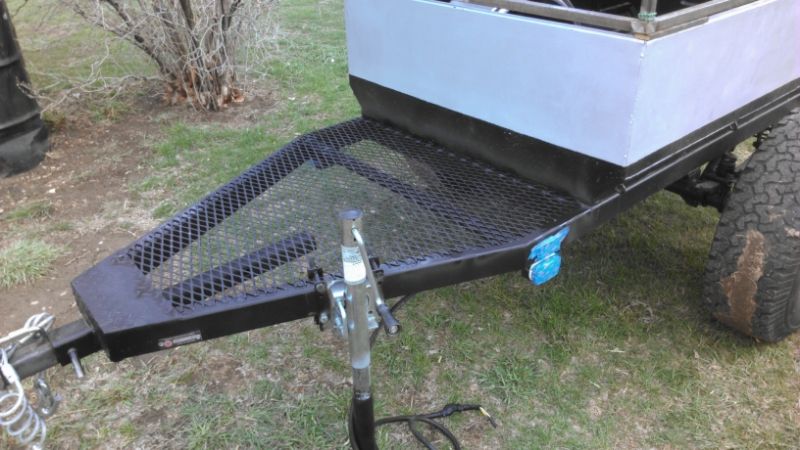

#9 x 3/4" flattened expanded metal welded on the front:


The latches to keep it closed will be two stainless CJ style hood latches. The lid will get skinned in a higher grade of laminated plywood. I haven't decided if i'm going to body filler + paint the wood to remove the grain appearance, or keep the grain w/ a varnish to give it the "woody" style. The lid itself shouldn't weigh more than 50-60lbs by the time I'm done.

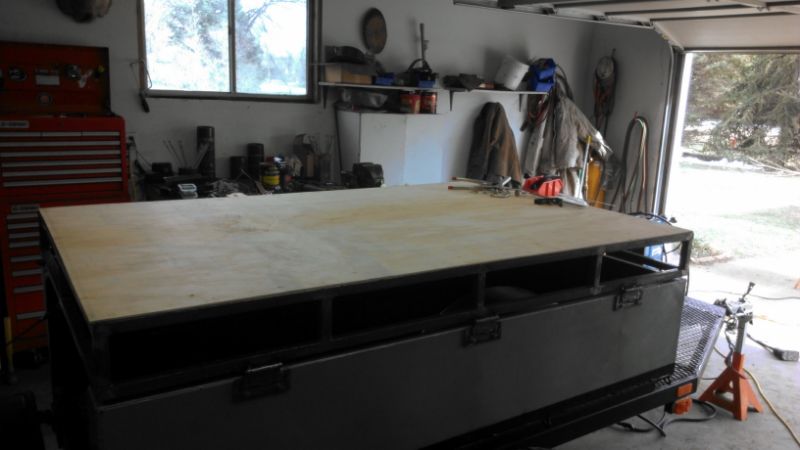

plywood cut to fit:


On the Jeep, mrblaine was nice enough to send me a good used set of 48mm calipers and some BMB pads & new front rotors to test out (link here).

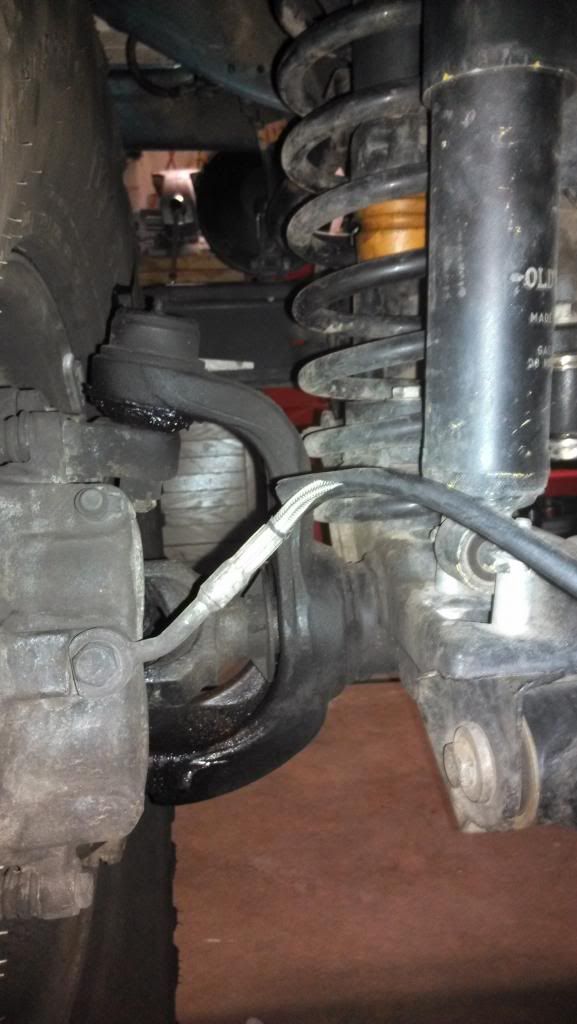

I had Crown Performance make me some custom brake lines to eliminate my current Crown TJ brake line vs shock clearance problem, and I will be installing them with the 48mm calipers. The TJ caliper banjo bolts are horizontally mounted, so lines end up vertical...but the Explorer/Sport Trac caliper banjo bolts are oriented different, so I ended up with the Crown TJ lines pointing right at the shocks. At full lock & full stuff they rub pretty bad...which I see all the time on switchbacks in the mountains. I bent them out of the way best I could, but these new custom lines will use low profile caliper ends to fix this orientation issue once and for all.

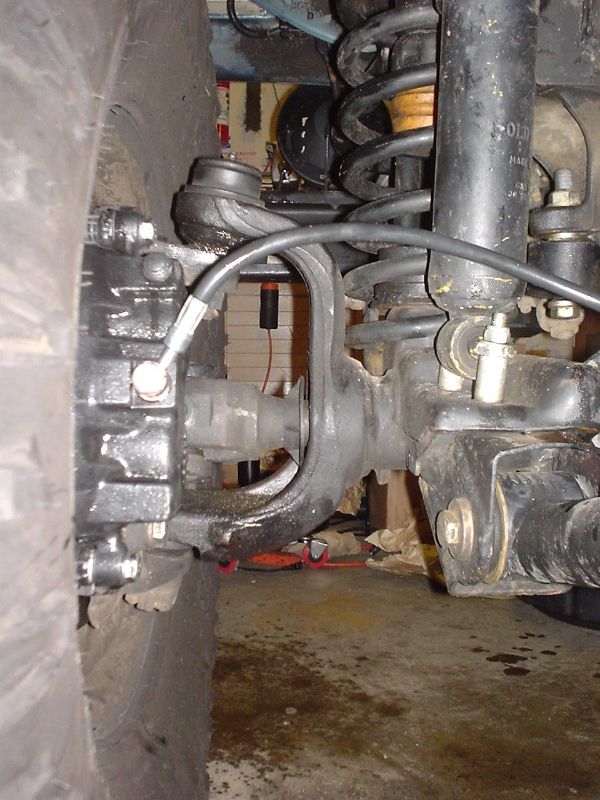

Old:


New:


My rear brakes are due for maintenance as well, so I ordered some new rotors & pads from Advance Auto and will hopefully get to those soon too.
Unlimited04 is offline
post #519 of 711 Old 05-25-2013, 12:55 AM
midnight_f150
Registered User
2002 TJ Wrangler

Join Date: Dec 2010
Location: greenbrier
Posts: 1,476
What do you think about Metal Cloak new trac bar?
midnight_f150 is offline
post #520 of 711 Old 06-16-2013, 10:23 AM Thread Starter
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,178

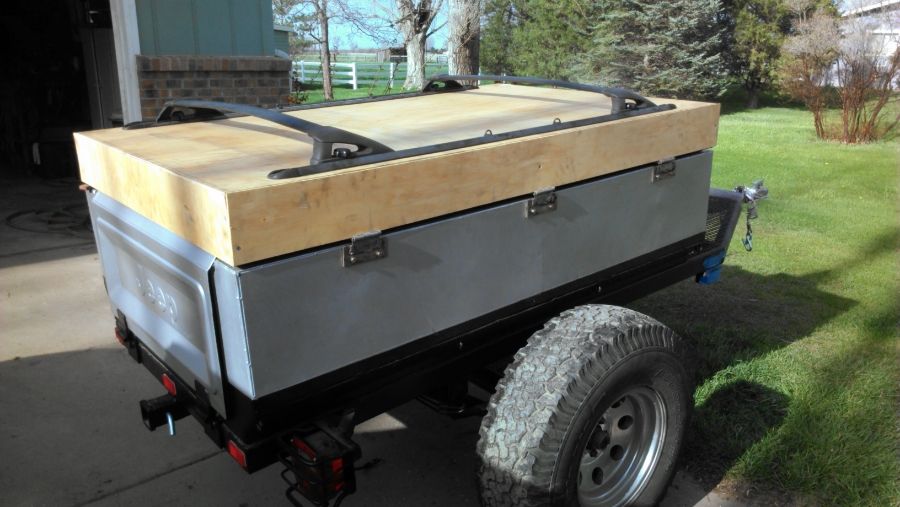

Trailer lid is almost done:


Wheeling Pics!

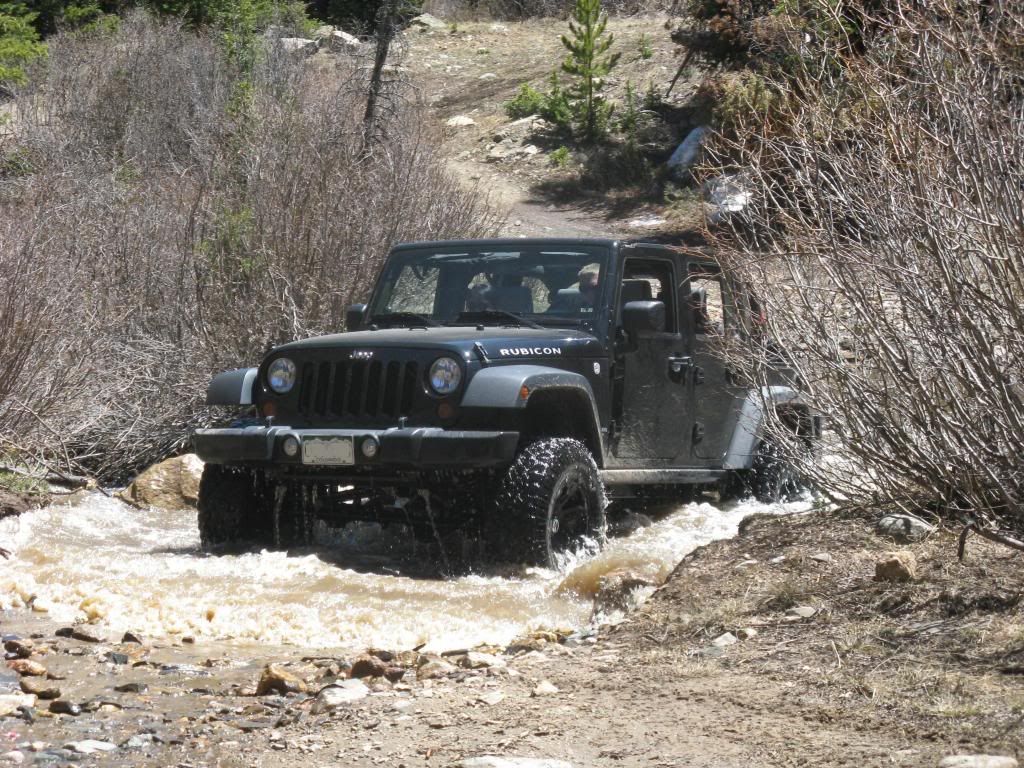

Myself, Zetto and COLOUXJ hit up Argentine Pass/McClellen Mtn and ran into some snow, and much of the trail(s) were closed/snowed in, but we did make it to Waldorf.





New toy! GoPro video going up to the Waldorf mine site:
http://youtu.be/mCx-i6dsb8M
Unlimited04 is offline
post #521 of 711 Old 06-28-2013, 07:25 PM Thread Starter
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,178

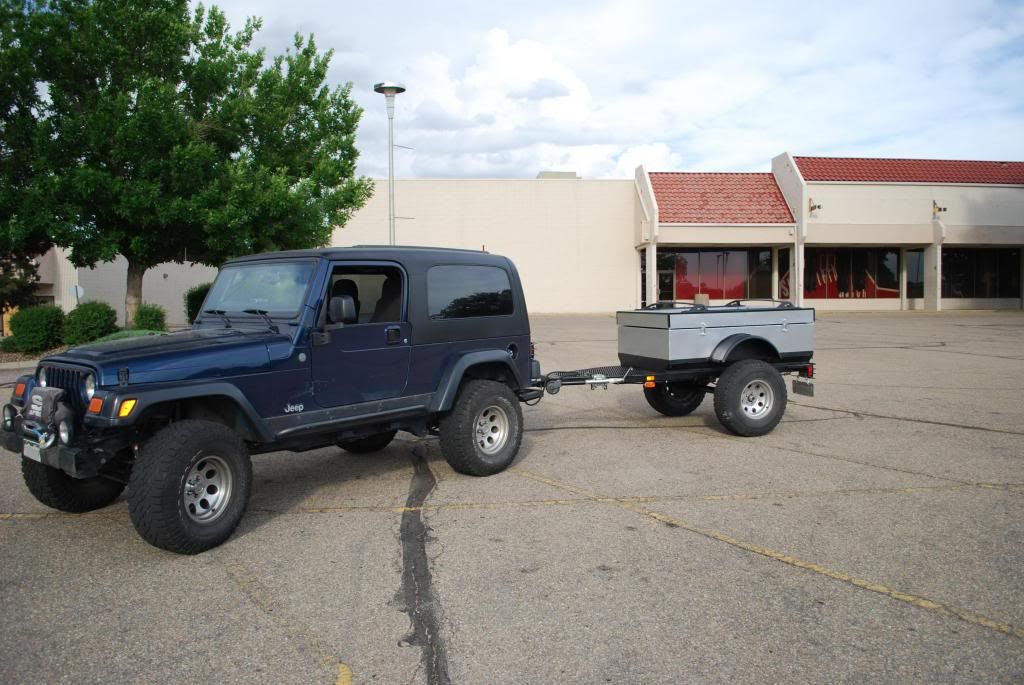

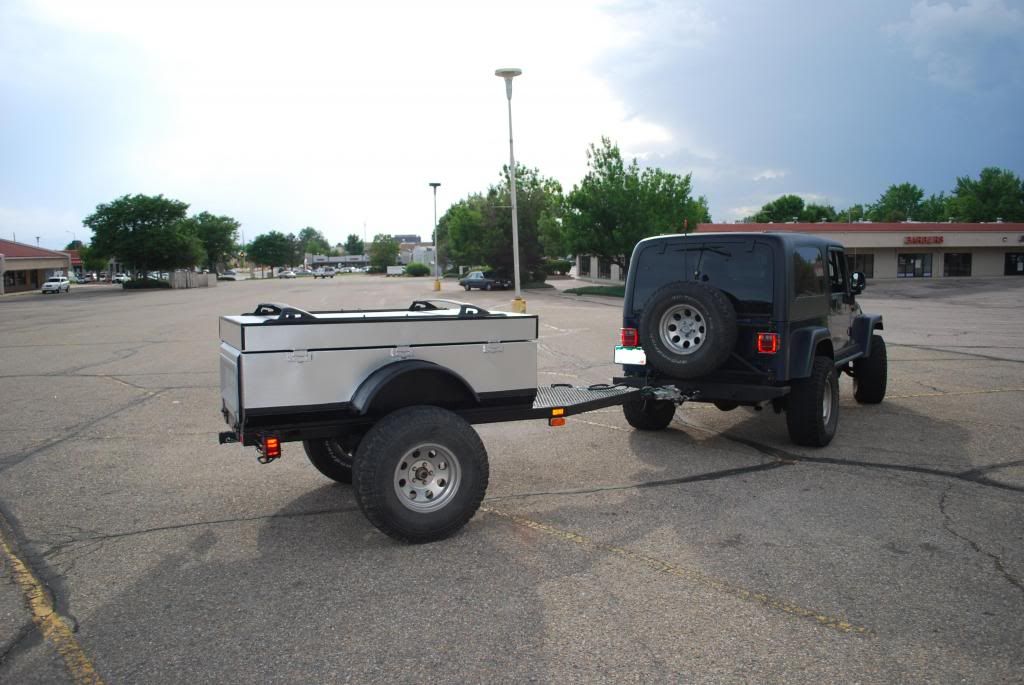

Trailer is DONE (for now). Lid is finished. Brakes work. Jeep is wired for 7-way RV connector, with Draw-Tite Activator II brake controller. Reverse lights on the trailer will also activate when the reverse lights on the Jeep are operating.
