post #376 of 711 Old 09-18-2011, 01:33 PM Thread Starter
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,169
Quote:
Originally Posted by freeskier93 View Post
Wait, I'm confused.... is that a newer jeep thing? Overflow coolant will actually overflow from the overflow bottle and spray everywhere?
its a TJ thing. that little right angle neck vent the 3/4" hose is connected to is allows the overflow to spit everywhere...usually coats the throttle body, intake manifold & intake tube. the day I did this it even got into the fan, serp belt, and all over the pulleys. I thought my t-stat housing was leaking...but after running it a while and tracing the mess, it came out of the coolant bottle

Unlimited04 is offline
Sponsored Links
Advertisement

post #377 of 711 Old 09-18-2011, 02:43 PM
2006_Sport
Registered User
2006 TJ Wrangler

Join Date: Feb 2009
Location: Sherrills Ford
Posts: 10,823
Quote:
Originally Posted by Unlimited04 View Post
its a TJ thing. that little right angle neck vent the 3/4" hose is connected to is allows the overflow to spit everywhere...usually coats the throttle body, intake manifold & intake tube. the day I did this it even got into the fan, serp belt, and all over the pulleys. I thought my t-stat housing was leaking...but after running it a while and tracing the mess, it came out of the coolant bottle
Happened to me when I was wheeling last fall. I thought I blew something up
2006_Sport is offline
post #378 of 711 Old 09-18-2011, 02:47 PM
freeskier93
Registered User
1997 TJ Wrangler

Join Date: Oct 2009
Location: Highlands Ranch
Posts: 7,168
As soon as I posted that I went out and looked and found that outlet. Guess I'm lucky it's never happened to me, but I do know what coolant all over the engine bay is like. The crimps on the original radiator crapped out on me, that was a mess.
freeskier93 is online now
post #379 of 711 Old 09-18-2011, 02:58 PM
Yucca-man
Registered User
2004 LJ Wrangler

Join Date: Jan 2011
Location: Brighton
Posts: 1,029
Garage
Quote:
Originally Posted by Unlimited04 View Post
its a TJ thing. that little right angle neck vent the 3/4" hose is connected to is allows the overflow to spit everywhere...usually coats the throttle body, intake manifold & intake tube.
It's an XJ thing, too.



That's my current '96 XJ, but thanks for the great idea for the bottle/drain. So far (knock on wood) I haven't had the burps with mine, but it will be a mess when it does. Already subscribed to this thread for ideas when I pick up a 6-speed LJ later this year though - great stuff!
Yucca-man is offline
post #380 of 711 Old 09-18-2011, 03:22 PM
Knuckelhead
AFSOC Retired

Knuckelhead's Avatar
2000 TJ Wrangler

Join Date: Aug 2005
Location: Colorado
Posts: 19,506
Quote:
Originally Posted by Unlimited04 View Post
I remember see that picture I keep stealing mods from you

Did you hook your aux tranny cooler to the hot output side line or the cool return line? What's the flow path of your dual coolers? similar to the picture above, or different?

Thanks


My transmission output line goes to the manifold style cooler in front of the radiator to take the bite out of the heat.

Then the fluid goes to the lower tank in the radiator to keep the fluid temperature balance.

Then the fluid goes to the B&M fan drive cooler over the rear axle.

And finally to the 1 quart filter before returning to the transmission...

My rheostat is set at 125 degrees and it rarely kicks in.

...HTH
Knuckelhead is offline
post #381 of 711 Old 09-18-2011, 03:45 PM Thread Starter
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,169
Quote:
Originally Posted by Knuckelhead View Post


...HTH
yup, that helps. I was thinking the filter might be best at one of the hotter sides, since viscosity would be lower and resistance would be lowest ? plus particles wouldn't be pushed into the coolers? maybe?

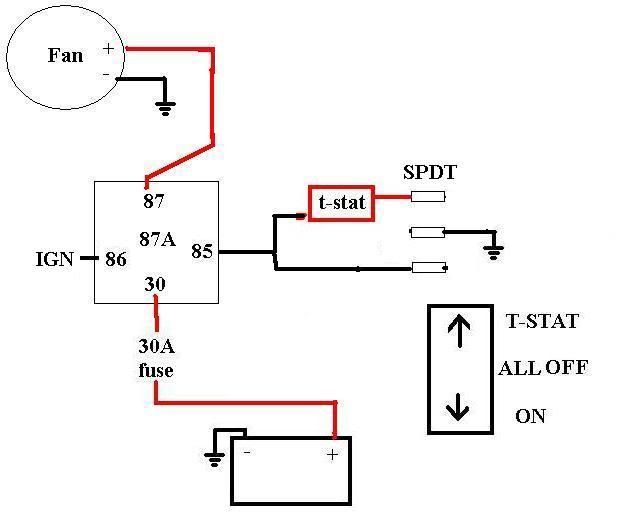

I'll be using the flow diagram shown above, temp sensor switch will be 180 deg, and temp gauge will be in the hot output right out of the tranny. I'd like to wire up an On/Off/On switch in the dash to control the fan like so: thermostat controlled/always off/ turned on.

But...I suck at wiring things like this without trial and error.

Any ideas?
http://www.jeepforum.com/forum/f20/c...agram-1266260/

Would wiring look like this?

Thanks
Unlimited04 is offline
post #382 of 711 Old 09-19-2011, 08:36 AM
Eskimo
Registered User
2004 TJ Wrangler

Join Date: Apr 2008
Location: Denver
Posts: 9
Sorry Kuncklehead to change gears but the hose thing on your transfer case I like; what are the details on parts or where did you get it http://i42.photobucket.com/albums/e3...ansfercase.jpg
Eskimo is offline
post #383 of 711 Old 09-19-2011, 08:40 AM Thread Starter
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,169
Unlimited04 is offline
post #384 of 711 Old 09-19-2011, 08:46 AM
Eskimo
Registered User
2004 TJ Wrangler

Join Date: Apr 2008
Location: Denver
Posts: 9
Very cool I like, thanks
Eskimo is offline
post #385 of 711 Old 10-01-2011, 07:10 PM Thread Starter
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,169
Unlimited04 is offline
post #386 of 711 Old 10-01-2011, 07:58 PM
tdittyrocks
Registered User
2004 TJ Wrangler

Join Date: Mar 2010
Location: Boulder, CO
Posts: 71
Looks like a good start. I just picked up an M416 in great condition and am starting to build it into an adventure trailer. Good luck with the build!
tdittyrocks is offline
post #387 of 711 Old 10-01-2011, 08:01 PM Thread Starter
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,169
Quote:
Originally Posted by tdittyrocks View Post
Looks like a good start. I just picked up an M416 in great condition and am starting to build it into an adventure trailer. Good luck with the build!
how much did you pay for the M416? I looked at a few, and nothing in good shape was less than $1200, and everything under $700 needed a complete rebuild. I said screw it...i'll build my own...
Unlimited04 is offline
post #388 of 711 Old 10-01-2011, 08:08 PM
tdittyrocks
Registered User
2004 TJ Wrangler

Join Date: Mar 2010
Location: Boulder, CO
Posts: 71
Yeah I was in the same boat as you. A friend of mine in Wisconsin found it at a military swap meet. The guy was selling a jeep and this trailer as a package. Someone bought the Jeep but didn't want the trailer, so he priced it to sell. I got it for $750, of course I had to drive there to pick it up, but I was due for a visit anyway. Its in such great shape, I feel a little guilty for modifying it.
tdittyrocks is offline
post #389 of 711 Old 10-01-2011, 08:17 PM Thread Starter
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,169
Quote:
Originally Posted by tdittyrocks View Post
Its in such great shape, I feel a little guilty for modifying it.

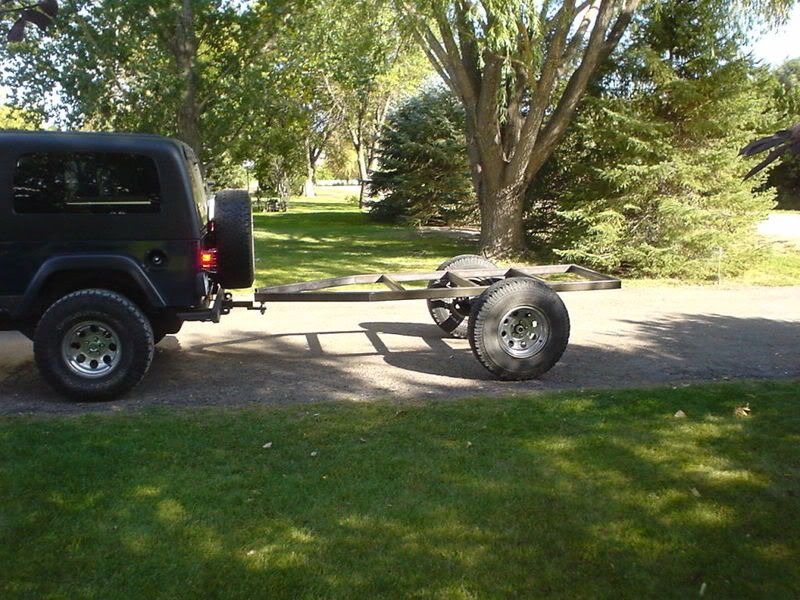

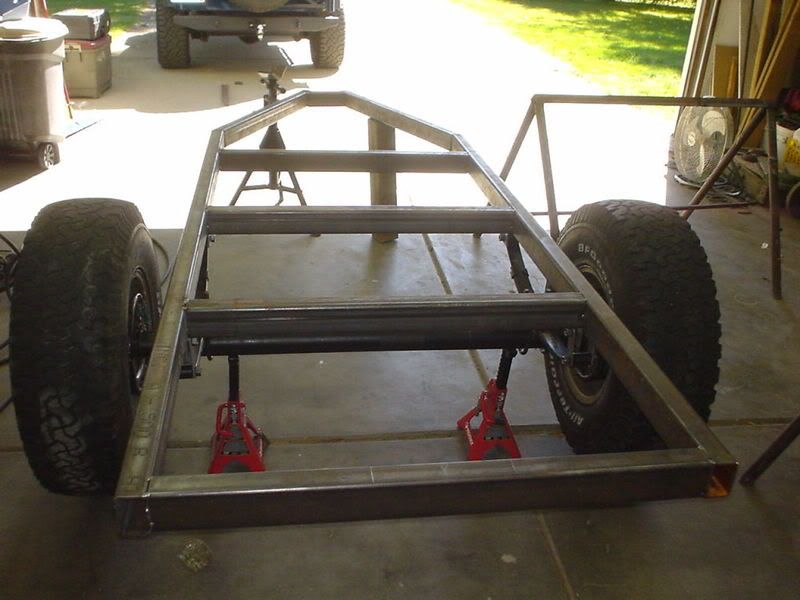

yea, thats what i was thinking. you got a smokin' deal on that M416 too. the 1990s Canadian M101 I saw that was $1200 and in awesome shape, I would feel bad hacking it up. I wanted electric trailer brakes and 5x4.5...so I would have had to pull the original axle & parking brake, cut a tailgate out, etc....this way I'll get exactly what I want. Dimension & frame are my own design based off the M416 and my friend's AT Chaser. It'll eventually get the CJ tailgate & new XJ Monroe shocks I found in the junkyard.
Unlimited04 is offline
post #390 of 711 Old 10-01-2011, 08:22 PM
tdittyrocks
Registered User
2004 TJ Wrangler

Join Date: Mar 2010
Location: Boulder, CO
Posts: 71
Sounds like we have similar build plans. Keep posting progress.
tdittyrocks is offline
