UFC engine skid install help please...

Hey all,
Just got the aluminum one from a member on here. Looks pretty easy to install. But I was wondering for those of you who have the stock TC skid, did you bolt engine skid on top of TC skid or bottom? some pics might help. Thanks.
BTW, 04, 4" SL, no MML.

__________________
To Alcohol!...The cause and solution to all of life's problems. - Homer
kllrbee is offline   Reply With Quote Quick reply to this message
Unread 07-03-2010, 02:25 PM   #2
Jay12
Registered User
1997 TJ Wrangler

Join Date: Aug 2008
Location: Gainesville, VA
Posts: 2,180
Bolt it to the bottom of it. Loosely bolt up the front brackets and then use a floor jack to hold the skid under the TC skid to mark the holes you need to drill. Drill holes and tighten all bolts.
Jay12 is offline   Reply With Quote Quick reply to this message
Unread 07-03-2010, 03:02 PM   #3
kllrbee
Registered User
2004 TJ Wrangler

Join Date: May 2008
Location: Lakemoor, IL
Posts: 408
Alright, thanks Jay.
Yeah it looked like it didnt fit right if I went on top of TC skid.
__________________
To Alcohol!...The cause and solution to all of life's problems. - Homer
kllrbee is offline   Reply With Quote Quick reply to this message
Unread 07-03-2010, 04:47 PM   #4
Benderff
Web Wheeler

Benderff's Avatar
2006 TJ Wrangler

Join Date: Apr 2007
Location: , Pacific NorthWest
Posts: 5,127
Glad it finally made it!
__________________
Benderff is offline   Reply With Quote Quick reply to this message
Unread 07-04-2010, 12:05 AM   #5
kllrbee
Registered User
2004 TJ Wrangler

Join Date: May 2008
Location: Lakemoor, IL
Posts: 408
Oh yeah, thnx Bender!! I been meaning to PM u and let u know I got it. Just slipped my mind. Nice skid man!! time to put it on and beat it up a little. Thnx for a great deal on a great skid.
__________________
To Alcohol!...The cause and solution to all of life's problems. - Homer
kllrbee is offline   Reply With Quote Quick reply to this message
Unread 11-03-2010, 09:35 AM   #6
purplepig
Web Wheeler

purplepig's Avatar
2000 TJ Wrangler

Join Date: Oct 2009
Location: Mobile, Alabama
Posts: 1,843
Can I see pics of the UCF engine skid mounted to the stock TC skid? Mine doesn't look like it is going to fit well.
purplepig is offline   Reply With Quote Quick reply to this message
Unread 11-03-2010, 10:42 AM   #7
biffgnar
Web Wheeler

biffgnar's Avatar
2006 TJ Wrangler

Join Date: May 2008
Location: Westchester, NY
Posts: 14,072
Quote:
Originally Posted by purplepig View Post
Can I see pics of the UCF engine skid mounted to the stock TC skid? Mine doesn't look like it is going to fit well.
Maybe look at this thread: http://www.jeepforum.com/forum/f9/uc...ifold-1085303/

That was my neighbor. As described in thread he had to do a little messing around but ended up nice.
__________________
Thank you Dave Cole, Dynomax, Falken and all the Spec Class sponsors!!
biffgnar is online now   Reply With Quote Quick reply to this message
Unread 11-03-2010, 11:53 AM   #8
purplepig
Web Wheeler

purplepig's Avatar
2000 TJ Wrangler

Join Date: Oct 2009
Location: Mobile, Alabama
Posts: 1,843
Quote:
Maybe look at this thread:
Thanks for the link biffgnar. Mine setup doesn't look the same, but maybe I can get responses from others in that thread with the same setup.
purplepig is offline   Reply With Quote Quick reply to this message
Unread 11-03-2010, 11:27 PM   #9
kllrbee
Registered User
2004 TJ Wrangler

Join Date: May 2008
Location: Lakemoor, IL
Posts: 408
Hey PP,
Mine fits exactly like the one in the pics.
Stock TC, no drop.

Like someone else said, bolt up the brackets, (might sound stupid, but make sure brackets are on there right), hold up the skid with a jack or something and push/pull/manuever it to exactly where you want it to bolt up to the TC skid. It took a little while for me to get it perfect. Mark, drill, bolt and you should be good to go.

Mine is also hitting the exhaust pipe so Im gonna need to do sme cutoff work. I dont really think it would hurt the pipe, but its kind o annoying to listen to. so I would recomend doing that before you bolt it up.

The skid is pimp so I hope you can get it right, cuz if its possible to love a skid, you will love this one.

Good luck.
__________________
To Alcohol!...The cause and solution to all of life's problems. - Homer
kllrbee is offline   Reply With Quote Quick reply to this message
Unread 11-07-2010, 07:54 PM   #10
purplepig
Web Wheeler

purplepig's Avatar
2000 TJ Wrangler

Join Date: Oct 2009
Location: Mobile, Alabama
Posts: 1,843

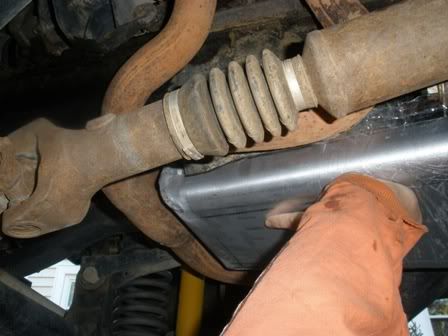

This is what I am working with. What do I do?




I can't move it forward any further.
purplepig is offline   Reply With Quote Quick reply to this message
Unread 11-07-2010, 08:36 PM   #11
DINOCAVE
formerly CPT Jeep

DINOCAVE's Avatar
2005 LJ Wrangler

Join Date: Feb 2006
Location: St Robert, MO
Posts: 1,315
You need to move it WAY farther forward. I just installed that skid and I drilled into the very front of the skid. Give me a minute and I'll get you pics.
DINOCAVE is offline   Reply With Quote Quick reply to this message
Unread 11-07-2010, 08:42 PM   #12
purplepig
Web Wheeler

purplepig's Avatar
2000 TJ Wrangler

Join Date: Oct 2009
Location: Mobile, Alabama
Posts: 1,843
If I move it forward it will hit the exhaust.? Does it go under below the exhaust?
purplepig is offline   Reply With Quote Quick reply to this message
Unread 11-07-2010, 08:43 PM   #13
DINOCAVE
formerly CPT Jeep

DINOCAVE's Avatar
2005 LJ Wrangler

Join Date: Feb 2006
Location: St Robert, MO
Posts: 1,315

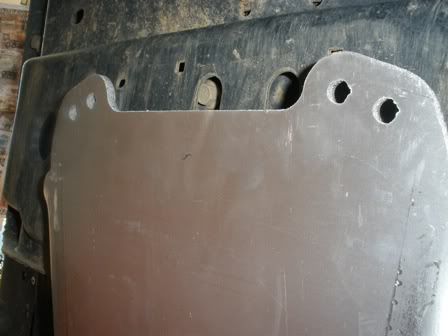

Here is how mine is mated to the transmission skid.
DINOCAVE is offline   Reply With Quote Quick reply to this message
Unread 11-07-2010, 08:46 PM   #14
DINOCAVE
formerly CPT Jeep

DINOCAVE's Avatar
2005 LJ Wrangler

Join Date: Feb 2006
Location: St Robert, MO
Posts: 1,315
Here is a photo from the UCF web site. This was the only thing I used as directions, since mine didn't come with any. I don't think any of them do. Pay VERY close attention to how the brackets are installed under the motor mount as well as which side the mounting bars go, both on the skid and on the mounts.

Once I installed everything up front to match this photo EXACTLY, the back just lifted right into place (with me pushing a bit). I drilled two holes, and BAM! Done.
DINOCAVE is offline   Reply With Quote Quick reply to this message
Unread 11-07-2010, 08:49 PM   #15
del_TJ
Member

del_TJ's Avatar
1998 TJ Wrangler

Join Date: Oct 2009
Location: Eastern Mass.
Posts: 273
Quote:
Originally Posted by purplepig View Post
If I move it forward it will hit the exhaust.? Does it go under below the exhaust?
You want to get the lip of the engine skid just in front of the exhaust. CPT Jeep beat me to it.
