Tranny skids

Looking to make my own tranny skid plate (tummy tuck) but I can find any I like. Post whatever you got on your jeep that's not the original transmission skid plate . Write ups and pictures thanks,

Miller16 is offline   Reply With Quote Quick reply to this message
Unread 04-21-2013, 10:11 PM   #2
MisfitSeven
MAIL Crawler.

MisfitSeven's Avatar
1998 TJ Wrangler

Join Date: Feb 2009
Location: Bennington, Nebraska
Posts: 3,549
I have the Barnes4wd flat skid. No write up. Not the easiest mod. Good luck.
__________________
Mail crawling.
MisfitSeven is offline   Reply With Quote Quick reply to this message
Unread 04-21-2013, 10:36 PM   #3
rbkelley89
Registered User
2001 TJ Wrangler

Join Date: Sep 2012
Location: chico, CA
Posts: 642
Quote:
Originally Posted by MisfitSeven View Post
I have the Barnes4wd flat skid. No write up. Not the easiest mod. Good luck.
how did you get your front ds back on mine is too short now and it looks like i will have to cut a tunnel in the skid and possibly adjust caster angle or pinon with new adj control arms
__________________
2001 orange tj 2.5L (113,000) 35" Km2 Black rims D lp 30 Front and d 44 rear with ARB 1"BD MML, 1.25" BL, 4" RC Lift, Flat tc Skid, Adj rear ca's (front soon) TW rear DS, Novak shifter cable, JB ss SYE, RE angled rear trackbar, 8,000Lb Mile marker, Custom front and rear (w/swing) bumpers. Homemade CAI. Lots more to come.
rbkelley89 is online now   Reply With Quote Quick reply to this message
Unread 04-21-2013, 11:12 PM   #4
Jrob05
Senior Member

Jrob05's Avatar
2006 TJ Wrangler

Join Date: May 2010
Location: JC, NJ
Posts: 589
Quote:
Originally Posted by Miller16
Looking to make my own tranny skid plate (tummy tuck) but I can find any I like. Post whatever you got on your jeep that's not the original transmission skid plate . Write ups and pictures thanks,
Isn't that the beauty of making your own? I have an AEV TT.




Sent from my iPad using JeepForum
Jrob05 is offline   Reply With Quote Quick reply to this message
Unread 04-22-2013, 06:18 AM   #5
MisfitSeven
MAIL Crawler.

MisfitSeven's Avatar
1998 TJ Wrangler

Join Date: Feb 2009
Location: Bennington, Nebraska
Posts: 3,549
Quote:
Originally Posted by rbkelley89
how did you get your front ds back on mine is too short now and it looks like i will have to cut a tunnel in the skid and possibly adjust caster angle or pinon with new adj control arms
I did cut a notch for the trans and front drive shaft out of the front section that is bent up. Plus my HP44 housing helps.
__________________
Mail crawling.
MisfitSeven is offline   Reply With Quote Quick reply to this message
Unread 04-22-2013, 06:33 AM   #6
j_bydesign
Senior Member

j_bydesign's Avatar
2004 TJ Wrangler

Join Date: Sep 2008
Location: Pembroke Pines, Florida
Posts: 916
Nth Degree here... Along with Currie CAs uppers and lowers... Had to notch the rear spring perches... Otherwise just a little blood sweat and gears... Had to shorten my front shaft (and rebuilt cv) when the D44s were swapped
__________________
http://www.jeepforum.com/gallery/dat...s/S5002031.JPG

'04 TJ... '65 CJ5(sold :( )... 89' Int. Harvester Toter!
j_bydesign is offline   Reply With Quote Quick reply to this message
Unread 04-22-2013, 08:14 AM   #7
Miller16
Registered User
1997 TJ Wrangler

Join Date: Sep 2012
Location: Port elgin, Ontario
Posts: 120
Yes it is, but I'm going to steal some ideas lol. I just started to build my front bumper . I also got all the metal for rear and steering box, but no Clue how I can make a tranny one lol
Miller16 is offline   Reply With Quote Quick reply to this message
Unread 04-22-2013, 08:19 AM   #8
Ironhead
Registered User
2003 TJ Wrangler

Join Date: Jan 2011
Location: Westchester, Illinois
Posts: 3,231

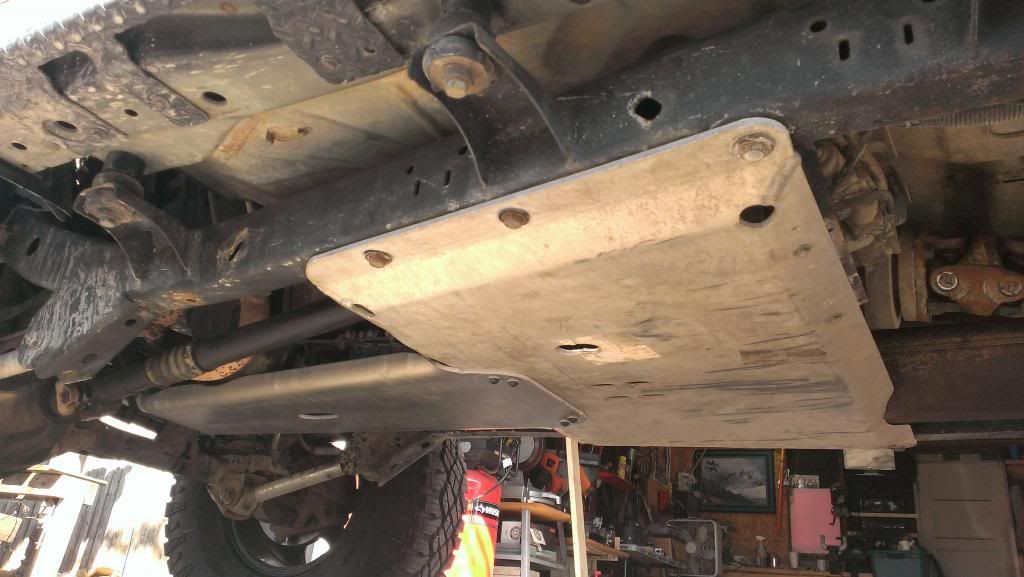

here's mine UnderCoverFab Ultra High Clearance skid and engine skid, both are .250 aluminum. i went beyond manufacturers specs, so it took a bit of work to get it right, but i have a massive trans and TC in comparison

Ironhead is offline   Reply With Quote Quick reply to this message
Unread 04-22-2013, 08:22 AM   #9
Miller16
Registered User
1997 TJ Wrangler

Join Date: Sep 2012
Location: Port elgin, Ontario
Posts: 120
Quote:
Originally Posted by Ironhead View Post
here's mine UnderCoverFab Ultra High Clearance skid and engine skid, both are .250 aluminum. i went beyond manufacturers specs, so it took a bit of work to get it right, but i have a massive trans and TC in comparison

How much clearance?
Miller16 is offline   Reply With Quote Quick reply to this message
Unread 04-22-2013, 08:28 AM   #10
Ironhead
Registered User
2003 TJ Wrangler

Join Date: Jan 2011
Location: Westchester, Illinois
Posts: 3,231
its 1" deep.

currently i have 19.5" to the frame and 18.5" to the skid
Ironhead is offline   Reply With Quote Quick reply to this message
Unread 04-22-2013, 11:51 AM   #11
rbkelley89
Registered User
2001 TJ Wrangler

Join Date: Sep 2012
Location: chico, CA
Posts: 642
Quote:
Originally Posted by MisfitSeven View Post
I did cut a notch for the trans and front drive shaft out of the front section that is bent up. Plus my HP44 housing helps.
oh nice yeah i wish i had a hp44 or hp 30. what tranny mount do you use? ive got a lot of vibes with my bd mml. Sorry op but i figured this convo would help you out in the end!
__________________
2001 orange tj 2.5L (113,000) 35" Km2 Black rims D lp 30 Front and d 44 rear with ARB 1"BD MML, 1.25" BL, 4" RC Lift, Flat tc Skid, Adj rear ca's (front soon) TW rear DS, Novak shifter cable, JB ss SYE, RE angled rear trackbar, 8,000Lb Mile marker, Custom front and rear (w/swing) bumpers. Homemade CAI. Lots more to come.
rbkelley89 is online now   Reply With Quote Quick reply to this message
Unread 04-22-2013, 12:12 PM   #12
MisfitSeven
MAIL Crawler.

MisfitSeven's Avatar
1998 TJ Wrangler

Join Date: Feb 2009
Location: Bennington, Nebraska
Posts: 3,549
Quote:
Originally Posted by rbkelley89

oh nice yeah i wish i had a hp44 or hp 30. what tranny mount do you use? ive got a lot of vibes with my bd mml. Sorry op but i figured this convo would help you out in the end!
I built my own crossmember out of tubing with YJ bushings at each end bolted to tabs I welded on the inside of the frame rails.
__________________
Mail crawling.
MisfitSeven is offline   Reply With Quote Quick reply to this message
