Unread 11-11-2009, 08:12 PM   #91
xj5399
Registered User
2000 TJ Wrangler

Join Date: Dec 2006
Location: kailua hawaii
Posts: 288
Quote:
Originally Posted by FarFire70 View Post
One summer I compiled this list that I use when preping my gear before I head out. The medical section is a minimal list at best (and to be honest I don't have all the items listed to take with me yet but that's going to change). It's not all inclusive but the list has served me well thus far.

The first part is a list for me to do before I hit the trail followed by a section I use to check the Jeep before I head on the trip so I'm sure things aren't overlooked. (Some of the items (CB, Winch, etc) are items I don't have yet but will have eventually and want to be sure to check once I do)

Upon Arrival
• Air down tires
• Clutch override (10A fuse in Power Distribution Center #28)
• Check fuel level
• Disconnect sway bar
• Check that gear is tied down
Vehicle Checkover
Mileage _____________

• Check engine oil
• Check transmission oil
• Check transfer case fluid
• Check brake fluid
• Check radiator coolant
• Check front differential fluid
• Check rear differential fluid
• Check power steering fluid
• Check windshield wiper fluid
• Check lights
• Check air filter
• Check wipers
• Check breathers
• Check fan belts
• Check hoses
• Check seat belts
• Check shocks
• Check tire air pressure
• Check for tire wear or damage
• Check spare tire air pressure & condition
• Check and tighten lug nuts
• Check brake pads & shoes
• Check for frame cracks
• Check for loose bolts or nuts throughout Jeep
• Check for rear main seal leak
• Check for proper heater operation
• Check CB operation
• Check winch operation & condition
• Clean & Rain-X windshield & mirrors
• Tighten drive shaft u-bolts
• Grease all fittings (u-joints, steering, disconnects, suspension)
• Check for registration, inspection, & insurance
• Check Hi-Lift operation
• Check hand throttle operation
• Check battery tie downs
Notes
__________________________________________________ ______________________
__________________________________________________ ______________________
__________________________________________________ ______________________
__________________________________________________ ______________________
__________________________________________________ ______________________
__________________________________________________ ______________________
__________________________________________________ ______________________
__________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ ________________________________
Tools
• Multimeter
• Wire cutters
• Wire strippers
• Soldering iron
• Wire crimpers
• Complete Socket Set (SAE and Metric) (1/4", 3/8", 1/2")
• Breaker bar
• Torque wrench
• Torx sockets
• Spark plug socket
• 36mm 6pt socket
• Allen Wrenches
• Combination wrenches (SAE and Metric)
• Adjustable wrenches (small, large)
• Flat screwdrivers (small, medium ,large)
• Phillips screwdrivers (small, medium ,large)
• Pliers
• Needle Nose Pliers
• Vise Grips
• Snap ring pliers
• Channel-lock Pliers
• Pry bars
• Rubber Mallets
• Claw Hammer
• Sledge (3lb, 5lb)
• Dead blow hammer
• Ball-peens
• Punches
• Center Punch
• Chisels
• Files
• Wire Brush
• Pipe wrenches
• Utility knife
• Pocket Knife / Multi-Tool
• Gasket scraper
• MAPP gas & tip
• Pickle fork
• Saw
• Magnet
• Safety glasses
• Jumper cables
• Funnel
• Grease Gun
• Bottle jack
• Jack Stands
• Tow Bar & Attachment Points
• Lug Wrench
• Lug Key
• Air Pressure Gauge
• Valve stem remover
• Siphon hose
• Small flashlight
• Large flashlight
• Fire extinguisher
• Generator
• Air compressor
• Air tools
• Air Hoses
• Hack saw
• Hack saw blades
Extras
• Ratchet Straps
• Gas Can (Empty)
• WD-40
• Brake Cleaner (2+)
• Throttle Body Cleaner
• White Lithium Grease
• Dielectric Grease
• Anti-Seize
• Loctite (Blue & Red)
• Duct Tape
• Clear Tape
• Masking Tape
• JB-Weld Metal epoxy
• Epoxy
• Super glue
• Zip-Ties
• String
• Rope
• Bungee cords
• Tire repair kits & plugs
• Hose repair tape
• Cotter pins
• O-Rings
• Valve stems
• Lug Nuts
• Extra Valve stem cores
• Nuts & bolts assorted standard and metric sizes
• Spare wire of various gauges
• Electrical tape
• Crimp ends
• Solder
• Relays
• Batteries (AAA, AA, C, D, 9V)
• Wood blocks
• C-Clamps (Various Sizes)
• Repair manual
• Wiring diagram
Spare Parts
• Spare Key for vehicle (Left in Jeep on-trail)
• Engine Oil (6 qts)
• Differential Fluid
• Transmission fluid
• Transfer Case Fluid
• Coolant or Water
• Brake Fluid
• Power steering fluid
• Extra grease cartridge
• Spare fuses
• Serpentine belt
• Spare ZJ tie rod & drag link
• Spare differential covers (front & rear)
• Spare axle shafts (front & rear)
• Spare spider gears (front & rear)
• Spare u-joints for drive shaft & axles
• Spare u-joint bolts, straps, u-bolts
• Spare control arms
• Radiator leak stop
• Gas tank & Radiator repair
• RTV
• Spare Hoses / Tubing
Recovery
• Recovery Straps (2+)
• D-rings
• Chain
• Leather Gloves
• Flares
• Hi-Lift
• Shovel
• Ax
• Hatchet
Winch
• Tree saver
• Snatch block
• Cable Weight
Personal Items
• Water (1 Gallon/Person)
• Cooler with beverages
• Bottle opener
• Ice and ice chest or cooler
• Food - Bring Twice amount needed
• Snacks (trail mix, beef jerky, fruits, dry/canned food, etc.)
• Anti-microbial hand cleaner
• Grease hand cleaner
• Trash bags
• Paper towels
• Tarp
• Strike Anywhere Matches
• Lighter
• Sun block
• Chapstick
• Toilet paper
• Glasses
• Extra Contacts
• Contact Solution
• Contact Case
• Full change of clothes
• Shoes
• Boots
• Rain Jacket
• Sunglasses
• Hat
• Towels
• Rags
• Blanket
• Mechanix Gloves
• Camera
• Camera cards
• Binoculars
• Cell Phone
• Cell Phone Charger
• iPod
• iPod Charger
• CDs
• Driver's License
• Cash
• Credit Cards
• Maps (Local Area & Park)
• GPS
• Weather Forecast
• Directions To and From
• Local gas stations, parts stores, etc.
• Compass
• Walkie-Talkies (1 per Jeep)
Medical (First Aid Kit)
• Band-Aids (assorted sizes)
• 4x4 gauze
• Ace bandage
• Triangular Bandage / re-rolls
• adhesive tape
• Antibiotic cream
• antiseptic wipes
• Anti-diarrhea medication
• Tylenol
• Ibuprofen
• Aloe
• Burn gel
• Snake Bite kit
• Hydrocortisone cream (1%)
• Benadryl for mild allergic reactions
• Bee sting kit
• Bug repellant
• Disposable Gloves
• Instant Cold pack
• Instant Hot pack
• Scissors and Tweezers
• First-aid manual
• Safety pins
• Thermometer
Winter
• Jacket
• Hoodie
• Winter Hat
• Winter Gloves
• Mittens
• Scarf
• Boots
• Extra Socks
Camping
• Tent
• Sleeping bag
• Folding chairs
• Backpack/sacks
• Tarps
• Stove or grill and fuel
• Cooking pans
• Paper plates
• Paper towels
• Trash bags
• Zip-Lock Bags
• Propane Lanterns
• Stereo
im calling BS, there is no way you carry all this.... in an rv? thats a diff question... how do you excpect me to believe you take a generater and 5, 10, pund sledge... cmon is this practical.....

xj5399 is offline   Reply With Quote Quick reply to this message
Unread 11-11-2009, 09:57 PM   #92
Ej132
Registered User
2000 TJ Wrangler

Join Date: May 2009
Location: Michigan
Posts: 462
No way you fit all that in the jeep. I want to see a picute with all that in it.
Ej132 is offline   Reply With Quote Quick reply to this message
Unread 11-11-2009, 10:12 PM   #93
Aero32
Registered User
1999 TJ Wrangler

Join Date: May 2009
Location: Philadelphia
Posts: 290
He may if he has a tow rig and a trailer...then he MIGHT be able to fit all of that.
Aero32 is offline   Reply With Quote Quick reply to this message
Unread 11-11-2009, 10:20 PM   #94
kyleboender
Registered User
2005 LJ Wrangler

Join Date: Aug 2009
Location: Canada
Posts: 321
That's quite the list!
kyleboender is offline   Reply With Quote Quick reply to this message
Unread 11-11-2009, 10:23 PM   #95
FarFire70
Registered User
2005 TJ Wrangler

Join Date: Mar 2005
Location: , MD
Posts: 295
Quote:
Originally Posted by xj5399 View Post
im calling BS, there is no way you carry all this.... in an rv? thats a diff question... how do you excpect me to believe you take a generater and 5, 10, pund sledge... cmon is this practical.....
OK you got me. I forget to mention a few of the items I don't bring. Here's what I do not bring from the list:

-Generator (On the list for when I construct my planned CJ/YJ Project & take it to the the trail on a tow rig & trailer)
-Air Compressor (Same reason as generator [above])
-Air tools (no compressor, no tools [once I have OBA I will bring these])
-Air Hoses (See above)
-Repair Manual (I don't own this in a paper copy so I don't bring it)
-Wiring Diagram (See above)
-Spare rear axleshafts (I didn't own these till last week but they will be brought from now on and take up minimal space)
-Flares (Don't own)
-Hi-Lift (Don't own yet [another Jeeper on the ride does] but when buy it will be mounted on rollbar)
-Shovel (Too lazy to pack the coal shovel that would fit perfectly in the tub)
-Ax (Don't own)
-Gas Can (Don't own)
-Winch Accessories (No winch, no accessories)
-Most of the medical list (Don't own but i NEED TO BUY. EVERYONE should! They would all fit in a small backpack.)
-Camping Gear (Don't camp much when I off-road)

Otherwise, I carry the remainder of my list with me. For anyone wondering if they can fit it, here's a picture of everything on my previous list, not mentioned the above, packed in my jeep on my last trail ride. Hopefully you can see that it's below the tub line (best picture I have).
__________________
Villanova Wildcat!

2005 Wrangler Sport, 4.0L, 6spd
2" BB, JKS 1.25" BL & MML, M/T MTZ 33x12.50R15
HP D30: Aussie Locker, D44: Eaton Elocker

Last edited by FarFire70; 11-11-2009 at 11:03 PM..
FarFire70 is offline   Reply With Quote Quick reply to this message
Unread 11-11-2009, 10:37 PM   #96
FarFire70
Registered User
2005 TJ Wrangler

Join Date: Mar 2005
Location: , MD
Posts: 295

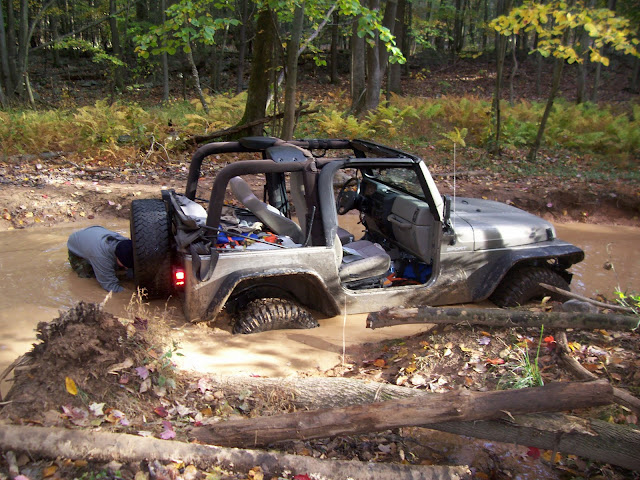

Here's a few more pictures I was able to find of what I bring.

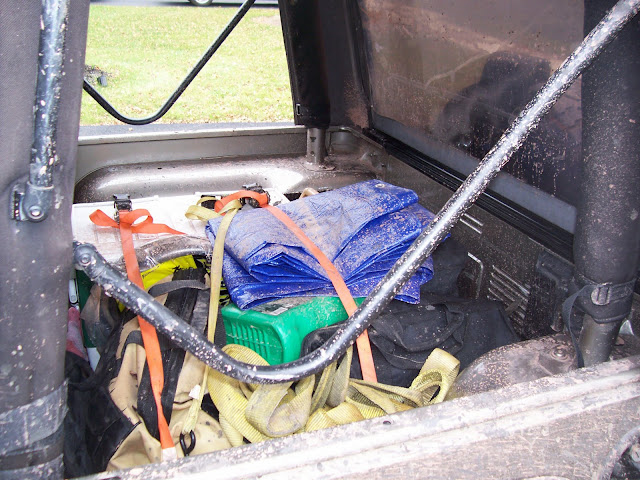

After the ride, a close-up of the rear:


Up-packed (most of the gear) and yes, it fit (look above):


The rest of the gear (tarp, strap, tow bar) (that jack doesn't come, it's for garage use only):
__________________
Villanova Wildcat!

2005 Wrangler Sport, 4.0L, 6spd
2" BB, JKS 1.25" BL & MML, M/T MTZ 33x12.50R15
HP D30: Aussie Locker, D44: Eaton Elocker
FarFire70 is offline   Reply With Quote Quick reply to this message
Unread 01-06-2010, 07:35 PM   #97
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 23,499
Another addition for you-
http://www.jeepforum.com/forum/f9/so...y-tuck-942018/
Unlimited04 is offline   Reply With Quote Quick reply to this message
Unread 01-08-2010, 03:02 PM   #98
WillysEdition04
Registered User
2008 JK Wrangler

Join Date: Jan 2008
Location: NE OHIO
Posts: 1,697
Lots of new topics/updates.
__________________
04 TJ Willys Edition 41MB-04TJ ...SOLD
08 JK Unlimited S.U.R.V. (SubUrban Response Vehicle)

ChevTac Firearms, LLC
"Like" us on Facebook: facebook.com/ChevTec
WillysEdition04 is offline   Reply With Quote Quick reply to this message
Unread 01-15-2010, 10:31 AM   #99
krm
Registered User
2004 TJ Wrangler

Join Date: Jan 2010
Location: sparks nv
Posts: 3
Quote:
Originally Posted by Chris_ View Post
"Will a 33 fit on my tail gate?"

Yes, sort of, depending on the wheel offset and tire width. You may need an aftermarket bracket to replace the stock one to push the tire out further, or do as others have done and let some air out of the tire (which might defeat the purpose of having a spare).

Is it a good idea?

No. It can damage your tail gate. It will either crack the hinges, or it will slowly peel your tail gate back. If you do it, get the tire as snug against the tail gate and body as possible by extending the rubber pads with washers, and make plans to buy a tire carrier.


There, I cleaned up my post to make it a useful contribution.
krm is offline   Reply With Quote Quick reply to this message
Unread 01-16-2010, 12:41 PM   #100
Cuder
Registered User
2000 TJ Wrangler

Join Date: Feb 2009
Location: Arlington, Texas
Posts: 2,635
http://www.jeep4x4center.com/jeep-se...uals/index.htm

I don't know if this can be put in or not, but good link to have.
Cuder is offline   Reply With Quote Quick reply to this message
Unread 01-22-2010, 08:38 PM   #101
ET48
Registered User
1986 CJ7

Join Date: Jun 2008
Location: Wooster, Ohio
Posts: 2,567
Just a common problem on the TJ's:

The famous intermitant instrument cluster.

TJ Jeep Problem with Instrument Guages.
__________________
ET48
1986 CJ-7 LAREDO, 4.2L, 5 speed, 3.31 Gears, D30, D44, 2.5" ProComp lift, 3" BL, 33" TSLs.
1998 TJ SAHARA, 4.0L, 5 speed, 4.11 Gears, D30 (Aussie Locked), Ford 8.8, 4.5" Custom LA, XRC8, AA SYE, TW DS, ZJ tie-rod, Full-Traction front adj. track bar, 35" KM1s.
ET48 is offline   Reply With Quote Quick reply to this message
Unread 01-22-2010, 11:11 PM   #102
jeepermom
Registered User
2004 TJ Wrangler

Join Date: Oct 2008
Location: Colorado
Posts: 29
stuff to add to the info resources.

I'd like to know the advantage of a straight long arm lift kit to that of a radius arm lift kit.

Does one allow more articulation than another? Hope I'm not being redundant
jeepermom is offline   Reply With Quote Quick reply to this message
Unread 02-14-2010, 10:51 PM   #103
ET48
Registered User
1986 CJ7

Join Date: Jun 2008
Location: Wooster, Ohio
Posts: 2,567
Build sheet link needs fixed

Here is the link:

Contact Jeep
__________________
ET48
1986 CJ-7 LAREDO, 4.2L, 5 speed, 3.31 Gears, D30, D44, 2.5" ProComp lift, 3" BL, 33" TSLs.
1998 TJ SAHARA, 4.0L, 5 speed, 4.11 Gears, D30 (Aussie Locked), Ford 8.8, 4.5" Custom LA, XRC8, AA SYE, TW DS, ZJ tie-rod, Full-Traction front adj. track bar, 35" KM1s.
ET48 is offline   Reply With Quote Quick reply to this message
Unread 02-15-2010, 04:02 PM   #104
WillysEdition04
Registered User
2008 JK Wrangler

Join Date: Jan 2008
Location: NE OHIO
Posts: 1,697
^^^ Fixed. Thanks!
__________________
04 TJ Willys Edition 41MB-04TJ ...SOLD
08 JK Unlimited S.U.R.V. (SubUrban Response Vehicle)

ChevTac Firearms, LLC
"Like" us on Facebook: facebook.com/ChevTec
WillysEdition04 is offline   Reply With Quote Quick reply to this message
Unread 02-18-2010, 10:25 AM   #105
bobdog
Senior Member

bobdog's Avatar
1999 TJ Wrangler

Join Date: Nov 2007
Location: New Mexico
Posts: 558
Is there a write up about maintenance on an RH32 automatic tranny? If so, maybe it should be added?
bobdog is offline   Reply With Quote Quick reply to this message
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.
Note: All free e-mails have been banned due to mis-use. (Yahoo, Gmail, Hotmail, etc.)
Don't have a non-free e-mail address? Click here for a solution: Manual Account Creation
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.


Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
