Unread 05-09-2010, 02:20 AM   #16
wushaw
Rockin jeep

wushaw's Avatar
2000 TJ Wrangler

Join Date: Jan 2007
Location: Texas
Posts: 8,164
Interesting....never had that problem, brakes always worked as advertised, never had to adjuse them either. Glad you found your problem.

wushaw is offline   Reply With Quote Quick reply to this message
Unread 07-17-2010, 11:09 PM   #17
baldeagle1
Registered User
2000 TJ Wrangler

Join Date: Jan 2009
Location: Richmond,Ky
Posts: 232
I realize this is an older thread. But, I am putting together a D35 with 4:10s. Hav also a 8.8 but not the funds to put it together at moment. Anyway, I understand the overtravel spring needs to be turned around. My quest is what would that have to do with how it works? Looks to me like it would do the same thing either way. help me to understand please? Please dont take this as me being a smart a##. Just tring to fiqure it out. Thanks so much
baldeagle1 is offline   Reply With Quote Quick reply to this message
Unread 07-18-2010, 11:11 AM   #18
Beavx
Registered User
1997 TJ Wrangler

Join Date: Sep 2005
Location: Kenosha, WI
Posts: 76
when it is installed the way the illustration shows, there is no room for movement. If you install it incorrectly, it will have too much play allowing the adjuster lever to move away from the gear thus coming out of adjustment.

Hope that helps. Good luck with the build.
__________________
Daily Driver:
1997 TJ, Stock, 1" BL, Western Plow
15" American Racing Steelies, 31x10.5 Hancook RF10's

Previously owned '87 YJ, 4" Rough Country,
33x12 BFG AT/KO's, Hummer Recovery Vehicle
Beavx is offline   Reply With Quote Quick reply to this message
Unread 08-08-2010, 04:22 PM   #19
nitecop
Registered User
1999 TJ Wrangler

Join Date: Jun 2005
Location: midwest
Posts: 2,827
Note if your springs are worn when you flip it around correctly it makes almost no difference as I found out today.
A new adjustor kit with cable and spring and I'm as good as new.

I had this peoblem for years and it is very easy to over look. mine is fixed now.
Thanks to the OP
__________________
Jim
USW, OAPSE Union member
99 TJ Sahara 4.0 5-Sp FUV + farm worker
Project f-Xj F150/XJ Ford eXtreme jeep combo
06 6 Speed LJ my daily driver.
Colorado Jeep club memeber #505
nitecop is offline   Reply With Quote Quick reply to this message
Unread 08-08-2010, 06:30 PM   #20
vanillathrilla
Registered User
1999 TJ Wrangler

Join Date: Jun 2010
Location: Roanoke, VA
Posts: 2,225
Thanks for the tips. I've been wanting to fix mine since I got it. It's terrible!
__________________
'99 TJ Sport | Rampage Frameless | 33x12.50x15 Goodyear MTR/K's | Poweraid TBS | Flowmaster 40 series | Herculined | 15% tint | LED interior lighting | AtoZ front/rear bumper | AtoZ tube rocker guards | Kenwood Excelon KDC-X993BT | Kicker 6.5's in soundbar | Alpine Type-R 4x6's in dash.
vanillathrilla is offline   Reply With Quote Quick reply to this message
Unread 07-30-2012, 07:36 PM   #21
cowboys666
Registered User
2001 TJ Wrangler

Join Date: Oct 2011
Location: Hamilton, Ontario,Canada
Posts: 24
I know this is an older thread,gonna revive it...gonna see if it works for me,been having this problem for awhile.
cowboys666 is offline   Reply With Quote Quick reply to this message
Unread 07-31-2012, 01:43 PM   #22
ImaginaryFriend
Registered User
2001 TJ Wrangler

Join Date: Feb 2006
Location: N. Florida
Posts: 813
Since you revived the thread, I'll post up a pic that shows what I believe the OP was trying to explain.

Note the position of the spring, spring plate, and adjuster lever.
ImaginaryFriend is offline   Reply With Quote Quick reply to this message
Unread 07-31-2012, 02:21 PM   #23
Diverdown87
Registered User
1998 TJ Wrangler

Join Date: Jun 2011
Location: Freakville, FL
Posts: 728
Quote:
Originally Posted by baldeagle1 View Post
I realize this is an older thread. But, I am putting together a D35 with 4:10s. Hav also a 8.8 but not the funds to put it together at moment. Anyway, I understand the overtravel spring needs to be turned around. My quest is what would that have to do with how it works? Looks to me like it would do the same thing either way. help me to understand please? Please dont take this as me being a smart a##. Just tring to fiqure it out. Thanks so much
Since you are going to have your 35 apart why not do the junkyard disc swap??? You can get all the parts off a ZJ for dirt cheap. Even if you use the calipers as a core for new ones you will never really have to worry about adjusting or dealing with drum brakes again...

No real performance gain more of a luxury item.
__________________

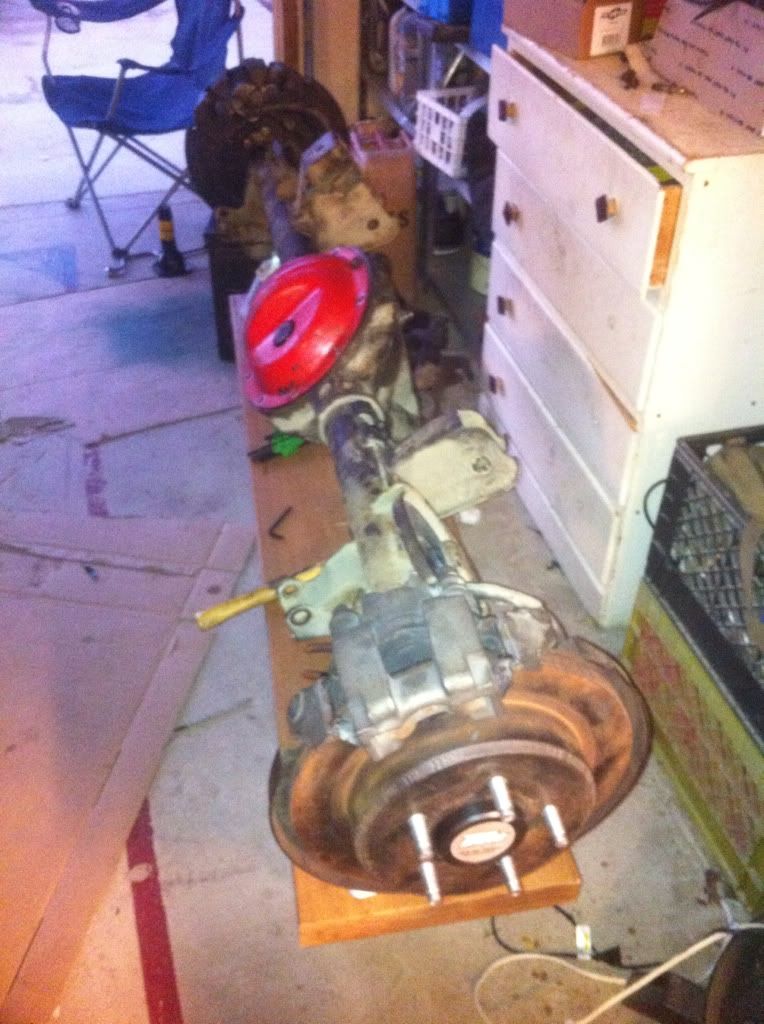

98 TJ 4.0L, 5spd, 4.25 Zone lift, D-locked D30/D35 w/4.56 gears, MCE GEN I Flares, 33" Trxxus ATs, Engo 10K# winch, rear disc brake conversion.

My idea of help from the man above is a sniper on the roof.
Diverdown87 is offline   Reply With Quote Quick reply to this message
Unread 08-07-2012, 04:58 AM   #24
aussieTJ-06
Registered User
2006 TJ Wrangler

Join Date: Jul 2012
Location: Port Hedland, Australia
Posts: 15
had the SAME PROBLEM! got new drums new shoes new springs/kit all bendix F*ck still wouldnt work
BUT when i read "if you can put em on by hand your way out".............. YOU WERE RIGHT! im no fool but after adjusting the star heaps (with my mechanic mates helpin) i decided to pull it all apart again have a good look and yep i was going the wrong way apparently jeeps love being arse about!
but after a good spin and a tweak im back in the game thanks dude!
aussieTJ-06 is offline   Reply With Quote Quick reply to this message
Unread 10-22-2012, 09:19 PM   #25
dobeluvr
Registered User

Join Date: Oct 2012
Location: la porte, in
Posts: 1
thankx for the picture, I was doing the brakes tonight, and the cable was broke on that piece. The captured spring assembly was just lying on the bottom, so I had no idea where to put it. The other end was easy, lol, it was still under the springs at the top. (both sides were the same, so whoever did the brakes in the past had them backwards).
dobeluvr is offline   Reply With Quote Quick reply to this message
Unread 10-22-2012, 09:42 PM   #26
DevilDogDoc
Registered User
1997 TJ Wrangler

Join Date: Apr 2009
Location: Yucca Valley 20 miles from Johnson Valley, CA
Posts: 1,835
After almost 3 years of messing with the drums on mine, adjusting all the time this is how I solved my issues.
Thanks again Blaine!!!
__________________
An ugly Jeep with some stuff.
DevilDogDoc is offline   Reply With Quote Quick reply to this message
Unread 12-13-2013, 02:18 PM   #27
CO_crawler
Registered User
1999 TJ Wrangler

Join Date: May 2006
Location: Crested Butte, CO
Posts: 594
Quote:
Originally Posted by ImaginaryFriend View Post
So are you saying this is set up incorrectly?
(not my picture)

I don't see anything in the FSM that says how to set it up one way or another.
Is this the right way to set up the hook? Cheers then, CO
__________________
CO_Crawler

87 XJ Laredo(sold) 98 ZJ limited(sold) 97 TJ Sport(totalled) 98 XJ Classic(totalled)

99 TJ Sahara----->I AM BACK TJer's
-JKS quicker discos, AC fire prevention mod, 31x10.50x15 Trxus M/T's, OME 2.5 HD kit
CO_crawler is offline   Reply With Quote Quick reply to this message
Unread 12-13-2013, 06:43 PM   #28
ImaginaryFriend
Registered User
2001 TJ Wrangler

Join Date: Feb 2006
Location: N. Florida
Posts: 813
The correct position is show in my picture above.
ImaginaryFriend is offline   Reply With Quote Quick reply to this message
Unread 02-22-2014, 04:26 PM   #29
Gordon-0
Registered User
2002 TJ Wrangler

Join Date: Dec 2012
Location: Virginia Beach, VA
Posts: 169
Since this thread pops up at the top of google when searching for brake problems, I think I am going to revive it to clarify and re-iterate some information, as well as post a bit about a problem I recently had.

How to install the adjuster

The adjuster needs to be installed with the end of the spring out, and the plate flush against the outside of the adjuster like this


that's a bit blurry, but in order to accomplish that you need to slide the "hook" of the adjuster into the spring here


like this






you should end up with something like this


then simply place the assembly over this pin and spring as normal




Now on the the problems.

I ordered the complete hardware kit from RockAuto, and installed it, but after driving around a while, there was a grindy noise that wouldn't go away.
I figured it was brake drum adjustment, but no matter how i adjusted them, it never stopped.
Only once i saw this thread did the problem become apparent.

old adjuster plate vs new one


oops


****, this ain't good


pn is 5062


this part will have to be either ground down to work, or simply use your old one, if it is in good shape.

I called RockAuto and they are sending me new drums.
Gordon-0 is offline   Reply With Quote Quick reply to this message
Unread 02-22-2014, 07:12 PM   #30
redvett94
Registered User

Join Date: Jul 2005
Location: Grayling MI.
Posts: 578
Your problem is you relied on generic info from the Haynes or Chiltons manuals. Get the OEM Factory manual for correct info.
__________________
2000 Sport.
redvett94 is offline   Reply With Quote Quick reply to this message
