TJ Hummer Intake Write-up (Buick Airbox)

Hey guys,

After doing tons of research and junkyard scavaging, I finally got around to cuttin some holes in my Jeep . The majority of my info I got from here:
http://www.jeepforum.com/forum/f27/write-up-hummer-cold-air-intake-326040/

I did do some things different though. So I'm making my own write-up ...

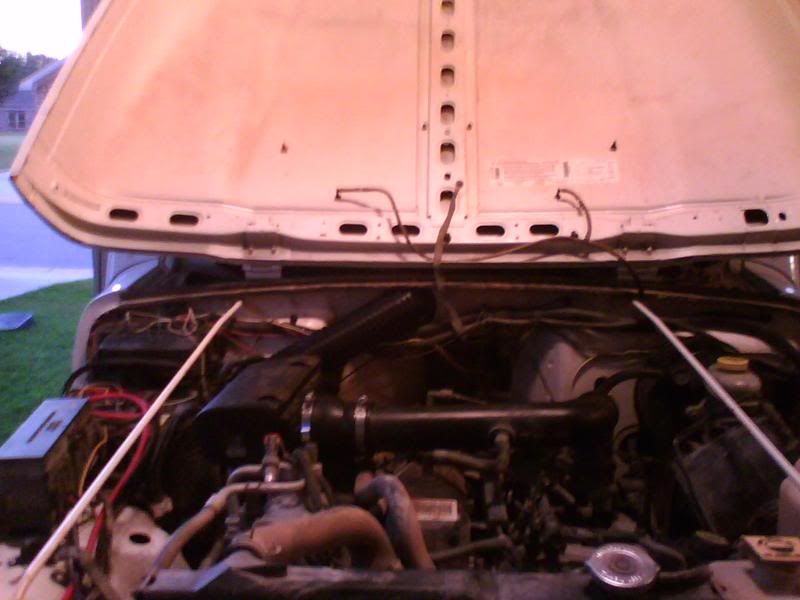

First off, I'll do some final pics:







Here is a price breakdown and parts list:

3" Flex Hose(Autozone) - $20
Airbox from a 1992 Buick Century w/ 3.3L V6 - $25(I know I was overcharged)
New Air filter - $7

Items from Lowe's:
3" to 2" Rubber Reducer Coupling- $6
3" to 3" Rubber Coupling - $6
3" PVC plumbing flange - $4
3 5/8" Hole Saw - $20
1" Maskin Tape - $1
4 Small Bolts/Lock Washers/Nuts - $2
1 1/2" corner braces - $2
6" PVC end cap - $12

Grand total of $105...I well overpaid for the airbox but it was the only one I could find. I've seen guys get them for $10...and if you have the hole saw, that's an extra $20 you can take off...

Before you begin, you are going to want to take off the cowl. I was lucky as the ac/heater air intake was not fully boxed in on mine. It was not boxed in until 2000 model jeeps...(look at the writup mentioned above to see what you will have to do if yours is boxed up)

So, to begin...I started by preparing the airbox for the intake pipe. I cut off the plastic bracket on it:


Then I found where I wanted my airbox lid to be at under the hood and marked the intake tube on the jeep. Then I cut the jeep intake tube. You will have to "widdle" down the 2" side on the 3" to 2" coupler as the jeep tube is actually 2 5/8"(no problems there). Now you can put the coupler on the buick air intake lid and attach it to the jeep tube.

Say your prayers and pull out the hole saw and drill ...You are about to cut the firewall to go into the cowl(You should already have the cowl off). Some others went to the left of the ground. I chose to go to the right...Either way will work, but going to the left will give you a little more room on the flextube. As others have said, measure twice, cut once!!!

Now you have the first hole. Go ahead and mount your airbox/flextube(you can look on the other thread for airbox mounting options. Somehow I cut mine perfectly to where it rests on the sparkplug wire holders and doesn't need bracing ...

__________________
CURRENT: 2001 WJ V8 LIMITED - Quadratrac, 60th anniversary, Fat Bob's 2.5/2 lift, HID's, roof rack, 31" Rugged Terrains, 5k lb Curt Hitch

SOLD: 2000 WJ 2WD CONVERTED TO 4X4, 97 TJ ON 35'S, 95 XJ ON 33'S
bigchevyman24 is offline   Reply With Quote
Unread 10-15-2007, 12:03 PM   #2
bigchevyman24
Registered User
2000 WJ

Join Date: Jul 2006
Location: Demopolis, AL
Posts: 1,077

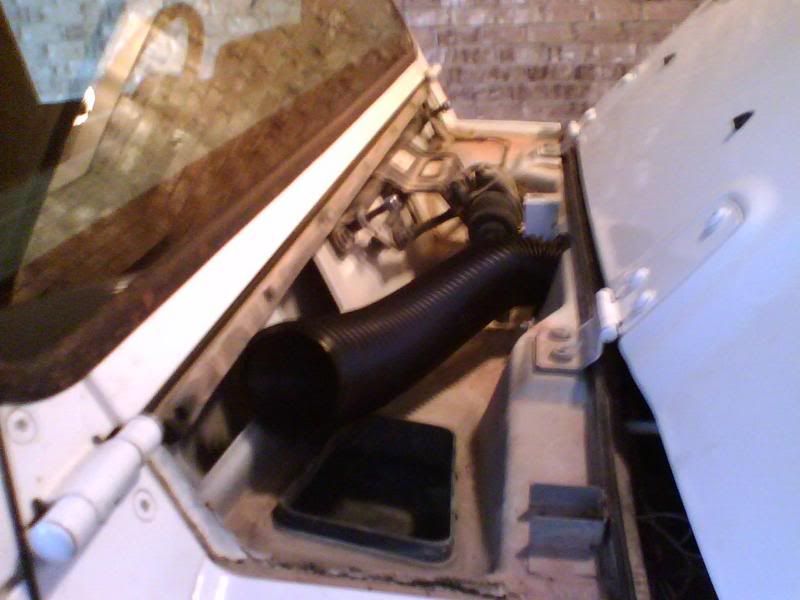

Now you should be looking like this:




Here I took a break away from the Jeep and began working on the "Hummer Intake" part of this project. I looked around for all kinds of "rain caps" and the such. I didn't feel like spending $50+ on an actual hummer intake so I found a few other options(on the other thread). I decided to go with a 6" PVC end cap. It looks close to the same and I built my own. This is where the 4 bolts, corner braces/brackets, and 3" to 3" coupler come into play. I took the corner braces and screwed them into the 3" coupler(the coupler is going to connect to the plumbing flange)...

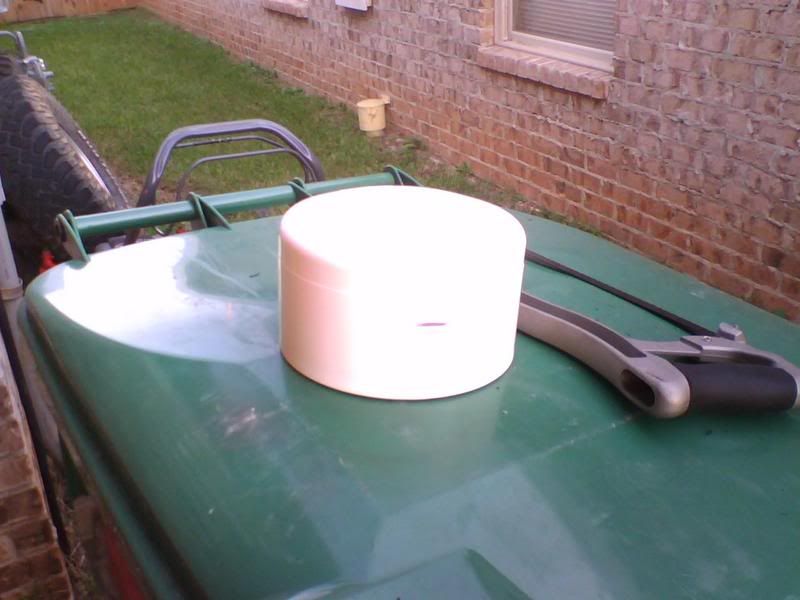

Then you want to focus on your PVC cap. In my opinion it was way to tall so I cut it down to a few inches(height is your preference):

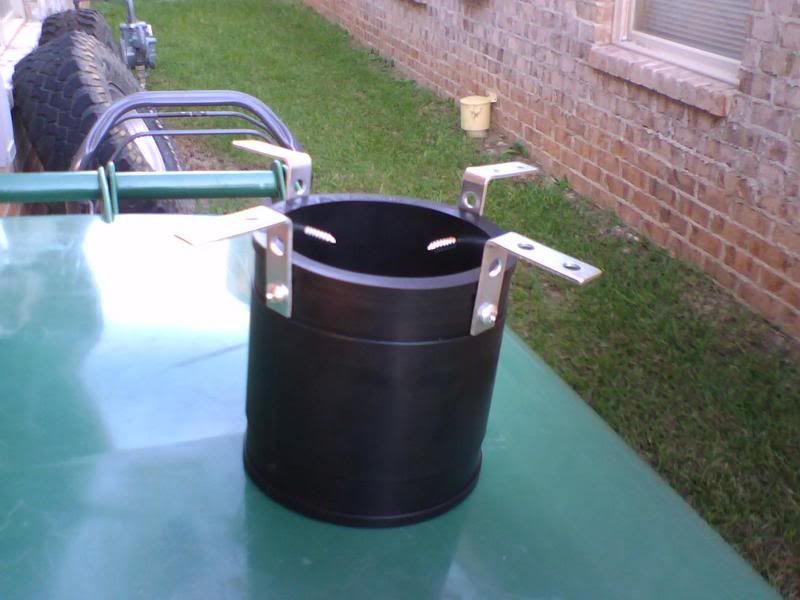

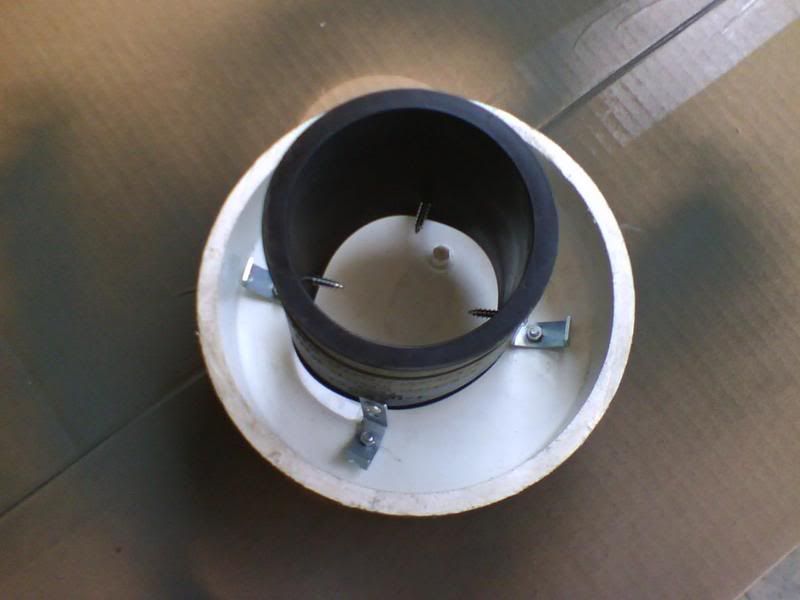

I had to bend the corner brackets to get them to fit under the pvc cap...then I marked my holes and drilled. The bolts I got were a little too short so I countersunk them in the top of the pvc. In the end, you should end up with something like this:

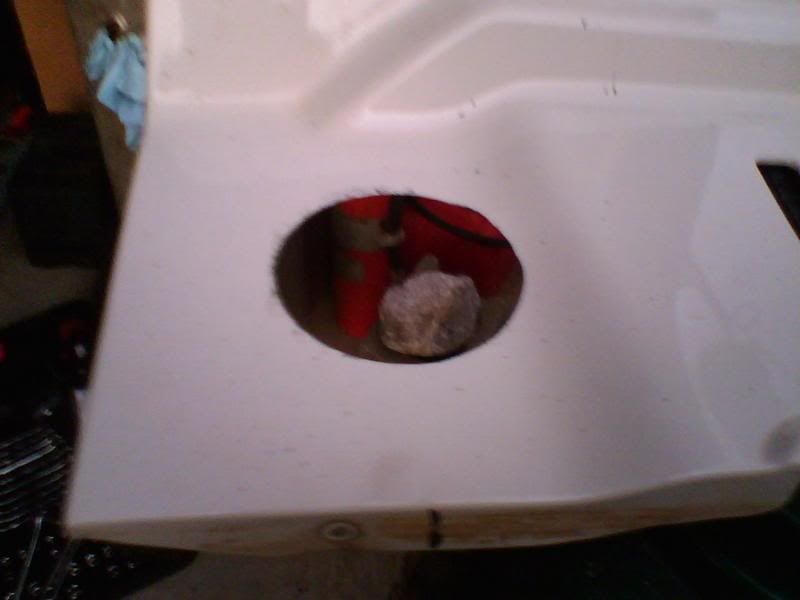

Now take your "hummer intake" and prefit it to the cowl and find what position you want it to be in. Mark on your cowl and cut with the holesaw(make sure you are far enough over to where you can still get the flexhose through the hole). Make sure you use the tape on where you are going to cut so you can "save" the paint around the hole. This is where I put mine:


Now, sand and paint your "hummer intake."

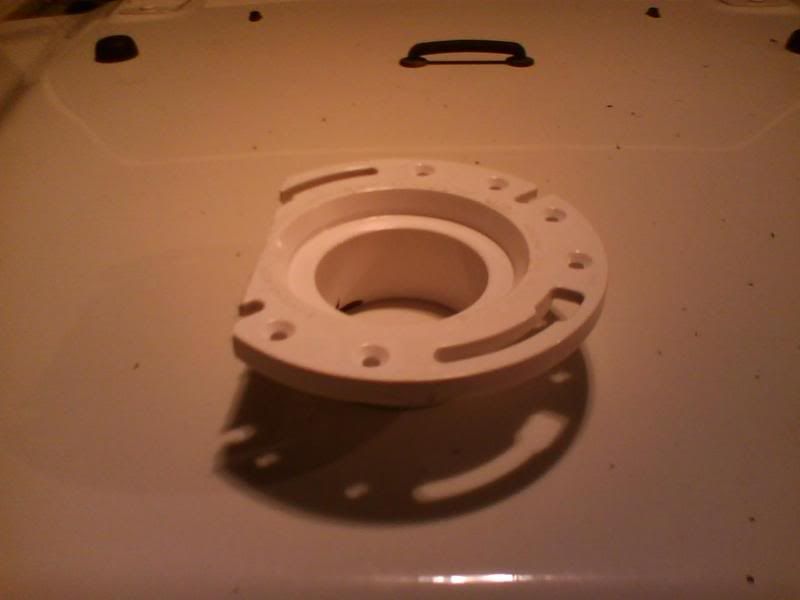

You will want to take your plumbing flange and prefit it into the hole in the cowl. Some trimming will be required:


Take your flextubing and stick it up through the flange. It's a tight fit but it will go(some people have suggested grease). Now you are almost done. Position your flange and then put your cowl back on the jeep. I chose not to bolt down the flange as pressure is going to keep it pretty tight. You can look on the other thread to see how he bolted his flange in.

The cowl is going to be very hard to get on, but trust me, it will go. Now, put your "hummer intake" on top of the flange and tighten the ring down. YOU ARE DONE!!! It's not a hard project at all as long as you don't mind a little cutting!!!
__________________
CURRENT: 2001 WJ V8 LIMITED - Quadratrac, 60th anniversary, Fat Bob's 2.5/2 lift, HID's, roof rack, 31" Rugged Terrains, 5k lb Curt Hitch

SOLD: 2000 WJ 2WD CONVERTED TO 4X4, 97 TJ ON 35'S, 95 XJ ON 33'S
bigchevyman24 is offline   Reply With Quote
Unread 10-15-2007, 12:03 PM   #3
bigchevyman24
Registered User
2000 WJ

Join Date: Jul 2006
Location: Demopolis, AL
Posts: 1,077
Another good thing about the 3" coupler under the "hummer intake" is that I can take it off and add a few feet of pvc to extend it when I go wheeling!!!
__________________
CURRENT: 2001 WJ V8 LIMITED - Quadratrac, 60th anniversary, Fat Bob's 2.5/2 lift, HID's, roof rack, 31" Rugged Terrains, 5k lb Curt Hitch

SOLD: 2000 WJ 2WD CONVERTED TO 4X4, 97 TJ ON 35'S, 95 XJ ON 33'S
bigchevyman24 is offline   Reply With Quote
Unread 10-15-2007, 12:12 PM   #4
happymudder10
Registered User
2003 TJ Wrangler

Join Date: Jun 2005
Location: Florida
Posts: 875
Very nice, Thanks
__________________
Just a traveling cat in a tall black hat riding a goat. Nothing to see here.
happymudder10 is offline   Reply With Quote
Unread 10-15-2007, 12:30 PM   #5
Mayfair_Jeeper
Registered User
2006 TJ Wrangler

Join Date: Apr 2007
Location: West Columbia, South Carolina
Posts: 1,190
I love the way these look, but you can't drop the hood : (
__________________
2006 Jeep TJ X Modded with toys
2008 Jeep Liberty Sport Stock
1987 Cherokee 4.0 Renix...Build in Process
Mayfair_Jeeper is offline   Reply With Quote
Unread 10-15-2007, 12:36 PM   #6
bigchevyman24
Registered User
2000 WJ

Join Date: Jul 2006
Location: Demopolis, AL
Posts: 1,077
Quote:
Originally Posted by 06TJX
I love the way these look, but you can't drop the hood : (
I thought about that and it doesn't come back on the windsheild all the way ...but since the intake can be easily taken off, a twist of the screwdriver and I can lay the hood back for the longer visits under there
__________________
CURRENT: 2001 WJ V8 LIMITED - Quadratrac, 60th anniversary, Fat Bob's 2.5/2 lift, HID's, roof rack, 31" Rugged Terrains, 5k lb Curt Hitch

SOLD: 2000 WJ 2WD CONVERTED TO 4X4, 97 TJ ON 35'S, 95 XJ ON 33'S
bigchevyman24 is offline   Reply With Quote
Unread 10-15-2007, 12:51 PM   #7
Unscathed
Registered User
2001 TJ Wrangler

Join Date: Mar 2007
Location: Atlanta-Kennesaw
Posts: 1,030
I would have just tied off that black air hose in the air tub and not worried about drilling another hole in your cowl.. just use the vent that is already in the cowl.

Looks good otherwise..
__________________
Best Axles and service you will find. http://www.alljeep.com/oscommerce/in...p?cPath=32_617

The owner of Alljeep.com, Wayne Hartwig will work within your budget!!! He is very informative to anyone not knowing much about axle work and will meet or beat any competitor's advertised price on any specific product delivered to your door - even if he sells at cost!

Last edited by Unscathed; 10-15-2007 at 01:42 PM..
Unscathed is offline   Reply With Quote
Unread 10-15-2007, 01:01 PM   #8
Grewe02
Guns > Swords

Grewe02's Avatar
1980 CJ5

Join Date: Jul 2006
Location: San Diego, Kalifornia
Posts: 4,544
What year is your TJ? I see that you have the AX-15 so that means it was pre-2000. I wonder if under the cowl is any different for us 2000 and up guys...
__________________
Andy, KD8EIA
Quote:
Originally Posted by Jetscuh
I've had a crush on the Prius since it's debut. I got somethin' wrong upstairs.
Grewe02 is offline   Reply With Quote
Unread 10-15-2007, 01:14 PM   #9
JeepRocks86
Some Call me RockDog

JeepRocks86's Avatar
2003 TJ Wrangler

Join Date: Feb 2006
Location: Louisville, KY/ Columbus, IN
Posts: 6,351
looks good, i like it.
__________________
Stretched TJ , Coil overs, 42" IROKS, 60/14 bolt...
'95 YJ fuel injected 302, 8.8, cage, ARBs.
'04 QC LB Cummins 4x4
My TJ Build Thread.
www.kifourwheelers.com
For Sale:
TJ Rear Dana 44 shaftsfor sale
3 11"& 2 13" BBCS shocks



JeepRocks86 is offline   Reply With Quote
Unread 10-15-2007, 04:11 PM   #10
bigchevyman24
Registered User
2000 WJ

Join Date: Jul 2006
Location: Demopolis, AL
Posts: 1,077
Quote:
Originally Posted by Grewe02
What year is your TJ? I see that you have the AX-15 so that means it was pre-2000. I wonder if under the cowl is any different for us 2000 and up guys...
It's different for 2000 and up...it looks like this...pre-2000 looks like mine and the big black box is not there...:

2000 and up:
__________________
CURRENT: 2001 WJ V8 LIMITED - Quadratrac, 60th anniversary, Fat Bob's 2.5/2 lift, HID's, roof rack, 31" Rugged Terrains, 5k lb Curt Hitch

SOLD: 2000 WJ 2WD CONVERTED TO 4X4, 97 TJ ON 35'S, 95 XJ ON 33'S
bigchevyman24 is offline   Reply With Quote
Unread 10-15-2007, 04:20 PM   #11
Michael_K
Registered User

Join Date: Jul 2004
Location: ATL, GA
Posts: 976
Great job!

I thought I was cheap. You made your own snokel cap out of pipe end cap... I bet, you brew your own beer.
__________________
DailyDrivenTJ.com
JUST For Jeep TJ Owners Around the World!
Michael_K is offline   Reply With Quote
Unread 10-15-2007, 04:30 PM   #12
kizer
Registered User

Join Date: Dec 2003
Location: Marysville Wa. North of Seattle
Posts: 1,597
I suppose worst case you could of just cut a hole in the hood instead of in the cowl.
__________________
Links4Jeeps.com
1600+ Write-ups, and more
My Writeups | My Heap
kizer is offline   Reply With Quote
Unread 10-15-2007, 05:13 PM   #13
Grewe02
Guns > Swords

Grewe02's Avatar
1980 CJ5

Join Date: Jul 2006
Location: San Diego, Kalifornia
Posts: 4,544
Quote:
Originally Posted by bigchevyman24
It's different for 2000 and up...it looks like this...pre-2000 looks like mine and the big black box is not there...:

2000 and up:
Gah, I suppose I should've read your write-up better... You said that already. My bad!

Well it definitely looks good. I think I'm going to begin this project next payday. Thanks for the inspiration!
__________________
Andy, KD8EIA
Quote:
Originally Posted by Jetscuh
I've had a crush on the Prius since it's debut. I got somethin' wrong upstairs.
Grewe02 is offline   Reply With Quote
Unread 10-15-2007, 05:31 PM   #14
Kerndone
I lack money

Kerndone's Avatar
1999 TJ Wrangler

Join Date: Nov 2003
Location: Naperville, IL
Posts: 768
Looks good, I like the home-brew intake cap. If I didn't get a good deal on that hummer cap, I would have had to brainstorm like you did. Not sure I would have come up with that!

Mine is also a '99 with that plastic cover...I bought it in June, so it was an earlier model and I'd make the assumption they started using that cover sometime in the beginning of the '99's production run.
__________________
Red Jeep Club Member 111

'99 TJ - work in progress...see profile

'08 WK - Silver RME, DD.
Kerndone is offline   Reply With Quote
Unread 10-15-2007, 06:58 PM   #15
bigchevyman24
Registered User
2000 WJ

Join Date: Jul 2006
Location: Demopolis, AL
Posts: 1,077
My apologies, I thought your thread said 2000 and up...guess it's 99 and up on that cowl a/c cap...I could've have done it without kerndone's writeup...

No, I don't brew myself(but I do drink Natty Light lol...isn't that close enough?)

And if you plan on doing this, it's not really a time consuming or hard project...just make sure you get all your measurements right before you cut/drill...
