TJ HID projectors Build

Hi, last year, I've made customs projectors for my jeep yj : http://www.jeepforum.com/forum/f12/h...m-jeep-844071/

Now, I own a 2005 TJ and I decided to make BI-Xenon projectors for my jeep TJ. For the projectors, I choose Hella RS6 projectors Bi-xenon, from audi A6.

First, you need good projectors. You can take Hella, bosch, valeo projectors... The best way is to take projectors that comes from luxury cars, such as mercedes, audi, BMW, acura...

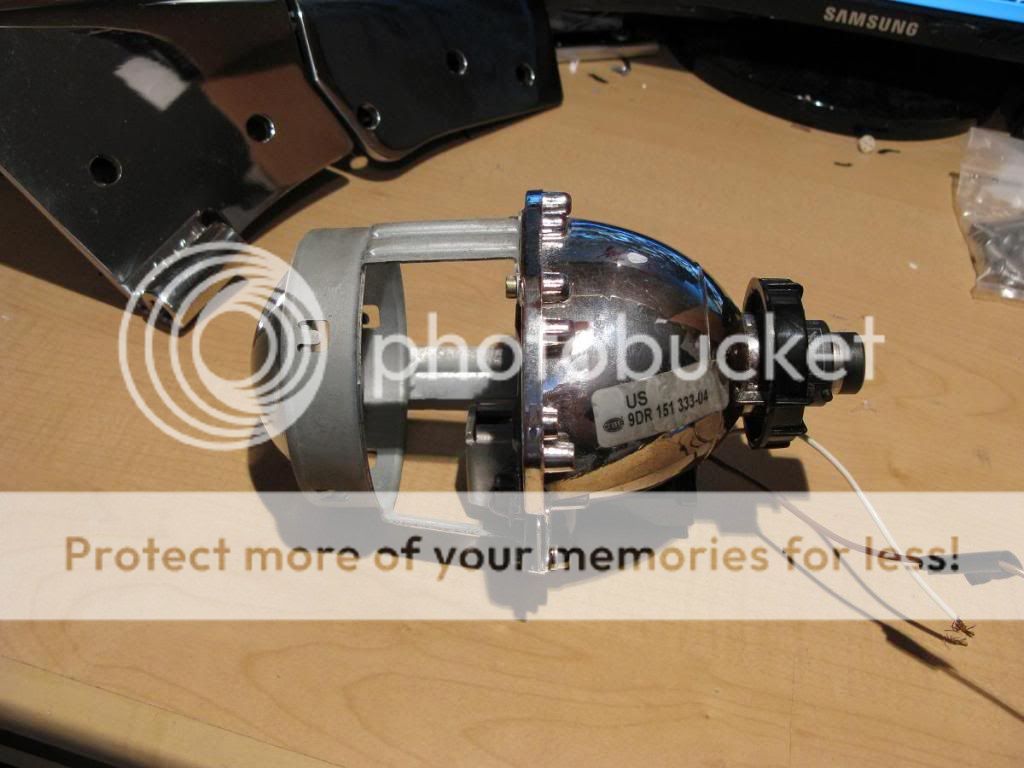

I took Hella RS6 projectors from audi A6 :




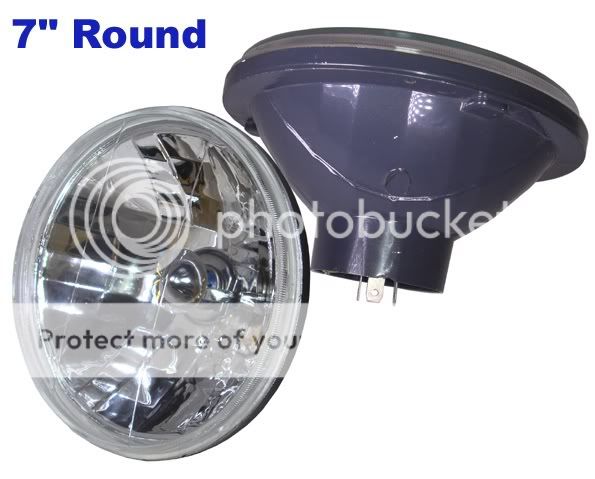

Then, you need H4 conversion.



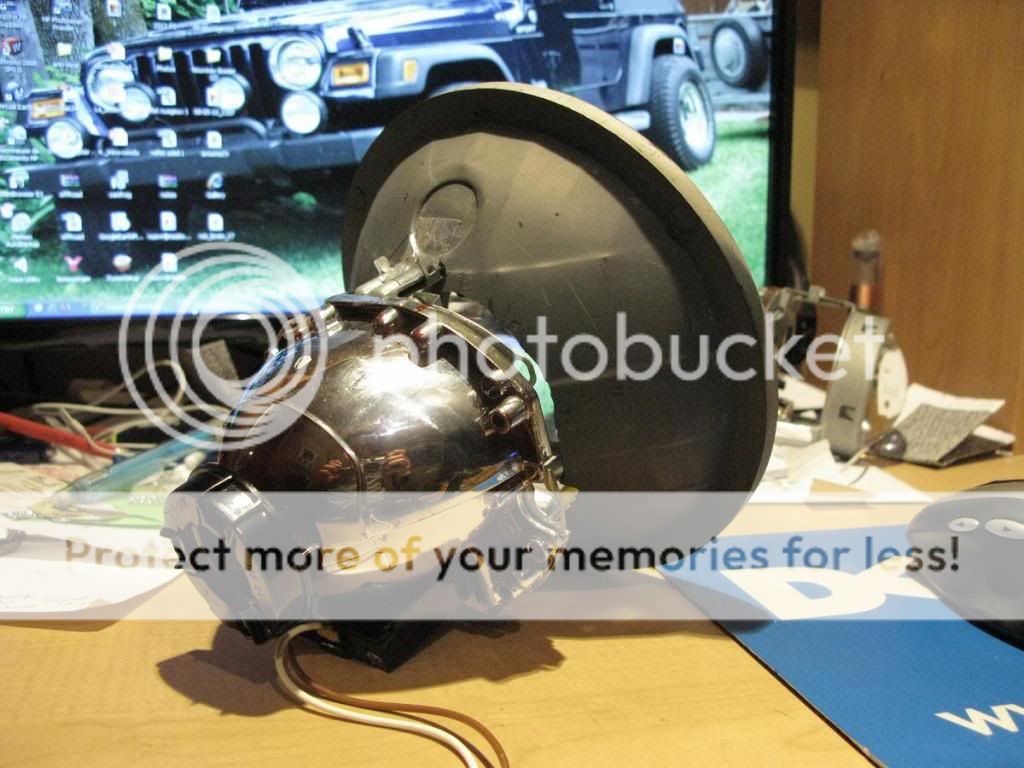

Now, i've cut a hole at the back of the H4 conversion, to insert the projector.



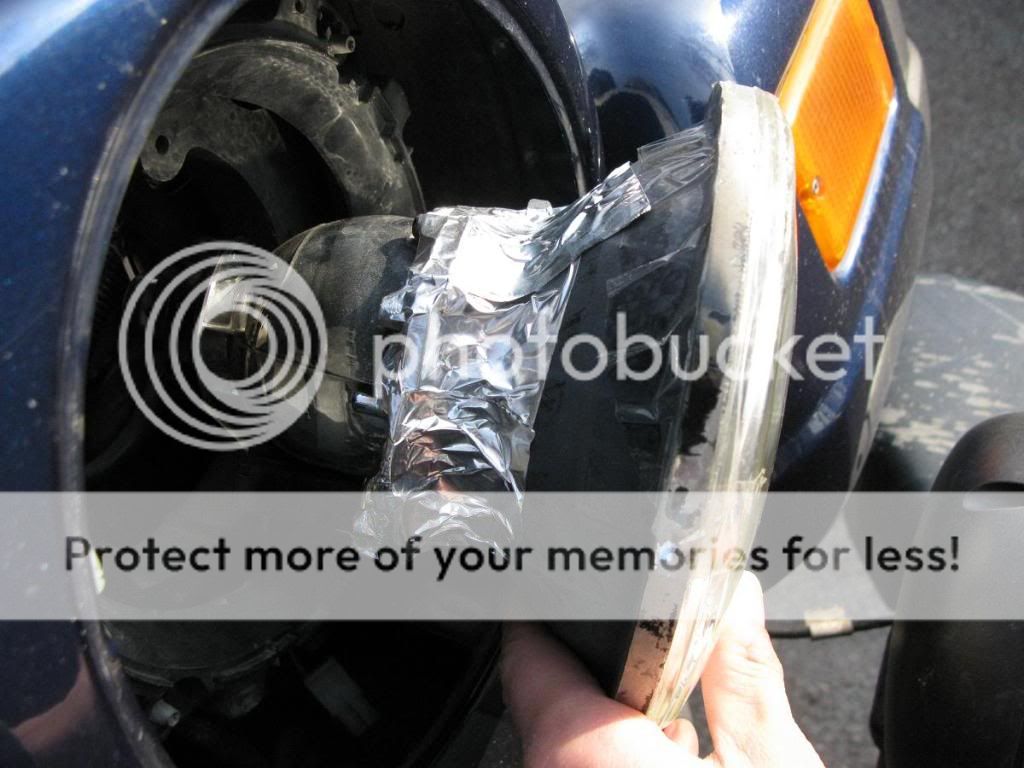

I did the hole to insert the projector press fit and I sealed it with Aluminium tape.



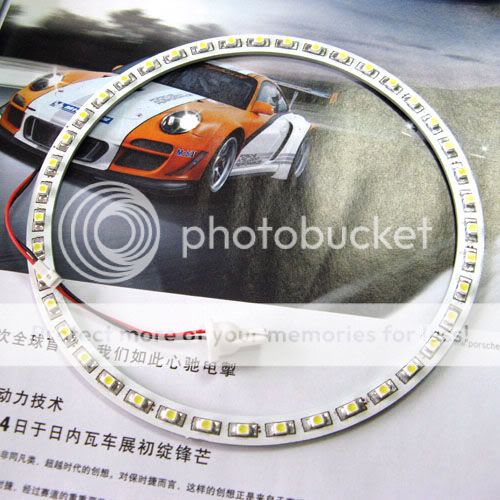

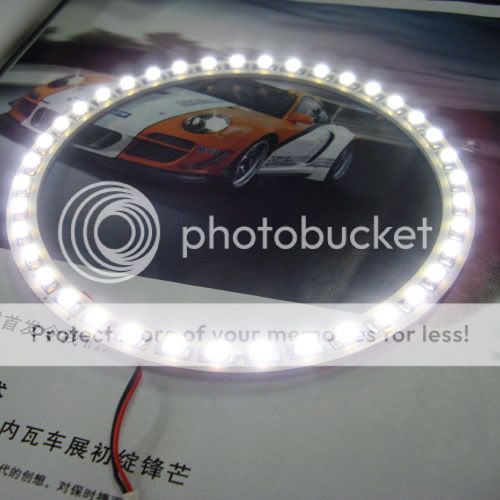

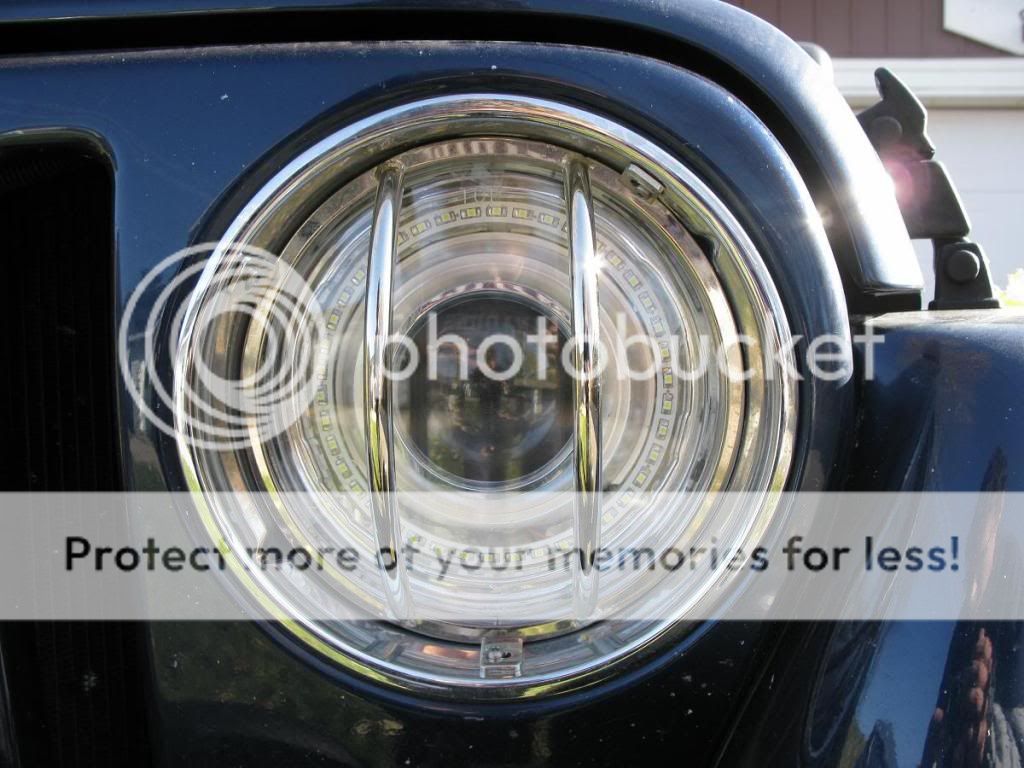

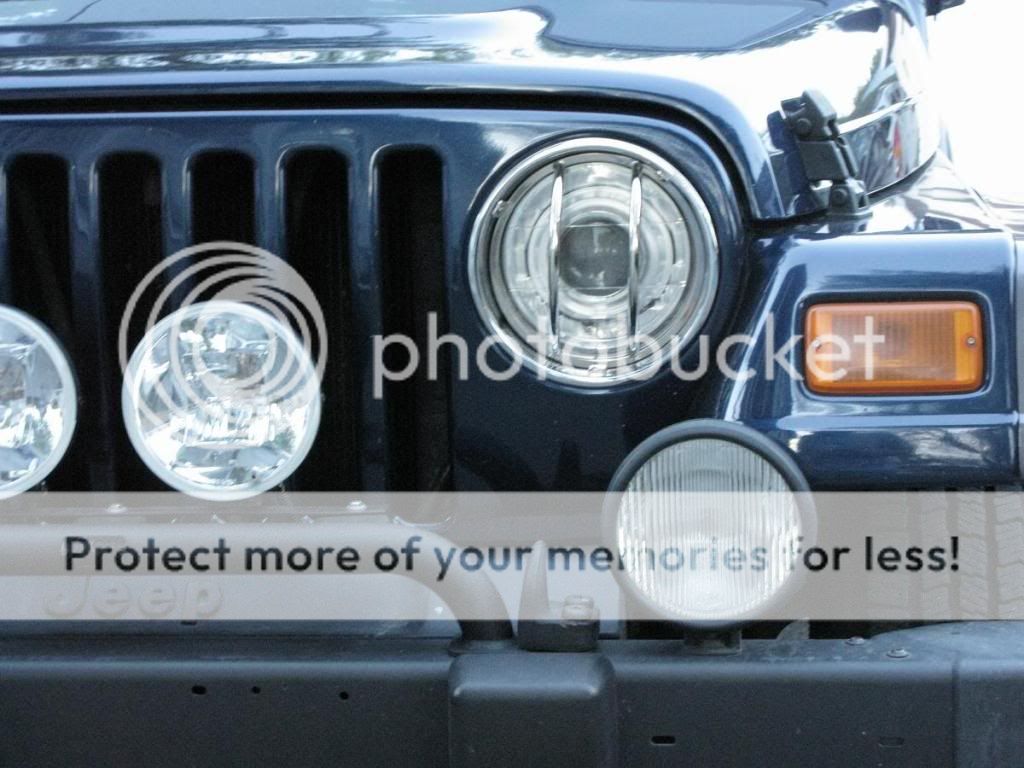

But before to seal it, I have insert a led ring. I am from Quebec (canada) so I need daytime running lights. The leds are my DRL and it make angel eyes the night. I have put my projector shroud too. (the shroud cover everything and make it more beautiful). I took the led from ebay for twelve bucks.





For the lights I chose HID 55W 6000K. It make very white light with a little bit of blue







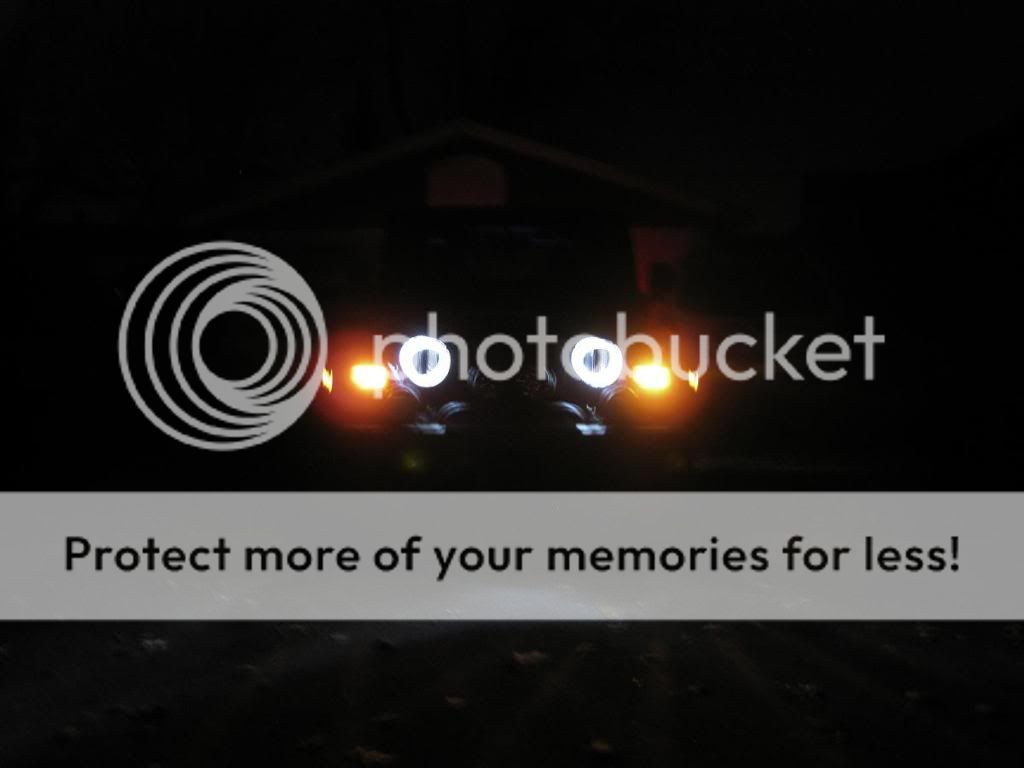

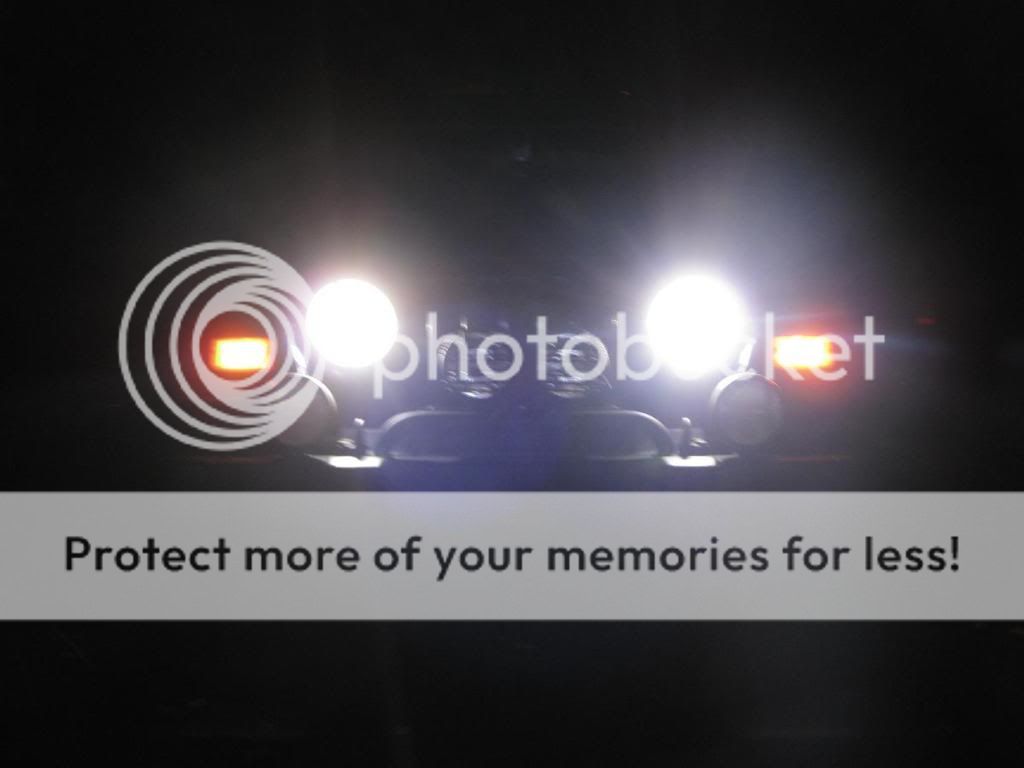

On this picture there is a dark spot on the left because I was in front of the jeep when I took the picture...I will try to make another one because this one is fuzzy...





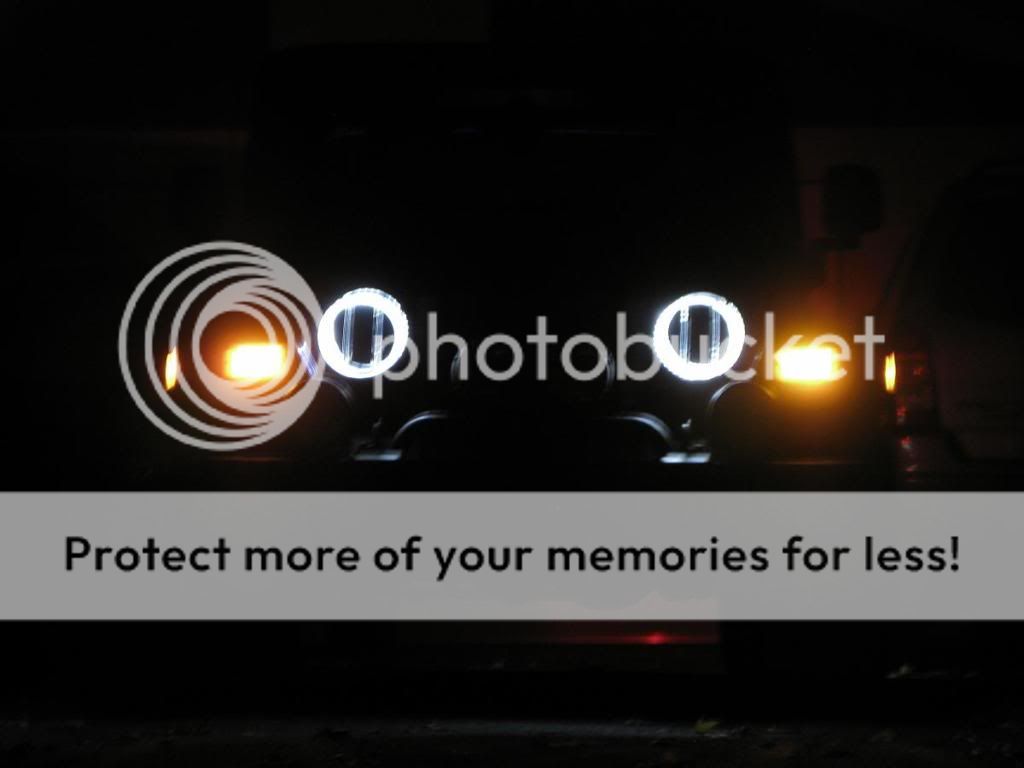

Angel eyes :








YJ 1988 , TJ 2005, YJ 1994 Part out
yjbleu is offline
Sponsored Links
Advertisement

post #2 of 31 Old 11-22-2010, 02:24 PM
breckboarder55
Registered User
1999 TJ Wrangler

Join Date: Sep 2007
Location: Houston/ College Station, TX
Posts: 1,074
Looks very well done, thank you for the write up.

How do you adjust the cut off?

To Veterans past and present, thank you for your service!
99 Jeep Wrangler-Just another TJ on 33"s
55 Dodge Royal Lancer- Resto Project
87 Mazda RX-7 Turbo II-Built.
87 Mazda RX-7 SE-Burn Victim
01 Honda S2000DD
breckboarder55 is offline
post #3 of 31 Old 11-22-2010, 02:37 PM Thread Starter
yjbleu
Registered User
2005 TJ Wrangler

Join Date: Jan 2009
Location: qc
Posts: 58
Quote:
Originally Posted by breckboarder55 View Post
Looks very well done, thank you for the write up.

How do you adjust the cut off?
I use the same oem adjust screws, now they aren't perfect, I need a little more tuning but it's very easy to do

YJ 1988 , TJ 2005, YJ 1994 Part out
yjbleu is offline
post #4 of 31 Old 11-22-2010, 04:06 PM
MikeyJ
Registered User
2000 TJ Wrangler

Join Date: Jan 2009
Location: Colorado Springs
Posts: 578
Looks great! Good write-up... Where did you wire the DRL's to?
MikeyJ is offline
post #5 of 31 Old 11-22-2010, 04:55 PM
mightydog78
Registered User
2013 JK Wrangler

Join Date: Jan 2009
Location: Charlotte/Winston-salem, NC
Posts: 1,989
thats pretty sweet

2013 JKU Sahara

Charlotte, NC / Southport, NC

Mechanical Engineer
mightydog78 is offline
post #6 of 31 Old 11-22-2010, 05:02 PM
BluThunder
Registered User
1997 TJ Wrangler

Join Date: Feb 2009
Location: Binbrook
Posts: 33
so how did you put the LED ring inside the H4 conversion lense? did you split the housing between the lense and the black housing or did it fit in the hole you cut?
BluThunder is offline
post #7 of 31 Old 11-23-2010, 11:17 AM
breckboarder55
Registered User
1999 TJ Wrangler

Join Date: Sep 2007
Location: Houston/ College Station, TX
Posts: 1,074
Is there a reason you couldn't use the actual HIDS/ballast from the car you pulled the projector out of? Would projectors not allow for a bright setting to have the raised/extended cut off?

To Veterans past and present, thank you for your service!
99 Jeep Wrangler-Just another TJ on 33"s
55 Dodge Royal Lancer- Resto Project
87 Mazda RX-7 Turbo II-Built.
87 Mazda RX-7 SE-Burn Victim
01 Honda S2000DD
breckboarder55 is offline
post #8 of 31 Old 11-23-2010, 12:01 PM Thread Starter
yjbleu
Registered User
2005 TJ Wrangler

Join Date: Jan 2009
Location: qc
Posts: 58
Quote:
Originally Posted by MikeyJ View Post
Looks great! Good write-up... Where did you wire the DRL's to?

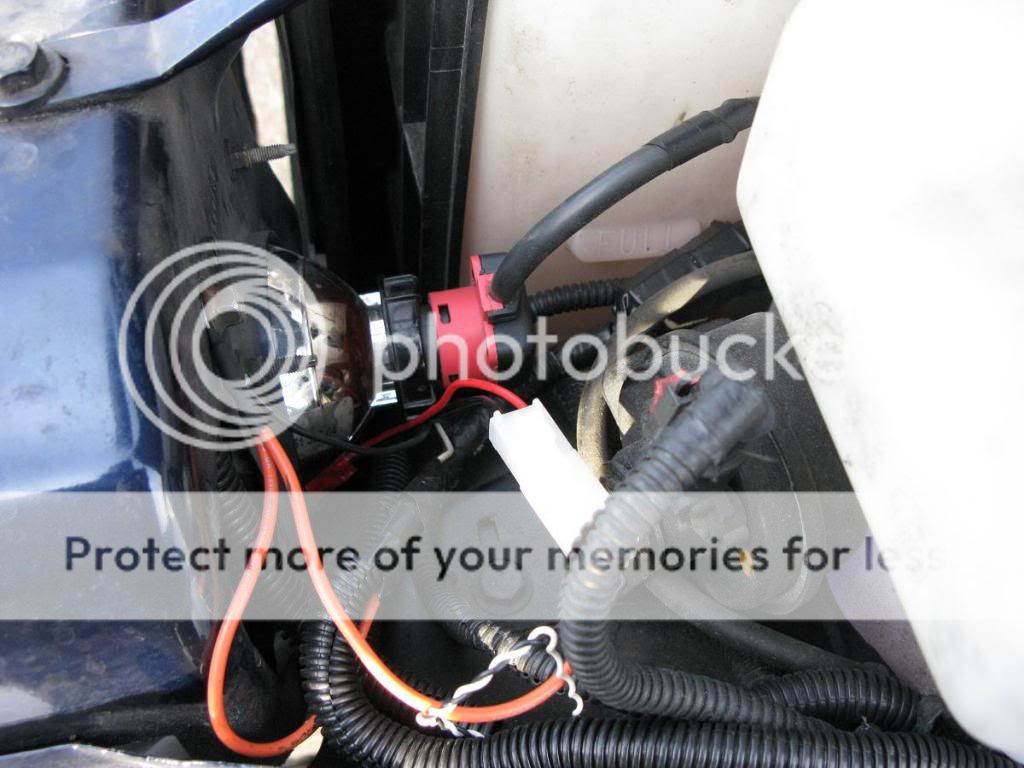

For the DRL, (my leds) I wired them on ignition with a switch, so I can decide to have DRL always off or ON automatic. I didn't want to have the hid always on for drl, that's why I've decided to use led as DRL.


Quote:
Originally Posted by BluThunder View Post
so how did you put the LED ring inside the H4 conversion lense? did you split the housing between the lense and the black housing or did it fit in the hole you cut?

I have took off the lens to put the ring in place

Quote:
Originally Posted by breckboarder55 View Post
Is there a reason you couldn't use the actual HIDS/ballast from the car you pulled the projector out of? Would projectors not allow for a bright setting to have the raised/extended cut off?

I can use the oem HID/Ballast from the car I have took the projectors off. The audi came with 35W 4300K hid. I took aftermarket hid 55W 6000K because they are more white and brighter. But you can take any hid and ballast, as long as it's D2S bulbs.

YJ 1988 , TJ 2005, YJ 1994 Part out
yjbleu is offline
post #9 of 31 Old 11-23-2010, 12:10 PM
fang_x
Registered User
1998 TJ Wrangler

Join Date: Jun 2009
Location: Montreal, Canada
Posts: 1,258
Hey, hello from Quebec too

Im from Montreal..


how much did it cost for all the parts? I might want to do this

'98 TJ Manual -2.5" rcx long arm on 31
'99 Xj, Stock on 30"
'86 Monte Carlo 357 stroker. 450hp.
fang_x is offline
post #10 of 31 Old 11-23-2010, 12:55 PM Thread Starter
yjbleu
Registered User
2005 TJ Wrangler

Join Date: Jan 2009
Location: qc
Posts: 58
Quote:
Originally Posted by fang_x View Post
Hey, hello from Quebec too

Im from Montreal..


how much did it cost for all the parts? I might want to do this



It's sure it's expensive, it didn't cost me much because I already had my projectors and projectors bezel. You can find projectors on ebay for +/- 100$. (There is a place in laval that they sale on ebay but you can buy them at laval so you save the shipping.)

You need

-H4 conversion +/- 50$

-Hid kit (in my case I had the oem Audi kit 35w, but I decided to buy 55w. I've paid 50$ on ebay, I run them since one month and didn't had any problem yet. I'm pretty sure that the audi oem hid are better but for the price, you have nothing to loose.

-Projectors and schroud

-Led rings (about fifteen bucks on ebay shipping inclued)

-Aluminium tape 5$, switch and wiring maybe 10-15 bucks...

In my case I had a friend who gave me projectors and schroud, and I took my H4 conversion that I already have since one year, so it cost me like 20$ + 50 $ the 55w bulbs and ballast because I decided to go with 55 instead of 35 watt, but it's sure if you start with nothing it's about 250$ of parts min. But you are far of the 950$ that they want for this Xsighting Lighting™ - Products, and you have the same results




PS fang_x Do you know www.quebec4x4.com/forum ?? It's like jeep forum but it's in french, people are very nice

YJ 1988 , TJ 2005, YJ 1994 Part out
yjbleu is offline
post #11 of 31 Old 12-08-2010, 02:20 PM
Sprungover
Registered User

Join Date: Mar 2005
Posts: 669
Will the aluminum tape seal the headlights properly?
Sprungover is offline
post #12 of 31 Old 12-08-2010, 02:41 PM
DBibeau855
Registered User
2006 TJ Wrangler

Join Date: May 2010
Location: Goose Creek
Posts: 114
J'aime ca, tres bien.

55w 6000 DDM HIDs. 130 Watt KC daylighters(X4). AA SYE, Tom Woods CV drive shaft, currie upper rear control arms and 33X12.5 KM2s. Rubicon Express 3.5 inch lift. Supperior D35 30 Spline C clip eliminator, Ox locker, 4.88 gears. HP D30 W/ detroit locker w/ currie adjustable arms. Currie front Anti Rock. Adjustable front and rear track bars,
DBibeau855 is offline
post #13 of 31 Old 12-09-2010, 02:59 PM Thread Starter
yjbleu
Registered User
2005 TJ Wrangler

Join Date: Jan 2009
Location: qc
Posts: 58
Quote:
Originally Posted by Sprungover View Post
Will the aluminum tape seal the headlights properly?
yes, I agree it dosen't look very professional but I didn't found nothing better, and it works perfectly....

Quote:
Originally Posted by DBibeau855 View Post
J'aime ca, tres bien.

merci !

YJ 1988 , TJ 2005, YJ 1994 Part out
yjbleu is offline
post #14 of 31 Old 12-10-2010, 02:10 AM
rs4race
Registered User
1997 TJ Wrangler

Join Date: Aug 2009
Location: Bellevue, WA
Posts: 1,130
nice writeup. Some Hid's done properly with a good projector. I think I might look into this soon, but I will need a way to seal the bulb better. Lots of rain and mud here.

My Build
http://www.jeepforum.com/forum/f22/rs4races-build-957569/
rs4race is offline
post #15 of 31 Old 12-10-2010, 08:35 AM Thread Starter
yjbleu
Registered User
2005 TJ Wrangler

Join Date: Jan 2009
Location: qc
Posts: 58
Quote:
Originally Posted by rs4race View Post
nice writeup. Some Hid's done properly with a good projector. I think I might look into this soon, but I will need a way to seal the bulb better. Lots of rain and mud here.
Before the aluminium tape I've put like eurethane or epoxy (I don't know exactly the name)

But it's sure in my case I don't go in deep mud, I've tried in rain, snow, and it's okay.

YJ 1988 , TJ 2005, YJ 1994 Part out
yjbleu is offline
